Scotsman FBA-HID312A - FBA-HID312A

Scotsman FBA-HID312A - FBA-HID312A

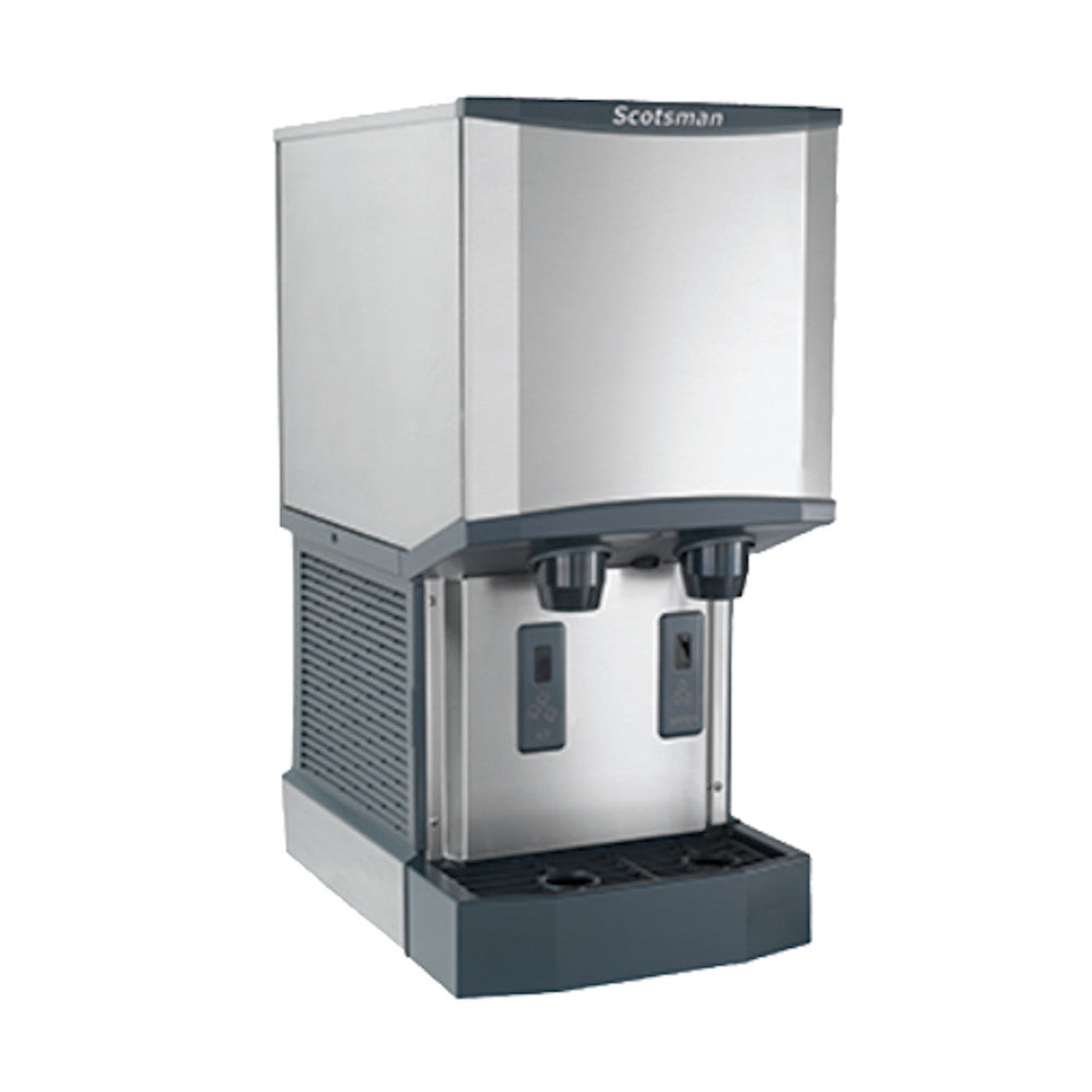

The Scotsman HID312A-1 Meridian Air-Cooled 260-lb Production Ice Machine and Water Dispenser features up to 260 lb ice production per 24 hours and 12 lb. ice bin storage capacity. Water and ice dispenser with H2 Nugget Ice. Air cooled operation and self contained condenser. Durable and attractive stainless steel exterior. External air filter and AnION antimicrobial protection. R-134a refrigerant. 115V/60/1-ph, 7.0 amps. CULus.

This HID312A-1 Meridian Air-Cooled 260-lb Production Ice Machine and Water Dispenser measures 35"H x 16.25"W x 24.38"D

Features

• Scotsman HID312A-1 Meridian Air-Cooled 260-lb Production Ice Machine and Water Dispenser
• Max Fuse Size or HACR Circuit Breaker: 15
• Bin Capacity: 12 lb
• Total Load Amps: 7.0 lb
• Dimensions: 35"H x 16.25"W x 24.38"D
• Weight: 183

Product Features

The Meridian Difference: Smarter construction, durable stainless steel evaporator and exterior panels. Greaseless bearings for reduced maintenance. Larger sink opening and dispensing area. Antimicrobial AquaArmor with AgION is molded into key components. Space-maximizing design features the industry's smallest operational footprint relative to capacity. Featuring specially designed contoured sides for enhanced breathability and an external air filter. More convenient front access - removable front panels allow ease of access and service to all key internal components. Including a removable storage bin for better cleaning and maintenance access. Enhanced service features - intuitive LED diagnostic lights reduce service time. Unit specific QR code for quick access to service manuals and warranty history. Convenient USB drive that allows for fast software updates. New removable sink and grill provide maximum access for ease of cleaning. Energy and Water efficient. Quieter operation.

What our Experts Think

• Durable Construction: Constructed with stainless steel exterior panels and a rust-free evaporator, ensuring longevity and ease of cleaning.

• Energy and Water Efficiency: Designed to consume 4.9 kWh of energy per 100 lbs of ice produced and utilizes 12 gallons of water per 100 lbs, promoting operational efficiency.

• Certifications: Holds certifications from NSF and cULus, meeting recognized standards for safety and quality.

• Warranty: Comes with a 3-year parts and labor warranty, along with a 5-year warranty on the compressor and condenser, providing assurance of quality and reliability

Q&A

Q: What is the Scotsman HID312A-1 Meridian Ice and Water Dispenser?
A: The Scotsman HID312A-1 is a countertop dispenser that produces up to 260 pounds of chewable H² Nugget Ice daily and stores up to 12 pounds. It features touch-free ice and water dispensing, enhancing sanitation and convenience.

Q: What are the dimensions and weight of the unit?
A: The dispenser measures 16.25 inches in width, 24.38 inches in depth, and 35 inches in height, with a weight of approximately 183 pounds.

Q: What type of ice does it produce?
A: It produces chewable H² Nugget Ice, known for its slow-melting properties and suitability for various beverages.

Q: What are the electrical requirements for this dispenser?
A: The unit operates on 115 volts, 60 Hz, single-phase power, drawing 7.0 amps.

Q: Is the Scotsman HID312A-1 energy-efficient?
A: Yes, it is designed for energy and water efficiency, contributing to lower operational costs.

Q: Does it comply with safety and environmental standards?
A: Yes, the dispenser is cULus, NSF, and CE certified, ensuring adherence to recognized safety and quality standards.

Q: What maintenance features does it offer?
A: Features include sealed, maintenance-free bearings, a fully removable storage bin, and a removable air filter, all designed to simplify cleaning and reduce maintenance efforts.

Q: What warranty is provided with this dispenser?
A: It comes with a 3-year parts and labor warranty on all components, along with a 5-year warranty on the compressor and condenser.

Q: Is the Scotsman HID312A-1 suitable for outdoor use?
A: No, this model is intended for indoor use only.

Q: What is included with the dispenser?
A: The unit includes a large removable drip tray with a drain, a front-accessible removable air filter, and a QR code for quick access to service manuals and warranty information.

Maintenance Tips

• Remove the upper front panel.

• Discard all ice from the bin.

• Press and hold the "Off" button until the machine shuts down.

• Drain the reservoir by pulling out the drain plug; replace it securely after draining.

• Prepare a cleaning solution by mixing 2.5 ounces of Clear 1 Ice Machine Scale Remover with 1 quart of warm (90°F to 110°F) potable water.

• Fill the reservoir with the cleaning solution.

• Remove the ice sweep and clean it along with the breaker using the solution, avoiding contact with the bearing.

• Reinstall the ice sweep and press both the "On" and "Off" buttons simultaneously for 5 seconds to initiate the cleaning cycle.

• After the cycle, drain the solution, rinse components, and sanitize following the manufacturer's instructions.
