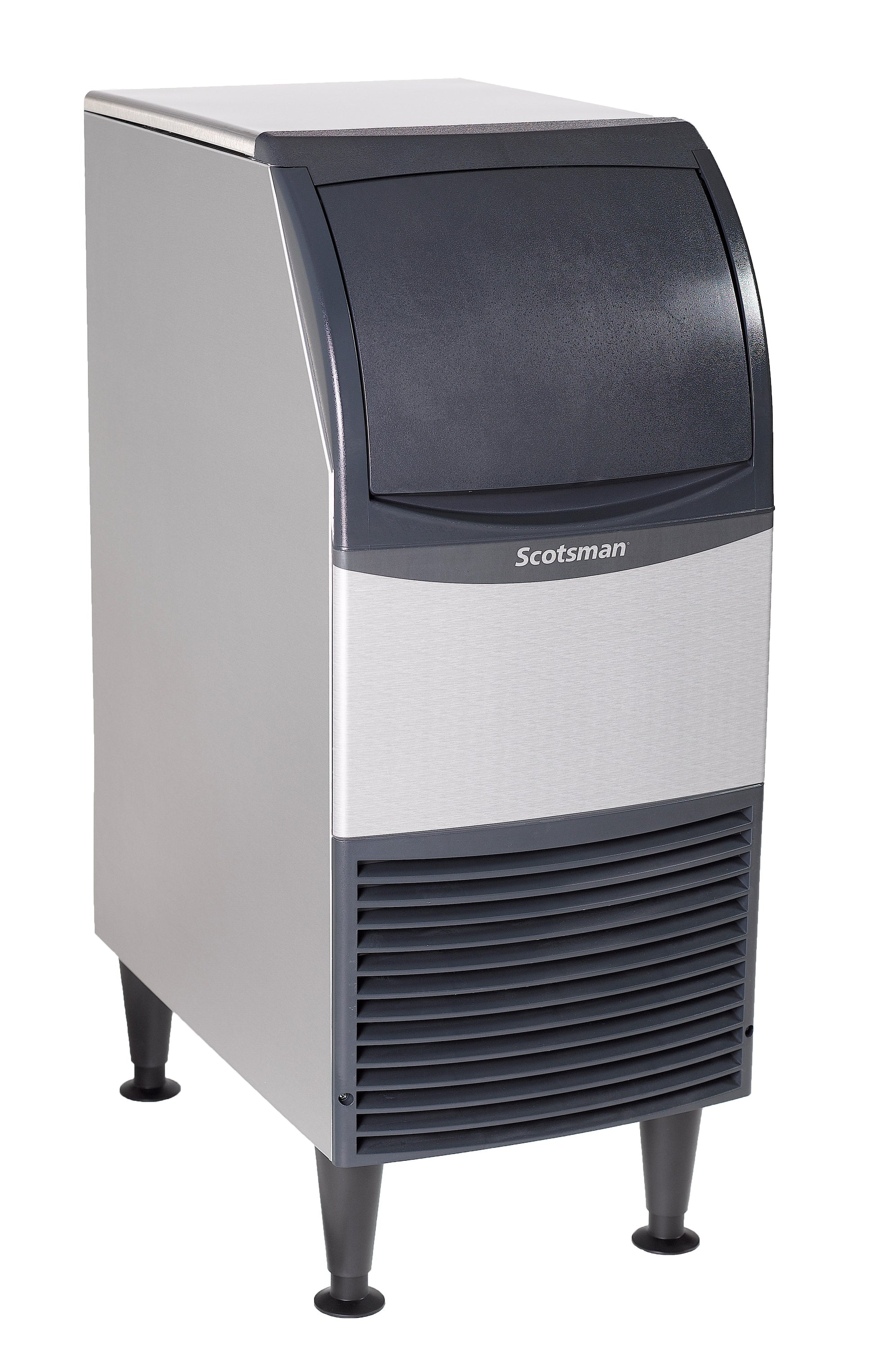

Scotsman UN0815A-1 Air Cooled Nugget Ice Maker with Bin Produces up to 79 Pounds of Ice Per Hour - SCUN0815A1
The Scotsman UN0815A-1 ice maker features a space saving design that is only 15" wide. Regardless of your kitchen space, this ice maker can be placed in the tightest of locations. No side clearance is required for this front breathing unit. This Scotsman ice machine has a unit specific QR code for quick access to service manuals, cleaning guides and warranty history. It's ergonomic slide back door allows easy access to ice in the bin. This machine produces up to 79 lbs per day and stores 36 lbs, maximizing ice output despite its small footprint.
Features
- Only 15” wide, this ice maker can be placed it the tightest locations
- Front breathing - No side clearance required for flexible placement
- Recessed utility chase provides clearance for tight installs
- Unit specific QR code for quick access to service manuals, cleaning guides and warranty history
- Ergonomic slide back door allows easy access to ice in the bin
- Power cord, NEMA 5-15P plug, ice scoop and adjustable legs are included for quick and easy installation
- Sealed, maintenance-free bearings for reduced preventative maintenance and long-lasting performance
- Stainless steel evaporator and auger for maximum durability
- Heavy duty, rust-free front panel and corrosion-resistant aluminum alloy side panels for maximum lifespan.
- 3 Year parts and labor warranty
- Designed, engineered and assembled in the USA
- Produces up to 79 lb (98 kg) per day and stores 36 lb (26 kg), maximizing ice output despite its small footprint
- Energy Star certified
- Meets US Safe Drinking Act low lead requirements
- Non-ozone depleting R-134A refrigerant
Specifications
| Model |
UN0815A-1 |
| Dimensions (W x D x H) |
15" W x 24" D x 38" H |
| Ice Type |
Nugget Ice: The Original Chewable Ice! Soft ice ideal for fountain beverages and blended fruit drinks. |
| Ice Production |
Up to 79 lbs per 24 hours |
| Condenser Unit |
Air Cooled |
| Storage Capacity |
36 lbs |
| Electrical Information |
115/50/1 |
| Max Fuse Size (amps) |
15 amps |
| Circuit Wires |
2 |
| Energy Consumption kWh/100 lbs |
7.11 kWh |
| Water Usage, Gallons/100 lbs |
12 gallons |
What our Experts Think
-
High Production Capacity: Produces up to 79 lbs of nugget ice per day under standard conditions (70°F air and 50°F water) and stores up to 36 lbs, ensuring a consistent ice supply.
-
Space-Saving Design: Measuring only 15" in width, this unit fits into tight spaces. Its front-breathing design eliminates the need for side clearance, and an optional floor mount kit allows for installation under 34" ADA countertops.
-
User-Friendly Operation:
-
QR Code Access: Each unit has a unique QR code for quick access to service manuals, cleaning guides, and warranty history.
-
Ergonomic Ice Bin: Features a slide-back door for easy access to stored ice.
-
Durable Construction: Built with a rust-free front panel and corrosion-resistant aluminum alloy side panels for maximum lifespan.
-
Energy Efficiency: Certified by ENERGY STAR, this model uses R-134A refrigerant and meets U.S. Safe Drinking Act low lead requirements, making it environmentally friendly.
Q&A
Q: What is the Scotsman UN0815A-1 Air Cooled Nugget Ice Maker with Bin?
A: The Scotsman UN0815A-1 is an undercounter ice machine that produces up to 79 pounds of nugget ice per day and stores up to 36 pounds in its built-in bin.
Q: What are the dimensions and weight of this ice maker?
A: It measures 15 inches in width, 24 inches in depth, and 38 inches in height, with a shipping weight of 108 pounds.
Q: What type of ice does it produce?
A: It produces chewable, nugget-style ice, also known as "The Original Chewable® Nugget Ice," which is favored for its chewable texture and ability to absorb beverage flavors.
Q: What are the electrical requirements for this unit?
A: The ice maker operates on 115 volts, 60 Hz, single-phase power, drawing 7.11 kWh per 100 pounds of ice produced.
Q: Is the Scotsman UN0815A-1 energy-efficient?
A: Yes, it is ENERGY STAR certified, indicating it meets energy efficiency guidelines set by the U.S. Environmental Protection Agency.
Q: Does it comply with safety and environmental standards?
A: Yes, the unit meets U.S. Safe Drinking Act low lead requirements and uses non-ozone depleting R-134A refrigerant.
Q: What warranty is offered with this ice maker?
A: It comes with a 3-year parts and labor warranty on all components.
Q: Is the Scotsman UN0815A-1 suitable for outdoor use?
A: No, this model is designed for indoor use only.
Q: What is included with the ice maker?
A: The unit includes a power cord with a NEMA 5-15P plug, an ice scoop, and adjustable 6-inch legs for easy installation.
Maintenance Tips
-
Remove the front panel and switch the machine off.
-
Discard all ice from the bin.
-
Drain the reservoir by pulling the drain plug, then replace it.
-
Mix 4 ounces of Clear 1 Ice Machine Scale Remover with 1.5 quarts of warm water (90°F to 110°F).
-
Pour the solution into the reservoir.
-
Switch the machine to the Wash position; the pump will activate.
-
Operate for 15 minutes, then switch to OFF.
-
Drain the reservoir.
-
Remove the spray platform and inspect all jets, clearing any obstructions.
