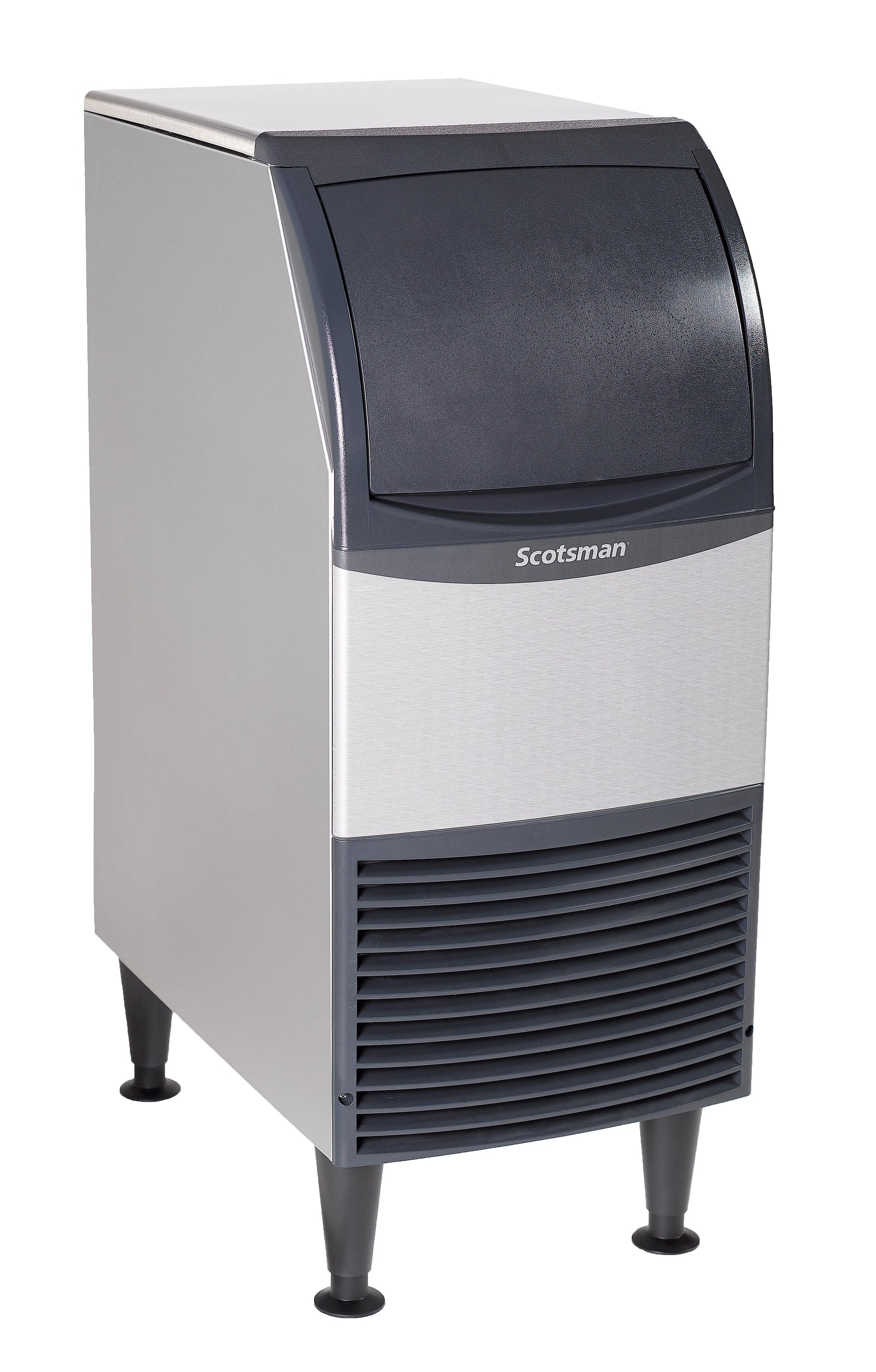

Scotsman UN1215A-1 Air Cooled Nugget Ice Maker with Bin Produces up to 119 Pounds of Ice Per Hour - SCUN1215A1

Scotsman UN1215A-1 Air Cooled Nugget Ice Maker with Bin Produces up to 119 Pounds of Ice Per Hour - SCUN1215A1

The Scotsman UN1215A-1 ice maker features a space saving design that is only 15" wide. Regardless of your kitchen space, this ice maker can be placed in the tightest of locations. No side clearance is required for this front breathing unit. This Scotsman ice machine has a unit specific QR code for quick access to service manuals, cleaning guides and warranty history. It's ergonomic slide back door allows easy access to ice in the bin. This machine produces up to 119 lbs per day and stores 36 lbs, maximizing ice output despite its small footprint.

Features

• Only 15” wide, this ice maker can be placed it the tightest locations
• Front breathing - No side clearance required for flexible placement
• Recessed utility chase provides clearance for tight installs
• Unit specific QR code for quick access to service manuals, cleaning guides and warranty history
• Ergonomic slide back door allows easy access to ice in the bin
• Power cord, NEMA 5-15P plug, ice scoop and adjustable legs are included for quick and easy installation
• Sealed, maintenance-free bearings for reduced preventative maintenance and long-lasting performance
• Stainless steel evaporator and auger for maximum durability
• Heavy duty, rust-free front panel and corrosion-resistant aluminum alloy side panels for maximum lifespan.
• 3 Year parts and labor warranty
• Designed, engineered and assembled in the USA
• Produces up to 119 lb (54 kg) per day and stores 36 lb (26 kg), maximizing ice output despite its small footprint
• Energy Star certified
• Meets US Safe Drinking Act low lead requirements
• Non-ozone depleting R-134A refrigerant

Specifications

What our Experts Think

• Ice Production and Storage: Produces up to 119 lbs of nugget ice per day under optimal conditions (70°F air and 50°F water temperatures), with an AHRI-certified production rate of 84 lbs at 90°F air and 70°F water temperatures. It includes a storage bin with a capacity of 36 lbs, ensuring a steady ice supply during peak times.

• Compact Design: Measuring 15" in width, 24" in depth, and 38" in height, this undercounter unit fits seamlessly into spaces with limited room.

• Energy and Water Efficiency: This model is Energy Star certified, consuming approximately 6.73 kWh of energy and 12 gallons of water per 100 lbs of ice produced.

• User-Friendly Features: Equipped with an ergonomic slide-back door for easy access to ice, the UN1215A-1 also features a unit-specific QR code for quick access to manuals and warranty information.

• Durable Construction: Built with a stainless steel evaporator and auger, along with sealed, maintenance-free bearings, ensuring long-lasting durability and reliable performance.

• Environmental Considerations: Utilizes R-134A refrigerant, which is non-ozone depleting and complies with U.S. Safe Drinking Act low lead requirements

Q&A

Q: What is the daily ice production capacity of the Scotsman UN1215A-1? A: The Scotsman UN1215A-1 produces up to 119 pounds of nugget ice per day under optimal conditions (70°F air and 50°F water temperatures)

Q: How much ice can the storage bin hold? A: The integrated storage bin has a capacity of 36 pounds, ensuring a sufficient ice supply during peak times.

Q: What are the dimensions of the unit? A: The UN1215A-1 measures 15 inches in width, 24 inches in depth, and 38 inches in height, making it suitable for undercounter installation.

Q: What type of ice does this machine produce? A: It produces chewable nugget ice, known for its slow melting and suitability for various beverage applications.

Q: Is the Scotsman UN1215A-1 energy-efficient? A: Yes, this model is ENERGY STAR certified, utilizing R-134A refrigerant and consuming approximately 6.73 kWh per 100 pounds of ice produced.

Q: What are the electrical requirements for this ice maker? A: The UN1215A-1 operates on a 115V, 60Hz, single-phase electrical supply, drawing 2.3 amps.

Q: How does the machine facilitate maintenance? A: It features sealed, maintenance-free bearings and a stainless steel evaporator and auger for reduced maintenance and enhanced durability

Q: What features enhance user convenience? A: The UN1215A-1 includes a front-breathing design for flexible installation, a 6-inch leg kit for easy setup, and a unit-specific QR code for quick access to documents and warranty information.Q: Is the Scotsman UN1215A-1 suitable for outdoor use? A: No, this model is designed for indoor use only, specifically for undercounter applications.

Maintenance Tips

• Regular Cleaning: Clean and sanitize the ice-making system approximately every six months to prevent scale buildup and ensure optimal performance.

• Condenser Maintenance: Periodically clean the condenser by removing the front panel and vacuuming the surface of the condenser fins. Brush off any loose dirt, and if grease is embedded, use coil cleaner to wash it out.

• Optical Sensor Care: Clean the optical sensors located at the top of the ice chute to prevent false bin full indications. Remove the chute cover from the back of the bin, extract the sensors by removing the white c-clip, clean the sensor lenses with a cotton swab dipped in a solution of 4 ounces of Clear 1 Ice Machine Scale Remover mixed with 1.5 quarts of warm water (900°F/320°C to 1100°F/430°C), rinse with clean water, and reinstall.

• Water Quality Management: Use a water filtration system to minimize mineral deposits, enhance ice quality, and reduce scale buildup.

• Monitor Ice Production: Regularly check for unusual noises, reduced ice production, or changes in ice quality, and address issues promptly to ensure consistent operation.

• Professional Servicing: Schedule annual professional maintenance to ensure all components function correctly and to extend the machine's lifespan.
