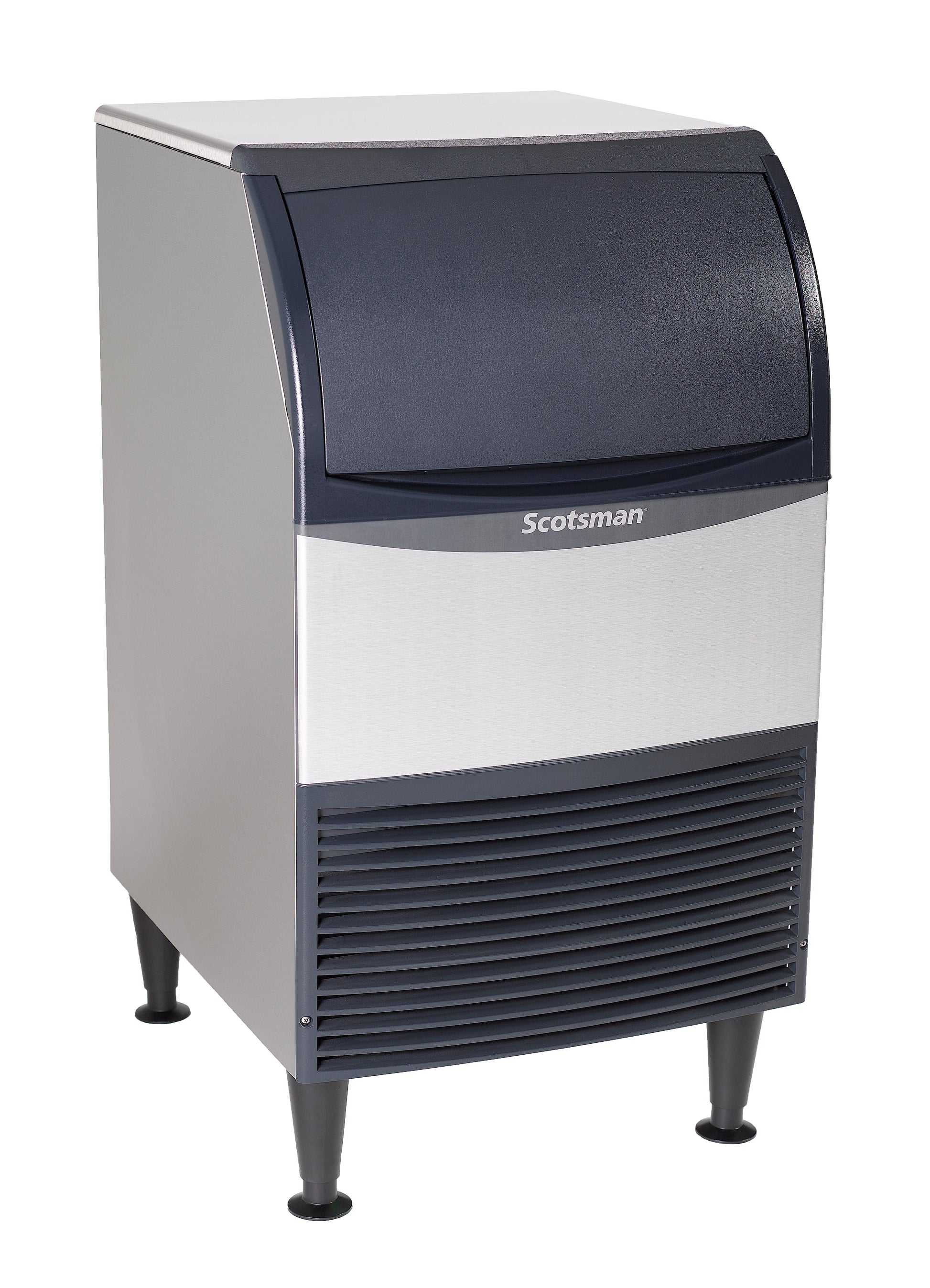

Scotsman UN1520A-1 Air Cooled Nugget Ice Maker with Bin Produces up to 167 Pounds of Ice Per Hour - SCUN1520A1
The Scotsman UN1520A-1 ice maker features a space saving design that is only 20" wide. Regardless of your kitchen space, this ice maker can be placed in the tightest of locations. No side clearance is required for this front breathing unit. This Scotsman ice machine has a unit specific QR code for quick access to service manuals, cleaning guides and warranty history. It's ergonomic slide back door allows easy access to ice in the bin. This machine produces up to 167 lbs per day and stores 57 lbs, maximizing ice output despite its small footprint.
Features
- Only 20” wide, this ice maker can be placed it the tightest locations
- Front breathing - No side clearance required for flexible placement
- Recessed utility chase provides clearance for tight installs
- Unit specific QR code for quick access to service manuals, cleaning guides and warranty history
- Ergonomic slide back door allows easy access to ice in the bin
- Power cord, NEMA 5-15P plug, ice scoop and adjustable legs are included for quick and easy installation
- Sealed, maintenance-free bearings for reduced preventative maintenance and long-lasting performance
- Stainless steel evaporator and auger for maximum durability
- Heavy duty, rust-free front panel and corrosion-resistant aluminum alloy side panels for maximum lifespan.
- 3 Year parts and labor warranty
- Designed, engineered and assembled in the USA
- Produces up to 167 lb (54 kg) per day and stores 36 lb (26 kg), maximizing ice output despite its small footprint
- Energy Star certified
- Meets US Safe Drinking Act low lead requirements
- Non-ozone depleting R-134A refrigerant
Specifications
| Model |
UN1520A-1 |
| Dimensions (W x D x H) |
20" W x 24" D x 38" H |
| Ice Type |
Nugget Ice: The Original Chewable Ice! Soft ice ideal for fountain beverages and blended fruit drinks. |
| Ice Production |
Up to 167 lbs per 24 hours |
| Condenser Unit |
Air Cooled |
| Storage Capacity |
36 lbs |
| Electrical Information |
115/50/1 |
| Max Fuse Size (amps) |
15 amps |
| Circuit Wires |
2 |
| Energy Consumption kWh/100 lbs |
5.23 kWh |
What our Experts Think
-
Ice Production and Storage: Produces up to 167 lbs of nugget ice per day under standard conditions (70°F air and 50°F water) and stores up to 57 lbs, ensuring a consistent ice supply for your establishment.
-
Space-Saving Design: Measuring 20" in width, 24" in depth, and 38" in height, this unit fits into tight spaces. Its front-breathing design eliminates the need for side clearance, and an optional floor mount kit allows for installation under 34" ADA-compliant countertops.
-
User-Friendly Operation:
-
QR Code Access: Each unit has a unique QR code for quick access to service manuals, cleaning guides, and warranty history.
-
Ergonomic Slide-Back Door: Provides easy access to the ice bin, enhancing convenience during peak hours.
-
Durable Construction: Crafted with a rust-free front panel and corrosion-resistant aluminum alloy side panels, ensuring longevity and reliable performance in demanding environments.
-
Energy and Environmentally Friendly:
-
Energy Star Certified: Meets energy efficiency standards, helping to reduce operational costs.
-
Low Lead Compliance: Meets U.S. Safe Drinking Act low lead requirements.
-
Eco-Friendly Refrigerant: Utilizes non-ozone depleting R-134A refrigerant.
Q&A
Q: What is the Scotsman UN1520A-1 Air Cooled Nugget Ice Maker with Bin?
A: The Scotsman UN1520A-1 is an undercounter ice machine that produces up to 167 pounds of nugget ice per day and stores up to 57 pounds in its built-in bin.
Q: What are the dimensions and weight of this ice maker?
A: It measures 20 inches in width, 24 inches in depth, and 38 inches in height, with a shipping weight of 129 pounds.
Q: What type of ice does it produce?
A: It produces chewable, nugget-style ice, known for its soft texture and suitability for fountain beverages and blended drinks.
Q: What are the electrical requirements for this unit?
A: The ice maker operates on 115 volts, 60 Hz, single-phase power, drawing 4.1 amps.
Q: Is the Scotsman UN1520A-1 energy-efficient?
A: Yes, it is ENERGY STAR® certified, indicating it meets energy efficiency guidelines set by the U.S. Environmental Protection Agency.
Q: Does it comply with safety and environmental standards?
A: Yes, the unit meets U.S. Safe Drinking Act low lead requirements and uses non-ozone depleting R-134A refrigerant.
Q: What warranty is offered with this ice maker?
A: It comes with a 3-year parts and labor warranty on all components.
Q: Is the Scotsman UN1520A-1 suitable for outdoor use?
A: No, this model is designed for indoor use only.
Q: What is included with the ice maker?
A: The unit includes a 6" adjustable leg kit, ice scoop, and a power cord with a NEMA 5-15P plug for easy installation.
Maintenance Tips
- Remove the top and front panels to access internal components.
- Discard all ice from the bin.
- Press and hold the "Off" button until the machine shuts down.
- Drain the reservoir by pulling out the drain plug; replace it securely after draining.
- Prepare a cleaning solution by mixing 2.5 ounces of Clear 1 Ice Machine Scale Remover with 1 quart of warm (90°F to 110°F) potable water.
- Fill the reservoir with the cleaning solution.
- Remove the ice sweep and clean it along with the breaker using the solution, avoiding contact with the bearing.
