Scotsman UN324 Nugget-Style Ice Maker with Bin - 340 lbs/24 hr. Production - SCUN324A1

Scotsman UN324 Nugget-Style Ice Maker with Bin - 340 lbs/24 hr. Production - SCUN324A1

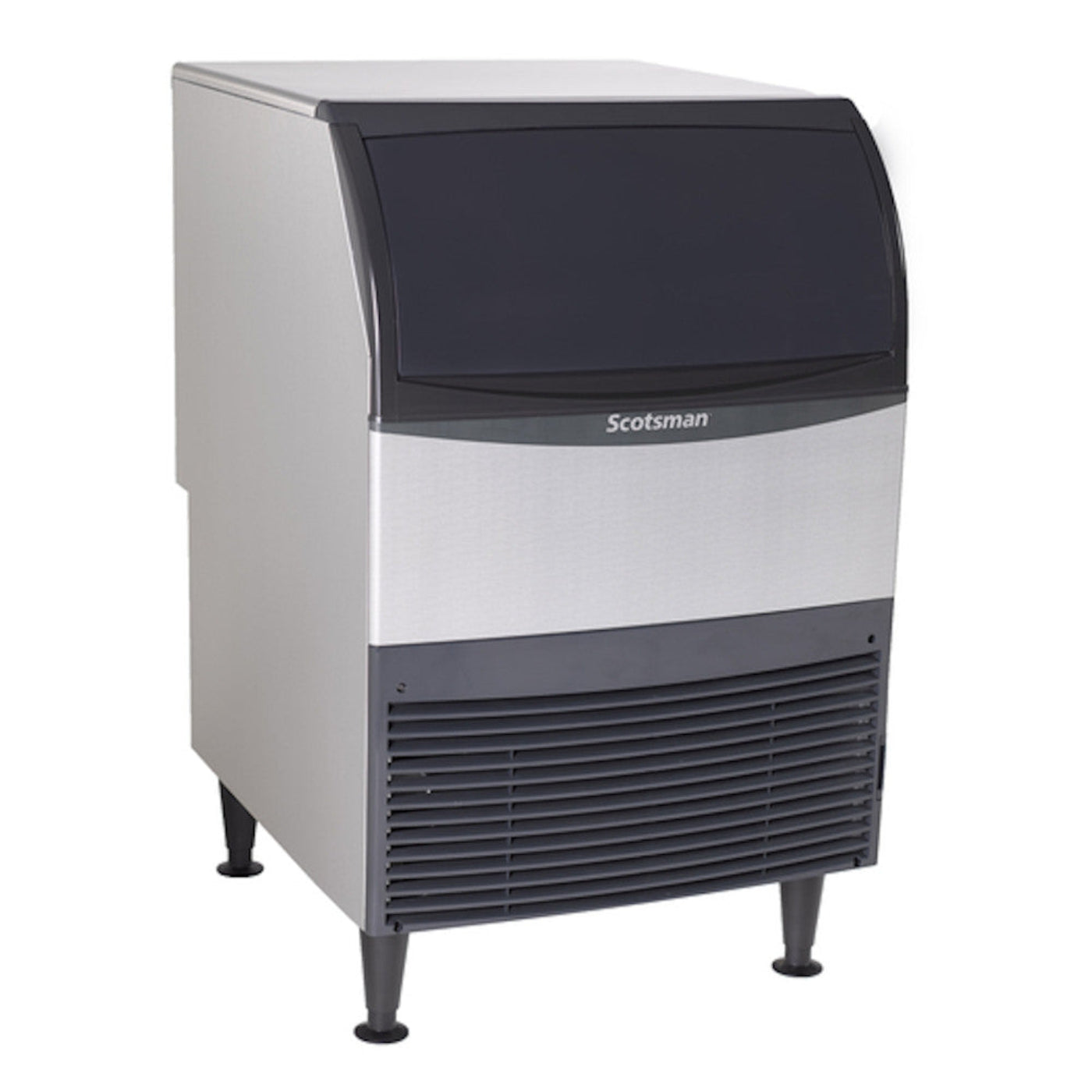

This Scotsman UN324A-1 Ice Machine is reliable, easy to use, and environmentally friendly. It has greaseless bearings for reduced maintenance and a stainless steel evaporator for maximum durability. Assembled in the USA, its compact design is a mere 24" wide, allowing it to be placed even in the tighest of locations. It has a external air filter for easy cleaning and slide back door for easy access to ice. The ice scoop and power cord are included. This UN324A-1 meets new US federal energy efficiency requirements, the US Safe Drinking Act low lead requirements, and uses non-ozone depleting refrigerant. For more information, please view the featuer and benefits below.

Features

• Reliability
• Greaseless bearing for reduced maintenance
• Stainless steel evaporator for maximum durability
• Designed, engineered, assembled in the USA
• Ease of Use
• External air filter for easy cleaning
• Unit specific QR code for quick access to service manuals and warranty history
• Slide back door allows easy access to ice in the bin
• Intuitive control panel allows for quick and easy operation
• Ice scoop and power cord included
• Compact Design
• Only 24” wide, the ice maker can be placed in the tightest locations
• High Production
• Produces up to 340 lb (154 kg) per day and stores 80 lb (36 kg), meeting the ice demands for many different applications
• Environmentally Friendly
• Meets new US federal energy efficiency requirements
• Meets US Safe Drinking Act low lead requirements
• Non-ozone depleting R-134A refrigerant

Specifications

What our Experts Think

• High Production Capacity: Capable of producing up to 340 lbs. of ice per day under optimal conditions (70°F air and 50°F water temperatures), with an AHRI-certified production of 266 lbs. per day at 90°F air and 70°F water temperatures.

• Ample Storage: Equipped with an internal storage bin that holds up to 80 lbs. of ice, ensuring a ready supply during peak periods.

  Compact Design: Measuring 24 inches in width, 28.5 inches in depth, and 39 inches in height, this unit fits comfortably under most countertops. An optional floor mount kit can reduce the height to 33.5 inches for more restrictive spaces.

Q&A

Q: What type of ice does the Scotsman UN324A-1 produce?
A: It produces H2 Nugget Ice, which is 11% harder than the original chewable nugget ice, melting more slowly while remaining chewable

Q: What are the electrical requirements for the Scotsman UN324A-1?
A: The unit operates on 115 volts, 60 Hz, single-phase power, with a total load of 9.5 amps. It includes a 5.5-foot power cord with a NEMA 5-15P plug for easy installation.

Q: Is the Scotsman UN324A-1 environmentally friendly?
A: Yes, it meets U.S. federal energy efficiency requirements, complies with the U.S. Safe Drinking Water Act for low lead content, and uses non-ozone-depleting R-134A refrigerant.

Q: What are the installation requirements for the Scotsman UN324A-1?
A: The unit requires a potable water supply, a drain for wastewater, and a suitable electrical connection. An optional floor mount kit is available to lower the height to 33.5 inches if needed.

Q: What maintenance is required for the Scotsman UN324A-1?
A: Regular cleaning of the external air filter and periodic sanitization of the water system are recommended to ensure optimal performance and hygiene.

Q: Where can the Scotsman UN324A-1 be used?
A: This ice maker is ideal for healthcare facilities, foodservice establishments, and schools, providing a reliable source of chewable nugget ice

Maintenance Tips

• Remove the front panel and turn off the machine by pressing the on/off button.

• Empty the ice from the storage bin.

• Remove the inner panel using the four thumb screws and take off the reservoir's top cover.

• Shut off the water supply at the reservoir by turning the knob counterclockwise.

• Locate the evaporator drain in the ice machine compartment, unplug it, and drain the evaporator. Then, replug the drain.

• Mix a solution of 1.5 qt (1.4 L) of warm water (90°F to 110°F) and 4 ounces of Scotsman Clear 1 Ice Machine Scale Remover.

• Pour the cleaning solution into the reservoir until it is full (a squirt bottle may be necessary).

• Press the clean button. The machine will operate the auger motor for approximately 20 minutes, then start making ice with the cleaning solution.

• Add the remaining cleaning solution to the reservoir as ice is being made for the next 20 minutes. After the full 40 minutes, the unit will turn off.

• Drain the solution from the reservoir by removing the plug. Once drained, replace the plug.

• Pour clean water into the bin to melt any ice produced during the cleaning cycle.

• Mix a solution of 4 oz (118 ml) of Scotsman Clear 1 Ice Machine Scale Remover and 16 oz (473 ml) of potable water. Use this solution to clean the water reservoir cover, ice discharge chutes, storage bin, and inner front cover.
