More Than Manufacturing Machines, Our Goal Is To Help Build Your Dreams. We Strive To Exceed Our Customers’ Needs With Excellence, Making Sure Their Creativity Can Flow, So That Their Commitment, Dedication And Love For Its Craft Can Become People’s Stories.

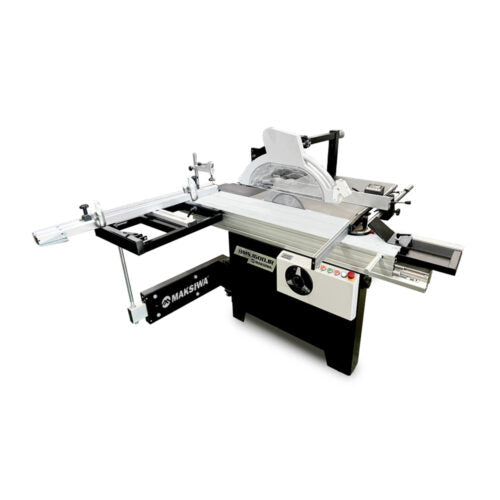

Sometimes, you just can’t fit a full 10’ slider in your shop. Maksiwa is always listening to woodworkers, for this reason, we are introducing our smallest sliding panel saw to you. The new BMS.1600.IR is almost half of the size with the same 5 HP and blade capacity as the bigger BMS.3200.IR!
See Features Below:
- Sliding table dimension: 63” x 14”
- Main table with supporting table: 31.5” x 40”
- Crosscut Fence Max. Collapsed: 50”
- Crosscut Fence Max. Extended: 85”
- Crosscut Fence Flip Stopper: 1
- Rip Fence bar Solid Steel Micro Polished: 1”
- Emergency buttons: 1
- Max tilt: 45°
- Max depth cut: 3”
- Max cutting length: 62”
- Max cutting height with blade at 90°: 3.5” / 90mm
- Max cutting height with blade at 45°: 2.4” / 62mm

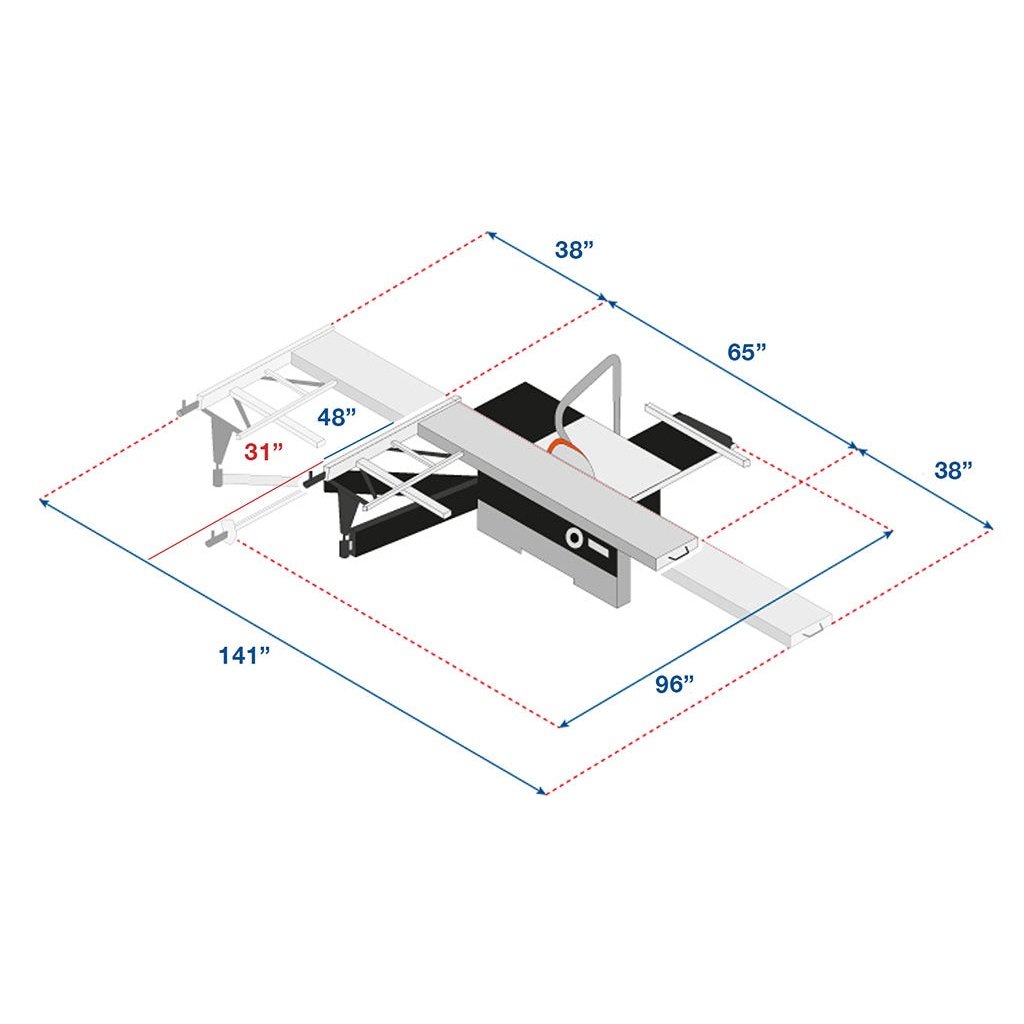

- Machine dimensions (collapsed): L 66” x W 98” x H 42”

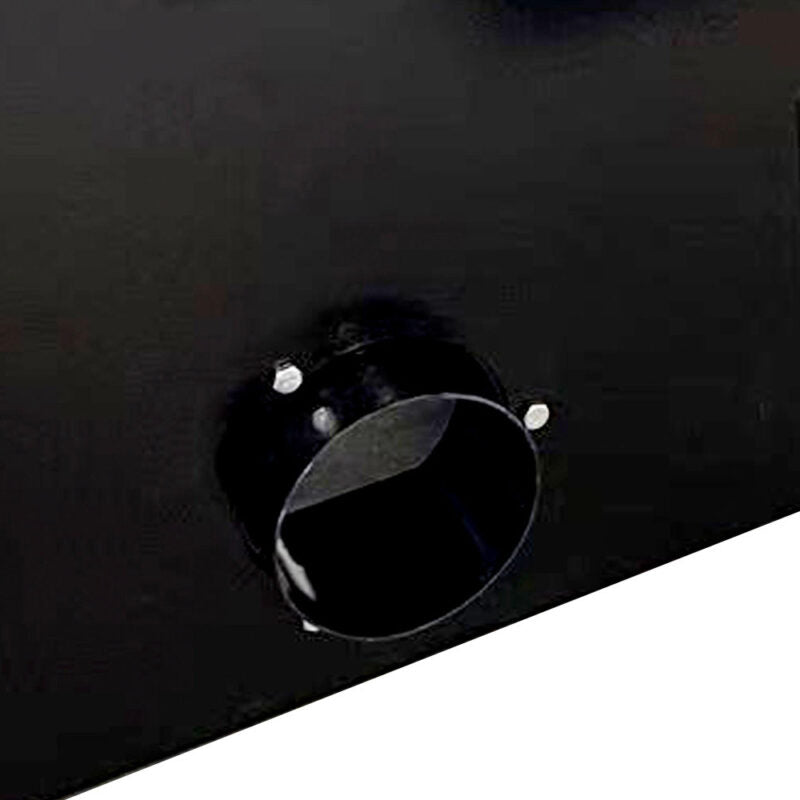

DUST COLLECTION
- Overhead Blade guard with Dust Port: 2”
- Main Side Dust Port: 4
MOTOR
- Main Motor: 5HP - 24 Amps 60 HZ 3.7 KW
- Main Motor Blade Speed: 4000 RPM
- Scoring Motor: 1HP - 6 Amps 0.55 KW
- Scoring Motor Blade Speed: 8000 RPM
BLADE
- Main Blade Diameter: 305mm
- Main Blade arbor size: 30mm
- Scoring blade diameter: 120mm
- Scoring blade arbor size: 20mm
Video
What Our Experts Think
Precision Cutting Performance: The Maksiwa BMS.1600.IR Sliding Table Saw offers exceptional accuracy with its 5HP main blade and 1HP scoring blade, ensuring smooth, chip-free cuts on wood and composite materials.
Efficient Sliding Table Design: The sliding table allows for superior material handling and precise crosscutting, making it perfect for professional cabinet makers and woodworkers.
Robust Power and Durability: A 5HP motor delivers powerful, reliable cutting performance for heavy-duty tasks, while a solid construction ensures long-lasting durability.
Versatile Cutting Capabilities: Ideal for ripping, crosscutting, and precision scoring, providing flexibility for a wide range of woodworking projects.

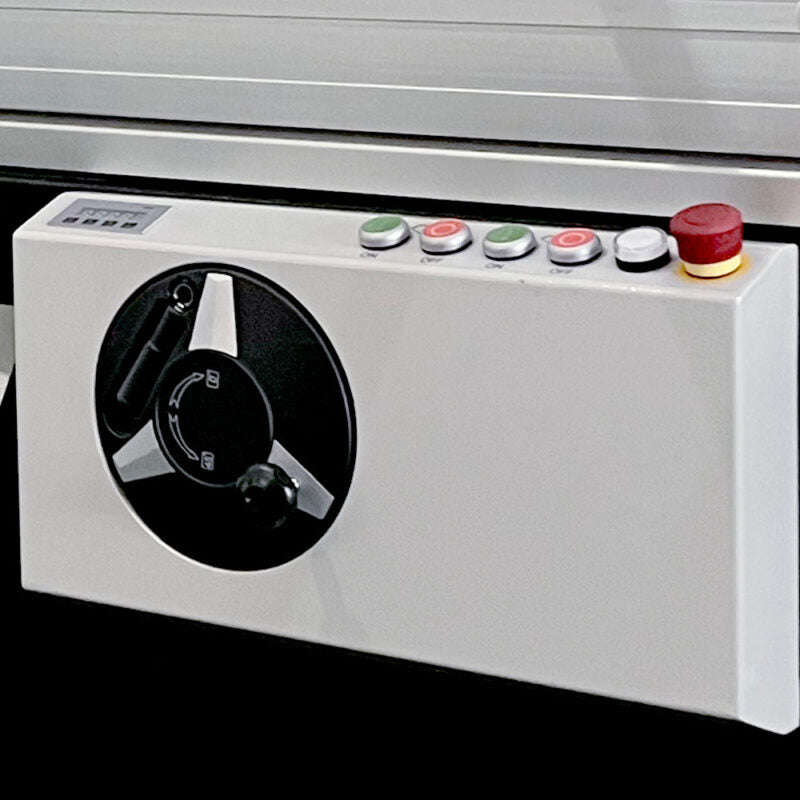

User-Friendly Features: Ergonomic controls, adjustable fence systems, and safety mechanisms enhance ease of use and operator safety.
Q&A
Q: What is the Maksiwa Sliding Table Saw BMS.1600.IR used for? A: It is designed for precision cutting in woodworking, ideal for cabinet making, furniture production, and other professional applications.
Q: What is the motor power of this saw? A: The main blade has a 5HP motor, and the scoring blade is powered by a 1HP motor.
Q: What are the key features of this table saw? A: It features a durable sliding table for precise, smooth cuts, a robust cast-iron structure, and independent controls for main and scoring blades to reduce chipping.
Q: What blade sizes does it support? A: The saw supports a 12-inch main blade and a 4-inch scoring blade.
Q: Does it have safety features? A: Yes, it includes blade guards and emergency stop functionality for enhanced operator safety.
Q: Why choose the BMS.1600.IR over other table saws? A: It combines industrial-grade performance, precision engineering, and dual blade functionality, making it a top choice for professionals seeking efficiency and high-quality finishes.
Maintenance Tips
Clean Regularly: Remove sawdust and debris after each use to prevent buildup.
Lubricate Moving Parts: Apply appropriate lubricant to the sliding table and blade mechanisms monthly.
Check Blade Alignment: Regularly ensure both main and scoring blades are aligned for precision cutting.
Inspect Belts and Bearings: Look for wear and tension issues; replace if needed.
Verify Electrical Connections: Ensure wires and motor connections are secure to avoid operational failures.
Sharpen or Replace Blades: Maintain blade sharpness for smooth cuts; replace dull or damaged blades.
Secure the Fence and Stops: Keep the fence parallel to the blade and stops firmly in place for accuracy.
