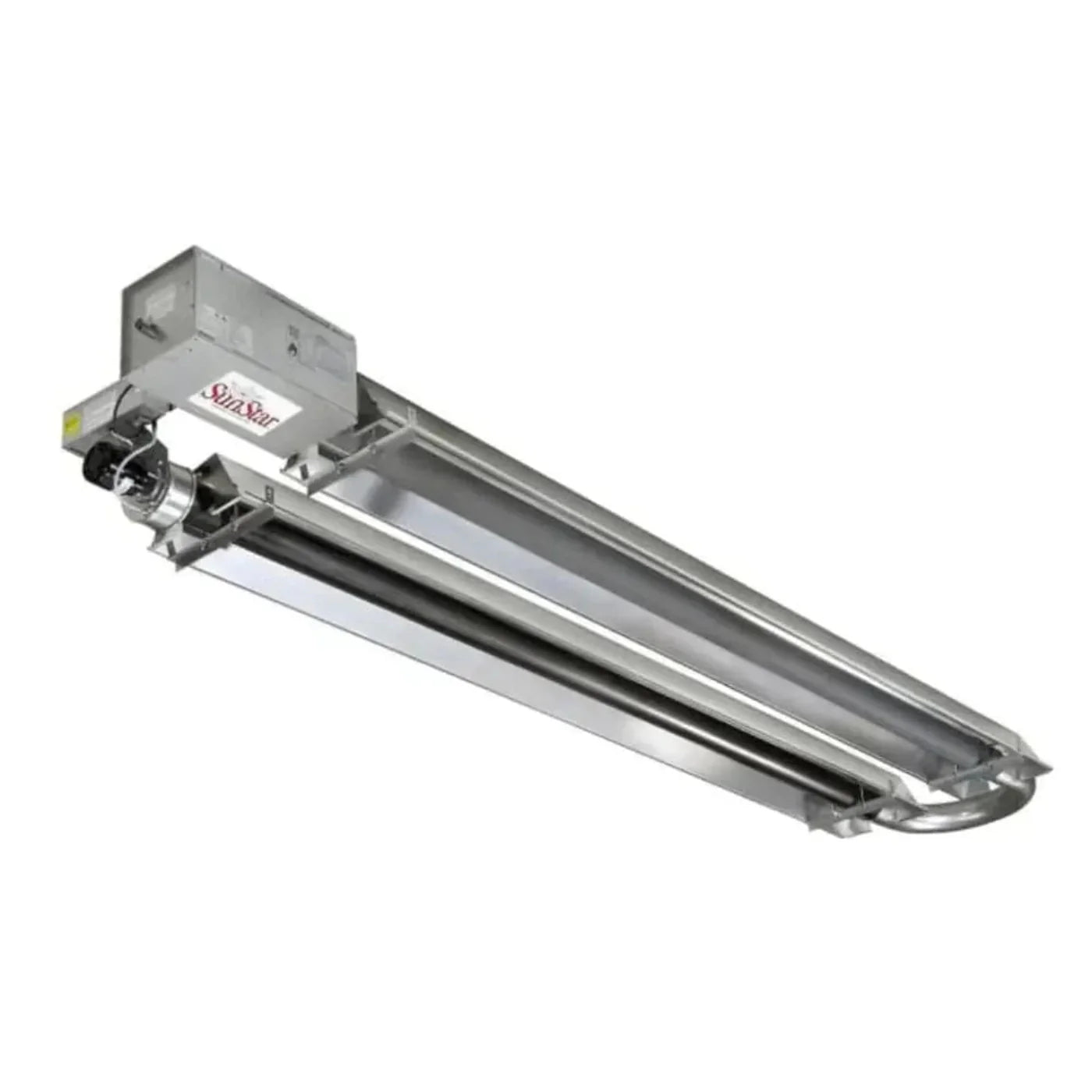

SunStar Industrial 175K BTU/40ft U Tube Heater/NG/Single Stage

SunStar Industrial 175K BTU/40ft U Tube Heater/NG/Single Stage

Features:

• Includes 43503210, 44137000, 43208020
• Pull Through System - products of combustion are pulled through the combustion chamber for increased radiant efficiency and greater safety
• 6 different Btu sizes
• CSA design certified
• Sidewall or through the roof venting
• Vented or indirect vented operation
• Includes 36″ stainless steel gas connector
• No draft hoods, totally enclosed combustion chamber
• Heavy duty draft inducer assembly with permanently lubricated, totally enclosed and heavy duty ball bearing motor for maintenance-free operation
• 30 second per-purge period before ignition
• Diaphragm air switch for proof of venting before gas flow and ignition
• Heavy duty cast iron burner
• Reliable direct spark ignition system and 100% Gas Shut-Off Safety Control
• Inside or outside air for combustion (Up to 50 ft. outside combustion air capability)
• Diagnostic Monitoring Light System
• 4” O. D. heat treated aluminized steel combustion chamber (10’ length)
• Standard highly emissive radiant tubes (10’ lengths)
• Suitable for horizontal or angle mounting up to 45°
• Up to 75 feet sidewall vent capability
• Highly efficient aluminum reflectors
• Individual reflectors can be rotated up to 45° to direct heat where needed
• Natural Gas
• 175,000 BTU
• 4" vent connection
• Not for use in residential applications
