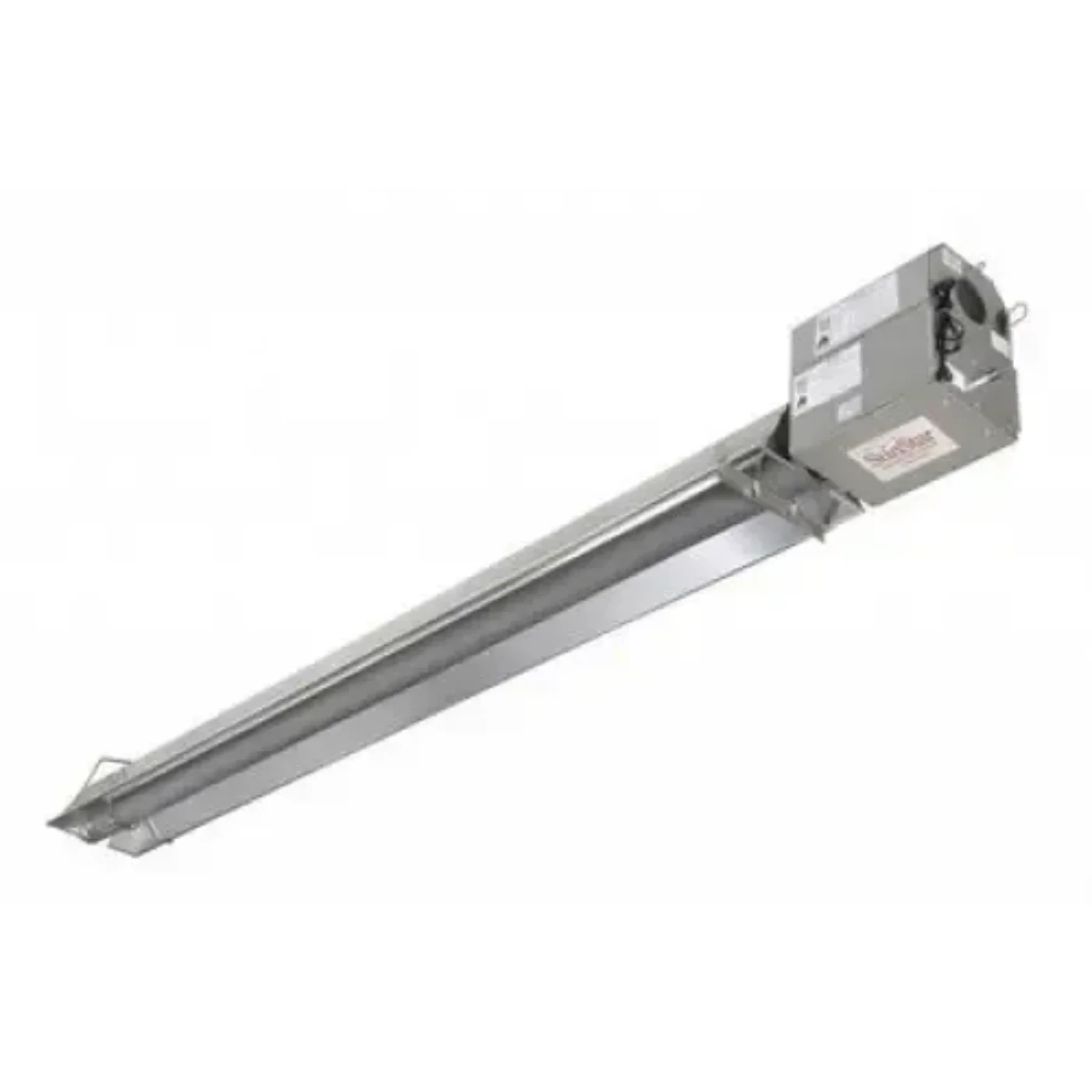

SunStar Industrial 175K BTU/50ft Straight Tube Tough Guy Heater/NG/Single Stage
Features:
- Completely aluminized steel construction for high humidity and corrosive environments
- Pull Through System - products of combustion are pulled through the combustion chamber for increased radiant efficiency and greater safety
- 6 different Btu sizes
- CSA design certified
- Sidewall or through the roof venting
- Vented or indirect vented operation
- Includes 36″ stainless steel gas connector
- No draft hoods, totally enclosed combustion chamber
- Heavy duty draft inducer assembly with permanently lubricated, totally enclosed and heavy duty ball bearing motor for maintenance-free operation
- 30 second per-purge period before ignition
- Diaphragm air switch for proof of venting before gas flow and ignition
- Heavy duty cast iron burner
- Reliable direct spark ignition system and 100% Gas Shut-Off Safety Control
- Inside or outside air for combustion (Up to 50 ft. outside combustion air capability)
- Diagnostic Monitoring Light System
- 4” O. D. heat treated aluminized steel combustion chamber (10’ length)
- Aluminized steel radiant tubes
- Suitable for horizontal or angle mounting up to 45°
- Up to 75 feet sidewall vent capability
- Highly efficient aluminum reflectors
- Individual reflectors can be rotated up to 45° to direct heat where needed
- Natural Gas
- 175,000 BTU
- 4" vent connection
- Not for use in residential applications
Additional Information:
| Fuel Type |
|
|
Control Type
|
|
|
Color/Finish
|
|
| Size |
|
What Our Experts Think
-
High‑Output Natural Gas Heating: 175,000 BTU supplies strong, steady radiant warmth for large commercial or industrial spaces
-
50 ft Straight Tube Design: Long straight tube pushes heat deep into open areas for broad coverage
-
Tough Guy Construction: Heat‑treated steel tube and heavy‑duty burner resist corrosion and handle demanding environments
-
Single‑Stage Operation: Consistent, uninterrupted heat output without cycling complexity
-
Commercial‑Grade Performance: Ideal for warehouses, workshops, garages, and other large open work environments
Q&A
Q: What fuel does this heater use?
A: Natural Gas (NG)
Q: How much heat does it produce?
A: 175,000 BTU
Q: What’s the advantage of the straight tube design?
A: Radiant heat travels along the tube to provide broad, even heat coverage
Q: Can it be installed in different configurations?
A: Yes — supports horizontal or angled mounting with sidewall or roof venting
Maintenance Tips
-
Clean Burners & Tube: Remove dust and debris regularly to maintain heating efficiency
-
Inspect Ignition & Safety Controls: Ensure spark ignition and safety shut‑offs function properly
-
Check Venting Clearance: Keep exhaust and intake paths clear of obstructions
-
Annual Professional Service: Have a qualified technician inspect gas connections and performance
-
Inspect for Wear: Periodically check tube and reflector surfaces for corrosion or damage
