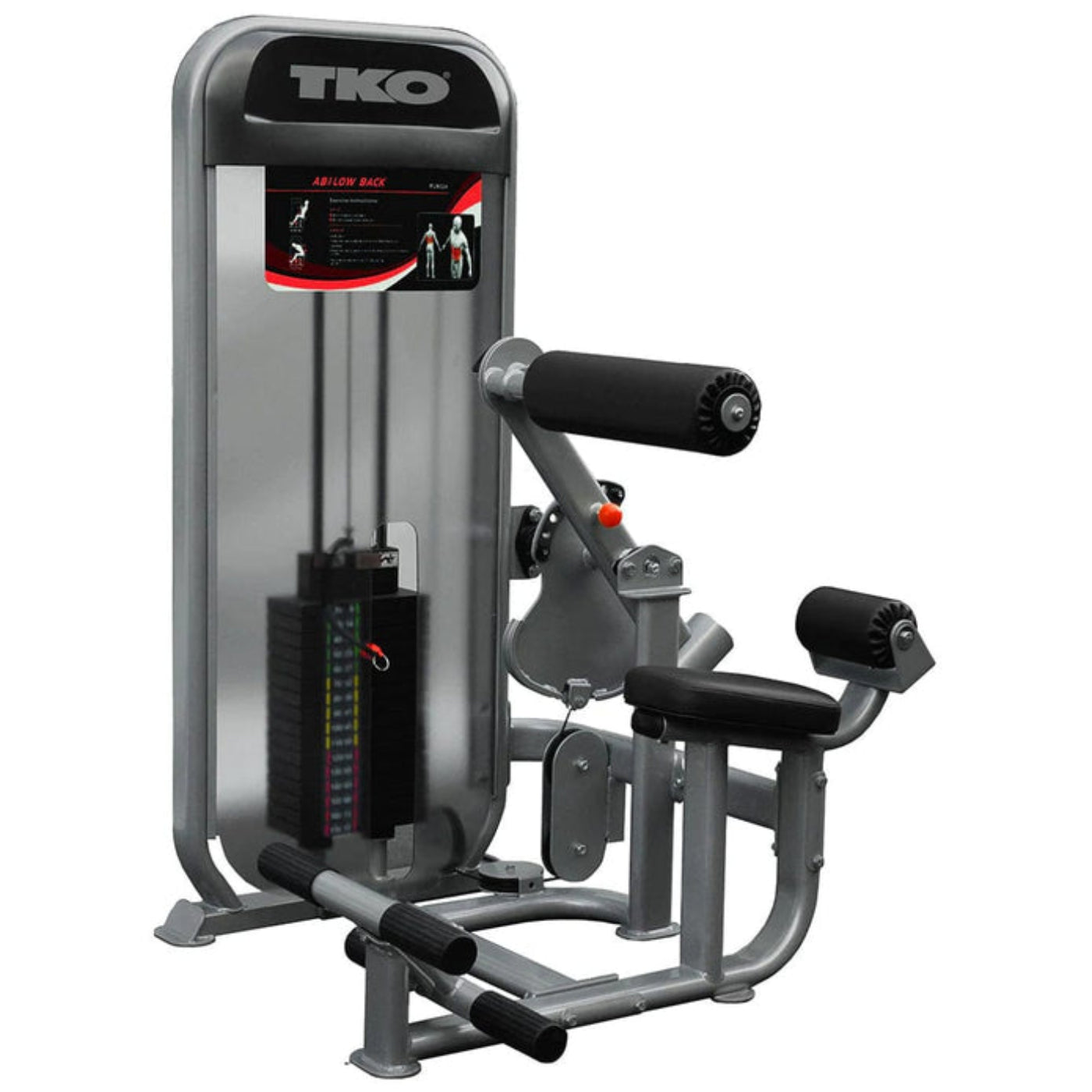

TKO Strength Dual Ab and Back Cable Machine - 8804

TKO Strength Dual Ab and Back Cable Machine - 8804

• 4 position arm adjustment to accommodate many users sizes.
• Compact, multi-purpose design saves space and money for other machines.
• Shared 170lb (upgradable) weight stack for each exercise.
• Durable construction and paint coating with quality upholstery for a durable but attractive and premium look to it.

The TKO Dual Ab and Back machine is made with high gauge, durable, oval steel tubing and coated with a graphite colored paint finish for protection against ware, tear, moisture, chips, scratches and nicks.

The machine is specially designed to save space and money by combining two commonly separate machines, into one compact, multi-function machine.

Train both your abs in a crunch style exercise or train your low back with a lower back extension exercise, or both at the same time. Both functions of the machine utilize one 170 Lb. weight stack that is more than sufficient for most users.

Features

The Ab and back training machine is especially built for light-commercial and residential gym facilities that put 4-6 hours of use per day on the machine like:

• Personal/group training studios
• Schools
• Fire and Police departments
• Hospitality (hotels, apartments, condos, community gyms, ecs..)
• Corporate gyms for employees
• Private (Non-membership) gyms and recreation centers
• Home gyms

TKO Ab Crunch / Low Back Extension Machine Features:

FRAME – Compact, space efficient design requires minimal floor space.
PLACARD – Simple, step by step instructions and training tips help users maximize workouts
SHROUD – Fully shrouded weight stack to protect equipment.
CABLES – Aircraft spec 5mm American LOOS cable with a 2,000 lb breaking strength. End fitting tested to 250,000 cycles using full weight stack.
TUBING FRAME – Tubing: 2.5mm to 2.75mm square tube differ into any types, from 30x60mm to 50x100mm, electro-welded to maximum integrity.
MOVEMENT – Easy to use, minimal adjustments and pre-stretch features allow for optimal exercise positions.
PAD – High-use upholstery supported by 70mm thick foam.
PULLEY – Glass fiber reinforced nylon pulleys with deep V-groove provides secure cable seating and fluid bearing rotation.
COLOR – Graphite paint with black upholstery

Specifications

• DIMENSIONS: (LWH): 41” x 43” x 60” (104cm x 109cm x 152cm)
• WEIGHT STACK: 170 lbs.
• PRODUCT WEIGHT: 389 lbs. (176kg)
• FRAME COLOR: Graphite
• UPHOLSTERY COLOR: Black
• FREE WARRANTY: FRAME = 10 Years PARTS = 5 Years LIMITED PARTS = 6 months

Downloads

• Instructional Manual
• Sell Sheet

What Our Experts Think

• Dual-Function Design: Targets both abdominal and lower back muscles.
• Adjustable Resistance: Cable system allows for smooth and controlled movements.
• Ergonomic Padding: Provides comfort and support during workouts.
• Heavy-Duty Frame: Ensures durability for commercial and home gym use.
• Compact Footprint: Saves space while offering a full range of motion exercises.

Q&A

Q: What is the TKO Strength Dual Ab and Back Cable Machine - 8804 used for?
A: It is designed to strengthen the core by targeting the abdominal and lower back muscles through cable-resisted movements.

Q: What are the key features of this machine?
A: It features an adjustable seat and back pad, dual-function design for ab and back exercises, smooth cable resistance, and a heavy-duty steel frame for durability.

Q: Is this machine suitable for commercial gyms?
A: Yes, it is built for high-traffic fitness centers and professional strength training facilities.

Q: Can users adjust the resistance?
A: Yes, the cable system allows for adjustable resistance to match different fitness levels.

Q: What types of exercises can be performed?
A: Users can perform weighted abdominal crunches and back extensions for a full core workout.

Q: Is assembly required?
A: Yes, some assembly is required, and professional installation is recommended for optimal performance.

Maintenance Tips

• Daily Cleaning: Wipe down the seat, backrest, handles, and frame with a mild disinfectant to remove sweat and dirt.
• Inspect Cables & Pulleys: Check cables for fraying and pulleys for smooth movement; replace any worn components immediately.
• Lubricate Moving Parts: Apply a light silicone-based lubricant to guide rods, pivot points, and weight stack pins monthly for smooth operation.
• Check Bolts & Fasteners: Tighten all bolts, nuts, and screws weekly to ensure machine stability and safety.
• Upholstery & Padding Care: Inspect seat and backrest for wear or tears; replace if necessary to maintain comfort and durability.
• Weight Stack & Adjustments: Ensure weight plates move freely and selector pins engage securely without sticking.
• Annual Professional Inspection: Schedule a yearly service check to ensure optimal function and safety.
