Pioneer Triple Split 27000 BTU 2.25-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (3) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT030GLSI24M3-9W-9W-9W

Pioneer Triple Split 27000 BTU 2.25-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (3) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT030GLSI24M3-9W-9W-9W

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.

Features

• Ultra-high efficiency inverter++ ductless multi split triple (3) zone heat pump system
• (x3) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 27,000 BTU/H (Range: 4,500 minimum - 31,000 maximum) with 24 SEER/12.0 EER efficiency
• Heating capacity: 28,000 BTU/H nominal (range 4,500 minimum - 33,000 maximum) with 10 HSPF/3.5 COP efficiency
• Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
• Energy-Star Certified and Wi-Fi Enabled

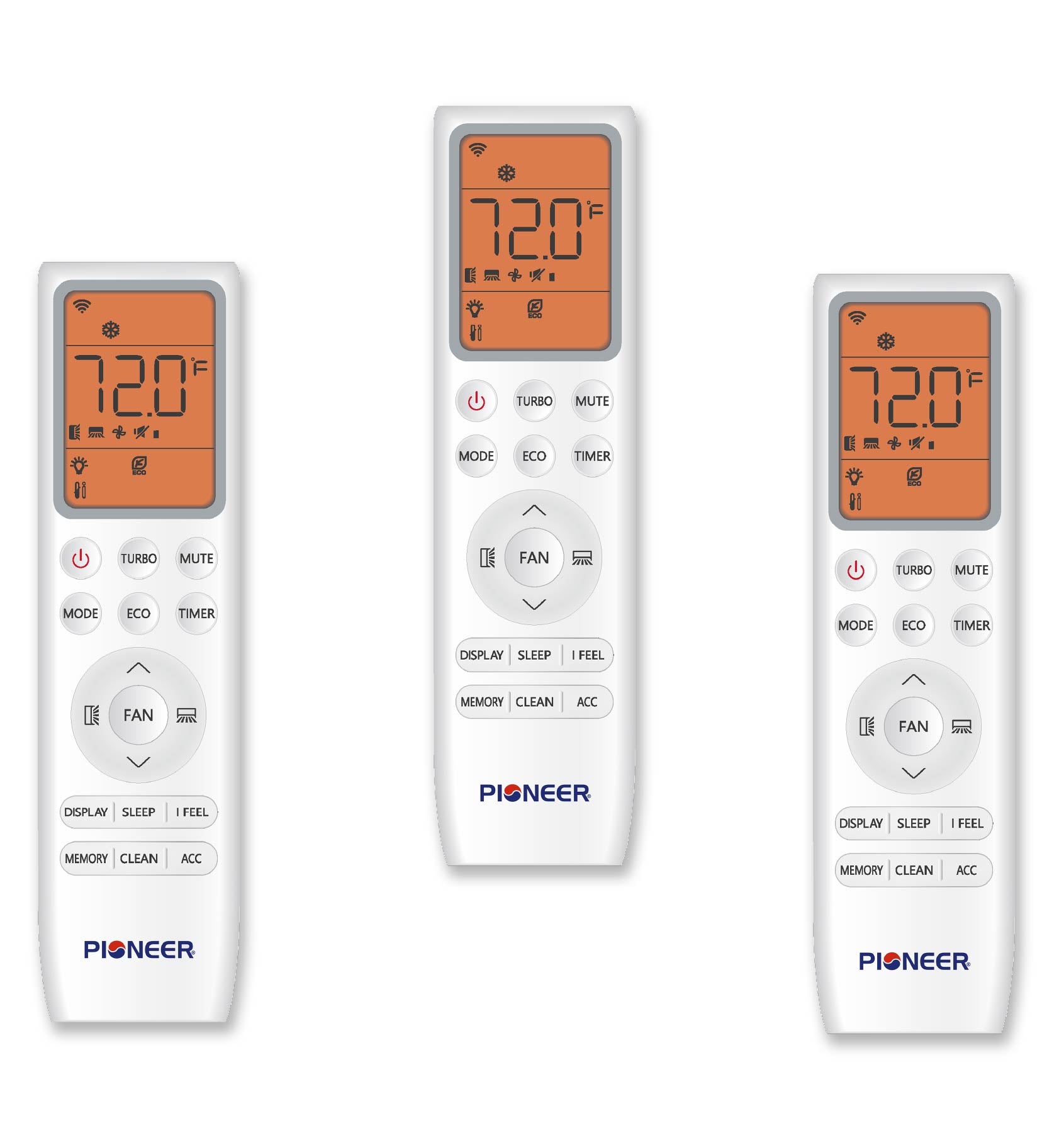

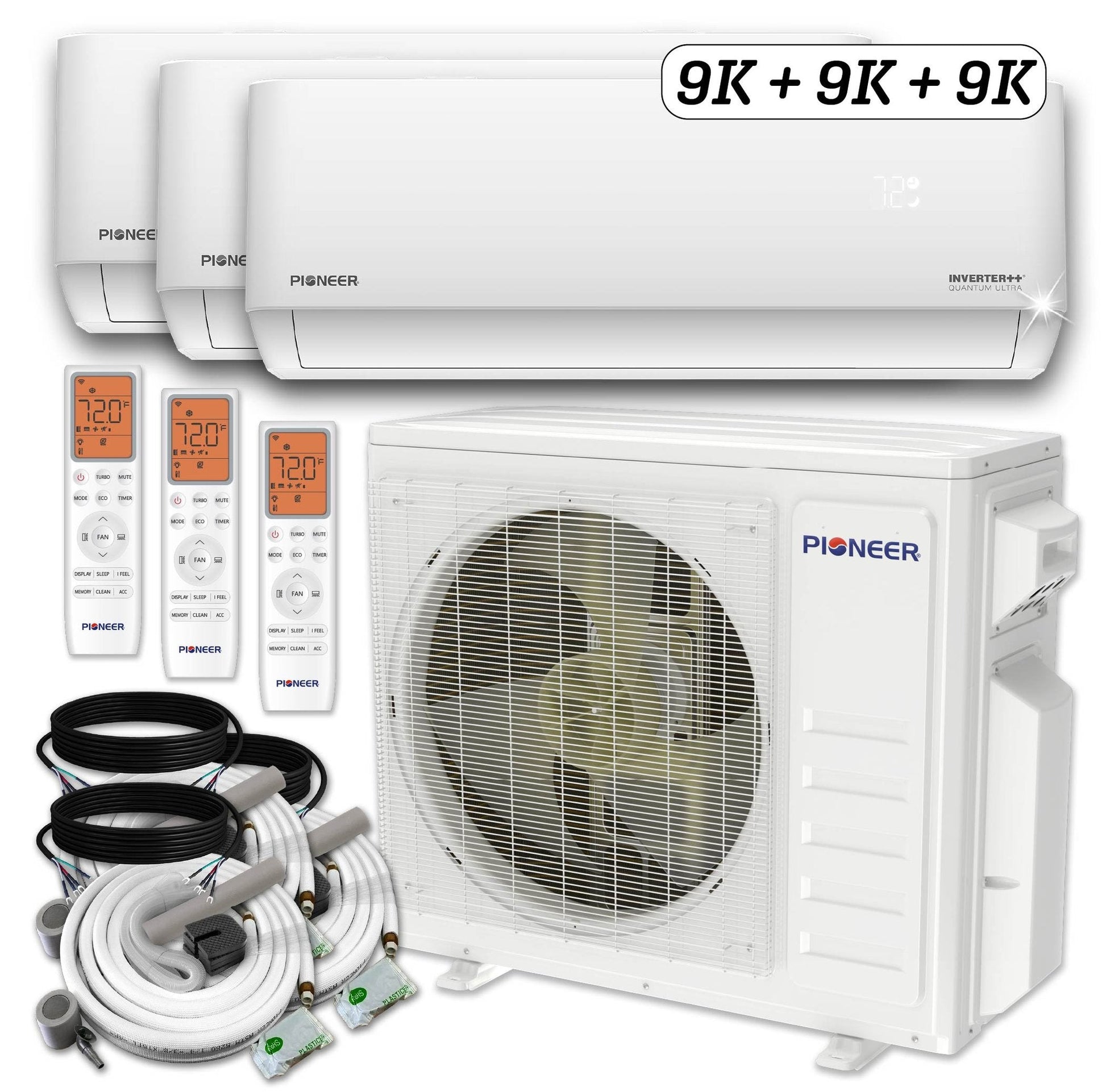

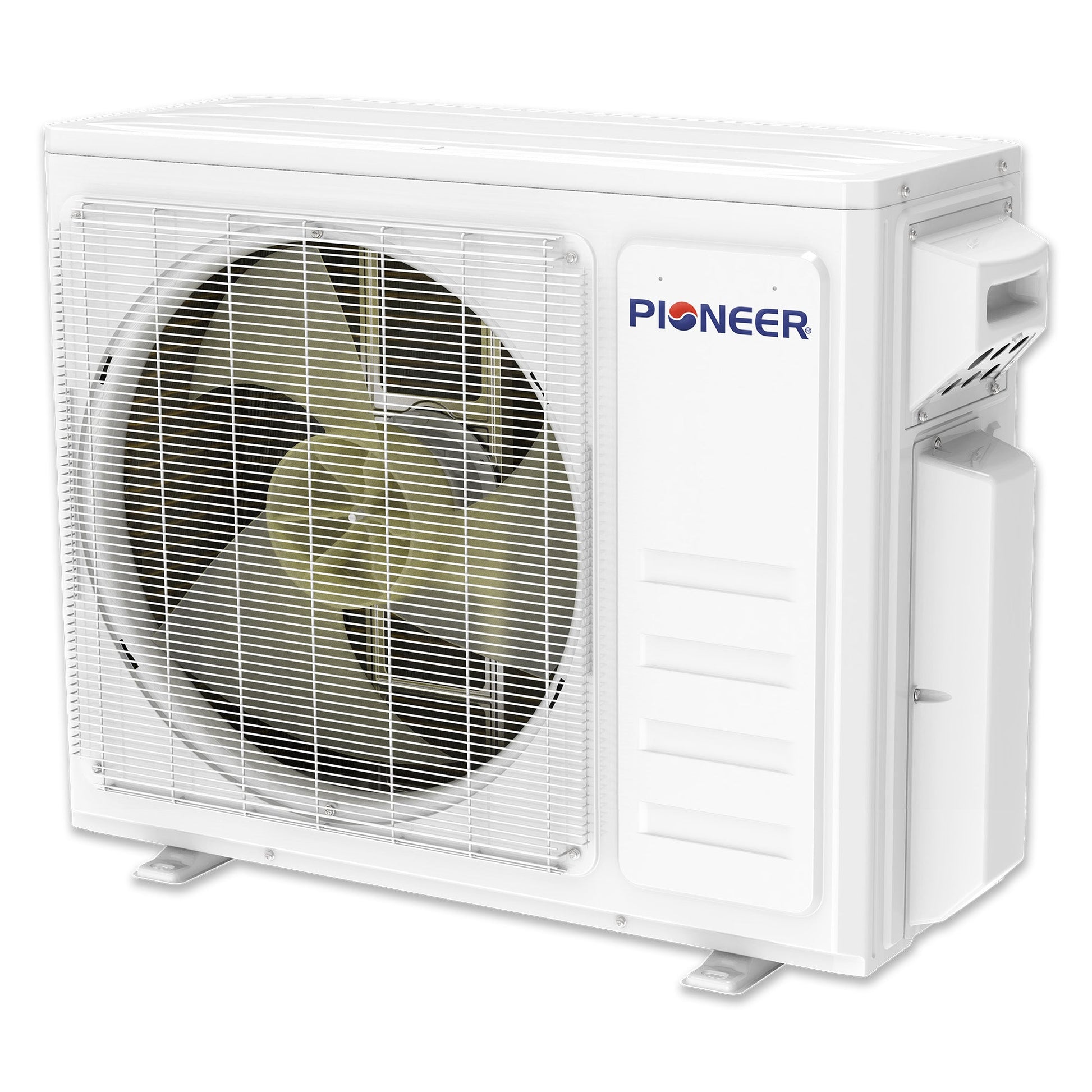

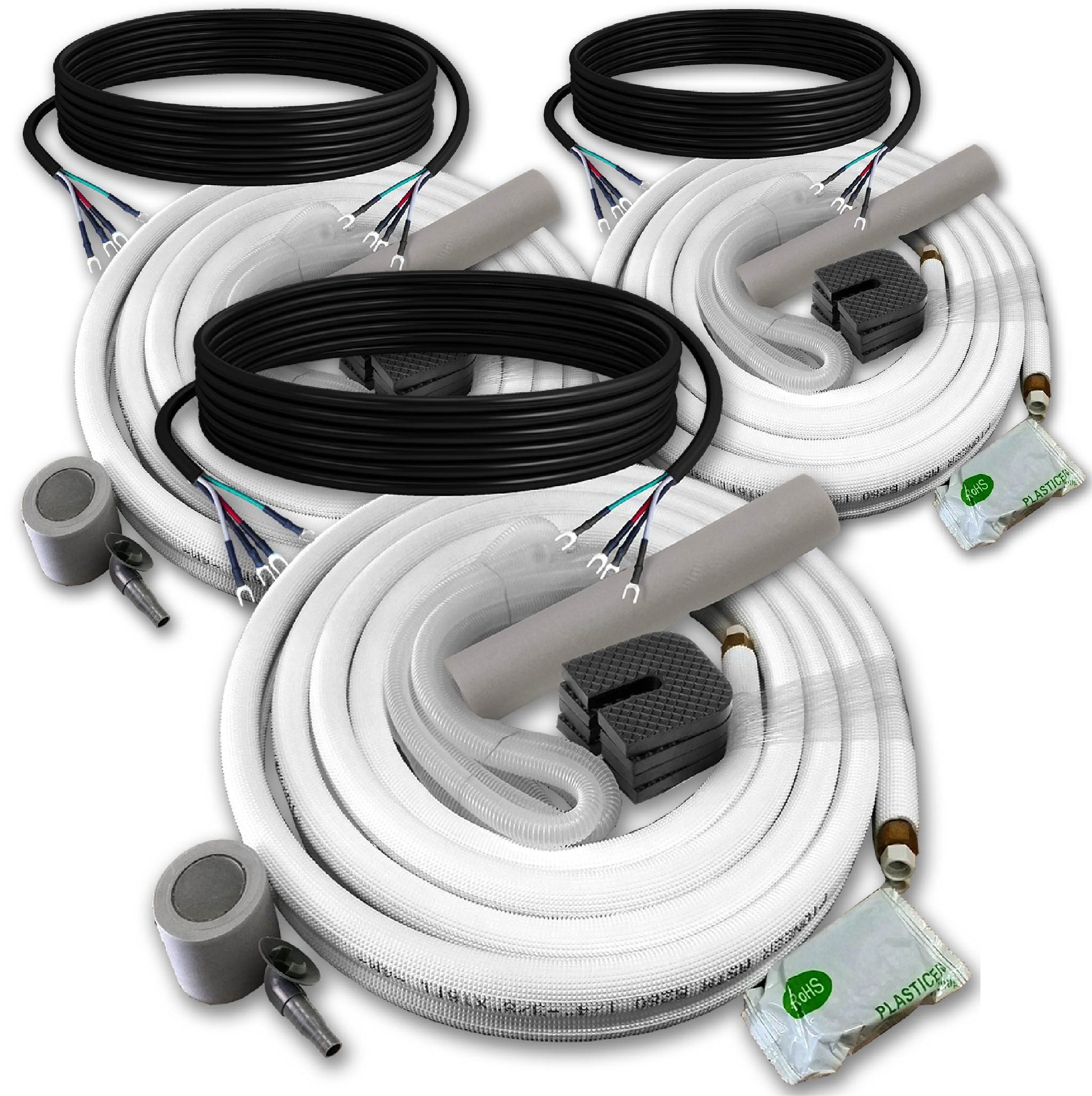

• Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
• Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
• Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
• Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 75 ft long
• Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
• Certified by: ETL, AHRI, DOE for safety, performance and efficiency
• Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption

System Manuals

• Technical Brochure
• Submittal Sheet
• Installation Manual (Multi-Split Addendum)
• Service Manual
• AHRI Certificate
• Energy Guide

What Our Experts Think

• 27,000 BTU (2.25-ton) capacity ideal for multiple rooms or large open spaces.

• 24 SEER2 efficiency and Energy Star certification reduce energy costs.

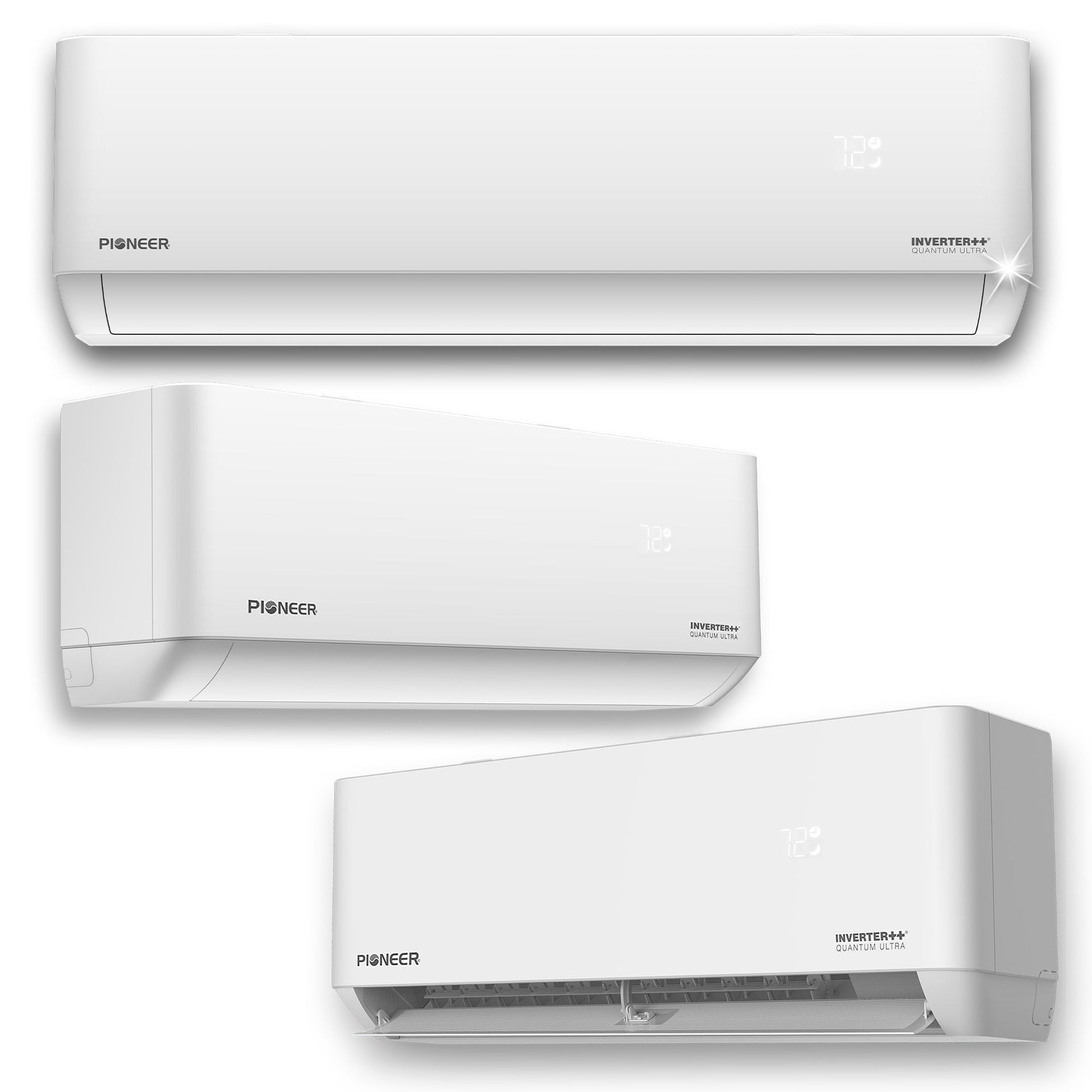

• Triple-zone wall-mounted design allows independent control for three rooms.

• Wi-Fi enabled for remote operation and smart-home integration.

• Inverter heat pump provides reliable year-round heating and cooling.

Q&A

Q: Is this a full multi-zone system?
A: Yes, it includes one outdoor unit and three indoor wall-mounted units.

Q: Can each zone be controlled separately?
A: Yes, each indoor unit has independent temperature and operation control.

Q: Is it energy efficient?
A: Yes, 24 SEER2 rating and Energy Star certification ensure optimal efficiency.

Maintenance Tips

• Clean filters every 4–6 weeks to maintain airflow and efficiency.

• Wipe down indoor units regularly to prevent dust buildup.

• Keep the outdoor condenser free of debris for peak performance.

• Schedule professional servicing annually for long-term reliability.
