Pioneer Triple Split 36000 BTU 3-Ton Quantum Ultra Wi-Fi 22.5 SEER2 Energy-Star Multi (3) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT040GLSI24M4-12W-12W-12W
Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.
Features
- Ultra-high efficiency inverter++ ductless multi split quad (4) circuit heat pump system (paired with 3x indoor units to function effectively as a stronger 3-zone system)
- (x3) inside unit cooling capacity: 12,000 BTU/H nominal capacity, condensing system 35,000 BTU/H (Range: 5,500 minimum - 41,000 maximum) with 22.5 SEER2/12.0 EER2 efficiency
- Heating capacity: 36,000 BTU/H nominal (range 5,500 minimum - 41,000 maximum) with 9.5 HSPF2/3.5 COP2 efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Energy-Star Certified and Wi-Fi Enabled

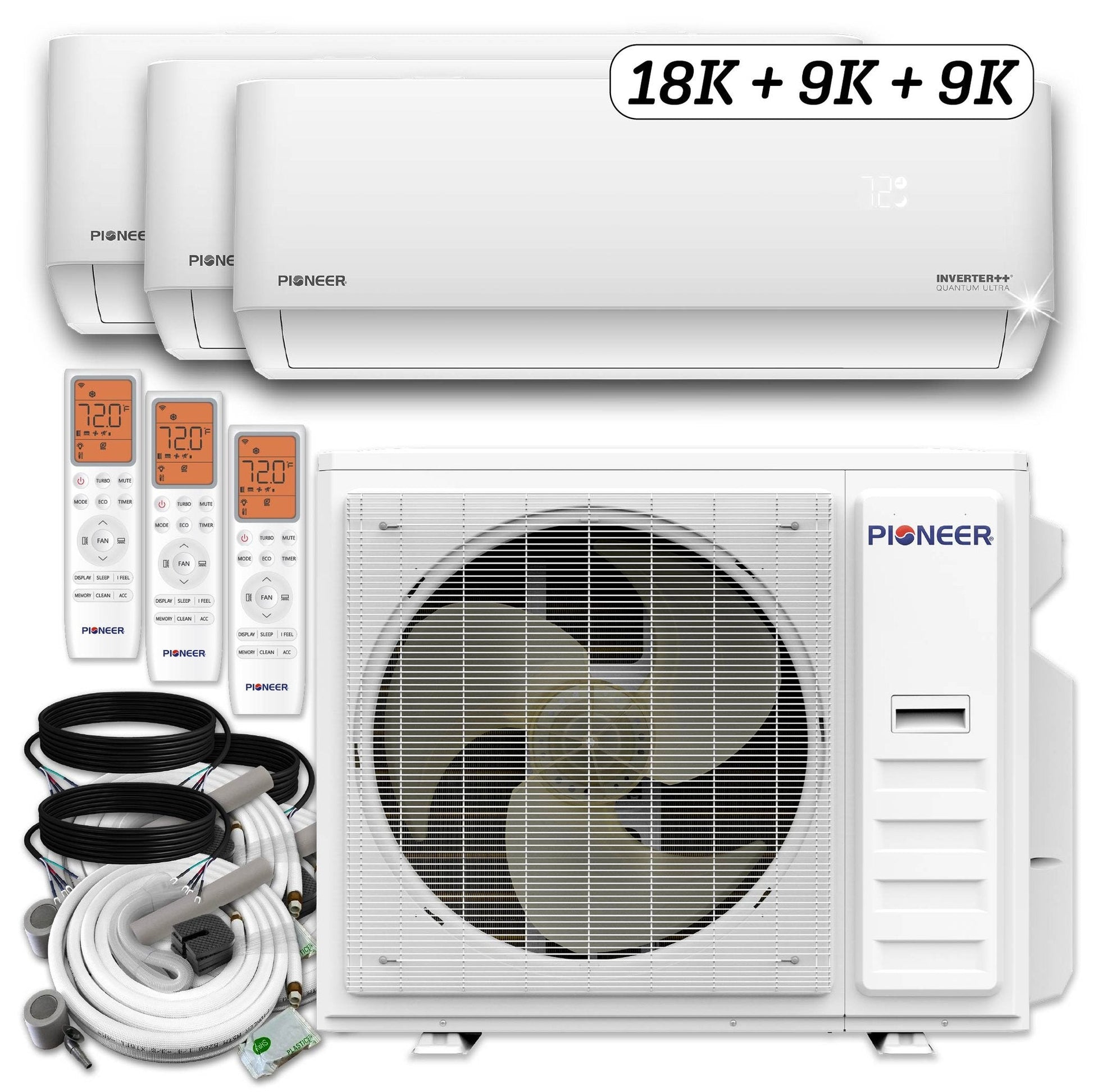

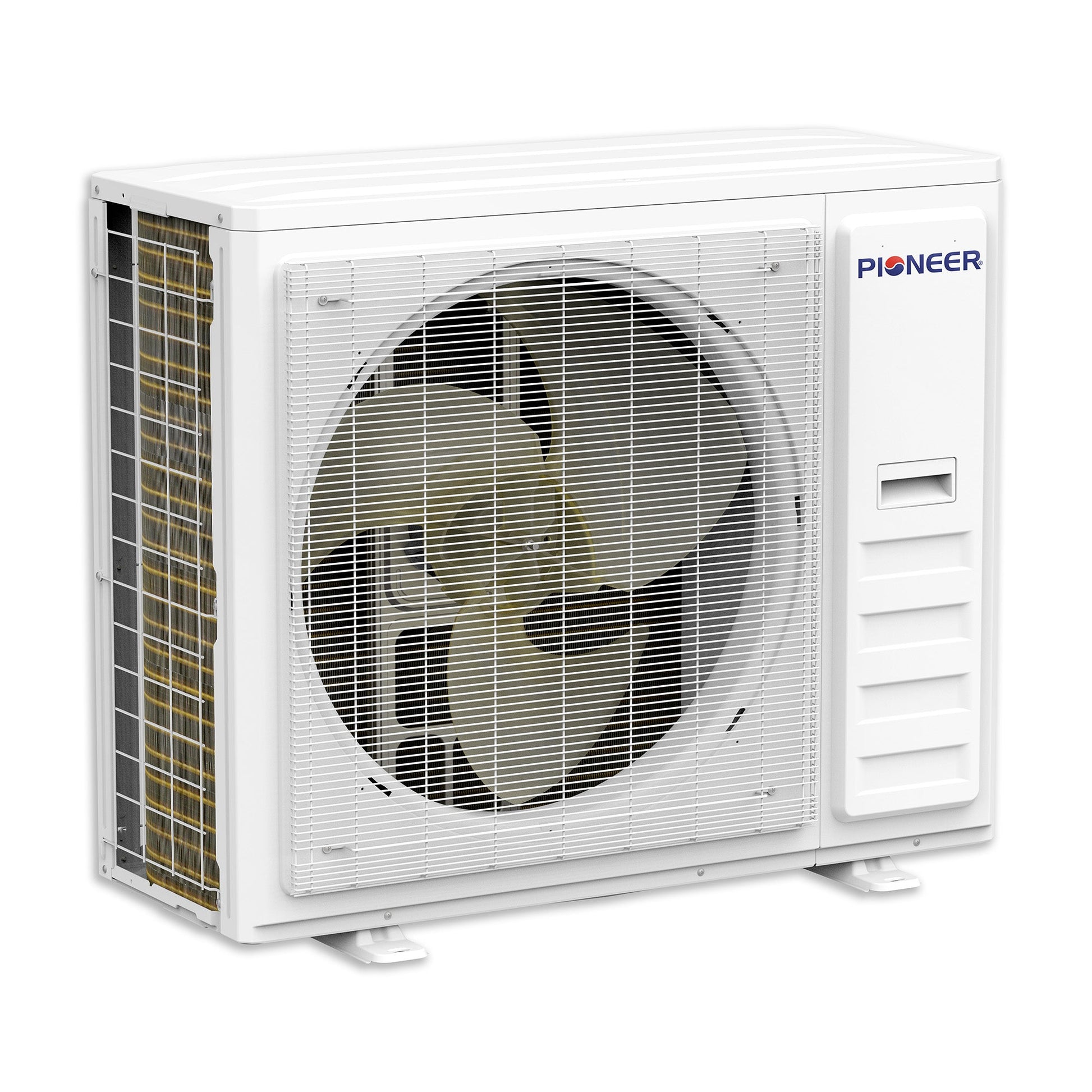

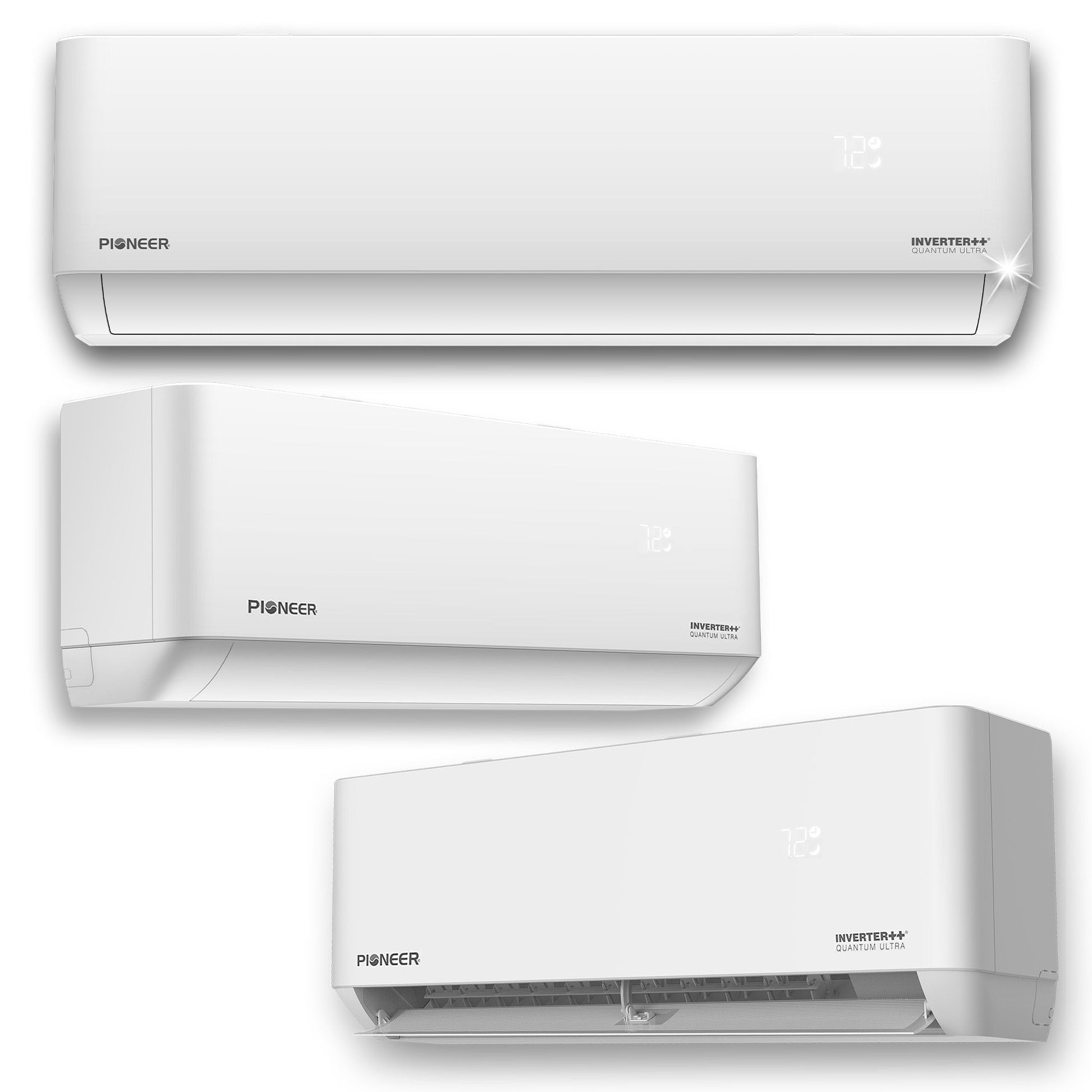

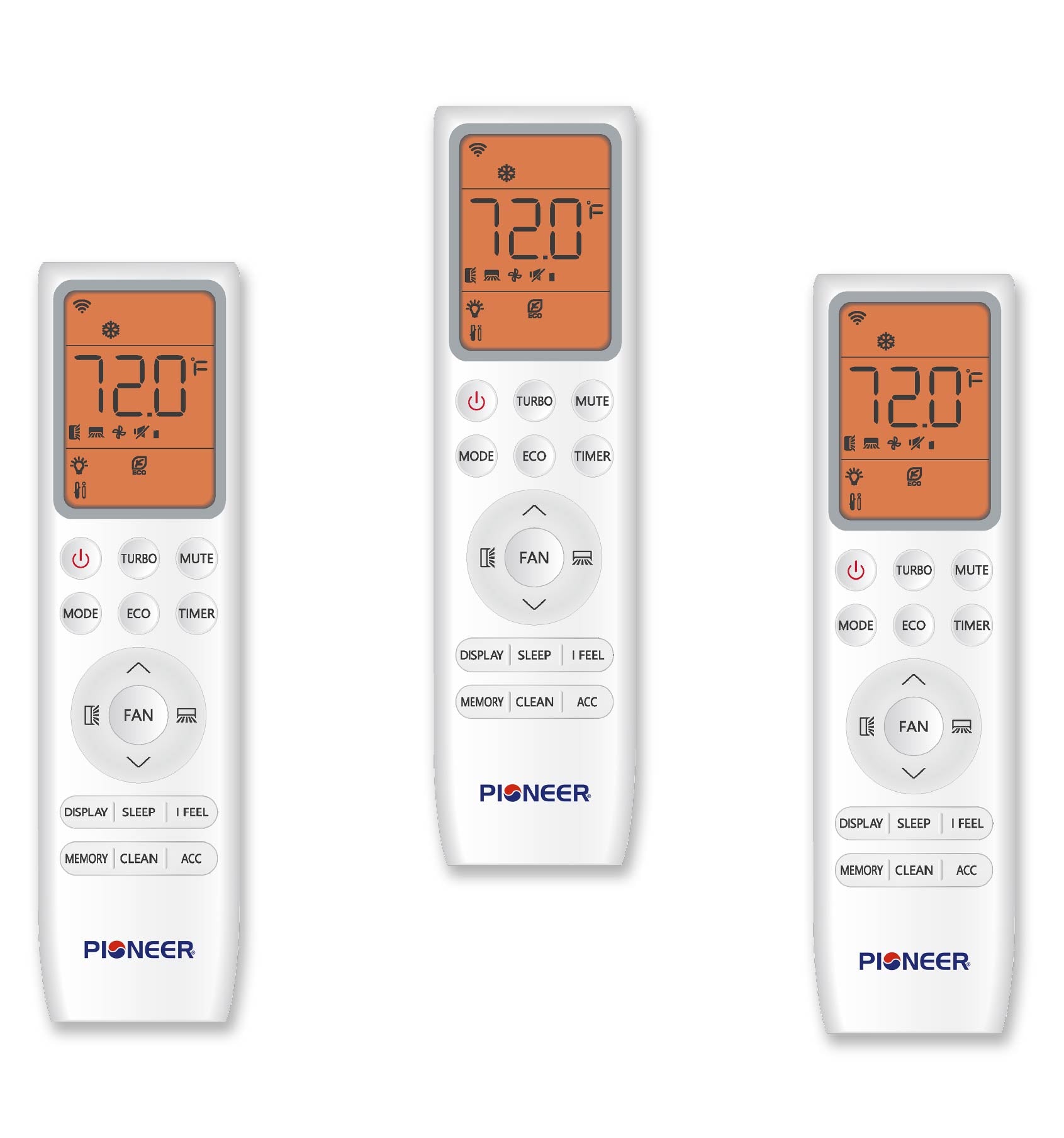

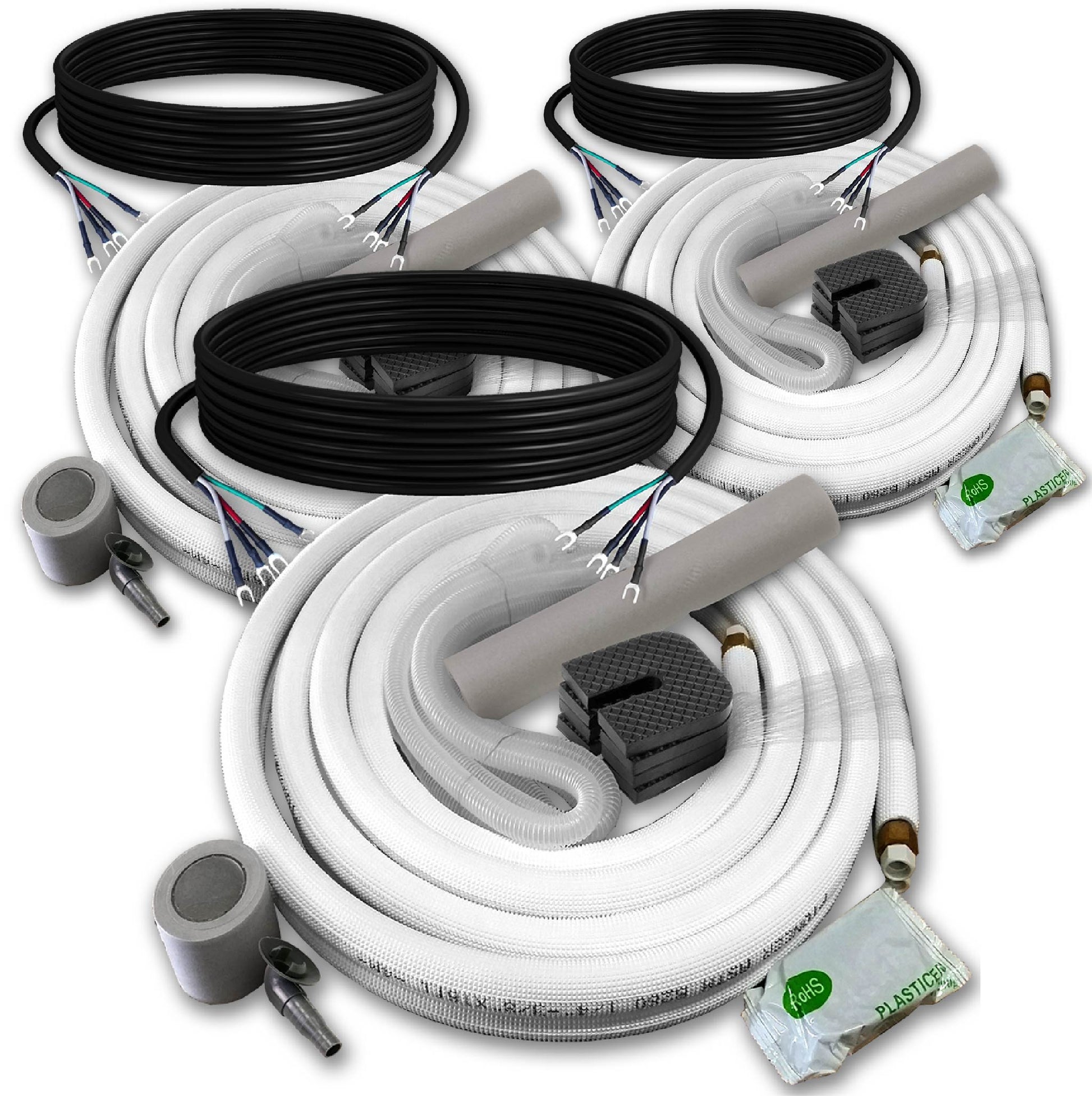

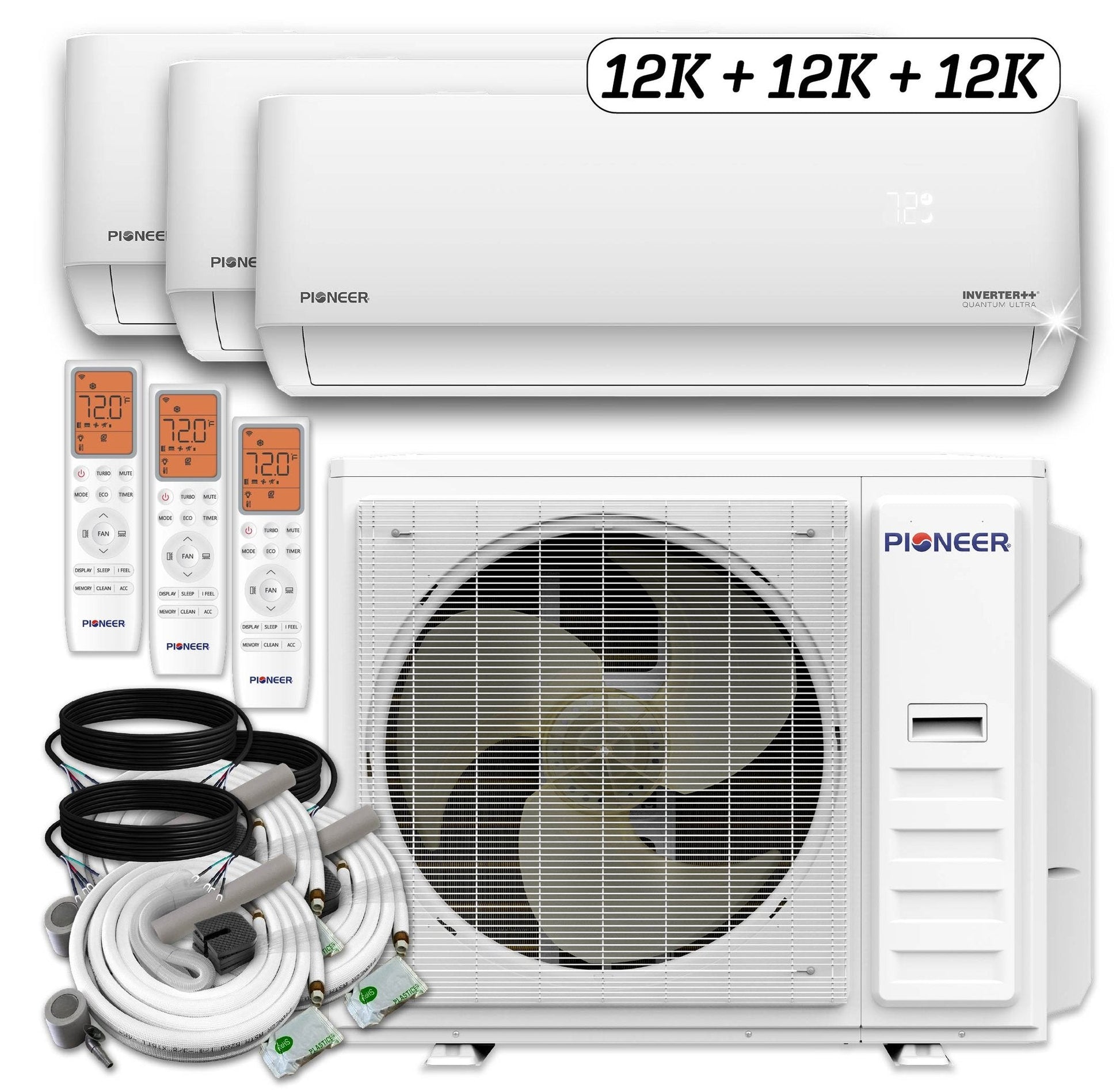

- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
- Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 100 ft long
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
System Manuals
What Our Experts Think
-
36,000 BTU (3-ton) capacity designed for multi-zone comfort in large spaces.
-
22.5 SEER2 Energy-Star efficiency ensures energy savings and peak performance.
-

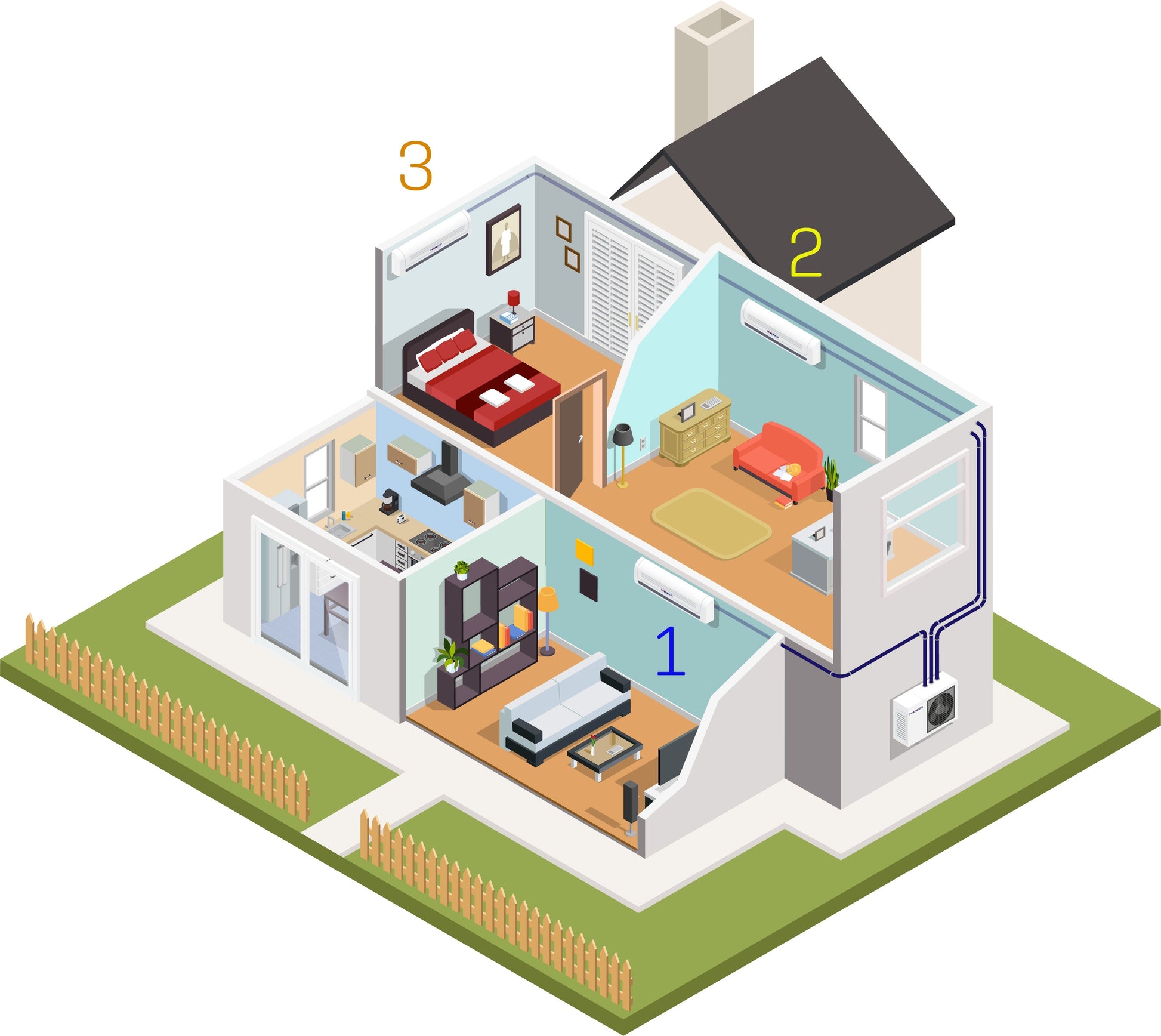

Triple split system supports three separate zones with independent climate control.
-
Wall-mounted ductless units save floor space and complement modern interiors.
-
Wi-Fi enabled for remote control and smart-home integration.
Q&A
Q: How many rooms can this system serve?
A: Supports three zones, each with its own wall-mounted indoor unit.
Q: Does it provide both heating and cooling?
A: Yes, the inverter heat pump delivers year-round comfort.
Q: Is it energy-efficient?
A: Yes, its 22.5 SEER2 rating and Energy-Star certification maximize efficiency.
Maintenance Tips
-
Clean or replace air filters every 4–6 weeks for optimal airflow.
-
Keep indoor units and airflow paths free from obstructions.
-
Ensure outdoor condenser is clear of debris for peak performance.
-
Schedule professional servicing annually to maintain long-term reliability.
