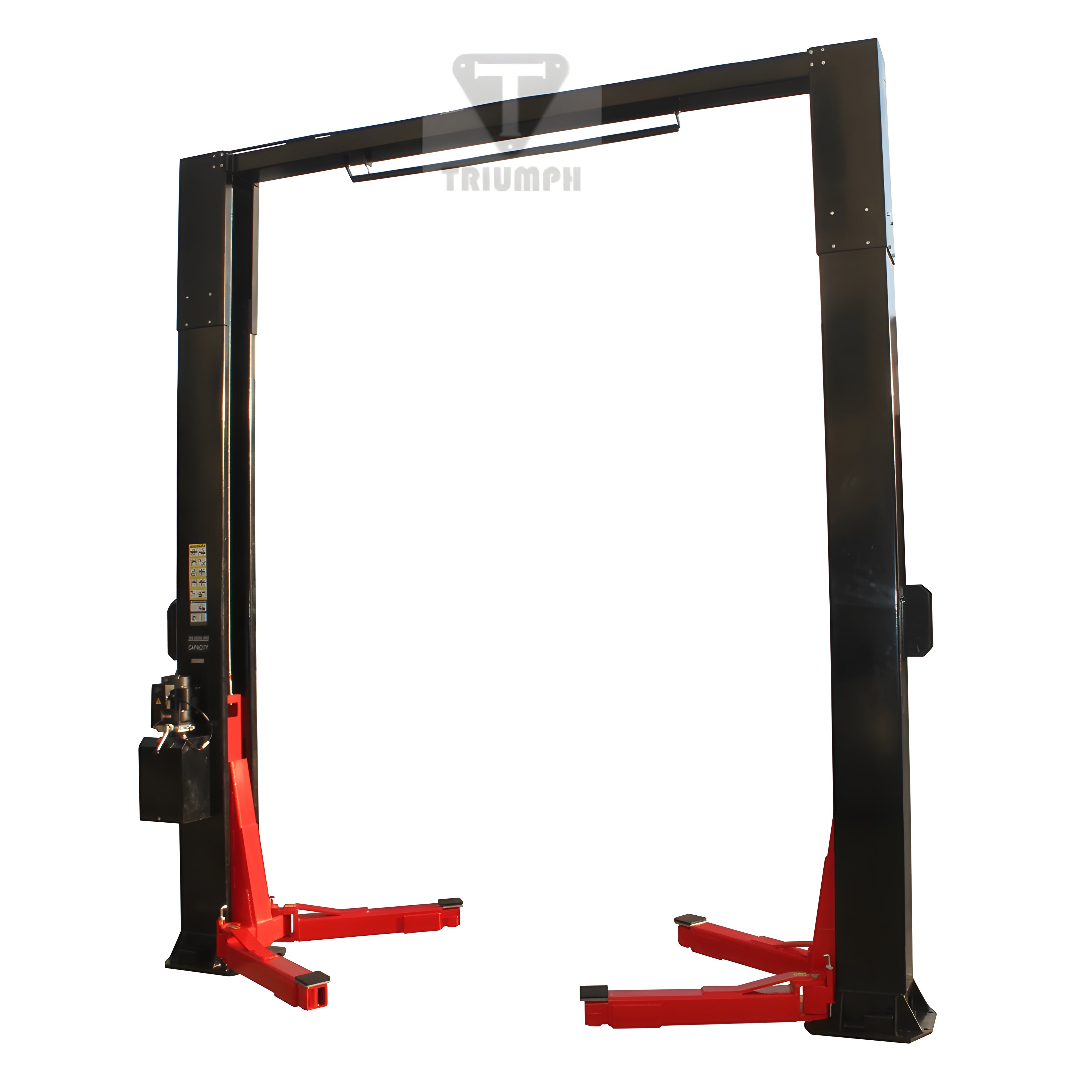

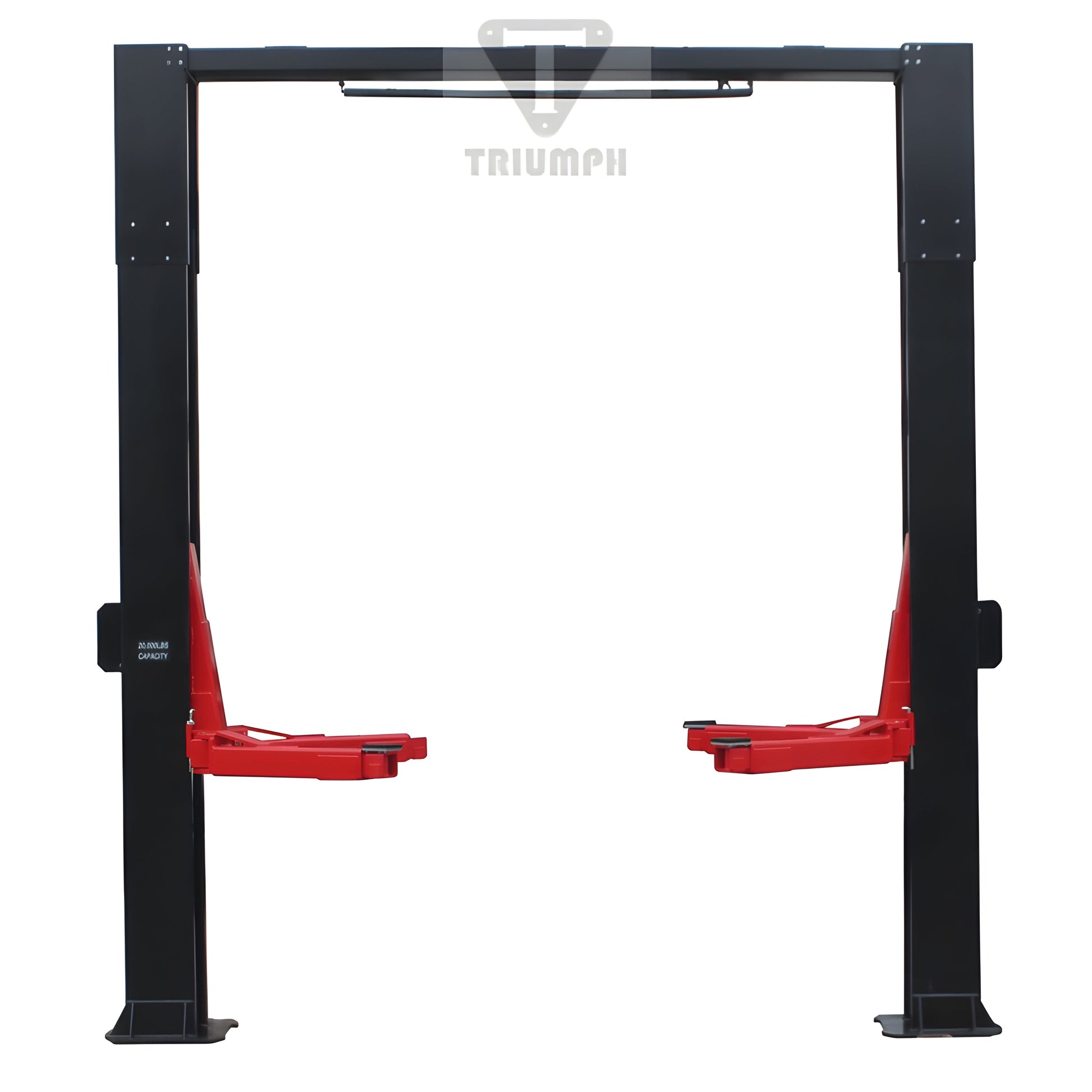

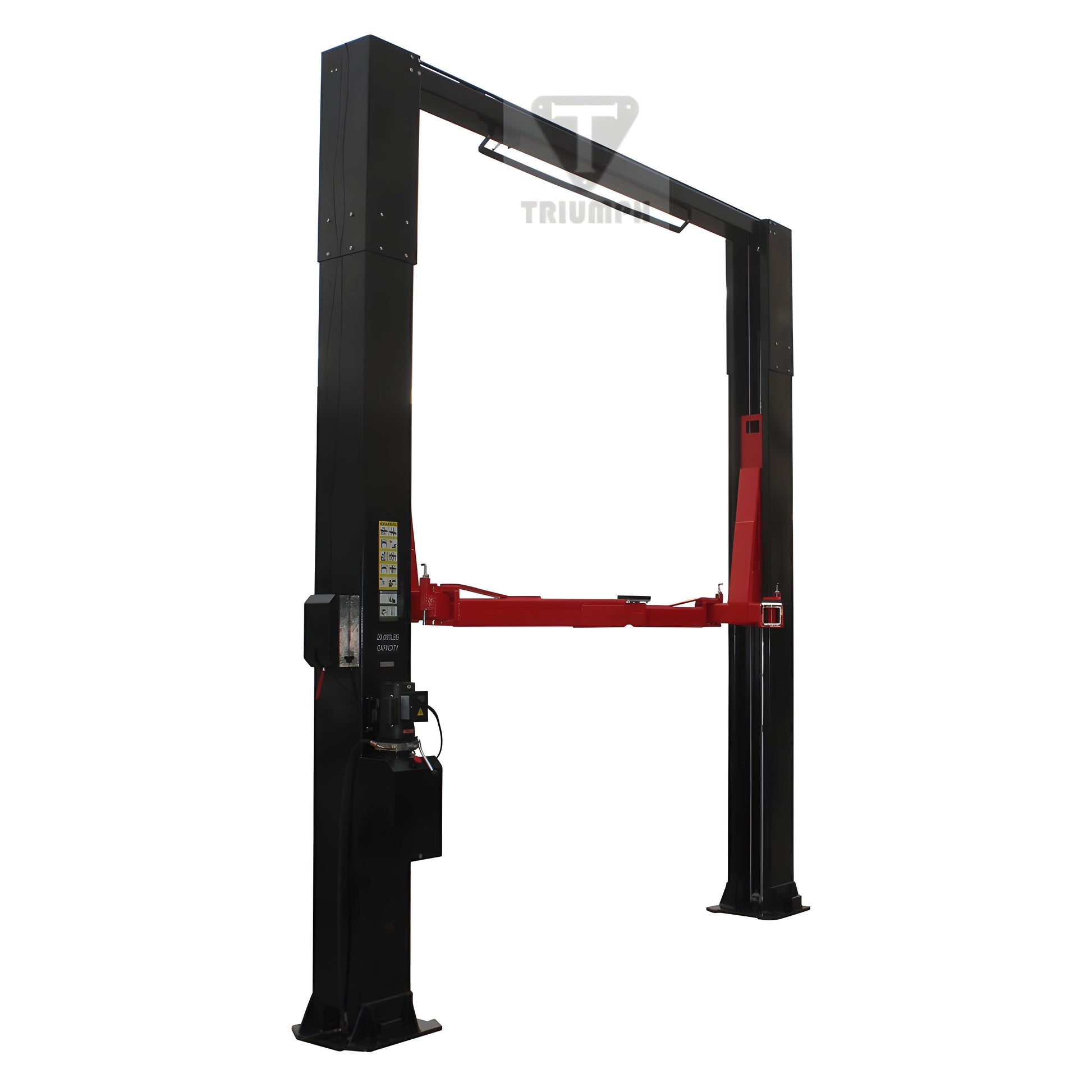

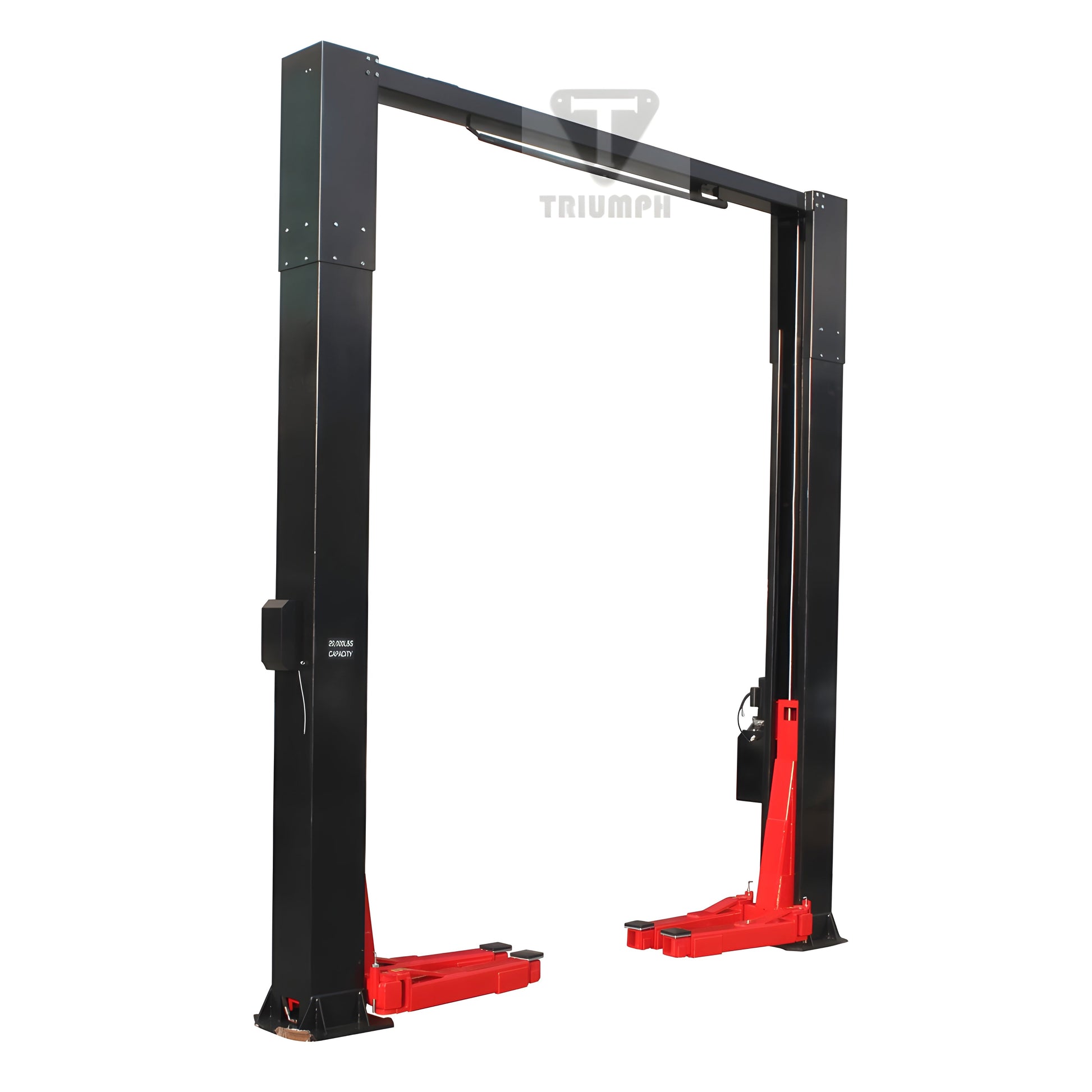

Triumph 20,000 lb Two Post Lift - NTO-20S-1

Triumph 20,000 lb Two Post Lift - NTO-20S-1

The NTO-20S 20,000 lb Two Post Auto Lift by Triumph is a robust and versatile lift designed to handle heavy-duty vehicles with ease. Engineered to the highest quality standards, it offers reliable performance for automotive shops, garages, and service centers. This lift is ISO 9001 and CE Certified/Compliant, ensuring long-lasting durability and safety.With free shipping to the lower 48 United States and a comprehensive 1-year parts warranty and 5-year structural warranty, the NTO-20S is a cost-effective solution for all your lifting needs. It includes direct drive cylinders, an electrical safety shutoff, free truck adapters, and mounting hardware, making it a complete package for professional use.

Features

• High Capacity: 20,000 lbs for lifting heavy vehicles.
• Durable Design: Manufactured to ISO 9001 and CE standards for reliability.
• Concrete Requirements: 6" slab with 4,000 PSI strength for secure installation.
• Direct Drive Cylinders: Provides smooth and efficient lifting.
• Safety Features: Electrical override automatic safety shut-off for added protection.
• Truck Adapters: Included for added versatility.
• Free Mounting Hardware: Simplifies installation.
• Quick Lift Time: 40 seconds for efficient operations.
• Warranty: 1-year parts and 5-year structural warranty for peace of mind.

Specifications

What Our Experts Think

The Triumph 20,000 lb Two Post Lift (NTO-20S-1) is a powerhouse designed for the toughest lifting tasks. Here’s why it’s a top recommendation:

• Exceptional lifting capacity – 20,000 lb capacity is ideal for heavy-duty vehicles, trucks, and larger commercial vehicles.
• Heavy-duty construction – Built with reinforced steel for maximum strength and durability, ensuring long-term performance in high-demand settings.
• Stable and reliable – Equipped with high-strength columns and wide base for superior stability during use.
• Hydraulic efficiency – Smooth, controlled lifting and lowering with the advanced hydraulic system.
• Perfect for high-volume shops – Designed for professional mechanics and automotive businesses that require a robust, reliable lift for heavy vehicles.

Q&A

Q: What is the weight capacity of the Triumph NTO-20S-1 Two Post Auto Lift?
A: The Triumph NTO-20S-1 features a 20,000 lb weight capacity, making it ideal for lifting large commercial vehicles, heavy trucks, and industrial machinery.

Q: What is the maximum lifting height of the Triumph NTO-20S-1?
A: The NTO-20S-1 provides a maximum lifting height of 78 inches, offering ample clearance for working underneath large vehicles.

Q: Can the Triumph NTO-20S-1 be used for a variety of vehicle types?
A: Yes, the NTO-20S-1 is designed with adjustable arms to fit a wide range of vehicle sizes, including trucks, buses, and vans, ensuring versatility in any professional garage.

Q: What power supply is required for the Triumph NTO-20S-1?
A: The NTO-20S-1 requires 220V single-phase power for operation, making it suitable for both home garages and commercial repair shops.

Q: Is the Triumph NTO-20S-1 lift suitable for commercial use?
A: Absolutely! With its 20,000 lb capacity, the NTO-20S-1 is perfect for high-volume, commercial vehicle repair shops and industries requiring heavy-duty lifting solutions.

Q: Does the Triumph NTO-20S-1 come with installation support?
A: Yes, the NTO-20S-1 comes with clear installation instructions and optional professional installation services for an efficient setup process.

Maintenance Tips

• Inspect Hydraulic System: Regularly check for leaks in the hydraulic hoses and connections. Maintain fluid levels and replace the hydraulic fluid if necessary.
• Lubricate Components: Apply grease to all moving parts, including pivot points, arms, and cables, to reduce friction and ensure smooth operation.
• Check the Safety Locks: Ensure safety locks are functioning correctly and engage securely during lifting. Test the system periodically to confirm proper operation.
• Inspect Cables and Chains: Examine the cables and chains for any signs of wear or damage, and replace them if needed to prevent failure.
• Electrical Wiring Check: Inspect all electrical components, including the motor and switches, for any signs of wear or malfunction, and replace faulty parts immediately.
• Clean the Lift: Keep the lift free from debris, oil, and dirt to prevent buildup that could affect performance or safety.
• Perform Regular Load Tests: Run load tests periodically to ensure the lift operates within the manufacturer's specified weight capacity.
