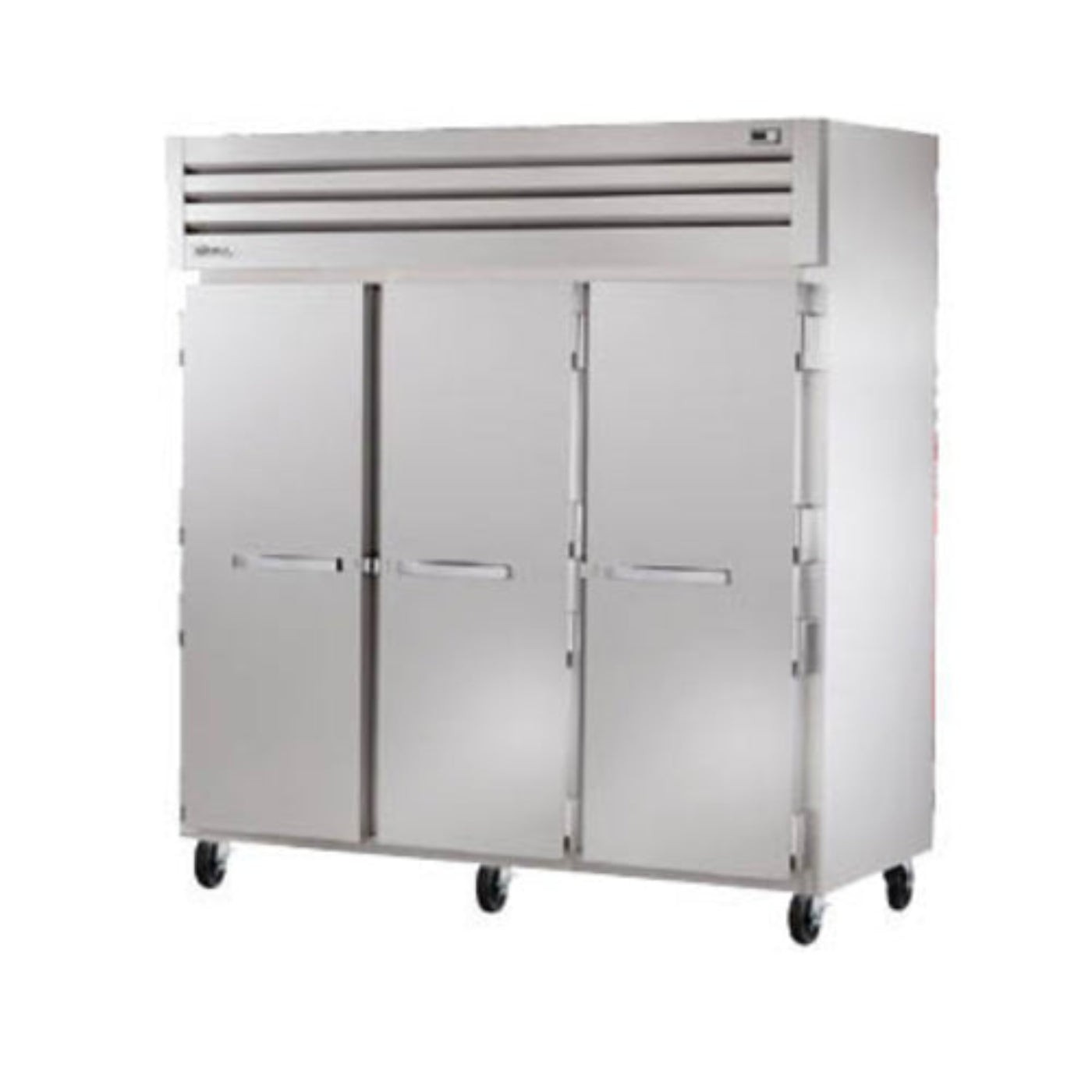

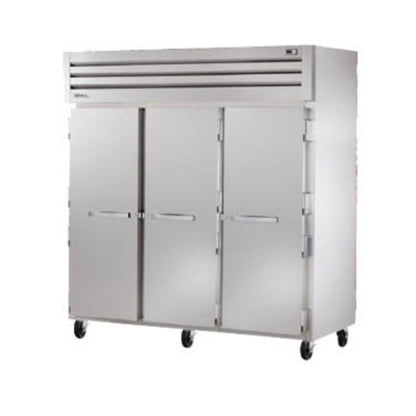

True Mfg. - General Foodservice STG3F-3S-HC SPEC SERIES Reach-In Refrigerators & Freezers
SPEC SERIES Freezer, reach-in, three-section, -10°F, (3) stainless steel doors with locks, cam-lift hinges, digital temperature control, (9) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5" castors, self-contained top-mounted refrigeration, R290 Hydrocarbon refrigerant, (2) 3/4 HP, 115v/60/1-ph, 13.8 amps, 9 ft. cord, NEMA 5-20P, cULus, UL EPH Classified, Made in USA
Drawings
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Brand Name |
SPEC SERIES® |
| Model Type |
Freezer, Reach-In, One-Section, Glass Display Doors |
| Certifications |
cULus, UL EPH Classified, Made in USA |
| Height |
77.75 in |
| Width |
27.5 in |
| Depth |
33.75 in |
| Shipping Weight |
410 lbs |
| Refrigeration |
Self-contained, top-mounted |
| Size |
1 Section |
| Compressor HP |
1 HP |
| Capacity |
24 - 37 cu. ft. |
| Door Type |
(2) Glass half doors with locks (display doors) |
| Door Style |
Half Hinged |
| Thermometer |
Digital temperature control |
| Interior Configuration |
(1) Interior kit |
| Interior Finish |
Stainless steel |
| Mobility |
5" Castors |
| Power Requirement |
1 HP, 115v/60/1-ph, 8.9 amps, NEMA 5-15P |
| Energy Efficiency |
R290 Hydrocarbon refrigerant |
What our Experts Think
-
Three-Section, High-Capacity Storage
Designed with 3 solid doors, providing efficient, organized storage for both frozen and refrigerated items, perfect for high-volume commercial kitchens.
-
Dual-Temperature Storage
-
Freezer section operates at -10°F, keeping frozen foods at the ideal temperature for long-term storage.
-
Refrigerator section keeps items between 34°F to 38°F, maintaining optimal conditions for perishable goods.
-
Durable & Reliable Construction
-
Built with a stainless steel exterior and anodized aluminum interior, ensuring a rugged, long-lasting design that stands up to the demands of commercial kitchens.
-
Self-closing doors with magnetic gaskets maintain tight seals to preserve internal temperatures and reduce energy loss.
-
Energy Efficient
Features R290 hydrocarbon refrigerant and high-density foam insulation, which provide eco-friendly, efficient cooling while minimizing energy consumption.
-
Flexible Storage Options
Includes adjustable wire shelves, allowing you to customize storage space to fit different food containers, trays, or pans.
Q&A
Q: What is the True STG3F-3S-HC SPEC SERIES Reach-In Refrigerator & Freezer?
A: It’s a three-section, dual-temperature reach-in unit with three solid stainless steel doors, designed to provide both refrigeration and freezing in one efficient, high-capacity storage unit.
Q: What temperature ranges does it maintain?
A: The refrigerator section holds temperatures between 33°F to 38°F (0.5°C to 3.3°C), while the freezer section operates between -10°F to 0°F (-23.3°C to -17.8°C), ensuring optimal storage for both perishable and frozen items.
Q: Is it energy efficient and built to last?
A: Yes, it’s ENERGY STAR® certified, featuring energy-efficient components and sturdy construction for long-lasting performance and reduced energy consumption.
Q: Where is it best used?
A: Ideal for commercial kitchens, large restaurants, catering services, and foodservice operations that require reliable, high-capacity dual-temperature storage in a compact design.
Maintenance Tips
-
Condenser Coil Cleaning: Clean the condenser coil monthly to ensure optimal performance. Disconnect the unit, remove the grill assembly, and use a stiff bristle brush or compressed air to remove dust and dirt. Reassemble the unit and reconnect it.
-
Gasket Maintenance: Regularly inspect door gaskets for wear or mold. Clean them with mild detergent and warm water to maintain a proper seal, preventing cold air loss.
-
Stainless Steel Care: Use non-abrasive cloths and non-chloride cleaners to maintain the stainless steel exterior. This prevents corrosion and preserves the unit's appearance.
-
Temperature Monitoring: Regularly check the freezer's temperature to ensure it stays within the optimal range of -10°F.
-
Annual Professional Servicing: Schedule a yearly service to check refrigerant levels and overall functionality, ensuring long-term reliability.
