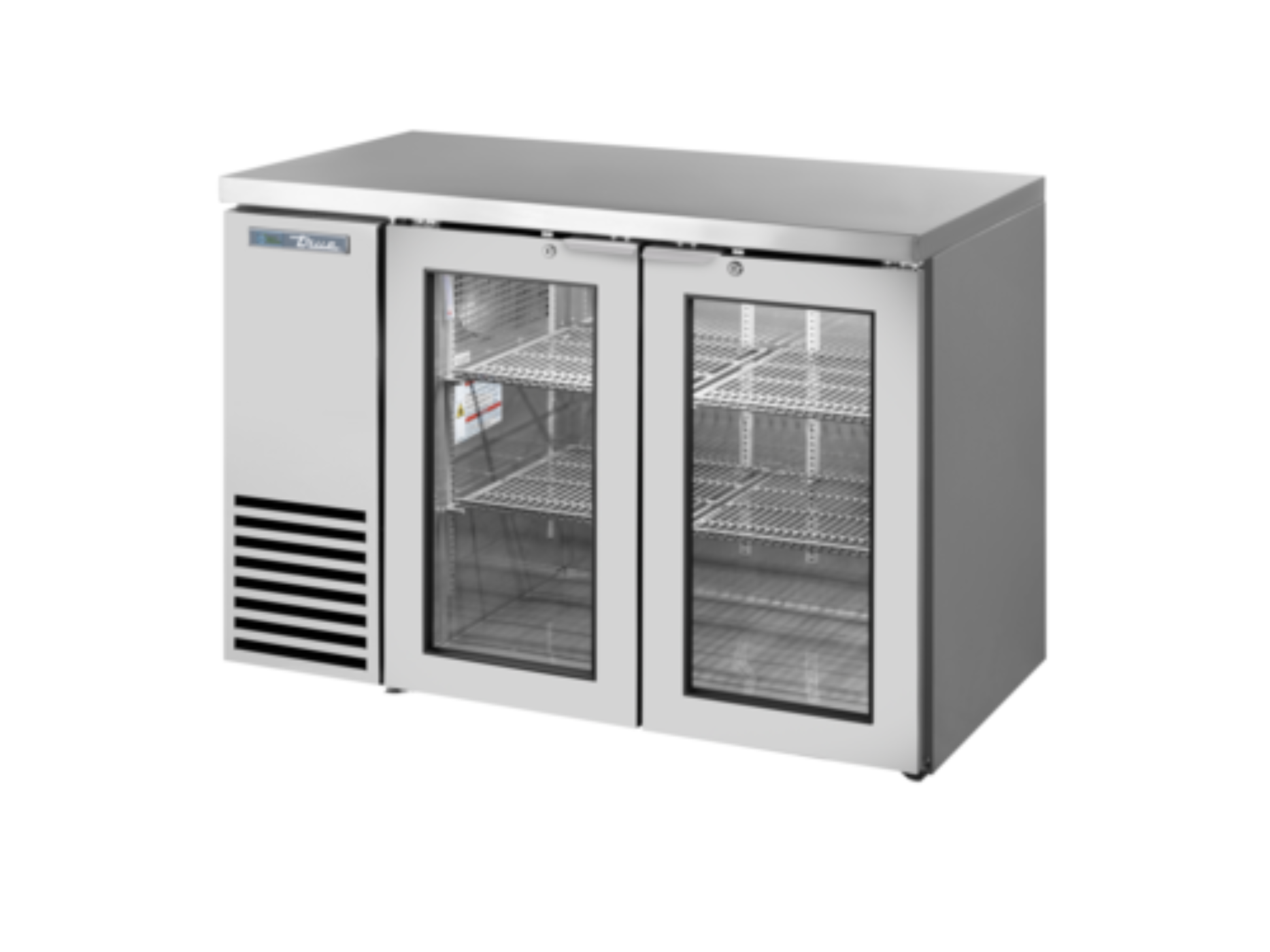

True Mfg. - General Foodservice Back Bar Coolers - TBB24-48-2G-Z1-SFT-S-1
Back Bar Cooler, two-section, 48"W, (76) 6-Packs 12oz cans or (6) 1/6 barrels, (4) wire shelves, condensing unit on left, (2) glass hinged doors with locks, LED interior lights, stainless steel top, galvanized interior with stainless steel floor, stainless steel exterior, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 1.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
Drawings
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Model Type |
Back Bar Cooler, Two-Section |
| Certifications |
cULus, UL EPH Classified, Made in USA |
| Exterior Finish |
Stainless steel exterior |
| Top Finish |
Stainless steel top |
| Interior Finish |
Galvanized interior with stainless steel floor |
| Door Quantity |
2 doors |
| Door Type |
Glass doors |
| Door Swing |
Swing doors |
| Door Features |
Hinged doors with locks |
| Refrigeration Type |
Self-contained, side-mounted |
| Refrigerant |
R290 Hydrocarbon refrigerant |
| Compressor HP |
1/5 HP |
| Capacity |
(76) 6-packs of 12oz cans or (6) 1/6 barrels |
| Shelving |
4 adjustable wire shelves |
| Interior Lighting |
LED interior lights |
| Electrical Requirements |
115v / 60Hz / 1-phase |
| Amperage |
1.8 amps |
| Plug Type |
NEMA 5-15P |
| Height |
34.75 in |
| Width |
48.12 in |
| Depth |
24.88 in |
| Shipping Weight |
290 lbs |
| Width Range (Side-Side) |
23 – 58 inches |
| Depth Range (Front-Back) |
22 – 26 inches |
What our Experts Think
-
Optimal Beverage Storage: Accommodates up to 76 six-packs of 12 oz cans or six 1/6-size kegs, making it ideal for high-demand environments.
-
Energy Efficient: Operates at 1.8 amps, reducing energy consumption while delivering powerful performance.
-
User-Friendly Design: Equipped with LED interior lighting and four adjustable shelves, ensuring easy access and visibility of stored items.
-
Durable Construction: Features a stainless steel exterior and countertop, ensuring longevity and ease of maintenance.
-
Secure Storage: Includes two glass swing doors with locks, providing security for stored items during off-hours.
Q&A
Q: What is the temperature range and refrigerant used?
A: The unit maintains a temperature range of 33°F to 38°F using eco-friendly R290 hydrocarbon refrigerant, which has zero ozone depletion potential and a low global warming potential .
Q: How energy-efficient is the True TBB24-48-2G-Z1-SFT-S-1?
A: Powered by a 1/5 HP compressor, it operates at 1.8 amps and 115V, ensuring efficient performance while minimizing energy consumption .
Q: Is the True TBB24-48-2G-Z1-SFT-S-1 durable and easy to maintain?
A: Yes, it features a stainless steel top and floor, galvanized steel interior walls, and a self-cleaning condenser fan motor. The front grill is removable for easy access to the condensing unit, simplifying maintenance .
Maintenance Tips
-
Clean the condenser coils regularly to ensure efficient cooling and prevent overheating.
-
Inspect and clean door seals to maintain energy efficiency and prevent cold air leakage.
-
Keep the unit level for proper refrigeration and to avoid operational issues.
-
Monitor refrigerant levels periodically to ensure consistent temperature control.
-
Regularly clean the interior and shelves to maintain hygiene and avoid buildup.
-
Defrost as needed to prevent ice accumulation and maintain optimal performance.
-
Listen for unusual noises and resolve promptly to prevent damage and maintain smooth operation
