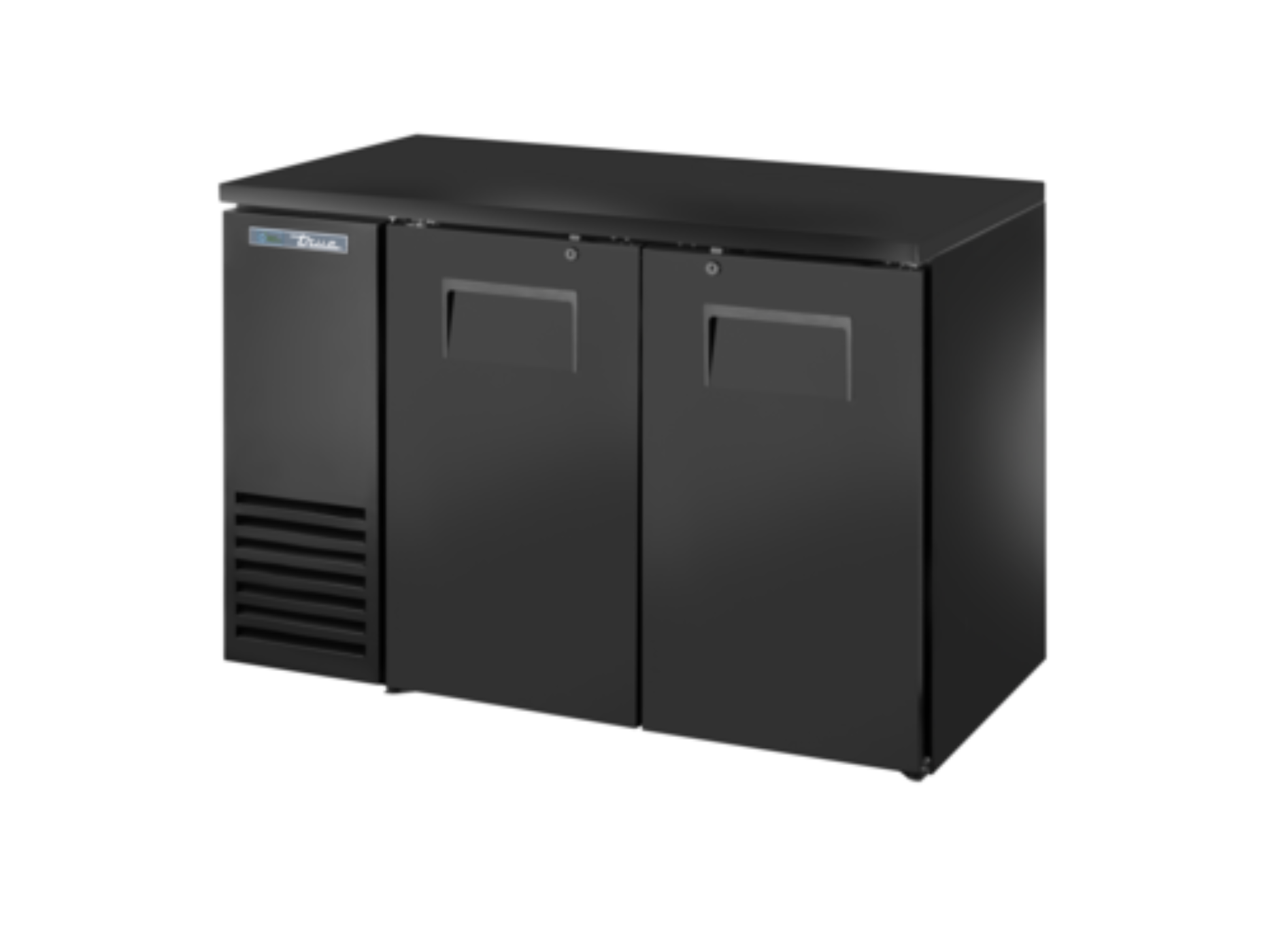

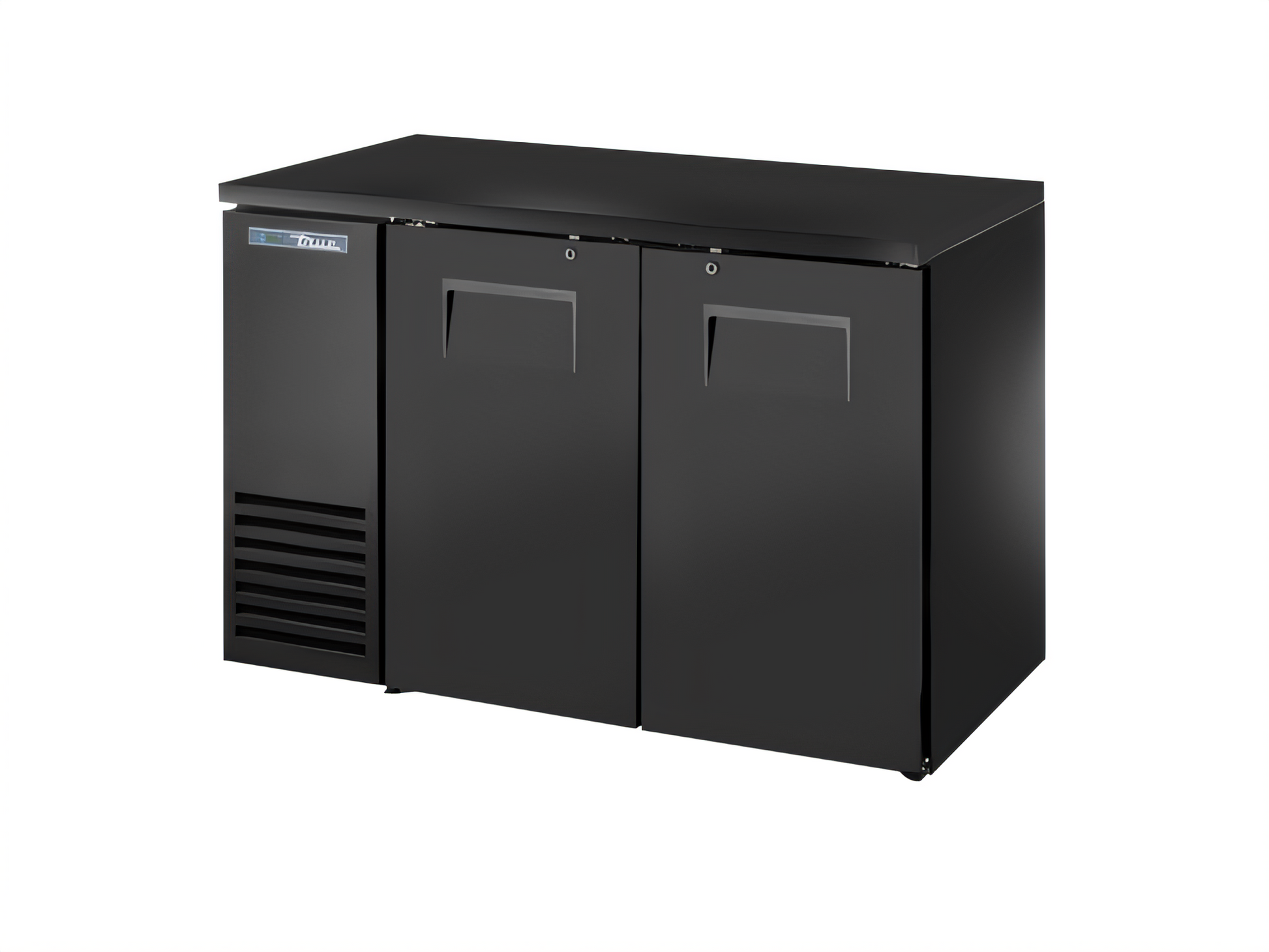

True Mfg. - General Foodservice Back Bar Coolers - TBB24-48-2S-Z1-BST-B-1
Back Bar Cooler, two-section, 48-1/8"W, (76) 6-Packs 12oz cans or (6) 1/6 barrels, (4) wire shelves, condensing unit on left, (2) solid hinged doors with locks, LED interior lights, black sub top, galvanized interior with stainless steel floor, black powder coated cold-rolled steel exterior, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 1.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
Drawings
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Model Type |
Back Bar Cooler, Two-Section |
| Certifications |
cULus, UL EPH Classified, Made in USA |
| Exterior Finish |
Black powder-coated cold-rolled steel |
| Top Finish |
Painted steel top (black sub top) |
| Interior Finish |
Galvanized interior with stainless steel floor |
| Door Quantity |
2 doors |
| Door Type |
Solid doors |
| Door Swing |
Swing doors |
| Door Features |
Hinged doors with locks |
| Refrigeration Type |
Self-contained, side-mounted (condensing unit on left) |
| Refrigerant |
R290 Hydrocarbon refrigerant |
| Compressor HP |
1/5 HP |
| Capacity |
(76) 6-packs of 12oz cans or (6) 1/6 barrels |
| Shelving |
4 adjustable wire shelves |
| Interior Lighting |
LED interior lights |
| Electrical Requirements |
115v / 60Hz / 1-phase |
| Amperage |
1.8 amps |
| Plug Type |
NEMA 5-15P |
| Height |
34.25 in |
| Width |
48.12 in |
| Depth |
24.88 in |
| Shipping Weight |
290 lbs |
| Width Range (Side-Side) |
23 – 58 inches |
| Depth Range (Front-Back) |
22 – 26 inches |
What our Experts Think
-
High-Quality Build: True Mfg. is renowned for durable, high-performance refrigeration, ensuring longevity and reliable cooling in demanding environments.
-
Energy-Efficient: Features energy-saving technology that reduces operational costs while maintaining optimal temperatures.
-
Optimal Storage: Spacious design with adjustable shelves for organized storage of drinks and perishable items.
-
Versatile Use: Perfect for bars, restaurants, and cafes, providing an ideal solution for both high-volume and small-scale setups.
-
Sleek Design: Stainless steel exterior not only adds a professional aesthetic but is also easy to clean and maintain.
-
Reliable Performance: Consistently maintains temperature stability, ensuring food and beverages are kept at the correct chill for maximum freshness.
-
Easy Access: Doors with sturdy handles for smooth operation, even in high-traffic settings.
Q&A
Q: What is the True TBB24-48-2S-Z1-BST-B-1 Back Bar Cooler designed for?
A: It's made for commercial bar and restaurant use to keep bottled and canned beverages cold, organized, and easily accessible.
Q: What is its storage capacity?
A: It stores up to 72 six-packs of 12 oz. cans or two 1/2 barrel kegs, with adjustable PVC-coated wire shelves for flexible configuration.
Q: Is it energy-efficient?
A: Yes, it features high-efficiency components and natural refrigerant for reduced energy consumption and environmental impact.
Q: Who should buy this unit?
A: Perfect for bars, lounges, and foodservice operations seeking a durable, efficient, and professional-grade back bar cooler.
Maintenance Tips
-
Self-Cleaning Condenser: Utilizes True’s self-cleaning RCU technology, reducing the need for manual condenser coil cleaning
-
Temperature Monitoring: Maintains temperatures between 35°F to 38°F (1.7°C to 3.3°C), ensuring optimal beverage storage.
-
Regular Inspections: Check door seals and locks periodically to ensure proper sealing and security.
-
Interior Maintenance: Clean the stainless steel interior floor and galvanized steel walls regularly to prevent buildup and maintain hygiene.
-
Ventilation: Ensure the unit is installed with at least a 1-inch clearance on all sides for proper airflow.
