True Mfg. - General Foodservice Back Bar Coolers - TBB24-48-2S-Z1-SFT-S-1

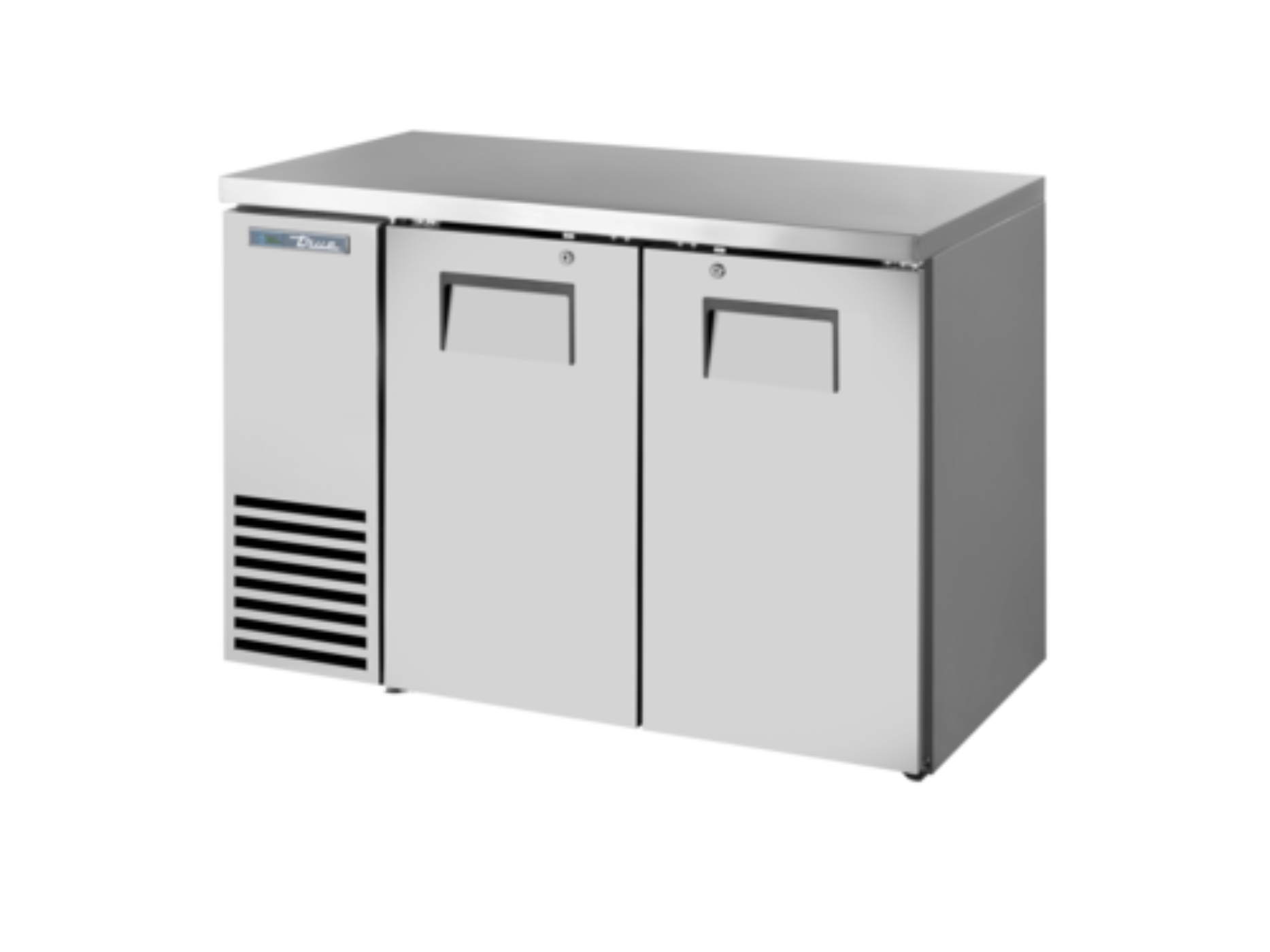

Back Bar Cooler, two-section, 48-1/8"W, (76) 6-Packs 12oz cans or (6) 1/6 barrels, (4) wire shelves, condensing unit on left, (2) solid hinged doors with locks, LED interior lights, stainless steel top, galvanized interior with stainless steel floor, stainless steel exterior, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 1.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
Drawings
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Model Type |
Back Bar Cooler, Two-Section |
| Certifications |
cULus, UL EPH Classified, Made in USA |
| Exterior Finish |
Stainless steel exterior |
| Top Finish |
Stainless steel top |
| Interior Finish |
Galvanized interior with stainless steel floor |
| Door Quantity |
2 doors |
| Door Type |
Solid doors |
| Door Swing |
Swing doors |
| Door Features |
Hinged doors with locks |
| Refrigeration Type |
Self-contained, side-mounted (condensing unit on left) |
| Refrigerant |
R290 Hydrocarbon refrigerant |
| Compressor HP |
1/5 HP |
| Capacity |
(76) 6-packs of 12oz cans or (6) 1/6 barrels |
| Shelving |
4 adjustable wire shelves |
| Interior Lighting |
LED interior lights |
| Electrical Requirements |
115v / 60Hz / 1-phase |
| Amperage |
1.8 amps |
| Plug Type |
NEMA 5-15P |
| Height |
34.25 in |
| Width |
48.12 in |
| Depth |
24.88 in |
| Shipping Weight |
290 lbs |
| Width Range (Side-Side) |
23 – 58 inches |
| Depth Range (Front-Back) |
22 – 26 inches |
What our Experts Think
-
Robust Build Quality: Constructed with a durable stainless steel exterior and countertop, this cooler is designed to withstand the demands of high-traffic bars and pubs.
-
Optimal Storage Capacity: Offers ample space, accommodating up to 76 six-packs of 12 oz cans or six 1/6-size kegs, making it ideal for establishments with high beverage turnover.
-
Efficient Refrigeration System: Equipped with a self-contained capillary tube system and R290 hydrocarbon refrigerant, it maintains temperatures between 33°F and 38°F, ensuring beverages are kept at optimal serving temperatures.
-
Energy-Efficient Operation: The unit operates at 1.8 amps, reducing energy consumption while delivering powerful performance.
-
Enhanced Security Features: Fitted with two solid swing doors that include locks, providing security for stored items during off-hours.
-
Interior Lighting: LED interior lighting enhances product visibility, aiding in quick access to stored items.
-
Easy Installation: Pre-wired with a 10-foot cord and NEMA 5-15P plug, the unit is ready for final connection to a 115V electrical outlet, simplifying setup.
-
Compliance and: NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled products, ensuring it meets industry standards
Q&A
Q: What is the True Mfg TBB24-48-2S-Z1-SFT-S-1 Back Bar Cooler?
A: The True Mfg TBB24-48-2S-Z1-SFT-S-1 is a high-quality, two-section back bar cooler designed for foodservice businesses. It features an energy-efficient refrigeration system, durable stainless steel construction, and a spacious interior to keep drinks cold and easily accessible.
Q: How large is the TBB24-48-2S-Z1-SFT-S-1?
A: The cooler measures 48" wide, offering ample storage space for beverages and refrigerated items.
Q: Is the TBB24-48-2S-Z1-SFT-S-1 energy-efficient?
A: Yes, it is designed with energy-efficient technology, reducing operating costs while maintaining optimal cooling performance
Maintenance Tips
-
Regularly clean the condenser coils to maintain optimal airflow.
-
Keep door seals clean and intact to improve energy efficiency.
-
Level the unit to ensure proper cooling performance.
-
Inspect refrigerant levels periodically to avoid temperature fluctuations.
-
Clean the evaporator fan and ensure it operates smoothly.
-
Defrost the cooler as needed to prevent ice buildup.
-
Check for any unusual noises and address them promptly to maintain efficient operation
