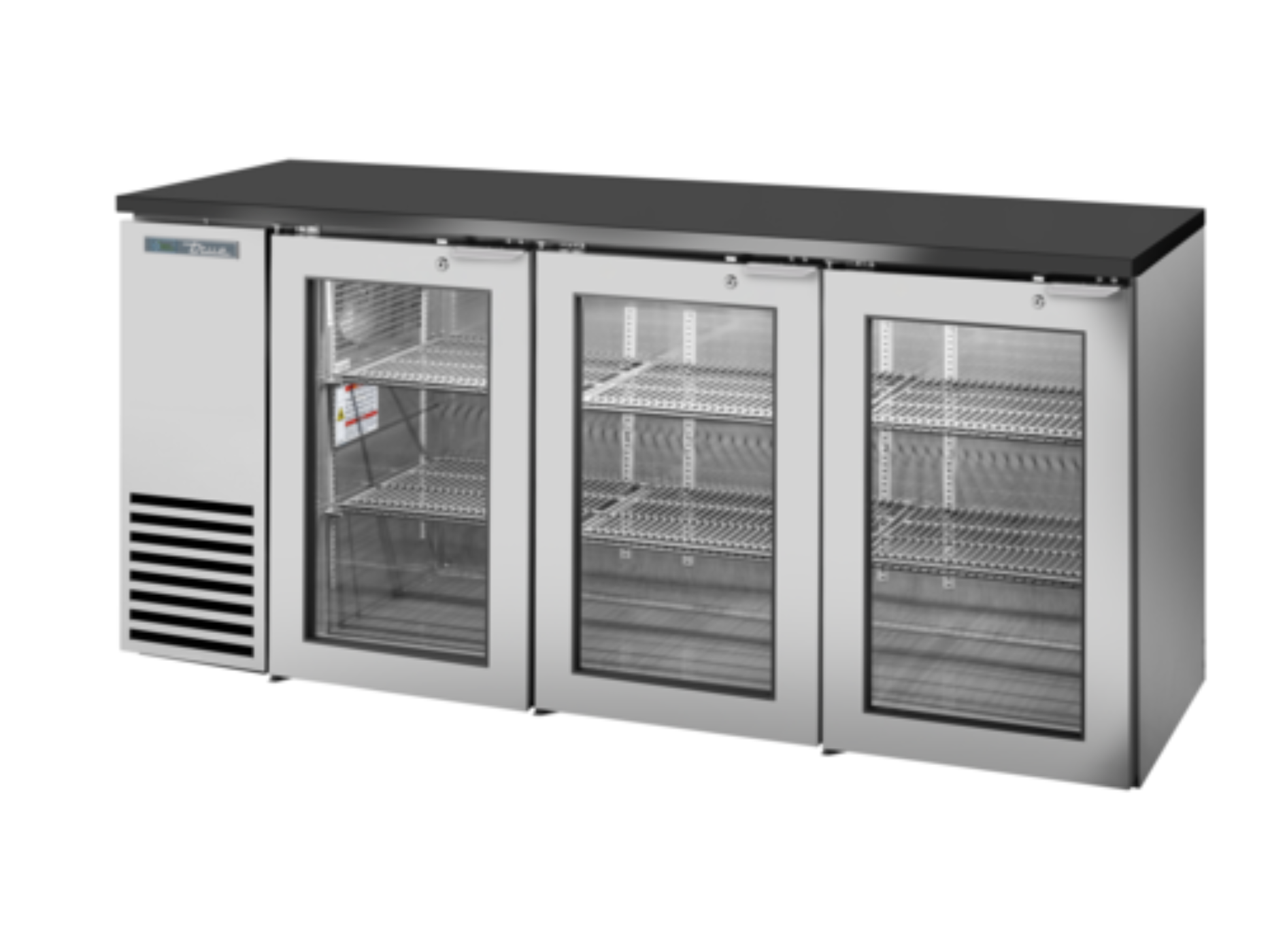

True Mfg. - General Foodservice Back Bar Coolers - TBB24-72-3G-Z1-BST-S-1
Back Bar Cooler, two-section, 72-1/8"W, (125) 6-Packs 12oz cans or (3) 1/2 barrels, (6) wire shelves, condensing unit on left, (3) glass hinged doors with locks, LED interior lights, black sub top, galvanized interior with stainless steel floor, stainless steel exterior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.2 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
Drawings
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Model Type |
Back Bar Cooler, Three-Section |
| Certifications |
cULus, UL EPH Classified, Made in USA |
| Exterior Finish |
Stainless steel exterior |
| Top Finish |
Painted steel top (black sub top) |
| Interior Finish |
Galvanized interior with stainless steel floor |
| Door Quantity |
3 doors |
| Door Type |
Glass doors |
| Door Swing |
Swing doors |
| Door Features |
Hinged doors with locks |
| Refrigeration Type |
Self-contained, side-mounted (condensing unit on left) |
| Refrigerant |
R290 Hydrocarbon refrigerant |
| Compressor HP |
1/4 HP |
| Capacity |
(125) 6-packs of 12oz cans or (3) 1/2 barrels |
| Shelving |
6 adjustable wire shelves |
| Interior Lighting |
LED interior lights |
| Electrical Requirements |
115v / 60Hz / 1-phase |
| Amperage |
3.2 amps |
| Plug Type |
NEMA 5-15P |
| Height |
34.25 in |
| Width |
72.12 in |
| Depth |
24.88 in |
| Shipping Weight |
415 lbs |
| Width Range (Side-Side) |
59 – 72 inches |
| Depth Range (Front-Back) |
22 – 26 inches |
What our Experts Think
-
Spacious Storage Capacity: Accommodates up to 125 six-packs of 12 oz cans or 3 half-barrel kegs, making it ideal for high-volume bars and restaurants.
-
Durable Construction: Features a stainless steel exterior with a black sub top, designed to slide under existing counters, and a galvanized steel interior with a stainless steel floor, ensuring longevity and ease of cleaning.
-
Efficient Cooling System: Utilizes R-290 hydrocarbon refrigerant and a self-cleaning condenser, maintaining temperatures around 35°F while reducing energy consumption.
-
Enhanced Visibility: Equipped with three low-emission, double-pane thermal glass doors that trap and reflect cold air inward, providing clear product display and easy access.
Q&A
Q: What is the True TBB24-72-3G-Z1-BST-S-1 Back Bar Cooler?
The True TBB24-72-3G-Z1-BST-S-1 is a 72" three-section back bar cooler designed for commercial foodservice environments. It features three glass swing doors with recessed handles and locks, providing visibility and security for stored beverages.
Q: What is its storage capacity?
This cooler can hold up to 125 six-packs of 12 oz cans or three half-barrel kegs, accommodating high-volume beverage needs.
Q: Is it energy-efficient?
Yes, the True TBB24-72-3G-Z1-BST-S-1 is designed with energy-efficient technology, including R290 hydrocarbon refrigerant and self-cleaning RCU technology, to reduce energy consumption while maintaining optimal temperature levels.
Q: Where can I purchase this model?
The True TBB24-72-3G-Z1-BST-S-1 is available for purchase from various commercial kitchen equipment suppliers, including GoFoodservice and KaTom.
Maintenance Tips
-
Clean condenser coils regularly to ensure optimal cooling efficiency and prevent overheating.
-
Inspect and clean door seals to maintain proper sealing and energy efficiency.
-
Keep the unit level to ensure consistent refrigeration performance.
-
Check refrigerant levels periodically to avoid temperature fluctuations.
-
Clean the interior and shelves routinely to maintain hygiene and avoid buildup.
-
Defrost as necessary to prevent ice buildup and ensure proper airflow.
-
Address any unusual sounds or vibrations immediately to maintain optimal functionality.
