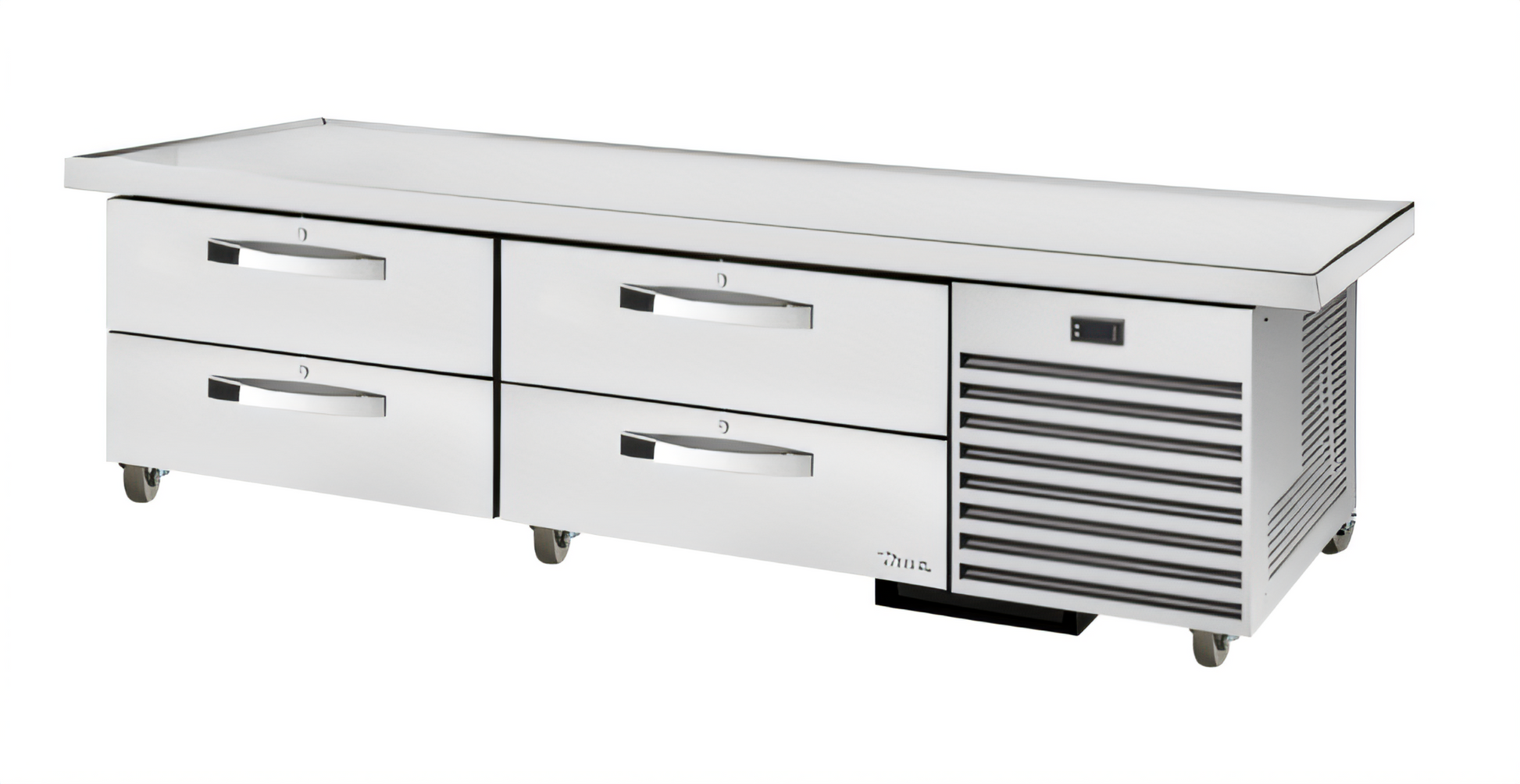

True Mfg General Foodservice Undercounter & Worktop Refrigeration - TRCB-82-86-HC~SPEC3
4-Drawer | 86¼" Wide | Spec Series Package 3
Give your busy kitchen the cold-holding muscle of True’s Spec Series chef base. Built entirely from 300-series stainless steel and powered by an oversized R290 refrigeration system, the TRCB-82-86-HC~SPEC3 keeps ingredients at 33-38 °F while supporting up to 1,084 lb of countertop equipment.
Why this chef base stands out
-
Rugged one-piece top with “V” edge resists drips and buckling under heavy equipment.
-
Four locking drawers glide on heavy-duty slides & rollers—tool-free removal for cleaning.
-
Pan flexibility: left drawers hold (3) and right drawers hold (2) full-size 12 x 20 x 4" pans (sold separately).
-
High-performance refrigeration with extra-large evaporator coil, 1/3 HP compressor and eco-friendly R290 refrigerant.
-
Self-Cleaning RCU technology removes debris from the condenser to reduce energy use and extend component life.
-
All-stainless construction—front, back, sides, interior and drawers—for maximum durability and food safety.
-
Electronic temperature control with easy-to-read digital display.
-
Locking 4" castors (front two lock) for instant mobility and secure placement.
- NSF/ANSI 7, UL EPH Classified, cULus & CE listed; proudly Made in the USA.
Specifications
| Exterior width |
86 ¼" (2191 mm) |
| Exterior depth |
32 ⅛" (814 mm)
Add 1 ½" for drawer handles & 1" for rear bumpers. |
| Exterior height |
20 ½" (520 mm) cabinet only
25 ½" with 4" castors |
| Drawer count / locks |
4 drawers, individual locks |
| Pan capacity (pans not included) |
(3) 12 x 20 x 4" pans per left drawer
(2) 12 x 20 x 4" pans per right drawer |
| Temperature range |
33 – 38 °F (0.5 – 3.3 °C) |
| Refrigerant |
R290 Hydrocarbon (0 ODP, 3 GWP) |
| Compressor |
1/3 HP, self-contained |
| Electrical |
115 V / 60 Hz / 1-ph, 4.4 A, NEMA 5-15P
Factory-wired; 230-240 V / 50-60 Hz option available. |
| Top load rating |
1,084 lb (492 kg) |
| Shipping weight |
495 lb (225 kg) crated |
| Certifications |
cULus, UL EPH, CE, NSF/ANSI 7 |
| Origin |
Made in the USA |
What Our Experts Think
-
Heavy-duty SPEC SERIES chef base refrigerator designed for maximum performance in high-volume kitchens.
-
Wide 82"–86" unit offers expanded storage with multiple refrigerated drawers.
-
Built with an all stainless steel interior and exterior for superior durability and easy cleaning.
-
Reinforced top supports heavy countertop cooking equipment such as charbroilers or griddles.
-
Operates on R290 hydrocarbon refrigerant for energy efficiency and eco-friendly refrigeration.
Q&A
Q: What makes the SPEC3 version different?
A: The SPEC3 upgrade includes enhanced stainless steel construction inside and out, reinforced drawer design, and maximum durability for heavy use.
Q: How many drawers are included?
A: The TRCB-82-86-HC~SPEC3 comes with four refrigerated drawers, each designed to fit full-size food pans.
Q: Is it strong enough for heavy kitchen equipment?
A: Yes, the reinforced stainless steel top is built to handle griddles, charbroilers, and other heavy-duty appliances.
Q: Is it energy-efficient?
A: Absolutely, it uses R290 refrigerant, reducing energy consumption and environmental impact.
Maintenance Tips
-
Clean condenser coils every 30–60 days to maintain cooling efficiency.
-
Check drawer gaskets regularly for wear and replace if needed.
-
Keep ventilation clear to ensure proper airflow.
-
Use mild detergent and a soft cloth to clean stainless steel surfaces.
-
Avoid overloading drawers to maintain smooth drawer performance and temperature consistency.
