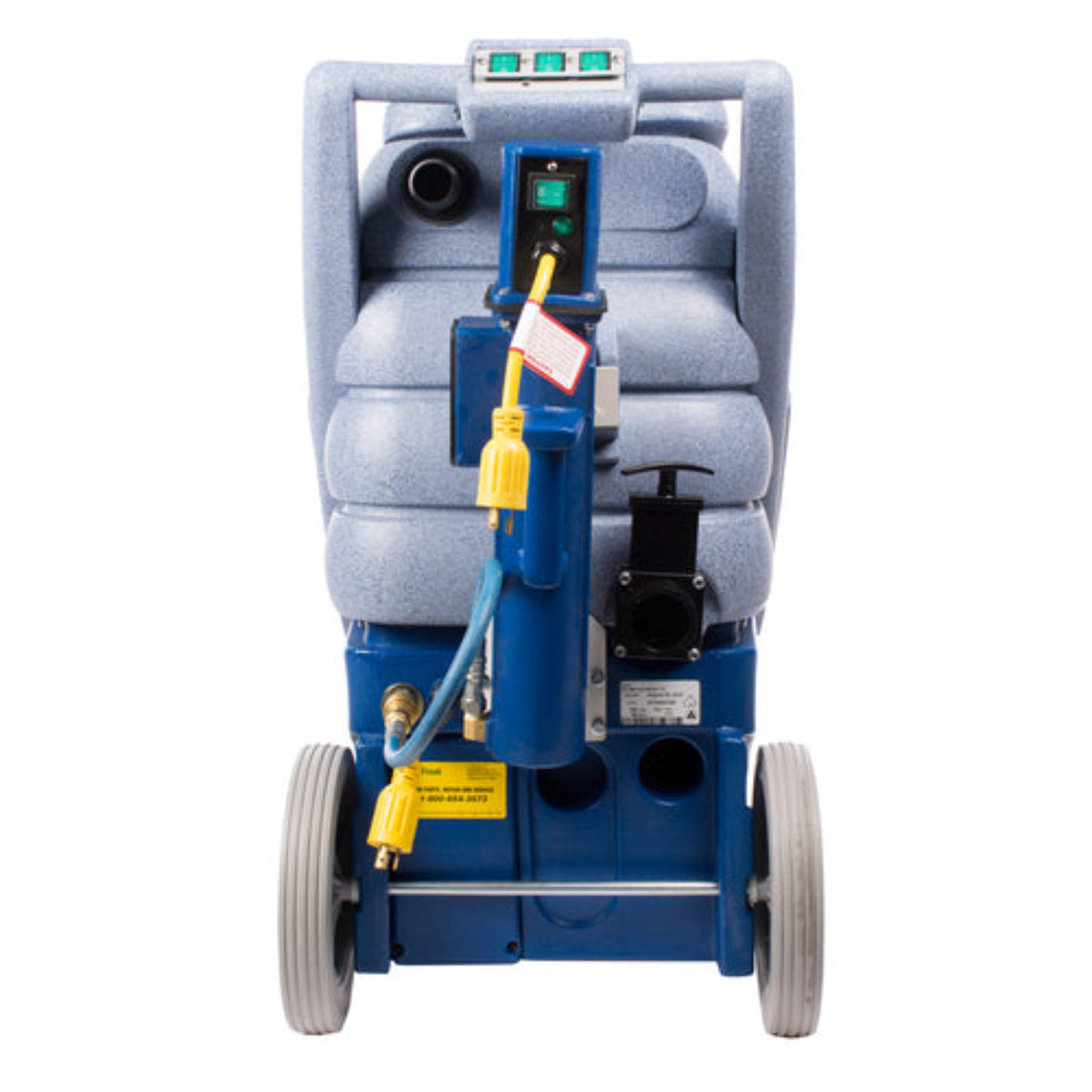

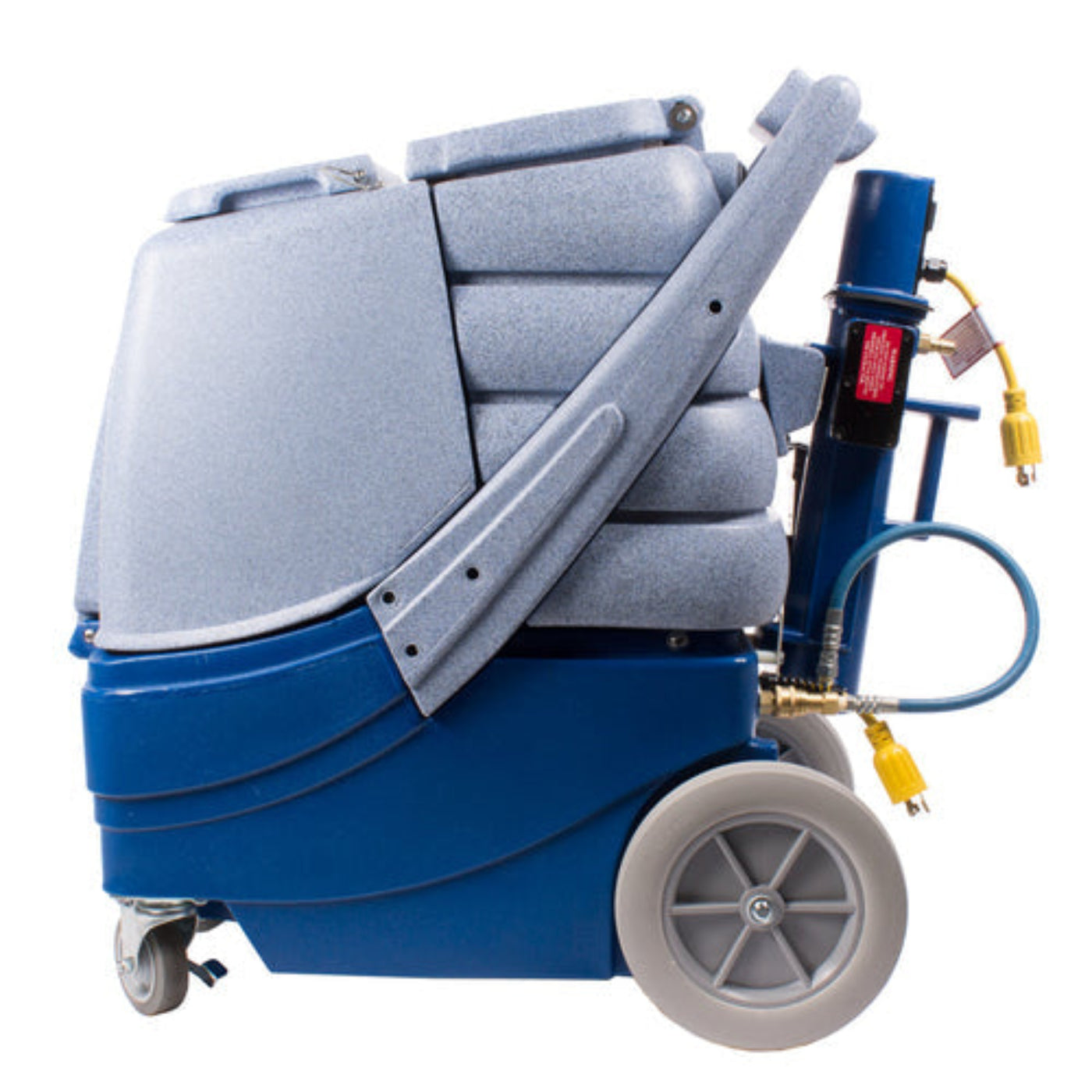

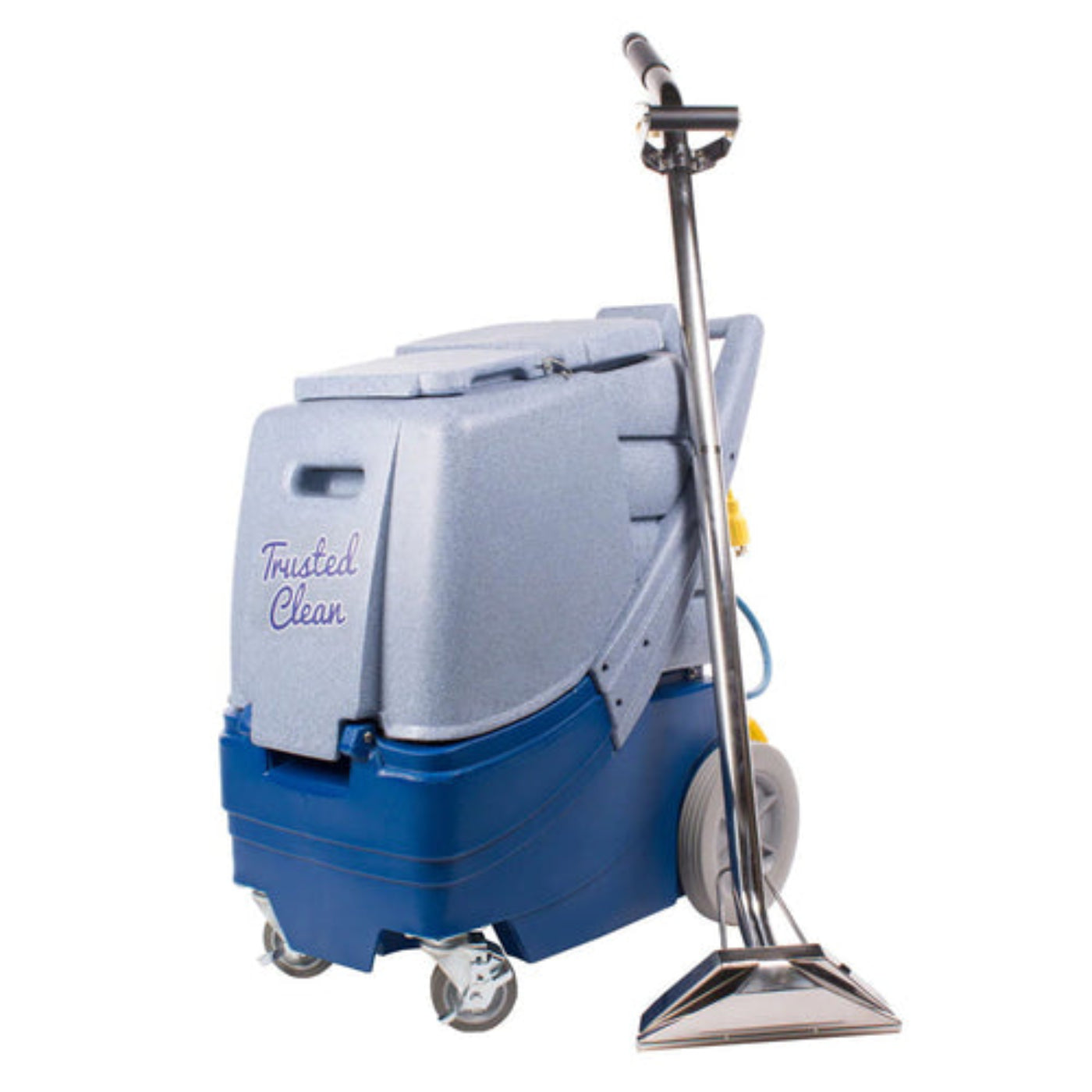

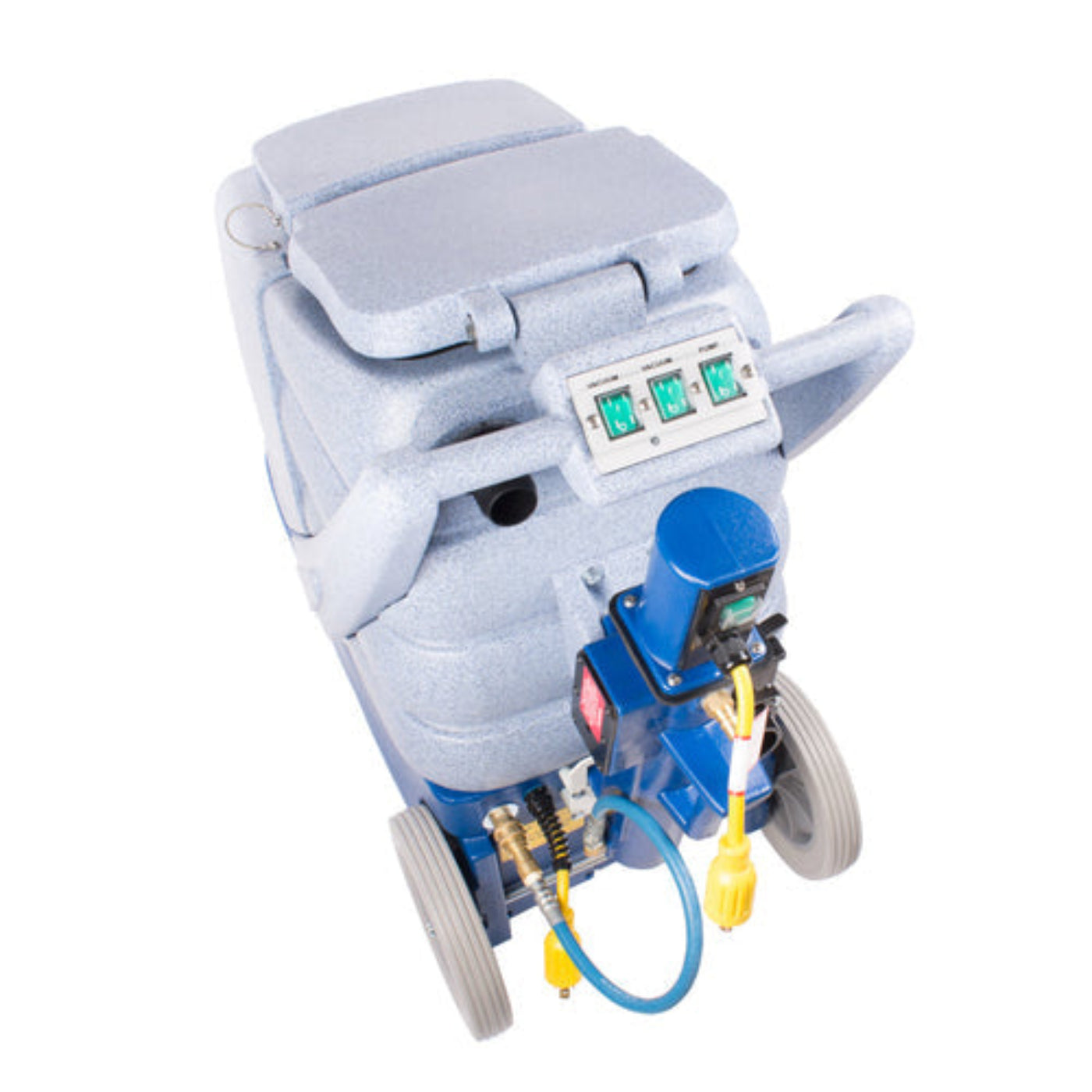

Trusted Clean 'Ultimate' Heated Carpet Cleaning Box Extractor w/ 12" Wand & 25' Hose - TPL-12-100-CE-HEAT-TCP
The Trusted Clean 'Ultimate' is a 12-gallon box extractor that comes with a 12" carpet cleaning wand, a 25' hose, and an external heater for extreme cleaning. The heater can be disconnected in limited power situations, or if it happens to fail, you can still use your extractor as a non-heated unit. It is considered to be a state-of-the-art extractor because of the game changing technology with the external heater. The power and large capacity, combined with a compact size and minimal weight, make this model ideal for a single operator.
The 'Ultimate' extractor has a hi-tech design that holds a total of 12 gallons inside a surprisingly compact body. This provides you with maximum efficiency and portability, all at a very affordable price! This very powerful model delivers the 'Ultimate' in both pressure and suction, leaving carpets clean and virtually dry in record time. Comes complete with a 12" deluxe dual jet stainless steel S-bend wand and 25' hose assembly.
With an external heater the Trusted Clean extractor becomes even more powerful. The heater is detachable for those jobs where heat is not needed. You can also continue to use your unit if the heater goes out. Simply detach it and send it back for warranty replacement. Comes with a lifetime warranty on the heating element. No more downtime for you!
Please feel free to take a look at our complete line of box extractors, or take a look at our carpet cleaning package deals, and see what you can get for FREE when ordering this machine!!
We want to make sure you're 100% prepared when your machine arrives, so we encourage you to look through our carpet cleaning chemicals, external scrubbing power brushes, upholstery tools departments to make sure you have the right supplies on hand.
Caring for Your Carpet Extractor
Your carpet extractor should be winterized between uses if it is to be exposed to freezing temperatures. To winterize your machine, pour 1/2 gallon of windshield wiper fluid into the empty solution tank. Run the pump until fluid flows through the tank. Then run 1 gallon of water through the extractor before the next use.
Your new Trusted Clean extractor may come with some pink or blue solution in the tanks depending on what time of year it is. This is a winterizing solution to help protect the internal components from freezing during shipping. Simply flush it out by running a gallon of clean water through the pump before using the machine.
Features
- Dump valve w/ an angled PVC elbow directs dirty water down & into a 5-gallon bucket or slop sink.
- "No drip" motor cavity guarantees water spilled on the outside of the machine stays out!
- Upright-mounted motors along with a special intercooler that guarantees long life & durability.
- Standard 5-gallon bucket fits under drain valve for easy emptying.
- Opens quickly like a clamshell for easy servicing.
- Small, compact body with a stair-climbing handle for exceptional portability.
- Lifetime warranty on the roto-molded tanks & heating element, and 5 years on parts & labor.
Specifications
| Brand |
Trusted Clean |
| Manufacturer Sku |
12-100-CE-HEAT-TCP |
| Airflow (CFM) |
92 |
| Color |
Blue |
| Construction |
Tank Construction: Polyethylene |
| Base Plate: 1/4" Aluminum |
|
| Country of Manufacture |
United States |
| Electrical Draw |
Extractor: 13.5 amps |
| Heater: 14.2 amps |
|
| Heated |
Yes |
| Includes |
Deluxe dual-jet S-bend stainless steel wand |
| Operating Weight |
87 lbs |
| Power Cord |
50 ft. detachable |
| Product Type |
Carpet Extractors |
| PSI |
100 |
| Recovery Tank Capacity |
11 gallons |
| Solution Capacity |
12 gallons |
| Vac Hose |
1.5" x 25' |
| Vacuum Motor |
Dual 2-stage motors |
| Warranty |
Lifetime warranty on tanks, 5 years on parts & labor from an authorized service center |
| Water Heater |
2000 Watts |
| Water Lift |
150" |
| Wheels |
Rear Wheels: 10 inches, non-marking |
| Casters: 4 inches |
|
| Dimensions |
35" H x 31" L x 18" W |
| ERP Sku |
TPL-12-100-CE-HEAT-TCP |
Included
- 12" carpet cleaning dual-jet drag wand
- 25' vacuum/solution hose combo
- 2 – 50' power cords w/ twist-lock connector
- External 2000 watt heater
- Circuit locator w/ twist-lock connector
- 90° PVC dump valve
- Owner's manual
Troubleshooting
What our Experts Think
-
High Productivity: Cleans up to 15,748 sq. ft. per hour with its 20" scrub path, making it ideal for large commercial spaces.
-
Easy Operation: Features a user-friendly 3-button control panel that simplifies operation and training.
-
Durable Design: Constructed with heavy-duty rotationally molded polyethylene for long-lasting durability.
-
Efficient Squeegee System: Includes a heavy-duty cast aluminum squeegee assembly for effective solution recovery.
-
Comprehensive Package: Comes complete with the auto scrubber, brush, pads, chemicals, and replacement squeegees, offering everything needed for efficient floor cleaning.
Q&A
Q: What is included in the ASP-PACKAGE7?
A: The package includes the Trusted Clean 'Dura 20' battery-powered auto scrubber with a 20" cleaning path, a 20" poly floor scrubbing brush, five cases of red light-duty scrubbing pads, 2.5 gallons of low foam floor cleaner, 2.5 gallons of defoamer, and replacement front and rear squeegee blades.
Q: What is the cleaning capacity of the 'Dura 20'?
A: The 'Dura 20' can clean up to 15,748 square feet per hour, making it ideal for medium to large commercial spaces.
Q: What type of battery does the 'Dura 20' use?
A: It uses two 12V, 105 Ah AGM batteries, offering about 3 hours of continuous runtime on a full charge.
Q: What is the warranty on the 'Dura 20'?
A: The warranty includes A years on the tanks, 5 years on parts, 2 years on labor, 180 days on travel, 1 year on the vacuum motor, and prorated coverage for up to 18 months on the batteries.
Q: Is the 'Dura 20' suitable for uneven floors?
A: Yes, the included poly floor scrubbing brush is effective on uneven surfaces like tiled floors with grout lines and finished concrete.
Q: What is the weight of the 'Dura 20'?
A: The scrubber weighs approximately 282 pounds, ensuring stability during use.
Maintenance Tips
-
Drain and Rinse Tanks: Empty both the solution and recovery tanks. Rinse them thoroughly with clean water to remove any residue and prevent build-up.
-
Clean the Squeegee Assembly: Remove the squeegee assembly and rinse it thoroughly to prevent buildup and ensure effective water pickup.
-
Clean Brushes and Pads: Remove the brush and pads. Rinse them thoroughly to remove dirt and debris. Allow them to dry completely before storing.
-
Inspect for Damage: Check the scrubber for any signs of wear or damage. Address any issues promptly to prevent further damage.
-
Inspect Brushes and Pads: Check the brush for bristle wear and the pads for thinning. Replace them if necessary to maintain optimal cleaning performance.
-
Check Battery (if applicable): Ensure the battery is fully charged and in good condition. Clean any terminals and connections to prevent corrosion.
-
Inspect Hoses and Connections: Check all hoses and connections for leaks or blockages. Replace any damaged components.
-
Lubricate Moving Parts: Apply a light lubricant to moving parts as recommended by the manufacturer to ensure smooth operation.
