U-Line - 15" 1 Class Beverage Center - UHBV115 - UHBV115-SG01A

U-Line - 15" 1 Class Beverage Center - UHBV115 - UHBV115-SG01A

A favorite of cocktail enthusiasts, wine lovers, and beer drinkers alike, our 15" 1 Class Beverage Center is the smart choice for a home bar companion. Available with: stainless steel glass door or integrated panel-ready finish options. Designed to store: wine, beverages, and more. Installs beautifully: into cabinetry or freestanding applications

Cooling System

• Convection cooling system for quick cool down and consistent temperature

Interior and Door

• Black interior
• LowE coated, argon gas filled, dual thermopane glass door for UV protection
• Stainless steel full-wrap door and handle (7/8" diameter)
• Stainless steel grille (stainless model), black metal grille (integrated models)

Storage

• Two, three-quarter extension, black wine racks
• Two adjustable tempered glass shelves
• Volume of 2.9 cu ft holds up to 8 wine bottles (750 ml) and 48 bottles (12 oz) or 60 cans (12 oz)

Controls and Lighting

• Digital touch pad control
• Bright white LED lighting

Temperature Range

• 34°F to 60°F

Installation

• Built-in or freestanding
• Field reversible door, shipped right-hand hinged
• Four adjustable leveling legs

Specifications

Model

• UHBV115-SG01A
• UHBV115-IG01A
• UHBV115-IS01A

Voltage / Hz

• 115 V/60 Hz

Finish

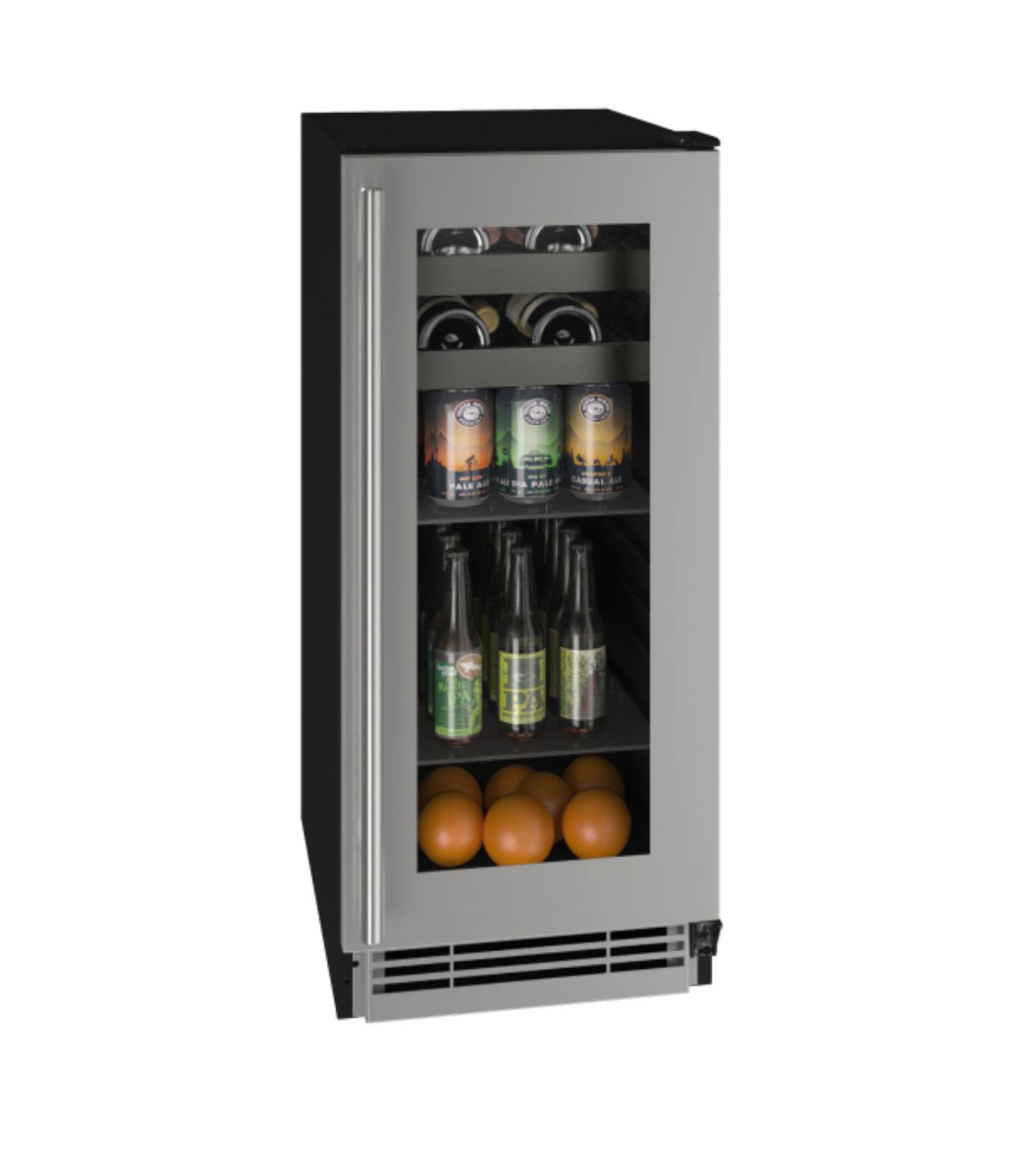

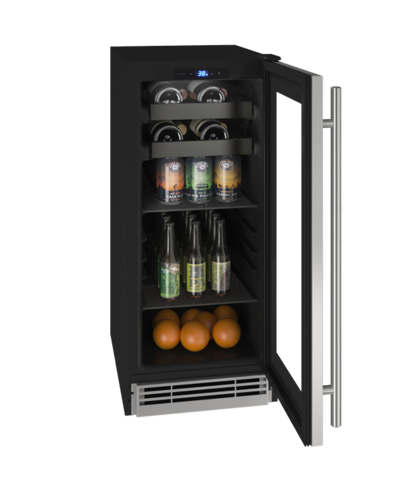

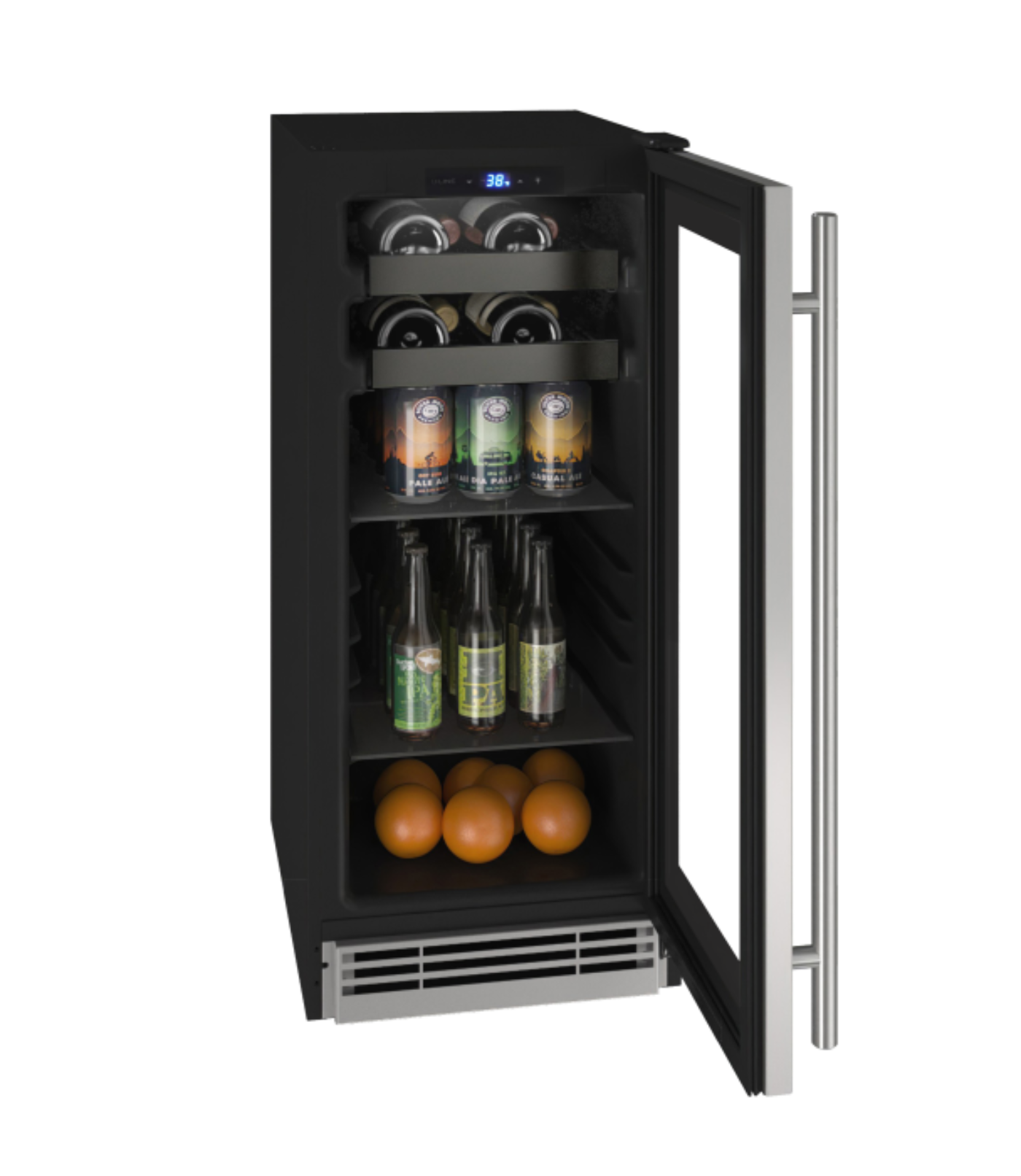

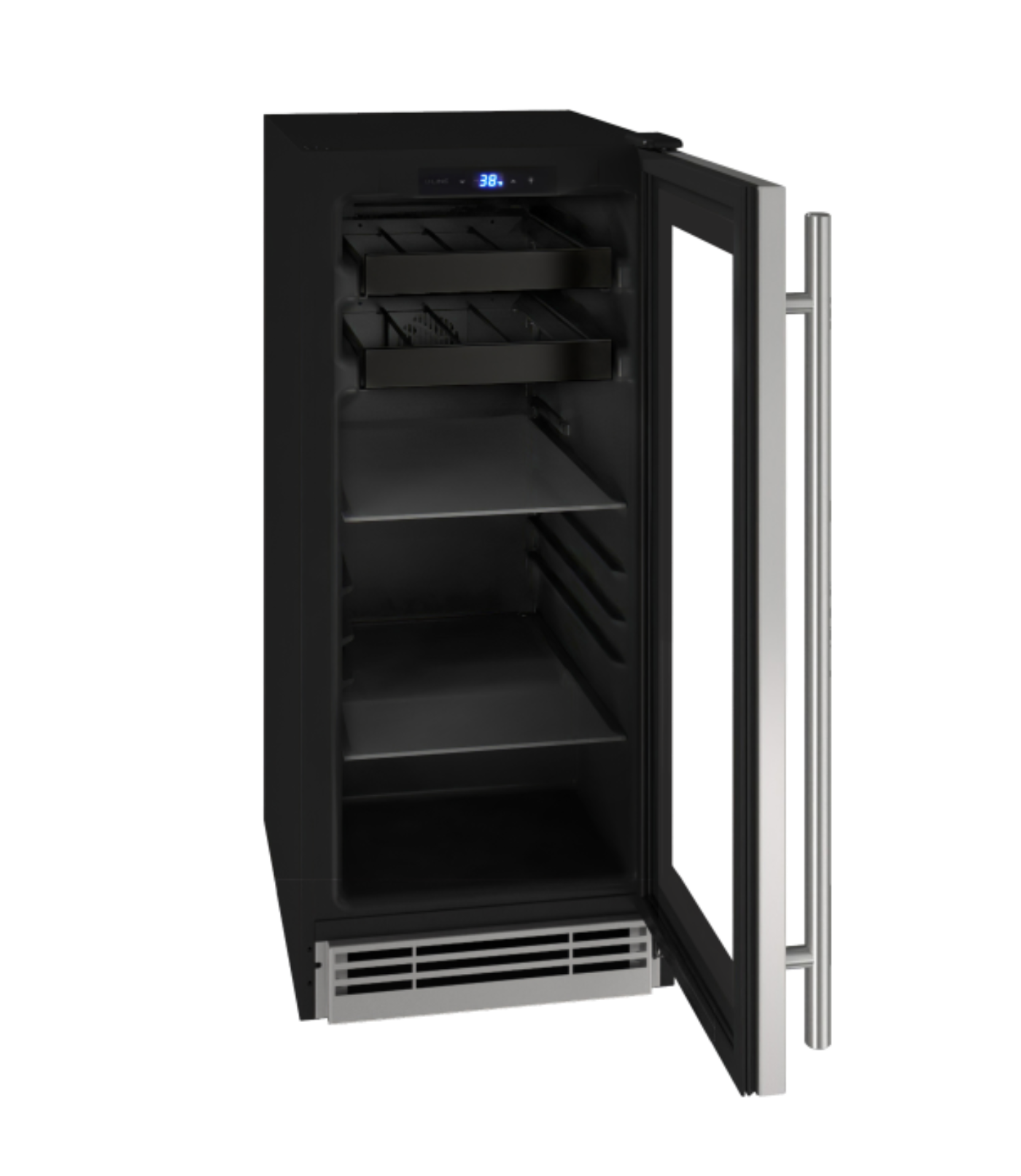

• UHBV115-SG01A: Stainless Frame

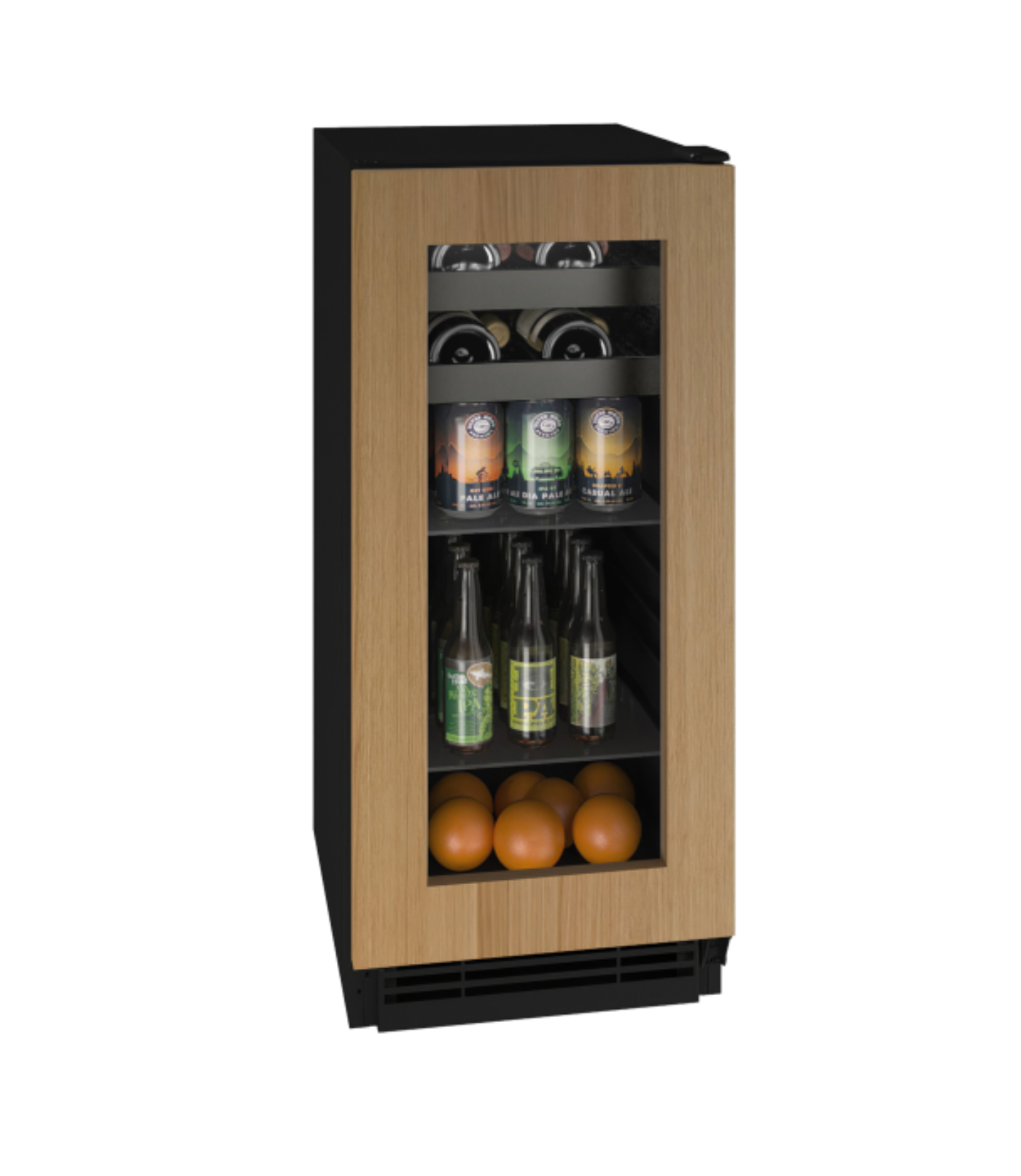

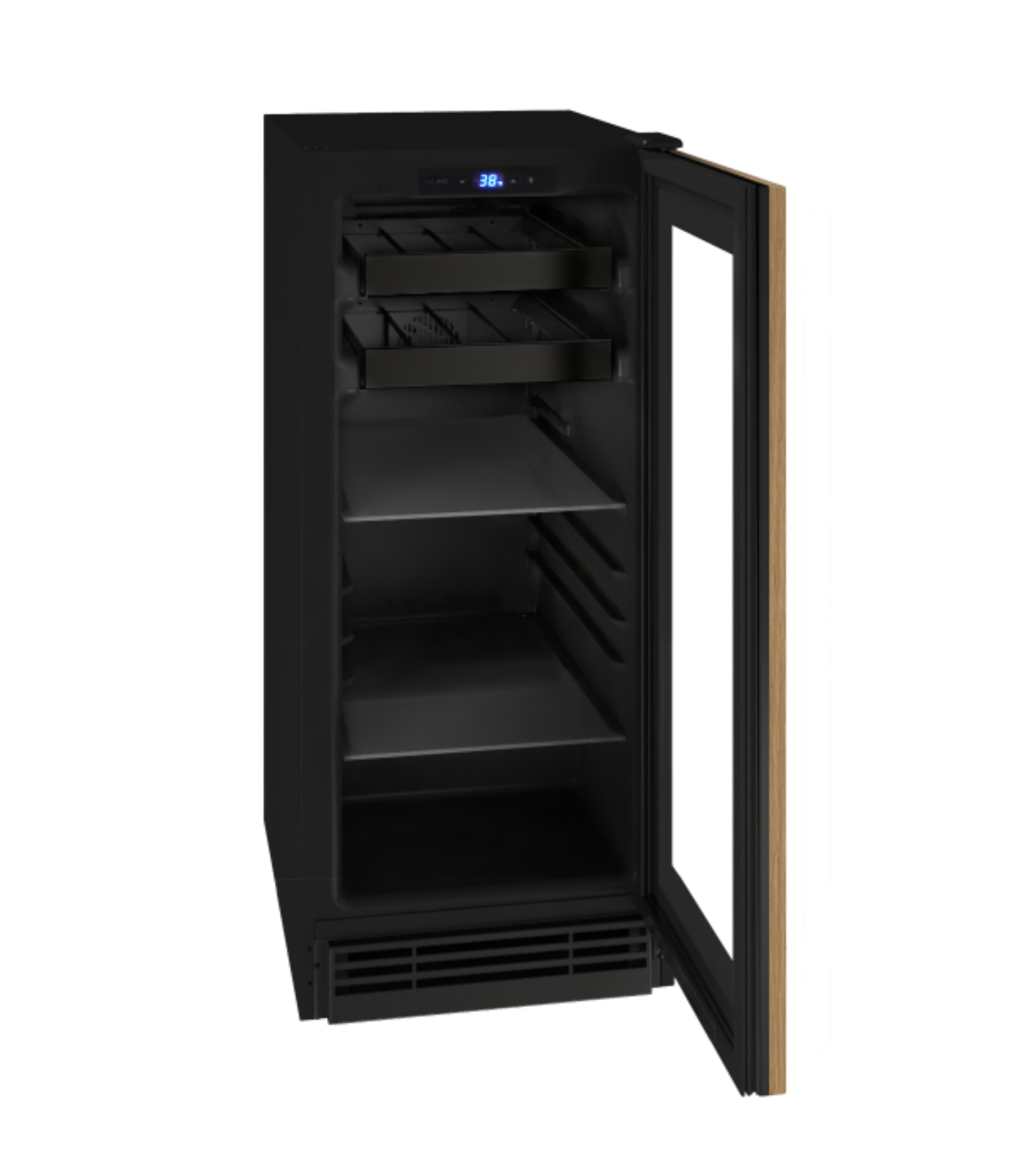

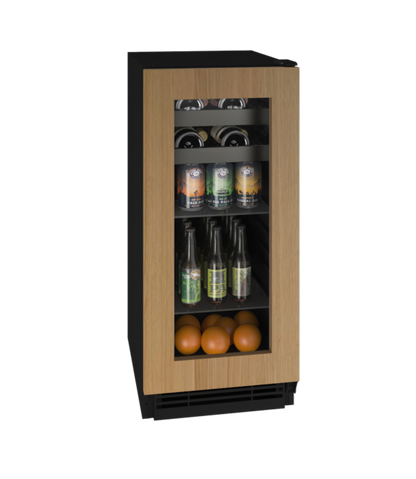

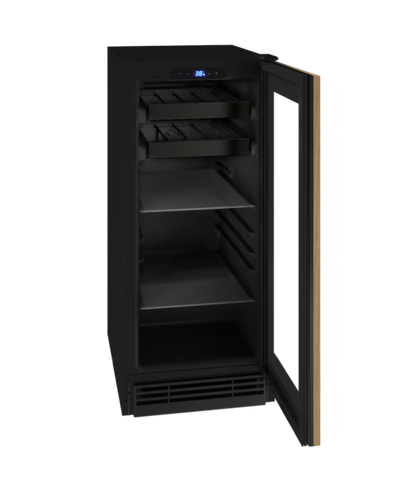

• UHBV115-IG01A: Integrated Frame

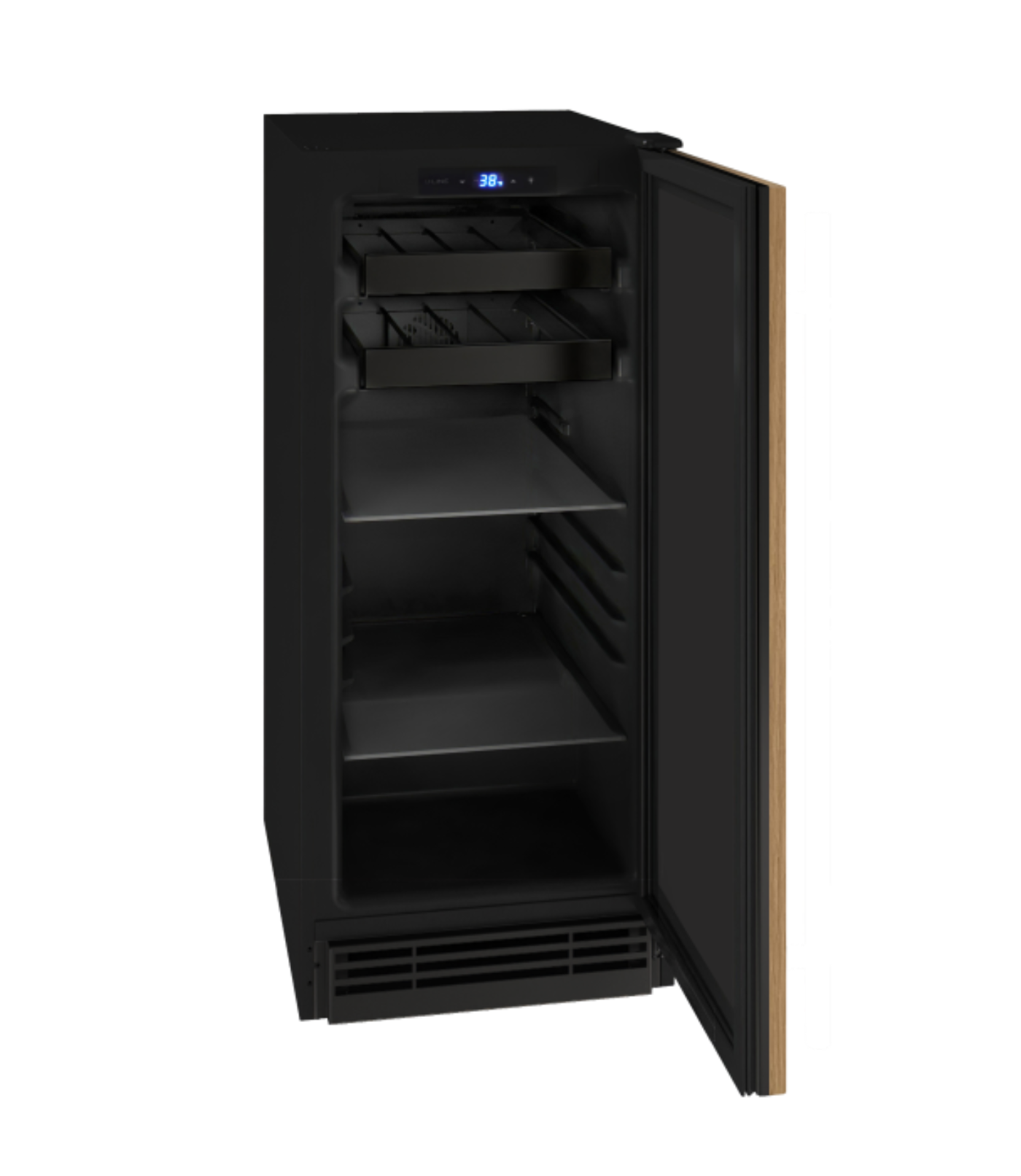

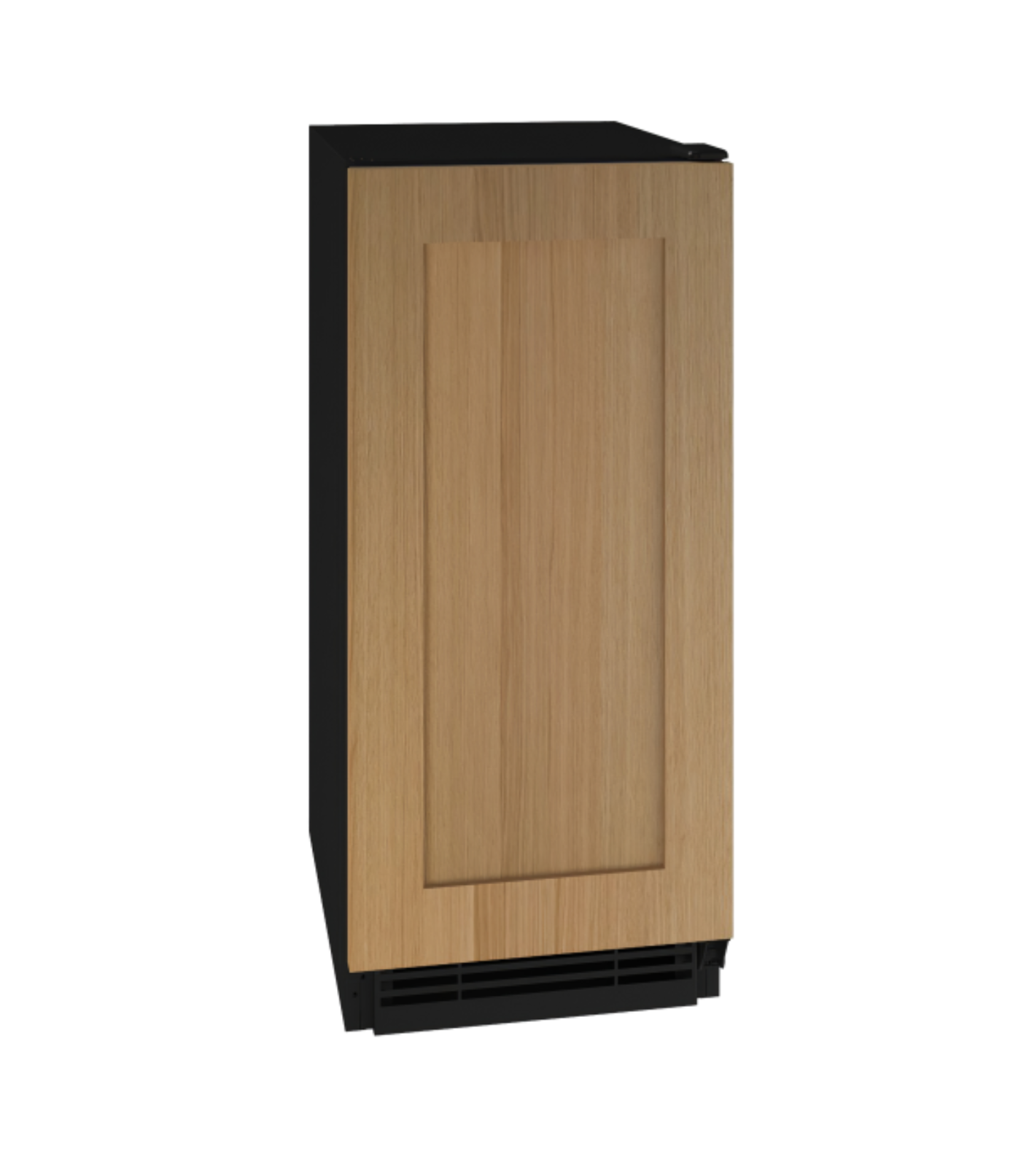

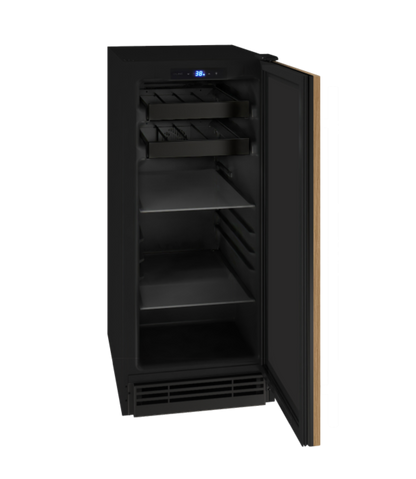

• UHBV115-IS01A: Integrated Solid

Weight

• UHBV115-SG01A: 96 lb (43.5 kg)
• UHBV115-IG01A: 93 lb (42.2 kg)
• UHBV115-IS01A: 89 lb (40.4 kg)

Manual

• CAD-2D (DWG)
• CAD-3D (DWG)
• CAD-3D Studio Max (3DS)
• CAD-3D Studio Max (MAX)
• CAD-ArchiCAD (GSM)
• CAD-AutoCAD (DXF)
• CAD-REVIT (RFA)
• CAD-SketchUp (SKP)
• CAD-Wavefront 3D (OBJ)
• Compliance
• Current Product Warranty
• Energuide (Canada)
• Energy Guide (US)
• Expanded View of Parts
• Quick Start Guide
• Spec Sheet
• User Guide & Service Manual

What Our Experts Think

• Sleek & Compact Design – 15" width fits seamlessly into kitchens, bars, or entertainment spaces.
• Versatile Beverage Storage – Adjustable shelving accommodates cans, bottles, and wine for ultimate convenience.
• Premium Glass Door – Stylish stainless steel frame with a UV-resistant glass door for an elegant display.
• Efficient Cooling System – Maintains optimal temperatures to keep beverages perfectly chilled.
• User-Friendly Controls – Intuitive digital controls for precise temperature adjustments.

Q&A

Q: What is the U-Line 15" 1 Class Beverage Center - UHBV115 (UHBV115-SG01A)?
A: The U-Line UHBV115 is a 15-inch undercounter beverage center, designed for compact, stylish storage of drinks and beverages. With adjustable shelving, a sleek stainless steel frame, and glass door, it is ideal for home bars, kitchens, offices, and entertainment spaces.

Q: Can this beverage center store both cans and wine bottles?
A: Yes, the adjustable glass shelves allow for flexible storage of cans, bottles, and wine, making it a versatile beverage solution.

Q: What is the temperature range?
A: The UHBV115 maintains temperatures between 34°F and 60°F, ensuring drinks stay perfectly chilled.

Q: Does it have interior lighting?
A: Yes, it features black interior LED lighting, providing a sleek look and clear visibility of stored beverages.

Q: Is the door reversible?
A: Yes, the stainless steel door is reversible, allowing for left or right-hand opening based on your space needs.

Q: Can this unit be used as a built-in or freestanding appliance?
A: Yes, the venting design allows for both built-in and freestanding installations, making it versatile for different spaces.

Q: Is the glass door UV-protected?
A: Yes, the Low-E coated glass door helps reduce UV exposure, protecting beverages from heat and light damage.

Maintenance Tips

• Regular Cleaning: Wipe the exterior with a soft cloth and mild detergent. Clean the interior with a damp cloth and a baking soda solution to remove odors and stains.
• Check and Clean the Vents: Ensure proper airflow by keeping ventilation areas free of dust and debris.
• Monitor Temperature Settings: Keep the unit at the recommended temperature for optimal beverage storage. Avoid frequent adjustments.
• Inspect the Door Seal: Check the gasket regularly for cracks or dirt buildup. Clean with warm soapy water and replace if damaged to maintain efficiency.
• Defrost if Necessary: If frost builds up, turn off the unit and allow it to defrost. Wipe away excess moisture before restarting.
• Clean the Condenser Coils: Every six months, vacuum or brush off the condenser coils to ensure efficient cooling performance.
• Avoid Overloading: Do not block air circulation by overcrowding beverages inside the unit.
