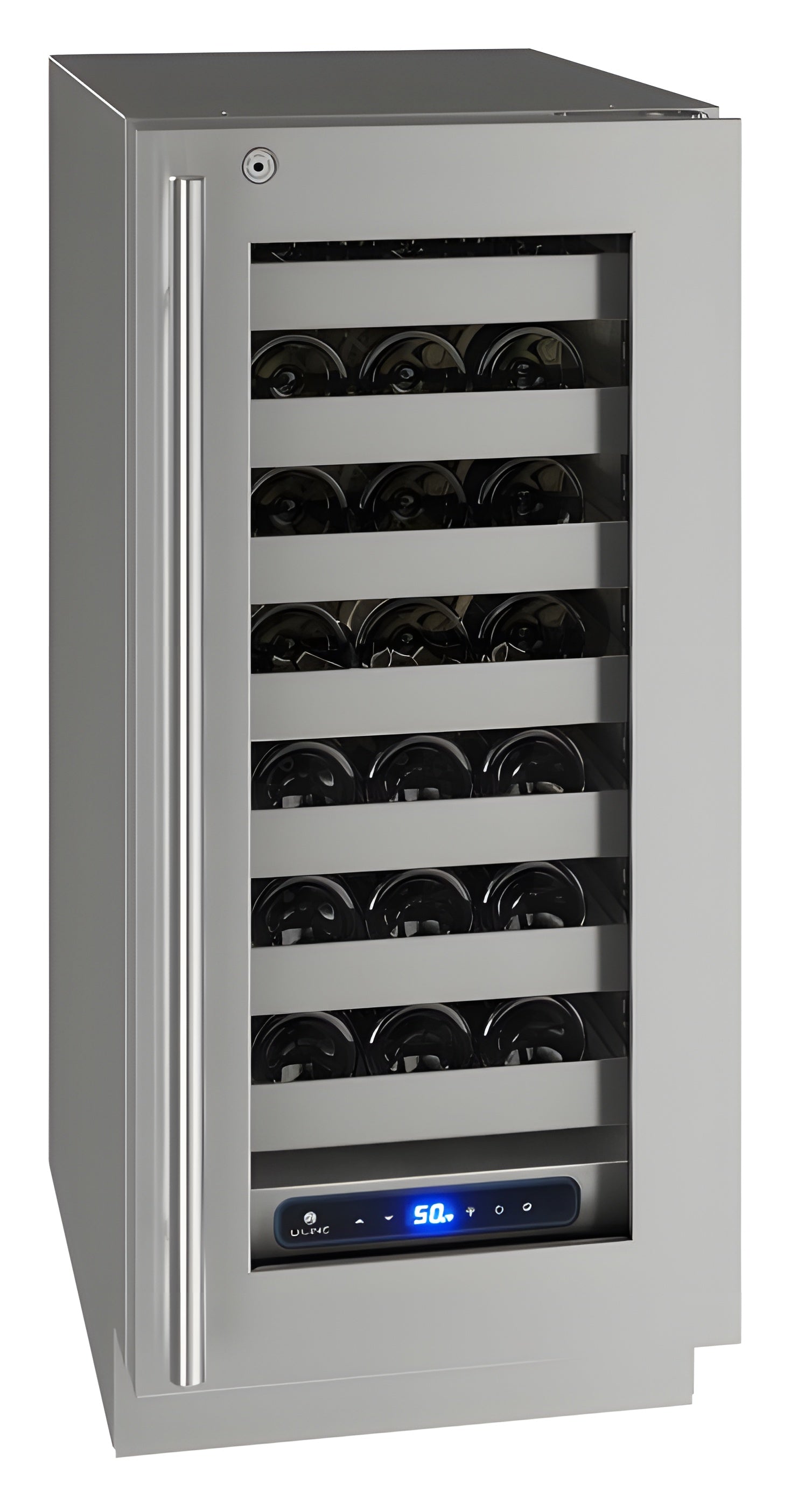

U-Line - 15" 5 Class Wine Refrigerator - HWC515 - UHWC515-SG01A

U-Line - 15" 5 Class Wine Refrigerator - HWC515 - UHWC515-SG01A

Our 15" 5 Class Wine Refrigerator is a wine lover’s dream. This product features stainless steel inside and out, convection cooling for quick and consistent temperatures, and a state-of-the-art variable speed compressor. Robust and refined, the 5 Class Collection boasts an industry-exclusive full-depth lower interior, maximizing storage space. It includes adjustable blue and white LED lighting and U-Adjust™ 19 position adjustment for full extension wine racks. This model can be built-in or used freestanding and is available with stainless steel or integrated door finishes that accept a custom door panel to match your surrounding cabinetry.

Features

Storage and Capacity:

• Full-depth lower interior: Maximizes storage options
• Volume: 2.9 cu ft holds up to 28 wine bottles (750 ml)
• Wine racks: Seven removable, full-extension racks accommodate various bottle shapes and sizes, including champagne and magnum bottles

Cooling and Temperature Control:

• Variable speed compressor: Delivers maximum energy efficiency, faster temperature response, and quieter operation
• Convection cooling system: Provides a quick cool down and consistent temperature
• Temperature range: 33°F to 70°F

Interior and Lighting:

• Stainless steel interior: Durable and stylish
• U-Adjust™ Interior: 19 adjustable positions
• LED lighting: Adjustable bright white or blue

Design and Build:

• Stainless steel cabinet, grille, and accents: Sleek and modern look
• Soft close door: With articulating hinges
• Stainless steel handle: 7⁄8" diameter
• Field reversible door: Shipped right-hand hinged
• Built-in or freestanding: Flexible installation options
• Adjustable leveling legs: Four for stability

Control and Interface:

• Digital touch pad control: Easy and precise temperature management

Customization:

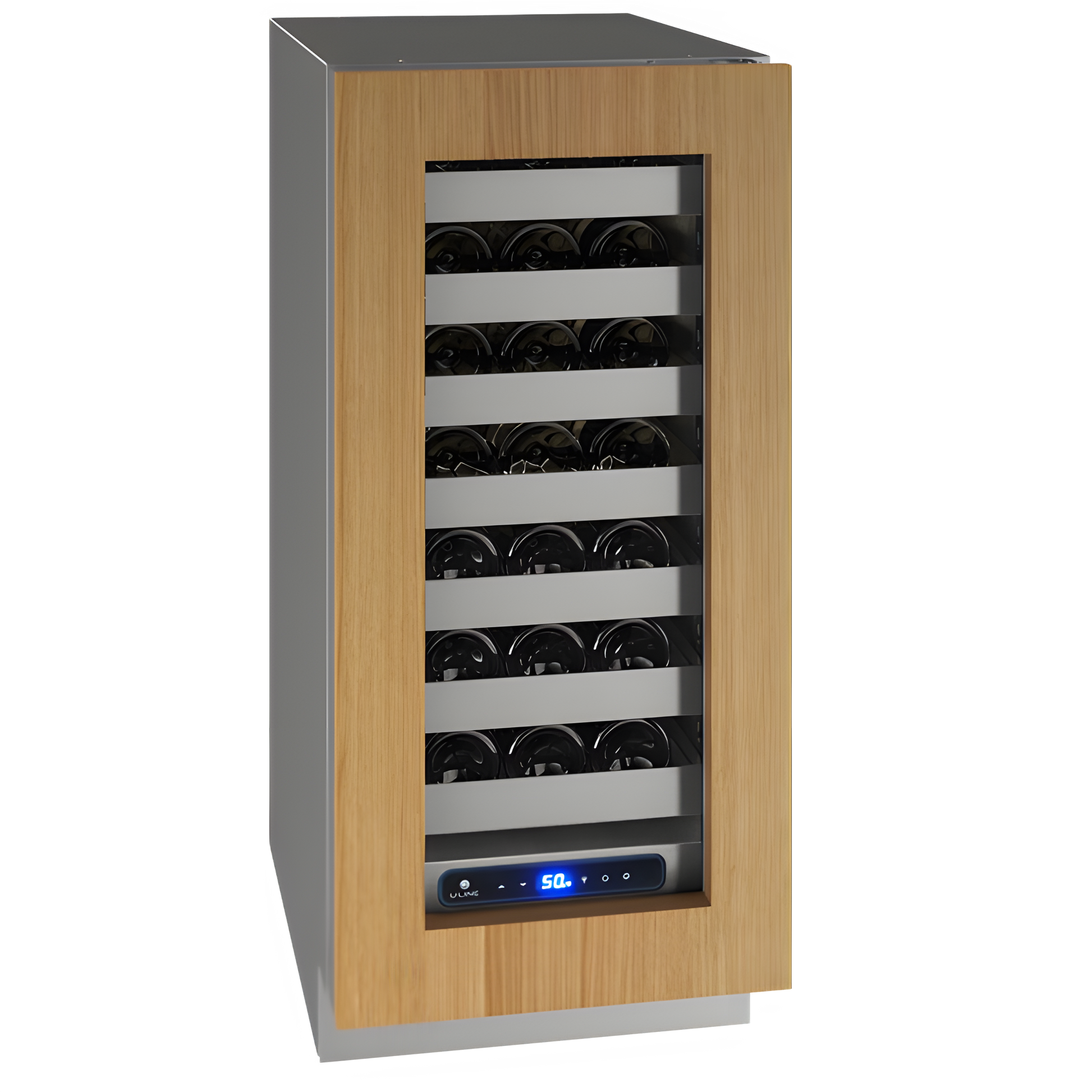

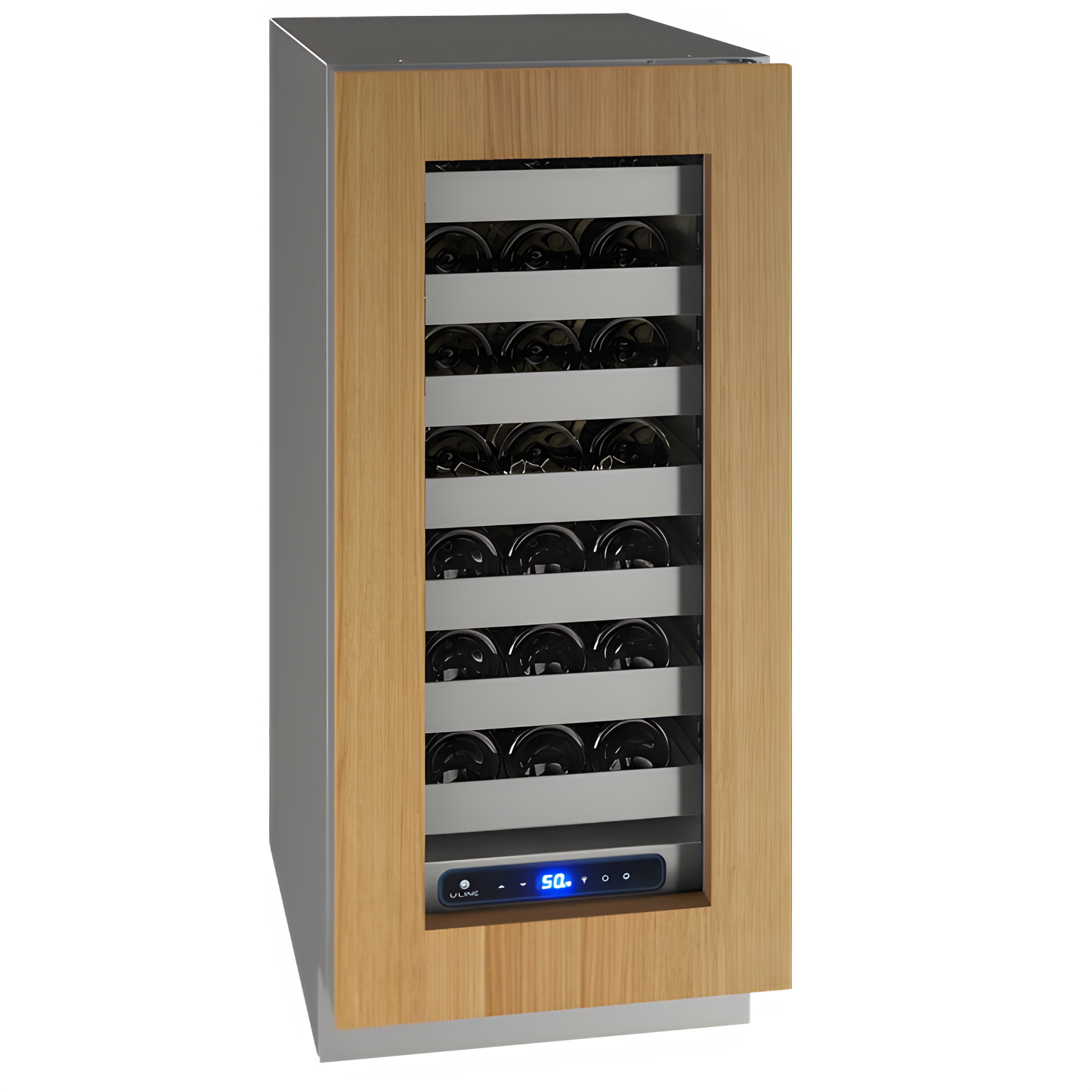

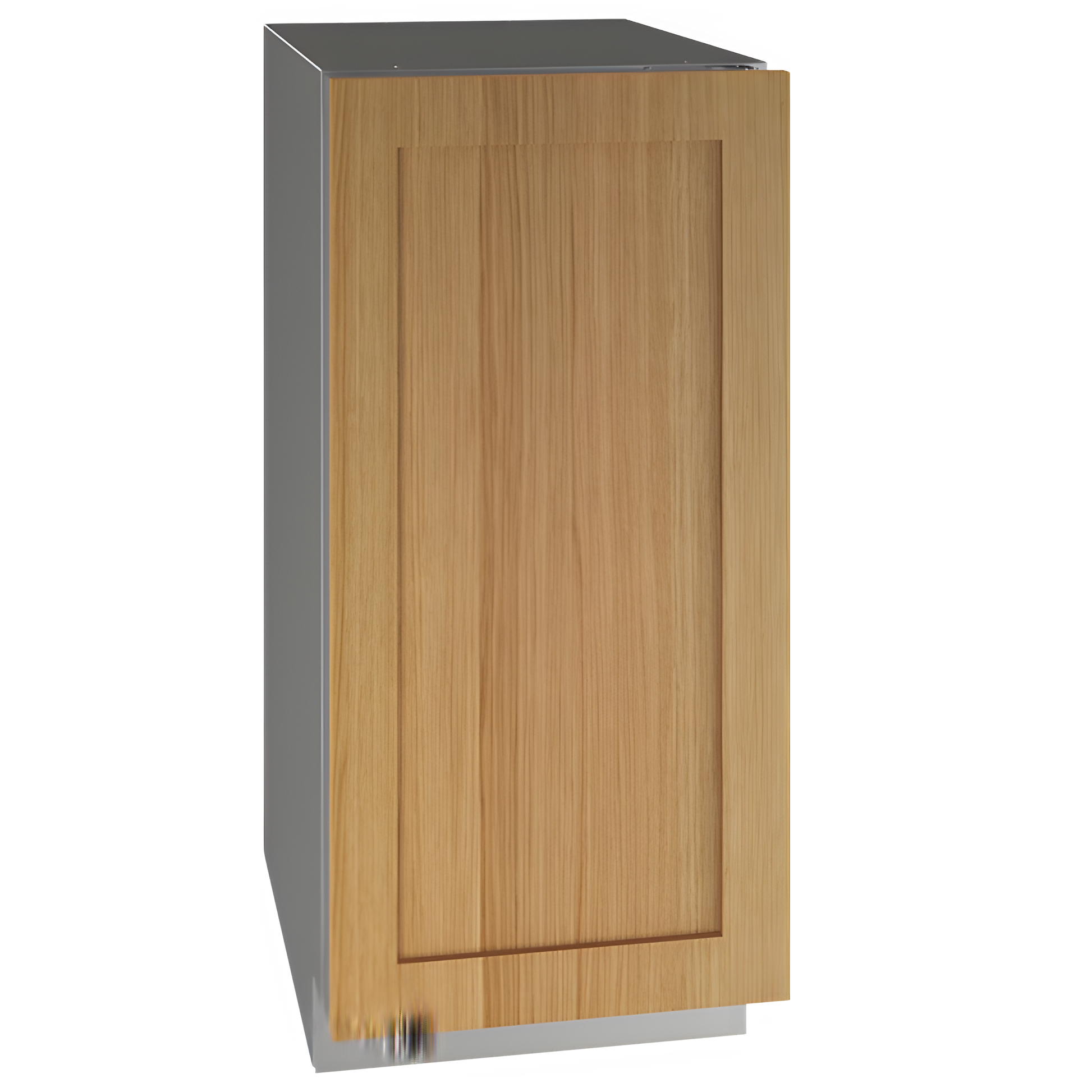

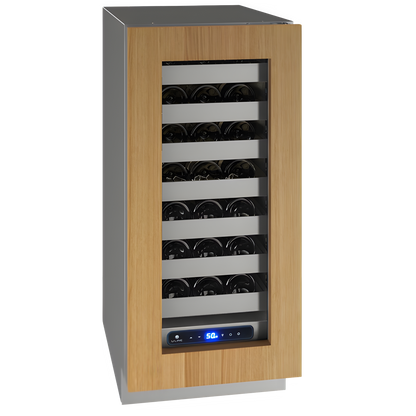

• Integrated model: Requires 3⁄4" custom door panel and handle (not supplied)

Specifications

• Model UHWC515-SG01A
• Voltage / Hz: 115 V/60 Hz
• Finish: Stainless Frame
• Door Swing: Field Reversible
• Lock: No
• Weight: 105 lb (48 kg)

Downloads

• CAD-2D (DWG)
• CAD-3D (DWG)
• CAD-3D Studio Max (3DS)
• CAD-3D Studio Max (MAX)
• CAD-ArchiCAD (GSM)
• CAD-AutoCAD (DXF)
• CAD-REVIT (RFA)
• CAD-SketchUp (SKP)
• CAD-Wavefront 3D (OBJ)
• Compliance
• Current Product Warranty
• Energuide (Canada)
• Energy Guide (US)
• Expanded View of Parts
• Quick Start Guide
• Spec Sheet
• User Guide & Service Manual

What Our Experts Think

• Advanced Wine Preservation: The U-Line 15" 5 Class Wine Refrigerator offers precise temperature and humidity control to keep your wine in perfect condition.
• Sleek & Compact Design: Its 15-inch width fits seamlessly into kitchens, bars, or entertainment areas without sacrificing storage capacity.
• Spacious & Adjustable Storage: Features adjustable racks to accommodate different bottle sizes while maximizing storage efficiency.
• High-Performance Cooling: Equipped with advanced cooling technology for consistent temperature management, preventing fluctuations that can affect wine quality.

Q&A

Q: What is the U-Line 15" 5 Class Wine Refrigerator designed for?
A: It is designed to store and preserve wine at ideal temperatures, offering a premium cooling solution for wine enthusiasts, bars, and home kitchens.

Q: How many bottles can the U-Line UHWC515-SG01A hold?
A: This wine refrigerator can store up to 28 standard 750ml wine bottles.

Q: What temperature range does this wine refrigerator offer?
A: It features an adjustable temperature range of 38°F to 65°F, suitable for both red and white wines.

Q: What is the model number of this wine refrigerator?
A: The model number is UHWC515-SG01A.

Q: Does this U-Line wine refrigerator have a single or dual-zone cooling system?
A: It has a single-zone cooling system, ensuring uniform temperature throughout.

Q: Is the U-Line 15" Wine Refrigerator built-in or freestanding?
A: It is designed for both built-in and freestanding installation, providing flexible placement options.

Q: What type of door does the UHWC515-SG01A have?
A: It features a stainless steel-framed glass door with a sleek, modern design.

Q: Does this unit have interior lighting?
A: Yes, it includes LED interior lighting to beautifully showcase your wine collection.

Maintenance Tips

• Clean the Interior: Wipe down shelves and walls with a soft cloth and a mild, non-abrasive cleaner every few months to prevent odors and buildup.
• Check Door Seals: Inspect the door gasket regularly for dirt or wear. Clean with warm, soapy water to ensure a tight seal and prevent temperature fluctuations.
• Maintain Proper Ventilation: Ensure at least 2 inches of clearance around the unit for proper airflow, preventing overheating and maintaining efficiency.
• Clean the Condenser Coils: Every 6 months, use a soft brush or vacuum to remove dust from the condenser coils to maintain optimal cooling performance.
• Monitor Temperature Settings: Keep the refrigerator at the recommended temperature (45-55°F for wine storage) and check periodically for accuracy.
• Avoid Overloading: Do not overcrowd the shelves to allow proper air circulation, ensuring even cooling for all bottles.
• Check for Excess Moisture: If condensation builds up inside, wipe it down and ensure the unit is properly ventilated.
