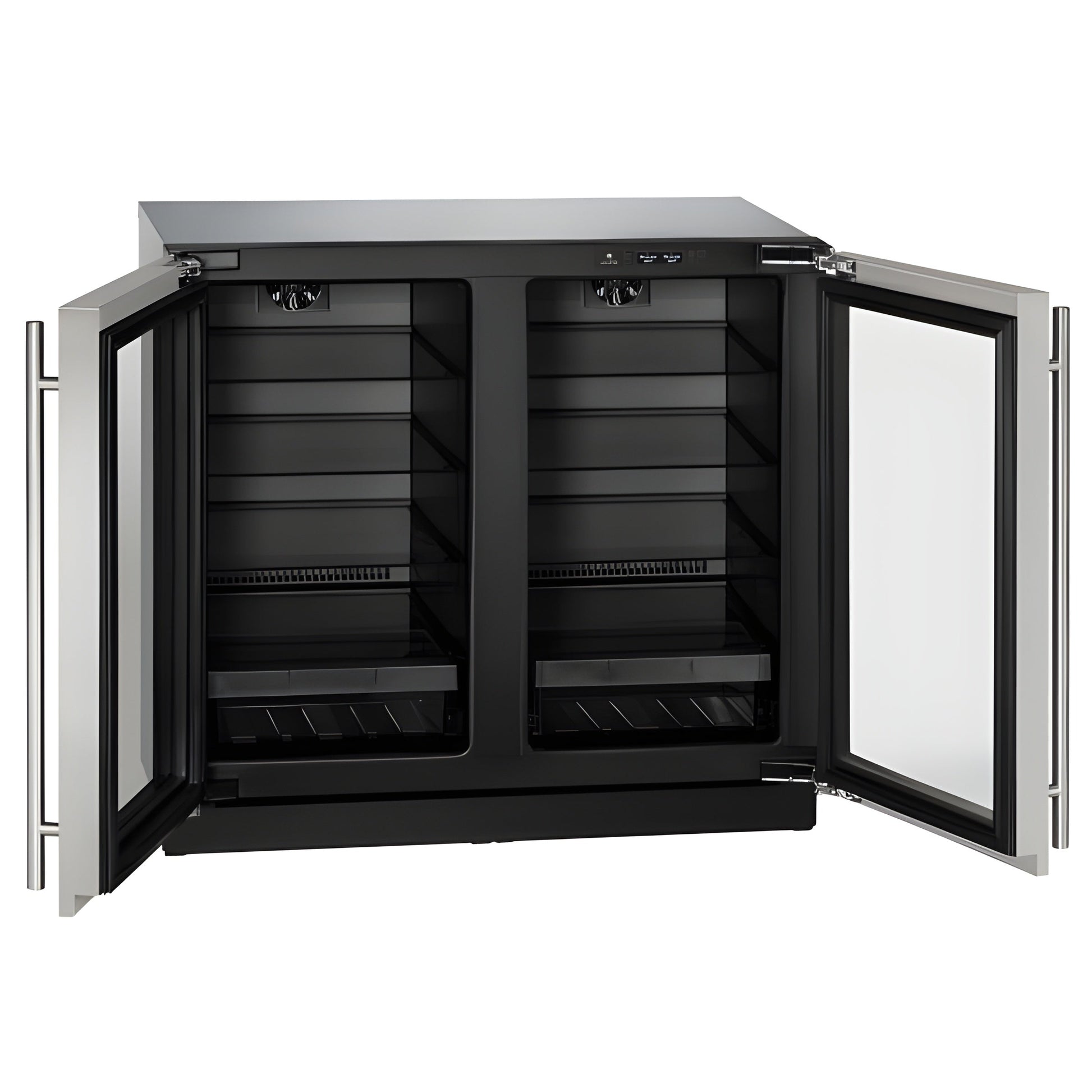

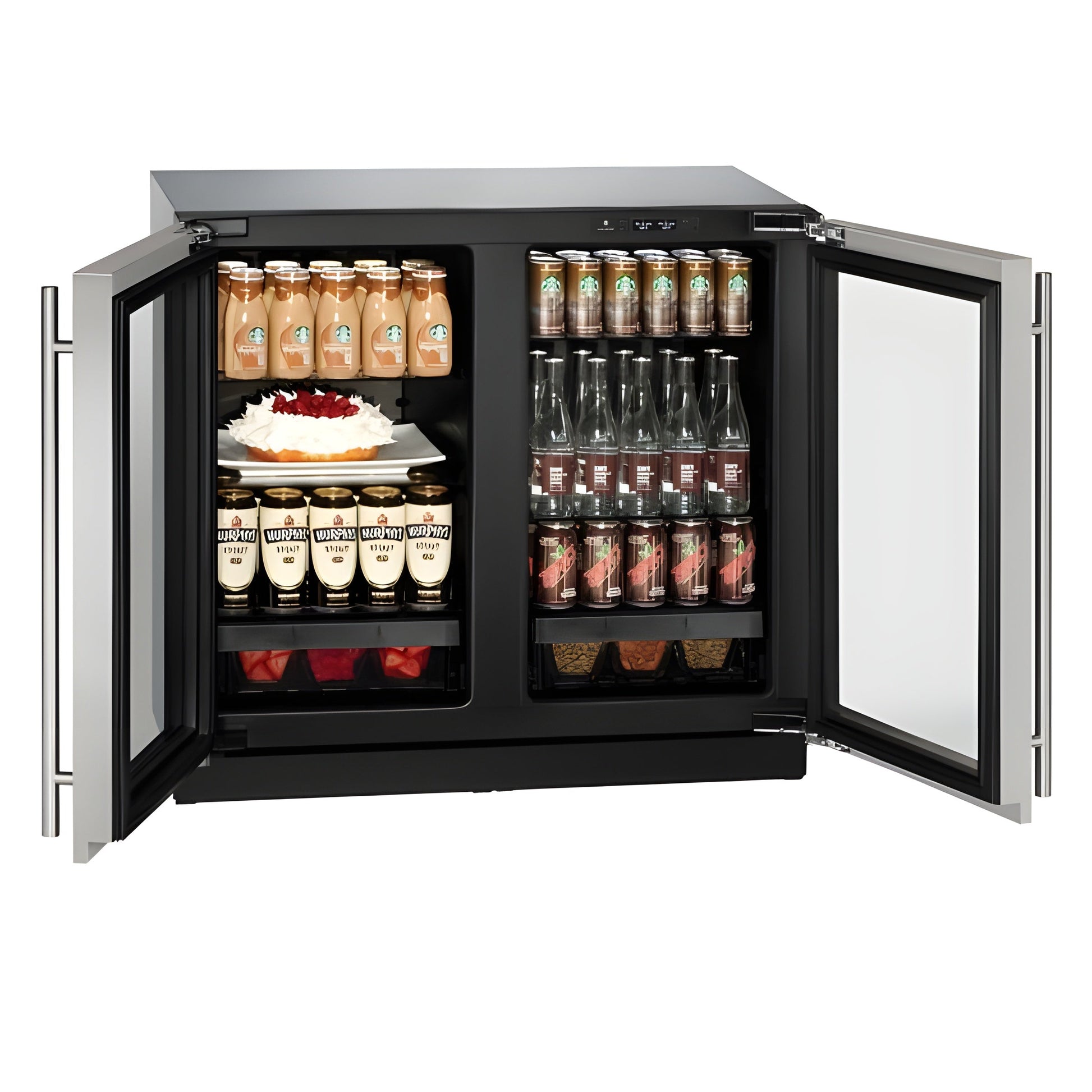

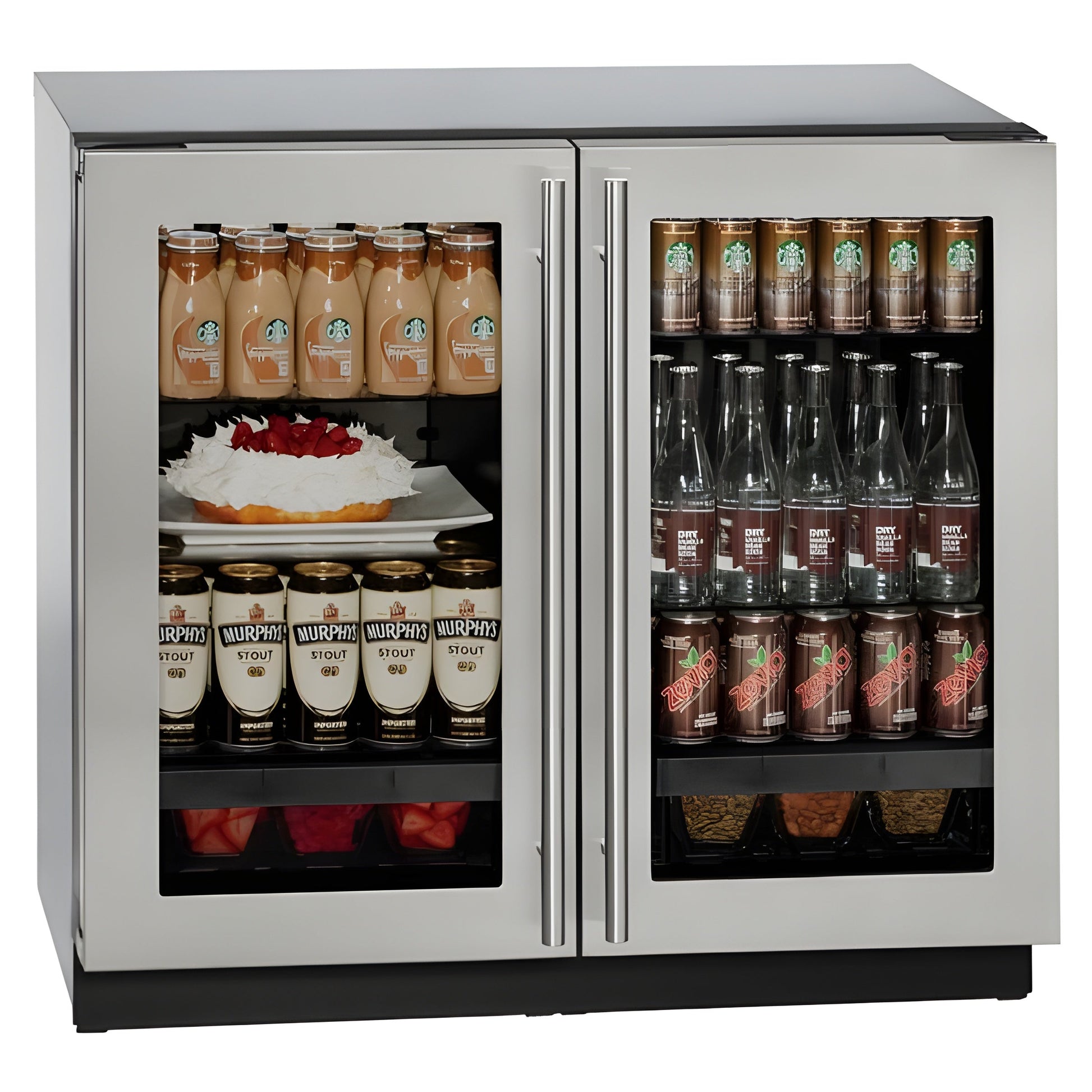

U-Line - 36" 3000 Series Refrigerator - U-3036RRGLS-00B

U-Line - 36" 3000 Series Refrigerator - U-3036RRGLS-00B

Store fresh produce, deli foods, pantry items, beverages, and more in our 36" 3000 Series Refrigerator. This product features convection cooling for quick and consistent temperatures. Sleek and sophisticated, the 3000 Series boasts black interiors with bright white LED theater lighting, full-text read out U-Select® Controls, and limitless integration capabilities with an articulating door hinge. The door finishes are available in stainless steel or integrated panel-ready, and the fully adjustable toe-kicks can accept a custom panel to match your surrounding cabinetry.

Features

• Cooling System: Convection cooling for quick cool down and consistent temperature
• Interior Lighting: Black interior with LED theater lighting, can be set to stay on for 3, 6, or 24 hours
• Glass Door: LowE coated, argon gas filled, double thermopane glass door for UV protection
• Shelving: Three adjustable tempered glass shelves in each compartment
• Crisper Drawers: Full-extension, slide-out, removable for easy cleaning
• Control: U-Select Control with digital OLED display
• Dual-Zones: Independently controlled dual-zones
• Temperature Range: 34°F to 70°F
• Capacity: Volume of 6.9 cu ft, holds up to 158 bottles (12 oz) or 246 cans (12 oz)
• Handles: Stainless steel handles (7⁄8" diameter)

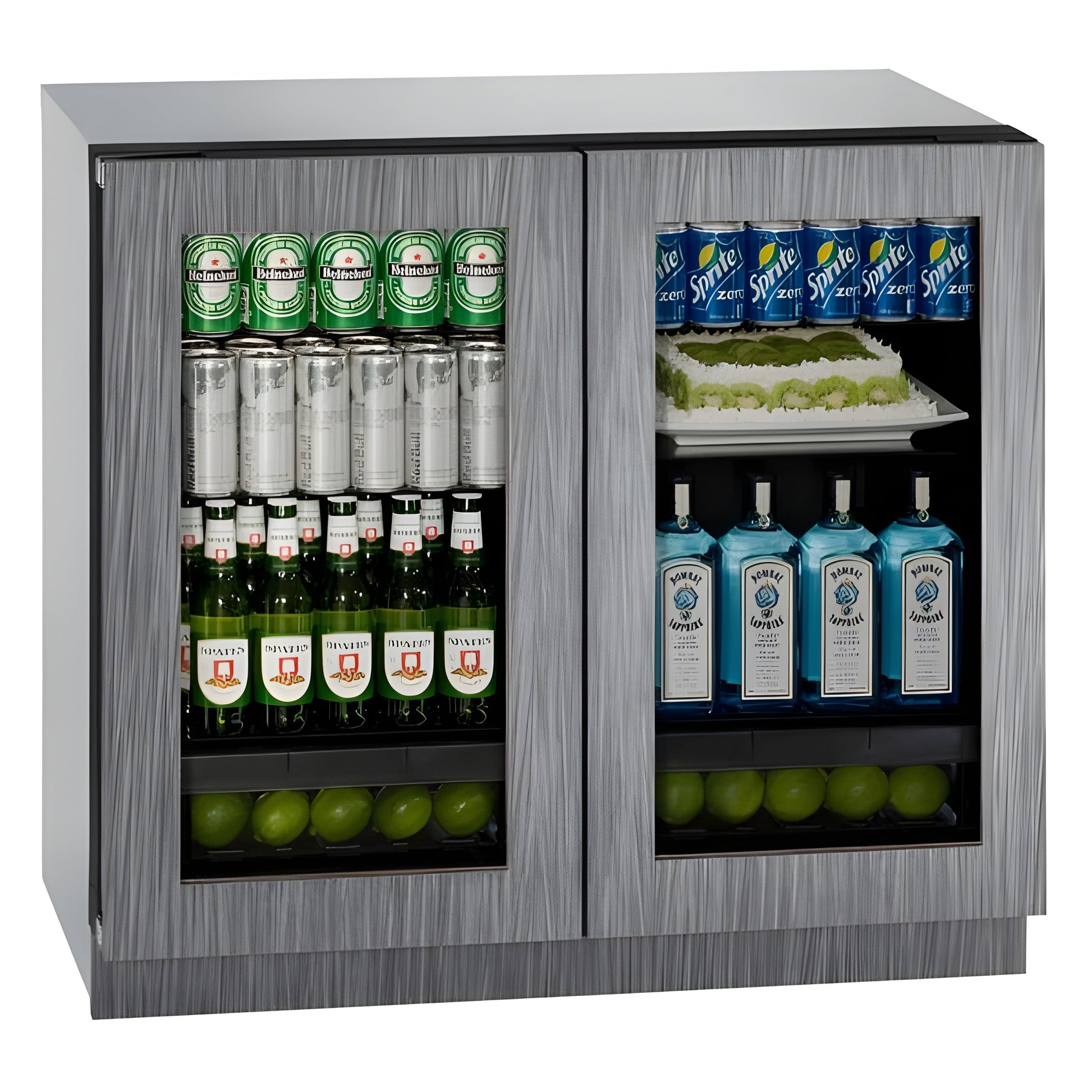

• Integrated Model: Requires 3⁄4" custom door panel and handle (not supplied)
• Leveling Legs: Four adjustable leveling legs
• Door Hinges: Articulating door hinges
• Grille: Adjustable grille, can be shifted front-to-back and up-and-down, accepts an integrated toe-kick
• Design: Built-in design with galvanized exterior cabinet

Model Details

Model: U-3036RRGLS-13B
Voltage / Hz: 115 V/60 Hz
Finish: Stainless Frame
Lock: Yes
Shipping Weight: 228 lb (103 kg)

Downloads

• CAD-2D (DWG)
• CAD-3D (DWG)
• Compliance
• Energy Guide (US)
• Expanded View of Parts
• Quick Start Guide
• Spec Sheet
• User Guide & Service Manual

What Our Experts Think

• Clean Interior & Shelves – Wipe with a mild cleaner regularly to prevent spills and odors.
• Inspect & Clean Door Gasket – Keep the seal clean and intact for proper insulation.
• Ensure Proper Ventilation – Maintain at least 2 inches of clearance around the unit for optimal airflow.
• Clean the Condenser Coils – Vacuum or brush off dust every 6 months to prevent overheating.
• Monitor Temperature Settings – Keep between 34-42°F for ideal food and beverage storage.
• Check for Moisture Buildup – Wipe away condensation to prevent mold and mildew.
• Avoid Overloading – Do not overcrowd shelves to maintain proper air circulation and even cooling.
• Protect the Glass Door – Use a soft cloth and non-abrasive cleaner to prevent scratches or streaks.
• Level the Unit – Ensure it is properly leveled to allow the door to close and seal correctly.
• Power Down for Extended Storage – If unused for a long period, turn off, clean, and leave the door slightly open to prevent odors.

Q&A

Q: What is the U-Line 36" 3000 Series Refrigerator (3036RRGL) designed for?
A: It is a premium undercounter refrigerator offering spacious storage, precise temperature control, and a sleek glass door design, ideal for kitchens, bars, and entertainment spaces.

Q: What is the capacity of the U-Line 3036RRGL?
A: It provides 7.0 cu. ft. of storage space.

Q: What is the model number of this refrigerator?
A: The model number is U-3036RRGLS-00B.

Q: What is the temperature range of this unit?
A: It has an adjustable temperature range of 33°F to 70°F, ensuring optimal food and beverage storage.

Q: Is the U-Line 3036RRGL suitable for built-in or freestanding installation?
A: Yes, it is designed for both built-in and freestanding installations.

Q: What type of door does this refrigerator have?
A: It features a stainless steel-framed glass door for a modern, high-end appearance with easy visibility of contents.

Q: Does this unit have interior lighting?
A: Yes, it includes LED theater lighting for a stylish and well-lit interior.

Q: Is the U-Line 3036RRGL energy-efficient?
A: Yes, it is Energy Star certified, ensuring efficiency while maintaining superior cooling performance.

Maintenance Tips

• Spacious 36" Design: Offers ample storage with adjustable shelving for maximum organization.
• Glass Door Visibility: Sleek glass door allows easy viewing of contents without opening, preserving internal temperature.
• Precise Temperature Control: Digital controls ensure consistent cooling for optimal food and beverage freshness.
• Premium & Durable Build: Stainless steel construction enhances durability while adding a modern, high-end look.
• Quiet & Energy-Efficient: Advanced cooling technology minimizes noise and optimizes energy consumption.
