| Swing Over Bed |
16.53” (420mm) |
| Swing Over Cross-Slide |
8.85” (225mm) |
| Swing Over Gap |
21.65” (550mm) |
| Gap Length |
10.23” (260mm) |
| Maximum Workpiece Length |
59.05” (1500mm) |
| Spindle Bore |
3.15” (80mm) |
| Spindle Mount Type |
D1-8 Camlock |
| Spindle Speeds |
24 to 1600 RPM |
| 66 Longitudinal Feeds |
.0027 to .15 IPR |
| 66 Cross Feeds |
00135 to .075 IPR |
| 66 Metric Threads |
0.5 to 28mm |
| 66 Inch Threads |
1 to 56 TPI |
| 33 Module Threads |
0.5 to 3.5mm |
| 33 Diametral Pitch Threads |
8 to 56 DP |
| Compound Rest Travel |
5.119” (130mm) |
| Cross-Slide Travel |
12” (305mm) |
| Tailstock Taper |
No. 5 Morse Taper |
| Tailstock Spindle Travel |
4.72” (120mm) |
| Main Motor HP |
10 HP (7.5 kw) 220V or 440V, 3-Phase |
| Coolant Pump Motor |
Fractional HP |
| Lathe Gross Weight |
4,400 lbs. |
| Dimensions |
120” long, 48” wide, 60” tall |
What Our Experts Think
-
Expanded 16” Swing for Larger Workpieces: The U.S. Industrial Machinery Lathe (USL1660CX-KIT) boasts a 16" swing over the bed and 60" between centers, making it ideal for handling larger workpieces. This expanded capacity increases its versatility, allowing you to tackle a wider range of machining jobs, from small precision tasks to more complex, larger parts.
-
Geared Head for Reliable Power: The geared head design ensures the lathe delivers consistent, smooth power at all speeds, even when tackling tough materials or performing heavy-duty tasks. The ability to maintain torque across various speed settings is essential for minimizing vibrations and chatter, which ultimately enhances machining accuracy and finish quality.
-
Heavy-Duty Construction for Longevity: Like other models in the U.S. Industrial Machinery range, the USL1660CX-KIT is built with a robust cast iron construction that absorbs vibrations and provides stability during machining. This sturdy frame helps maintain the machine’s longevity, reducing wear and tear even under continuous operation, making it a great investment for long-term industrial use.
-
Wider Range of Speed Options: With a wide range of speeds, this lathe allows operators to switch between various machining tasks easily, whether turning soft metals or cutting tougher materials. The broad speed range ensures high efficiency and flexibility, offering fine control over different cutting operations.
-
Versatile for Various Materials: The USL1660CX-KIT's ability to handle a variety of materials, from soft metals to high-strength alloys like stainless steel and titanium, makes it a versatile tool for many machining applications. The geared head system ensures the lathe can manage these materials with ease, without compromising on performance.
-
Precision for High-Quality Results: This lathe’s precision engineering ensures that each cut is accurate, providing high-quality results even for intricate or tight-tolerance work. Whether you're performing detailed threading or larger turning operations, the USL1660CX-KIT maintains tight tolerances and consistent accuracy, making it ideal for precision work.
-
Increased Work Area for Larger Parts: The 60" distance between centers significantly increases the work area, making it an excellent option for machining longer parts or those that require more space. This larger work area is perfect for projects that involve creating parts with extended lengths, such as shafts, pipes, and rods.
-
Ergonomic and User-Friendly Design: The lathe is designed with user comfort and efficiency in mind. Controls are intuitive, and the layout of the machine makes it easy to set up and operate, reducing training time for new users while still being powerful enough for experienced machinists.
-
Customization with Optional Accessories: The USL1660CX-KIT is compatible with a variety of accessories and attachments, including chucks, tailstocks, and other specialized tools. This versatility ensures the lathe can be tailored to meet specific job requirements, whether for large-scale production or one-off custom pieces.
-
Ideal for Precision and Larger Scale Production: With its 16" swing and 60" capacity, this lathe is well-suited for shops that work with both small and large parts. Whether you're turning detailed components or machining larger parts for production, the USL1660CX-KIT offers the power and precision needed for diverse projects.
-
Cost-Effective Long-Term Solution: While the initial investment may be higher, the USL1660CX-KIT’s durable construction, precision performance, and long-term reliability make it a cost-effective option for businesses focused on maintaining a high level of productivity without sacrificing quality.
Q&A

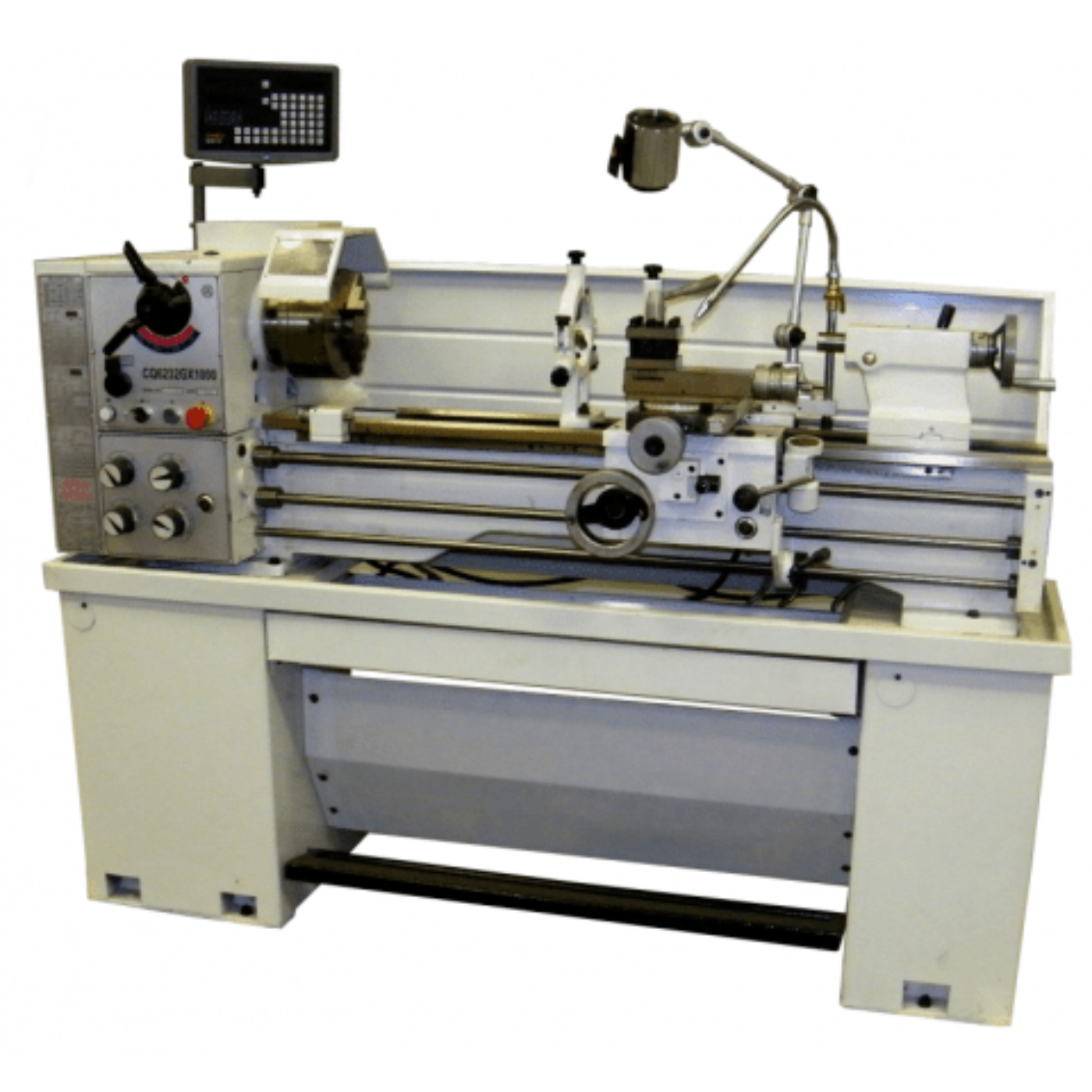

Q: What is the U.S. Industrial Machinery Lathe, 16” X 60”, Precision Geared Head Engine - USL1660CX-KIT?
A: The U.S. Industrial Machinery USL1660CX-KIT is a high-precision geared head engine lathe with a 16-inch swing and 60-inch between centers, designed for precise machining, threading, and turning operations in various industrial settings.
Q: What are the key specifications of the USL1660CX-KIT?
A: The USL1660CX-KIT features a 16” swing over the bed, 60” between centers, and a precision geared head, providing smooth operation at different speeds for high-accuracy machining tasks.
Q: What types of materials can be processed with the USL1660CX-KIT lathe?
A: This lathe is capable of handling a variety of materials such as steel, aluminum, brass, and other metals, making it suitable for a wide range of machining applications.
Q: How does the geared head enhance the performance of the USL1660CX-KIT?
A: The geared head ensures consistent torque and stable operation, minimizing vibration and allowing for precise control at various speeds, which is especially beneficial for demanding machining tasks.
Q: What is the accuracy level of the USL1660CX-KIT?
A: The USL1660CX-KIT provides exceptional precision, delivering tight tolerances and high-quality results, making it ideal for precision turning, threading, and machining applications.
Q: Is the USL1660CX-KIT easy to operate?
A: Yes, the lathe is designed for ease of use with intuitive controls and adjustable settings, making it suitable for both skilled machinists and beginners.
Q: Which industries typically use the USL1660CX-KIT?
A: The USL1660CX-KIT is commonly used in industries such as automotive, aerospace, metalworking, manufacturing, and repair shops where accurate machining and tight tolerances are required.
Q: Does the USL1660CX-KIT come with any accessories or tools?
A: Yes, the USL1660CX-KIT typically includes essential accessories like chucks, tool rests, and other necessary components, ensuring the lathe is fully equipped for use.
Q: What type of power is required for the USL1660CX-KIT?
A: The USL1660CX-KIT requires a standard industrial power supply, with specific voltage and amperage depending on the machine’s configuration and the region.
Q: What is the warranty coverage for the USL1660CX-KIT?
A: The USL1660CX-KIT comes with a manufacturer’s warranty that covers defects in materials and workmanship. Specific warranty terms can be obtained from the manufacturer or authorized distributors.
Maintenance Tips
-
Lubricate the Gearbox: Ensure the gearbox is properly lubricated by checking oil levels regularly and replacing the oil per the manufacturer’s schedule to keep gears running smoothly and prevent wear.
-
Grease All Moving Parts: Apply grease to the carriage, cross slide, tailstock, and other moving components to minimize friction, ensure smooth travel, and enhance overall precision.
-
Inspect the Chuck: Check the chuck for wear, damage, or looseness. Clean, lubricate, and test the chuck to ensure it provides secure workpiece clamping, preventing vibration during machining.
-
Check the Headstock Bearings: Inspect headstock bearings for wear and ensure they are properly lubricated to avoid friction-related issues. Replace any worn bearings to maintain machine performance.
-
Clean the Bed and Rails: Regularly clean the lathe bed, rails, and leadscrews to remove debris, chips, and oil buildup. Lubricate the bed and rails to ensure smooth motion of the carriage and tailstock.
-
Electrical System Check: Inspect the lathe’s electrical system for any signs of wear or malfunction, including wiring, switches, and control panels. Ensure all connections are secure for safe operation.
-
Tighten Fasteners: Periodically check and tighten bolts, nuts, and other fasteners to prevent vibrations, which could affect the accuracy of the machine and the quality of your work.
-
Inspect the Tool Post and Holders: Verify that the tool post and tool holders are securely mounted and in good condition. Tighten and check alignment to ensure stable cutting and to prevent tool movement during operations.
-
Examine the Cross Slide and Tailstock: Check for smooth operation of the cross slide and tailstock, ensuring they are free of debris and properly lubricated to maintain precision.
-
Follow Manufacturer’s Maintenance Schedule: Follow the recommended intervals for oil changes, lubrication, part replacement, and overall inspection to ensure the lathe’s longevity and accuracy in machining.
