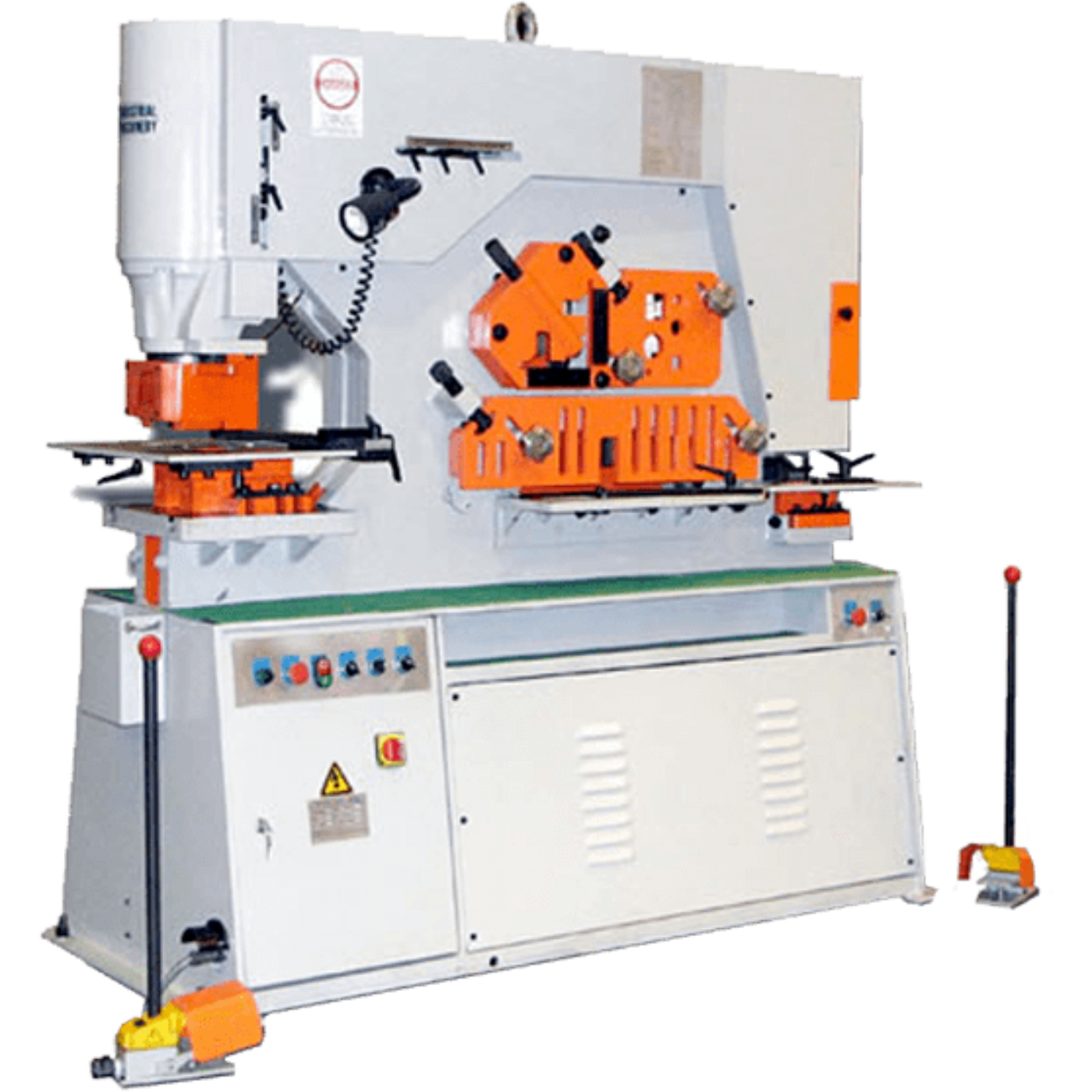

U.S Industrial Machinery 90 Ton Hydraulic Ironworker with Dual Operator Stations with Extended 20” punch throat - USHI90T-DO-XT

FREE SHIPPING
CLEARANCE SALE
80 Peoples are also watching.
SKU: USHI90T-DO-XT
$26,310.99
$27,990.00
$26,310.99
Subtotal: $26,310.99
clearance sale ends in
00 Hours
00 Minutes
00 Seconds
authorized dealer, shop your favorite brand.
Expert Support,

Dial +1 (888) 575-2099

Limited Supply,

grab it before it's gone.

Lowest prices,

As low as possible.

All Items are brand New,

Never used.

U.S Industrial Machinery 90 Ton Hydraulic Ironworker with Dual Operator Stations with Extended 20” punch throat - USHI90T-DO-XT

U.S Industrial Machinery 90 Ton Hydraulic Ironworker with Dual Operator Stations with Extended 20” punch throat - USHI90T-DO-XT

$27,990.00 $26,310.99

U.S Industrial Machinery 90 Ton Hydraulic Ironworker with Dual Operator Stations with Extended 20” punch throat - USHI90T-DO-XT

$27,990.00 $26,310.99

Recently Viewed Products

For the most durable machines to punch, shear, notch, and bend iron, you can count on the industry’s best by U.S. Industrial Machinery.

Our machines range in punch tonnage from 66 tons to 155 tons with motor horsepower between 7.5 and 20 HP. You can have confidence buying from us knowing that we complete the assembly, calibrate, test, and perform cosmetic upgrades of all in-coming machinery to meet the high standards we set for our products. All machines receive a final inspection complete with cosmetic upgrades to ensure the highest quality before leaving our warehouse for to you. Each of our products delivers what you expect with the performance you can trust, job after job. And as always, we are here for the life of your machine to offer technical support, answer questions, and troubleshoot any issues you may be experiencing. For more than three decades, U.S. Industrial Machinery has been delivering industrial-grade ironworker machines to handle the toughest jobs nationwide. Whether you’re a local iron business serving the needs of customers in your community or a national brand shaping the next generation of automobiles, we have high-grade equipment at affordable prices to meet every level of job.

  • Punch station

  • Angle shear station

  • Flat bar shear station

  • Notching station

  • Rod shear station

  • Electric back-gauge

  • Oversize work table with fences

  • Press brake attachment

  • Magnetic base work light

  • Punch slug chute and bucket

  • Dual hydraulic cylinders for two man operation with two moveable foot pedals

  • Five workstations: punch, plate shear, angle shear, rod shear and notcher.

  • This machine also comes with a press brake attachment.

  • Punch station has large two-piece gauging table with fence

  • Punch station has quick acting swing-away stripper with 3 inserts

  • Punch station has removable sections for punch leg of channel or I-beam

  • Quick change coupling nut and sleeve for punch

  • Electric backgauge, 3’ long

  • Electrically interlocked safety guard for notching station

  • Magnetic base workstation light

  • 10 HP, 3-phase operation

  • This machine weighs 5,260 lbs.

  • Three sets of round punch and die

  • Spare parts and tools
Punching tons 90
Punching maximum - Round 3/4" thick x 1-1/4" diameter
Throat depth 20"
Punch and die clearance for gauge thickness slip fit to 1/64"
Punch and die clearance for 1/4" to 1/2" thickness 1/32"
Punch and die clearance for 1/2" to 3/4" thickness 1/16"
Punch and die clearance for 3/4" to 1" thickness 3/32"
Punch and die clearance for 1" and over thickness 1/8"
Maximum thickness 3/4" thick x 14" width
Maximum length 5/8" thick x 18" width
Blade length 19"
Capacity at 90 degrees 5-1/2" x 5-1/2" x 1/2"
Capacity at 45 degrees 2" x 2" x 3/8"
Round solid bar maximum 2"
Square solid bar maximum 2"
Maximum thickness capacity Width x Depth x Thick 3" x 1-1/2" x 3/8"
Width of notcher top blade 3"
Depth of notcher 4"
Horsepower 10
Electrical 220 Volts, 3 phase or 440 Volts, 3 phase
Full load amps 35/17.5
Hydraulic oil type/capacity Equal to Exxon/Mobil NUTO-H46 - 25 gal
Weight and dimensions 5,260 lbs. - 73"L x 35"W x 74"H
  • Enhanced Punching Power: The U.S. Industrial Machinery 90 Ton Hydraulic Ironworker (USHI90T-DO-XT) provides 90 tons of punching force, delivering powerful performance for demanding industrial tasks. This model is specifically designed for heavy-duty applications requiring high force and precision.

  • Extended 20” Punch Throat for Larger Workpieces: The extended 20” punch throat significantly expands the workpiece capacity, offering greater flexibility for handling larger materials and more complex shapes. This feature is perfect for businesses that need to manage oversized components or intricate designs.

  • Dual Operator Stations for Maximum Efficiency: The dual operator stations enhance productivity by allowing two workers to operate the machine simultaneously. This feature reduces downtime, increases throughput, and boosts overall efficiency, especially in busy work environments or large-scale production settings.

  • Hydraulic Precision for Clean Cuts: The hydraulic system in the USHI90T-DO-XT ensures consistent, smooth, and powerful operation with minimal vibration. This hydraulic precision translates into cleaner cuts, reduced material waste, and less frequent need for machine maintenance.

  • Heavy-Duty Build for Durability: Designed to handle tough, high-volume tasks, the USHI90T-DO-XT boasts a durable construction that is built to withstand the rigors of industrial work. Its robust design ensures a longer lifespan, minimizing downtime and repair costs.

  • Increased Productivity with Larger Punching Capacity: The larger 20” punch throat allows for the processing of bigger and more varied materials, increasing the machine’s productivity. This expansion enhances workflow efficiency, making it an ideal choice for metalworking shops that require both size versatility and speed.

  • User-Friendly Controls: Despite its powerful capabilities, the USHI90T-DO-XT offers user-friendly controls, making it easy to operate even for less experienced staff. The intuitive setup ensures minimal training time and maximizes operational effectiveness.

  • Space-Saving with Extended Reach: The extended punch throat does not compromise the overall size of the machine, allowing it to be integrated seamlessly into a wide range of workspaces. Its design ensures space-efficient operation while still offering the extra reach needed for larger tasks.

  • Cost-Effective Investment for High-Volume Work: With its extended punching capacity, dual operator stations, and powerful hydraulics, the USHI90T-DO-XT is a cost-effective solution for businesses in need of high-volume punching capabilities. Its durability and performance ensure a high return on investment over time.

Q: What is the U.S. Industrial Machinery 90 Ton Hydraulic Ironworker with Dual Operator Stations with Extended 20” Punch Throat - USHI90T-DO-XT?
A: The U.S. Industrial Machinery USHI90T-DO-XT is a hydraulic ironworker with a 90-ton capacity, dual operator stations, and an extended 20-inch punch throat. It is designed to perform a variety of tasks, including punching, shearing, and notching, with a larger working area for more complex materials.

Q: What advantage does the 20-inch punch throat offer?
A: The 20-inch punch throat provides a larger working area, allowing for the processing of larger workpieces and materials with a greater reach. This feature is particularly beneficial for heavy-duty tasks that require deeper or wider cuts.

Q: What can the USHI90T-DO-XT handle in terms of materials?
A: The USHI90T-DO-XT can handle a variety of metals, such as mild steel, stainless steel, and aluminum, and can process thicker materials due to its 90-ton hydraulic capacity.

Q: How does the dual operator stations benefit users?
A: The dual operator stations allow two operators to work simultaneously on different parts of the machine, increasing productivity and reducing downtime on large fabrication jobs.

Q: Why would someone choose the USHI90T-DO-XT over a standard ironworker?
A: The USHI90T-DO-XT is ideal for operations that require processing larger workpieces or performing more complex tasks. The extended 20-inch punch throat gives users greater flexibility and efficiency, making it well-suited for heavy-duty applications.

Q: What is the machine’s capacity in terms of tonnage?
A: The USHI90T-DO-XT has a 90-ton hydraulic system, which means it can handle tough materials and perform demanding tasks like punching, shearing, and notching with ease.

Q: What industries would benefit from using the USHI90T-DO-XT?
A: The USHI90T-DO-XT is perfect for industries such as metal fabrication, construction, manufacturing, and industrial production, where heavy-duty cutting and punching are required.

Q: What is the warranty coverage for this machine?
A: The USHI90T-DO-XT generally comes with a manufacturer's warranty. For more specific details regarding warranty terms, please consult the manufacturer or an authorized distributor.

Q: Is the USHI90T-DO-XT easy to operate?
A: Yes, it is designed with user-friendly controls and hydraulic systems, allowing operators to perform complex tasks with ease while maintaining precision and efficiency.

  • Inspect Punches and Dies: Check punches and dies regularly for wear, cracks, or damage. Resharpen or replace them as necessary to maintain clean and precise punching and cutting.
  • Hydraulic System Check: Monitor hydraulic fluid levels, inspect hoses, seals, and fittings for leaks. Replace hydraulic oil according to the manufacturer's recommendations to ensure efficient hydraulic operation.
  • Lubricate Moving Parts: Apply grease to all moving components, including the punch, ram, back gauge, and shear mechanism, to reduce friction and ensure smooth operation.
  • Electrical System Inspection: Ensure all electrical components such as wiring, switches, and emergency stops are functioning properly and are free from damage.
  • Tighten Fasteners: Periodically check bolts, nuts, and other fasteners to ensure they are tightly secured, preventing vibrations and ensuring machine stability.
  • Clean the Work Area: After each use, clean the machine and surrounding areas of scrap material, debris, and oil to maintain a safe and organized workspace.
  • Inspect Dual Operator Stations: Verify both operator stations are functioning correctly, with responsive controls, safety features, and proper machine operation.
  • Monitor Hydraulic Pressure: Regularly check and adjust hydraulic pressure to ensure it is within the optimal range for consistent performance, especially when using the extended punch throat.
  • Follow Manufacturer’s Maintenance Schedule: Adhere to the recommended maintenance intervals for oil changes, part replacements, and system inspections to maintain the machine’s longevity and performance.
