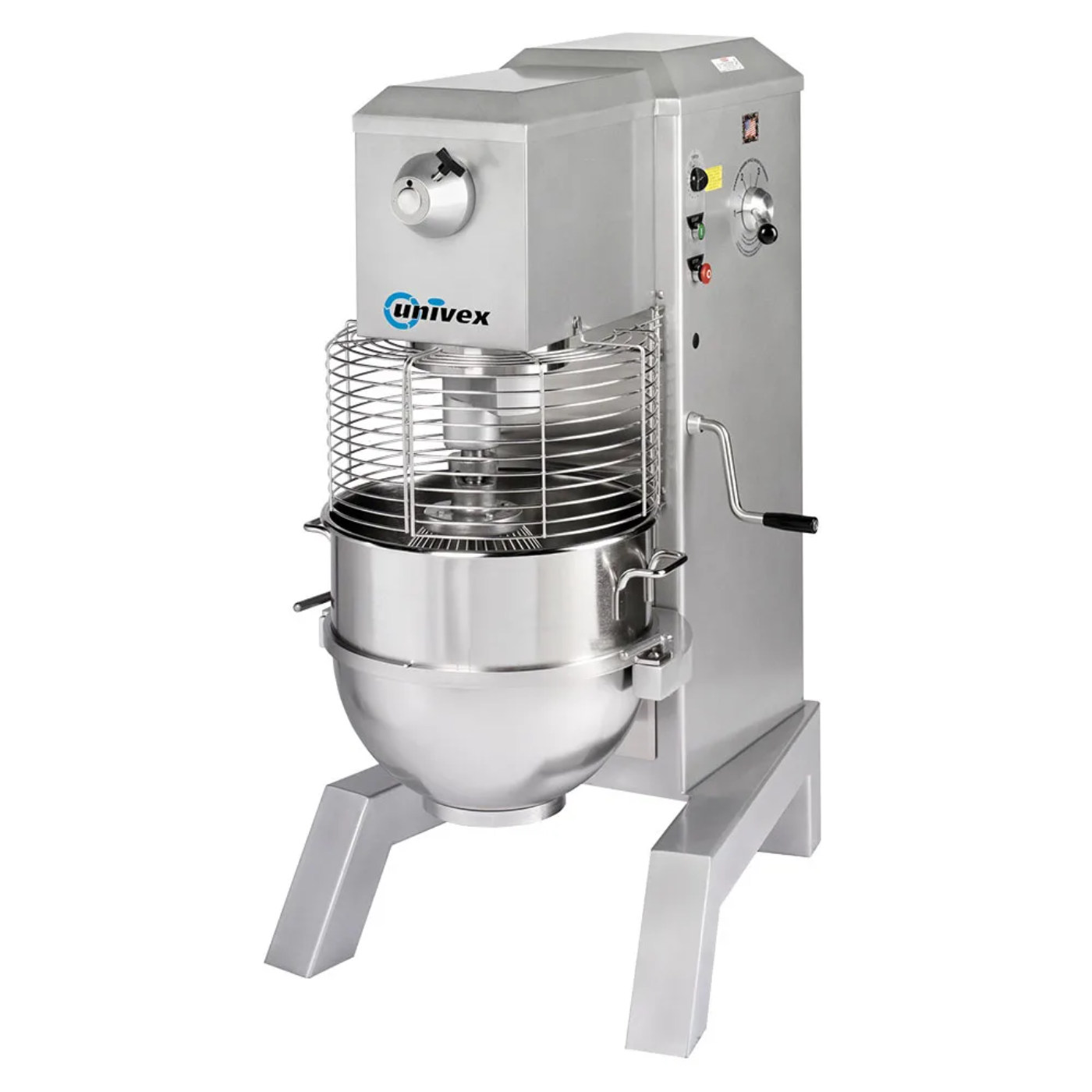

Univex SRM80+ 80-Quart Planetary Floor Mixer - UVSRM80
When you purchase the Univex SRM80+ floor mixer, you're investing in an affordable, easy-to-use mixer. With a 3 HP capacitor start motor, you can count on this mixer to have the power necessary to meet high volume demands. It has a variable speed drive, allowing staff to choose among 4 fixed speeds or any speed in between! Talk about maximum versatility. You can even switch speeds without ever turning the unit off!
The SRM80+ is made of durable materials. It comes with a stainless steel, dishwasher-safe safety guard and a heavy-duty stainless steel bowl. The exterior has been powder coated with NSF approved hybrid epoxy/polyester.
It also comes with the accessories needed to begin using your mixer immediately. It comes with a 15-minute timer, dough hook, batter beater, wire whip, ingredient chute, and bowl scraper.
Features
- 3 hp capacitor start motor
- Variable Speed Drive: 4 fixed speeds or any speed in-between
- Change speeds without having to stop the mixer
- Two-piece, stainless steel, dishwasher safe safety guard
- Heavy-duty stainless steel bowl
- #12 Power Take Off (PTO) hub
- Interlock switches protect operator from injury if safety guard is open or bowl is lowered
- Hardened alloy gears in transmission
- Low voltage protection prevents accidental start up after power failure
- Durable NSF approved hybrid epoxy/polyester powder coat finish
Standard Accessories:
- Splash ring
- Cover
- Sweet dough beater
- 80 qt. pastry knife
- Four wig beater
- Bowl truck
Specifications
| Model |
SRM80+ |
| Capacity |
80 quarts |
| Electrical Information |
|
| - Volts |
208-240V |
| - Frequency (Hz) |
60 Hz |
| - Phase |
1 |
| - Amps |
16.0-16.8A |
| - Plug |
NEMA 6-20P |
| - Horsepower (HP) |
3 HP |
| Dimensions |
|
| - Height |
58.38" |
| - Width |
29.75" |
| - Depth |
44.63" |
| Approximate Weight |
1000 lbs |
What our Experts Think
-
High Capacity: With an 80-quart bowl, the SRM80+ is ideal for large-scale food production, accommodating substantial batches efficiently.
-
Powerful Motor: Equipped with a 3 horsepower capacitor start motor, it ensures consistent performance even with heavy mixtures.
-
Variable Speed Control: Features a variable speed drive with four fixed speeds and the flexibility to adjust to any speed in between, allowing precise control over mixing processes.
-
Durable Construction: Built with a rugged gear-driven system and a hybrid epoxy/polyester powder-coated finish, ensuring longevity and ease of maintenance.
-
Comprehensive Accessories: Includes a removable SwingRing safety guard, stainless steel bowl, beater, whip, dough hook, power bowl lift, bowl scraper, and timer, providing all necessary tools for diverse mixing tasks.
-
Compact Design: Measuring 29.75" in width, 44.63" in depth, and 58.38" in height, it fits well into various kitchen layouts without compromising on capacity.
Q&A
Q: What is the Univex SRM80+ 80-Quart Planetary Floor Mixer?
The Univex SRM80+ is a heavy-duty, floor-standing planetary mixer designed for commercial kitchens. It features an 80-quart capacity, making it suitable for mixing large quantities of ingredients. The mixer is equipped with a 3 horsepower capacitor start motor and a variable speed drive, offering four fixed speeds or any speed in between, allowing for versatile mixing options.
Q: Is the Univex SRM80+ suitable for commercial use?
Yes, the SRM80+ is specifically designed for commercial applications, offering durability and high performance to meet the demands of busy kitchens.
Q: What certifications does the Univex SRM80+ hold?
The mixer is cETLus and NSF certified, ensuring compliance with recognized safety and sanitation standards.
Q: What voltage options are available for the Univex SRM80+?
The SRM80+ operates at 208-240 volts, 60 Hz, and is available in both single-phase and three-phase configurations
Maintenance Tips
-
Regular Cleaning:
- After each use, clean the mixer thoroughly. Wipe down the exterior with a damp cloth and mild detergent.
- Remove the bowl and attachments, and wash them separately to prevent buildup of food particles.
- Ensure that no cleaning agents are left on the mixer to avoid contamination.
-
Lubrication:
-
The SRM80+ utilizes an oil bath lubrication system for its gearing. Regularly check the oil level and quality, and replace the oil as recommended in the user manual to ensure smooth operation.
-
Belt Maintenance:
- If your model uses belts, inspect them periodically for signs of wear or damage.
- Adjust belt tension as needed to maintain optimal performance.
- Replace belts that show signs of significant wear to prevent operational issues.
-
Attachment Care:
- Use only Univex-approved attachments to ensure compatibility and prevent damage.
- Clean attachments promptly after use and store them properly to extend their lifespan.
-
Safety Features:
- Always operate the mixer with the safety guard in place
- Regularly inspect safety features to ensure they function correctly, preventing accidental operation when the guard is removed.
-
Professional Servicing:
- Schedule regular maintenance checks with a qualified technician to identify and address potential issues before they lead to equipment failure.
- Refer to the for detailed maintenance procedures and schedules.
