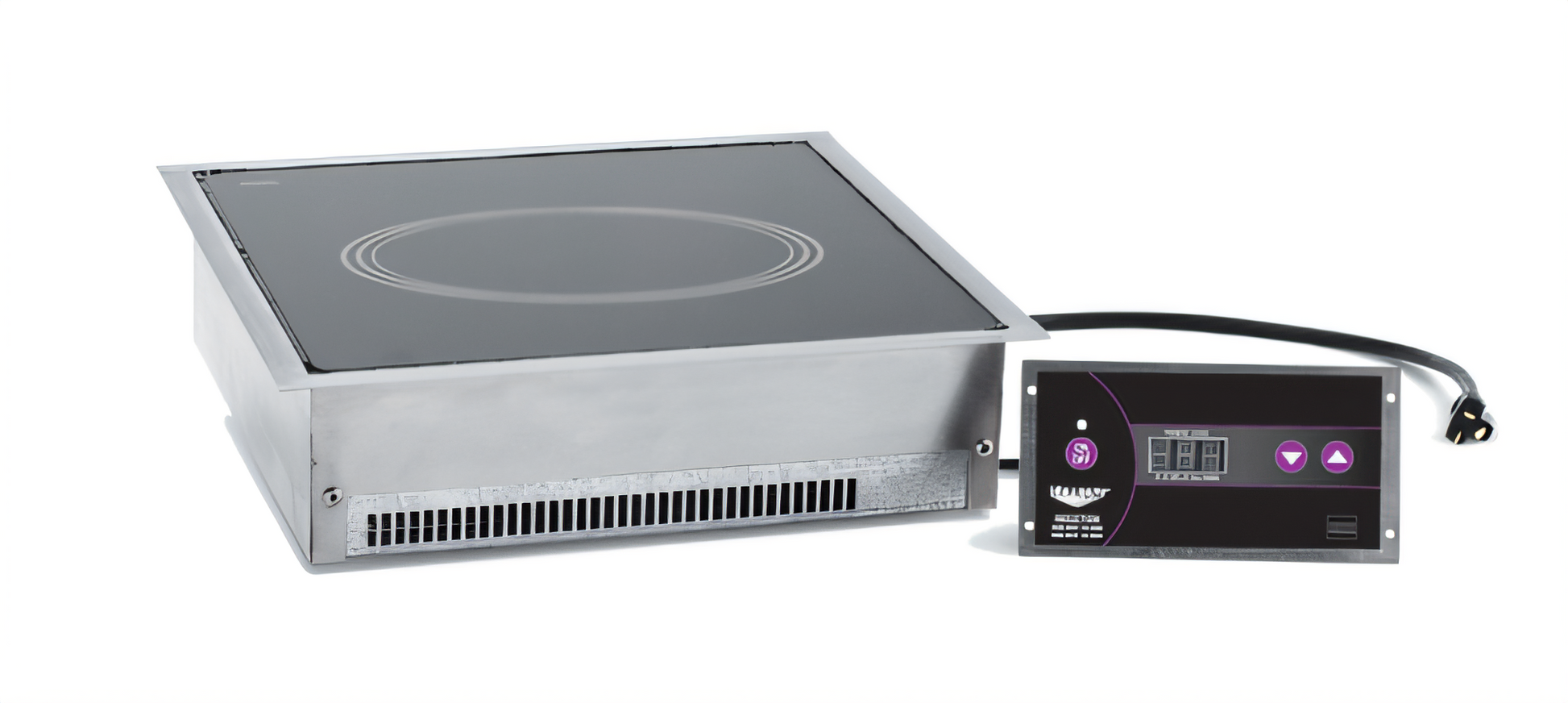

Vollrath Ultra Series Drop-In Induction Range – Single Hob
Model 69505 | 3.5 kW | NEMA 6-20P
Upgrade your cookline with the unmatched speed, precision and energy savings of Vollrath’s Ultra Series induction technology.
This flush-mount single-hob unit delivers gas-like performance with 90 % efficiency, keeping your kitchen cooler and your
utility bills lower.
Why you’ll love it
- 100 power settings for razor-sharp temperature control – from tempering chocolate to wok-hot searing.
- Digital glass touch display cleans in seconds and prevents accidental setting changes.
- Continuous-duty circuitry and dual oversized fans support round-the-clock production.
- 18 ga 304 stainless-steel housing and a durable ceramic glass top stand up to heavy commercial use.
- Smart safeguards: over-heat protection, small-article & pan auto-detection, plus empty-pan shut-off.
- Runs on a standard 208–240 V, single-phase 20 A circuit – 6 ft cord with NEMA 6-20P included.
- Made in the USA and protected by a 2-year parts & labor warranty.
Specifications
| Item / Model # |
Ultra Series Single Hob Drop-In – 69505 |
| Hob count / Max pan size |
1 hob / 14 in (35.6 cm) |
| Overall dimensions (W × D × H) |
17 3⁄8 in × 16 1⁄2 in × 4 3⁄4 in
(44.1 cm × 41.9 cm × 12.0 cm) |
| Cut-out size |
16 1⁄8 in × 15 1⁄8 in (40.9 cm × 38.4 cm) |
| Control box cut-out |
7 1⁄4 in × 3 7⁄8 in (18.4 cm × 9.8 cm) |
| Power output |
3.0 – 3.5 kW, 100 incremental settings |
| Electrical |
208 – 240 V / 50–60 Hz / 1-phase, 14.6 A, NEMA 6-20P |
| Construction |
18-gauge 304 stainless-steel chassis, black ceramic glass cooktop |
| Cooling system |
Dual oversized forced-air fans |
| Certifications |
cULus, NSF, FCC |
| Origin |
Made in USA |
| Warranty |
2 years parts & labor (see full policy) |
Provide at least 3 in (7.6 cm) clearance at the rear and 1 in (2.5 cm) below the unit for ventilation.
Intake air temperature must not exceed 110 °F (43 °C).
Important: Operates only with induction-ready cookware that has a magnetic, flat base.
The hob will not activate until compatible cookware is detected.
