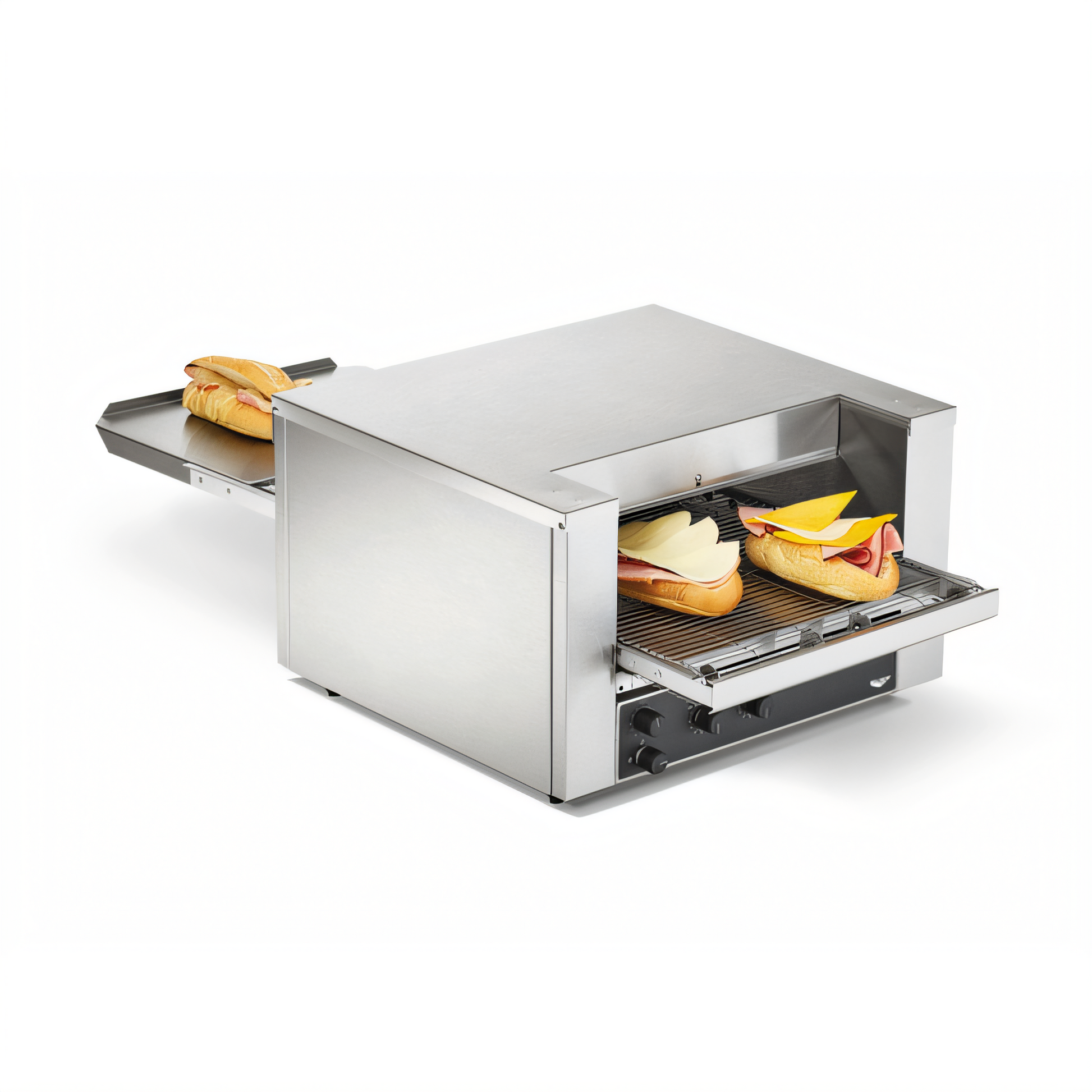

Vollrath JB3H Ventless Conveyor Sandwich Oven – 14.5 in Belt (240 V)
Model SO2-24014.5 • Made in the USA
Toast, melt and finish menu favorites without a hood. The Vollrath JB3H 14.5-inch conveyor sandwich oven delivers
consistent, high-speed results in a compact countertop footprint, making it the perfect fit for cafés, bars,
concession stands and other low-volume operations that want big-oven performance without the big-oven space or cost.
Top Features
- UL & NSF certified ventless operation – exceeds EPA 202, no dedicated hood required*
- Fast-reacting quartz heating elements with independent top & bottom heat controls
- Variable-speed conveyor lets you dial-in toasting time for bread, subs, flatbreads, wraps and more
- Adjustable product opening 1.5-3 in (3.8-7.6 cm)
- Stainless-steel & aluminized-steel construction for long life and easy cleanup
- Forced-convection design promotes even browning while reducing energy use
- Extended front & rear landing trays for true pass-through convenience
- Maintenance-free drive system – lubeless stainless-steel chain
- Stackable with optional spacer (Vollrath #351042) to double throughput without adding floor space
Specifications
| Item / Model |
SO2-24014.5 • JB3H series (made to order) |
| Conveyor Belt Width |
14.5 in (36.8 cm) |
| Product Opening |
Adjustable 1.5 – 3 in (3.8 – 7.6 cm) |
| Overall Dimensions |
40.87 in D × 12.5 in H
Front width (cabinet): 20.63 in (52.4 cm) |
| Electrical |
240 V / 1-phase / 3,600 W / 15 A / 60 Hz |
| Plug |
NEMA 6-30P, 4.5 ft (1.4 m) cord included |
| Certifications |
UL, NSF, cUL; UL-verified ventless per EPA 202 |
| Construction |
Stainless steel exterior, aluminized-steel interior; quartz heater tubes |
| Net Weight |
70 lb (31.8 kg) |
| Warranty |
2 year parts / 1 year labor
1 year on heater tubes |
Made-to-order: This item is built specifically for your operation and
cannot be canceled or returned once in production.
Clearance & Environment
- Provide at least 8 in (20.3 cm) of clearance on both left and right sides.
- Maximum ambient temperature: 104 °F (40 °C).
- Place only on non-combustible surfaces and keep away from curtains or other flammable materials.
- Unit is designed to toast or finish pre-cooked foods and is not intended for cooking raw products or
continuous 24-hour operation.
What’s in the Box
- JB3H Conveyor Sandwich Oven – 14.5 in belt
- Loading (entrance) tray & receiving (exit) tray
- Owner’s manual
*Always confirm local code requirements with the AHJ
before installation.
