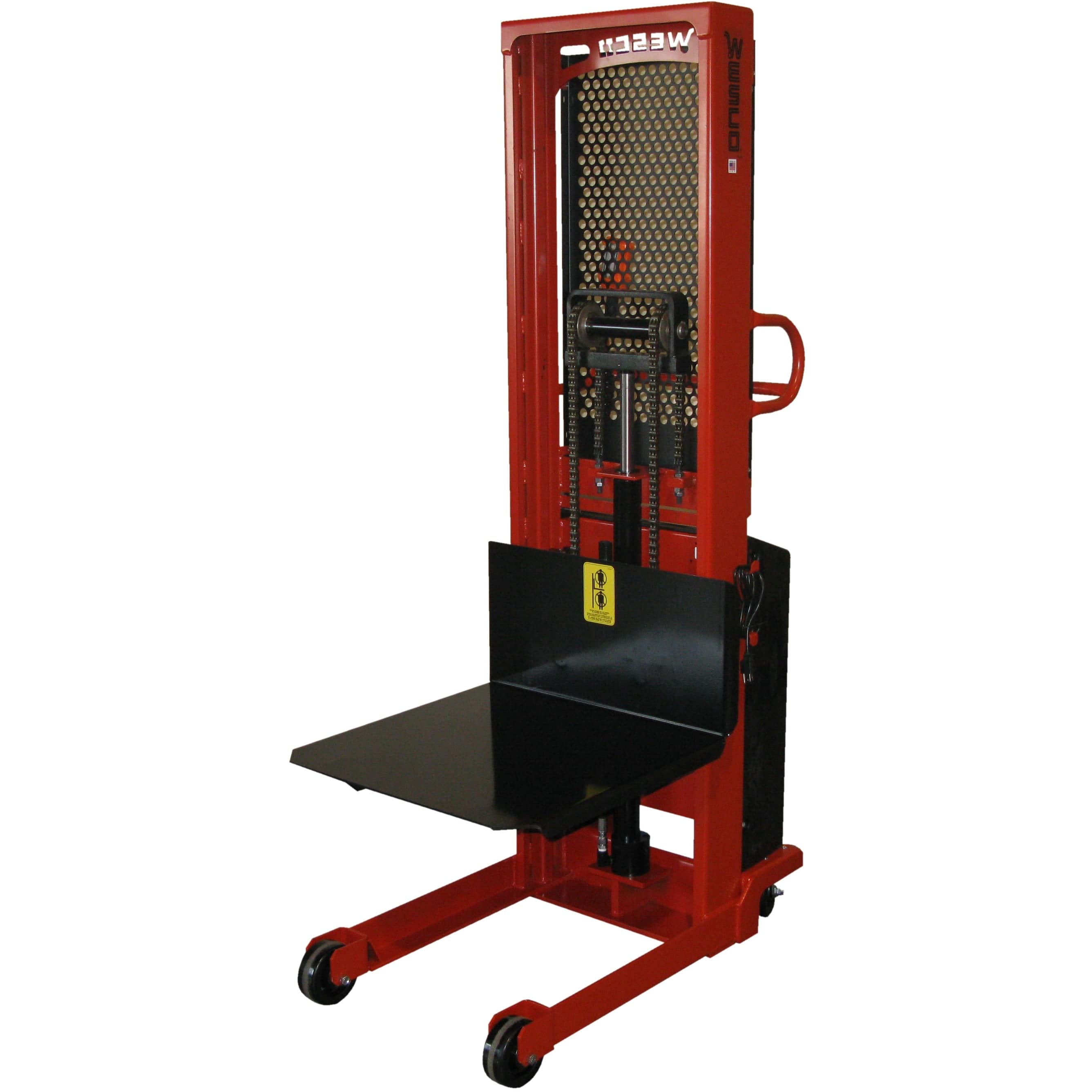

Wesco Industrial Products 2,000 lb. Power Lift Platform Stacker with 27" x 24" Platform and 90" Lift Height 261091

Wesco 24" X 27" PLATFORM 26" O.D. FIXED BASE POWERED STACKER - 261091

• 1-year warranty.
• Proven quality: Wesco® manufactured Hydraulic Cylinder.
• Meets ANSI B56.10 specifications.
• Battery and charger included.
• Forks lower to floor on all models.
• Platform lowered height is 6".
• Reinforced frame and base
• Double chain, lift support.
• Heavy-duty pump.
• Ergonomic "D" handles.
• 5th wheel and power drive options available.
• 110V AC models available (Special order no cancellations or returns).
• To order add AC to the end of the battery powered stacker part #.
  Example:
  Battery Powered #2610791
  110V AC Powered #261091AC

• Drawing for 1,500 & 2,000 lb Capacity Powered Stacker - Platform Model (261091)
• Power Drive & Lift Option
• Operating Instructions and Parts Manual

• Heavy-Duty Performance: Built to support up to 2,000 lbs, ideal for demanding industrial tasks.
• Compact Platform: 27" x 24" platform provides stability and versatility for various loads.
• High Lift Capacity: Reaches an impressive 90" lift height, allowing for easy maneuvering and storage.
• Durability: Designed for longevity with quality materials that withstand tough environments.
• Ease of Use: Simple, user-friendly operation for efficient material handling.

Q: What is the weight capacity of this platform stacker?
A: The Wesco 261091 can lift up to 2,000 lbs.

Q: What is the maximum lift height?
A: The stacker provides a lift height of up to 90 inches.

Q: What are the platform dimensions?
A: The platform measures 27 inches by 24 inches.

Q: Is this stacker electric-powered?
A: Yes, it features a power lift mechanism for efficient operation.

Q: What are the primary applications for this stacker?
A: It’s ideal for warehouses, factories, and material handling tasks.

Q: Is it easy to maneuver?
A: Yes, it’s designed for smooth operation and precise positioning.

Q: Does it require assembly?
A: Minimal assembly may be required, with detailed instructions included.

Q: Is it durable?
A: Constructed with heavy-duty materials, it ensures long-term reliability.

• Regular Inspections: Check hydraulic systems, wheels, and platform for wear or damage monthly.
• Lubricate Moving Parts: Apply appropriate grease to hinges, chains, and rollers every 3 months.
• Battery Care: Charge fully before use; avoid overcharging. Inspect cables for corrosion or frays.
• Clean Platform and Frame: Wipe off debris or spills after each use to prevent rust.
• Tighten Hardware: Regularly check and secure bolts, screws, and fasteners.
• Test Safety Features: Ensure brakes, emergency stop, and lift controls function properly.
• Follow Load Limits: Avoid exceeding the 2,000 lb. capacity to prevent wear or damage.
