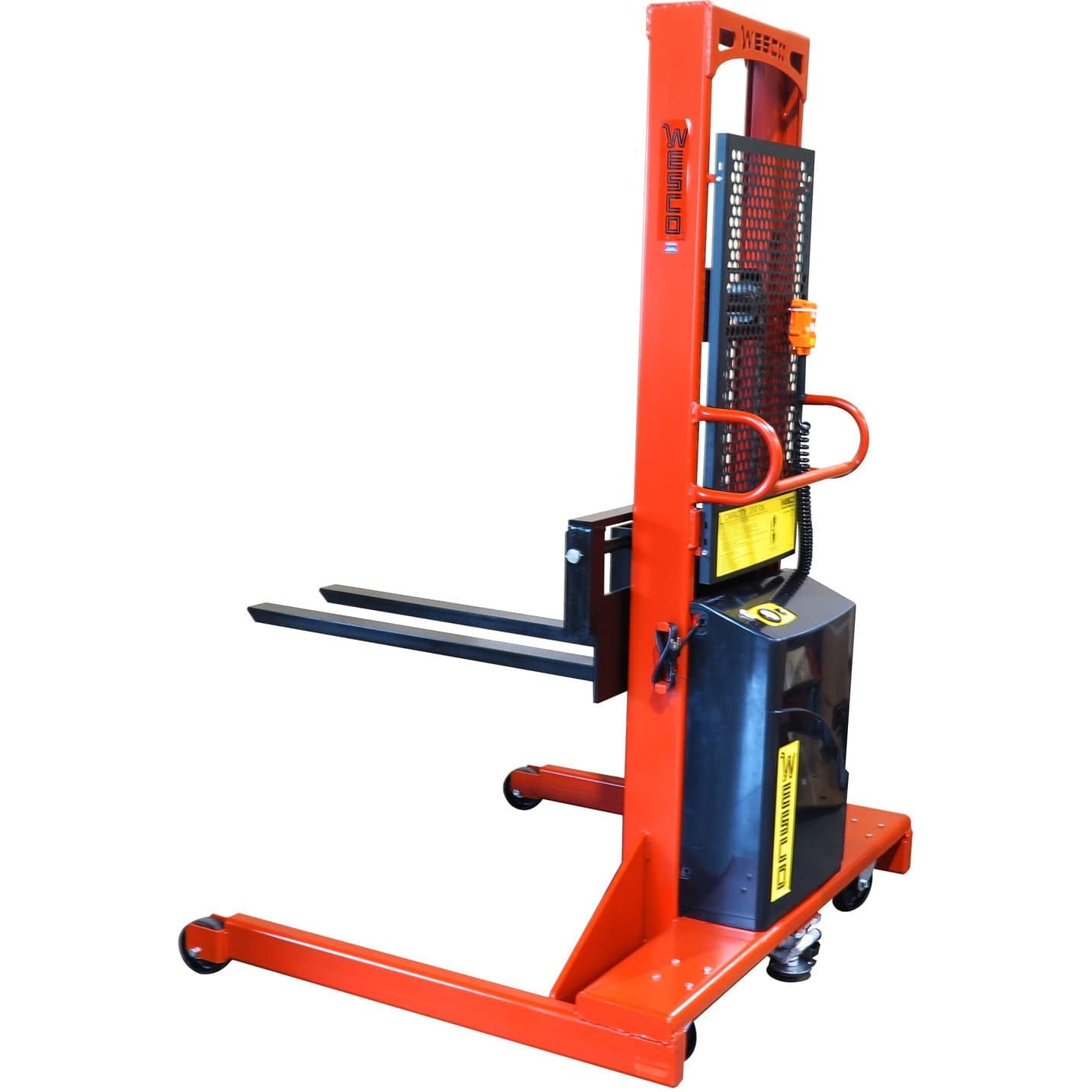

Wesco Industrial Products 2,000 lb. Power Lift Fork Stacker with 25" Forks, 20" Base Leg Span, and 76" Lift Height 261094

Wesco 3" X 25" FORK / 26" O.D. FIXED BASE POWERED STACKER- 261094

Features

• 1-year warranty.
• Proven quality: Wesco manufactured Hydraulic Cylinder.
• Meets ANSI B56.10 specifications.
• Battery and charger included.
• Forks lower to floor on all models.
• Reinforced frame and fixed base.
• Double chain, lift support.
• Heavy-duty pump.
• Ergonomic "D" handles.
• 5th wheel and power drive options available.
• 110V AC models available (Special order no cancellations or returns).
• To order add AC to the end of the battery powered stacker part #.
  Example:
  Battery Powered #261094
  110V AC Powered #261094AC

Videos

Specifications

Drawing

• Drawing for 1,500 & 2,000 lb Capacity Powered Stacker - Fork Model (261094)
• Power Drive & Lift Option
• Operating Instructions and Parts Manual

What Our Experts Think

• Heavy-Duty Capacity: Supports up to 2,000 lbs, ideal for lifting and stacking heavy materials.
• Versatile Fork Design: 25" forks provide compatibility with various pallet sizes and loads.
• Extended Lift Reach: 76" lift height allows for versatile material handling and stacking at elevated levels.
• Stable Base: 20" base leg span ensures secure operation and stability during lifting.
• Durable Construction: Built to last with robust materials, handling demanding industrial environments.

Q&A

Q: What is the weight capacity of this fork stacker?
A: The Wesco 261094 can lift up to 2,000 lbs.

Q: What is the maximum lift height?
A: This stacker provides a lift height of up to 76 inches.

Q: What are the fork dimensions?
A: The forks are 25 inches in length.

Q: What is the base leg span?
A: The base leg span is 20 inches, providing excellent stability.

Q: Is this stacker electric-powered?
A: Yes, it features a power lift mechanism for easy operation.

Q: What are the primary applications for this stacker?
A: Ideal for lifting heavy loads, pallets, and material handling in warehouses.

Q: Is it easy to maneuver?
A: Yes, it is designed for smooth mobility and precise positioning.

Q: Does it require assembly?
A: Some assembly may be needed, with clear instructions included.

Q: Is it durable?
A: Yes, it is built with durable materials for long-term reliability.

Maintenance Tips

• Routine Inspections: Regularly check forks, base legs, and hydraulic system for damage or wear.
• Lubricate Components: Apply grease to rollers, chains, and moving parts every 3 months.
• Battery Maintenance: Ensure the battery is fully charged before use and inspect cables for wear.
• Clean After Use: Wipe down forks, frame, and legs to remove dirt and prevent rust.
• Tighten Fasteners: Periodically check and secure all bolts, screws, and fasteners.
• Test Controls: Verify lift, lowering, and braking functions are working correctly.
• Respect Load Capacity: Do not exceed the 2,000 lb. capacity or 76" lift height for safety.
