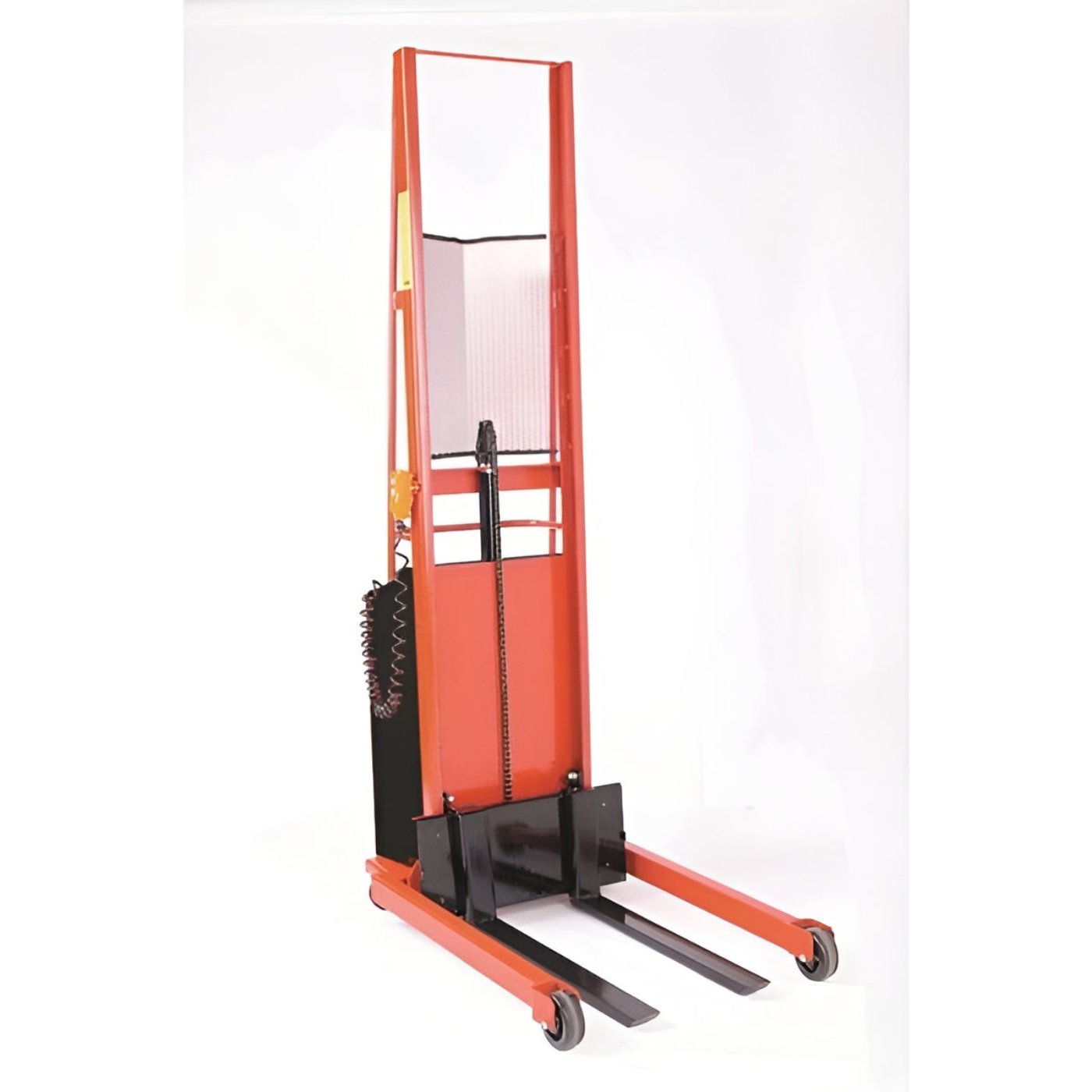

Wesco 3" X 25" FORK FIXED BASE POWERED STACKER - 261028
Features
- 1-year warranty.
- Proven quality: Wesco® manufactured Hydraulic Cylinder.
- Battery and charger included.
- Forks lower to floor on all models.
- 5" Phenolic wheels on front, 4" swivel on rear
- 110V AC models available.(Special order, NO cancellations or returns.)
- Meets ANSI B56.10 specifications.
- Power Drive option available.
Videos
Specifications
| PART NUMBER |
261028 |
| MODEL |
PESFL-56-25 |
| TYPE |
Fork Models |
| FRONT WHEEL |
(2) 5" Phenolic |
| REAR SWIVEL CASTER |
(2) 4" Phenolic |
| LIFT HEIGHT |
56" |
| CAPACITY |
1000 lb |
| WIDTH FORKS |
3" |
| LENGTH FORKS |
25" |
| LOAD CENTER |
15" |
| BASE LEG (ID/OD) |
15"/21" |
| OVERALL WIDTH |
25.5" |
| OVERALL HEIGHT |
72" |
| OVERALL DEPTH |
44.5" |
| WEIGHT |
452 lb |
Drawing
What Our Experts Think
-
Compact and Reliable: Supports up to 1,000 lbs, perfect for light to medium-duty applications.
-
Ideal Fork Length: 25" forks easily accommodate standard pallets and materials.
-
Efficient Lift Range: 56" lift height is great for stacking and transporting at moderate heights.
-
Sturdy Design: Built to provide stable and safe lifting for everyday industrial tasks.
-
Easy to Maneuver: User-friendly and ideal for smaller spaces with its compact frame.
Q&A
Q: What is the weight capacity of this fork stacker?
A: The Wesco 261028 can lift up to 1,000 lbs.
Q: What is the maximum lift height?
A: This stacker offers a lift height of up to 56 inches.
Q: What are the fork dimensions?
A: The forks measure 25 inches in length.
Q: Is this stacker electric-powered?
A: Yes, it features a power lift mechanism for easy lifting.
Q: What are the main applications for this stacker?
A: Ideal for lifting light-to-medium loads, pallets, and material handling in warehouses.
Q: Is it easy to maneuver?
A: Yes, designed for smooth movement and precise control.
Q: Does it require assembly?
A: Minimal assembly may be required, with simple instructions included.
Q: Is it durable?
A: Yes, built with durable materials for long-lasting performance.
Maintenance Tips
-
Inspect Regularly: Check forks, base legs, and hydraulic system for wear or damage each month.
-
Lubricate Moving Parts: Grease rollers, hinges, and chains every 3 months.
-
Battery Care: Fully charge before use; inspect for corrosion or damage on cables.
-
Clean Equipment: Wipe down forks, frame, and base legs after each use to prevent debris buildup.
-
Check Fasteners: Tighten bolts, screws, and hardware periodically for secure operation.
-
Test Safety Features: Ensure lift, lowering, and brake controls function properly.
-
Adhere to Load Limits: Do not exceed the 1,000 lb. load capacity or 56" lift height.
