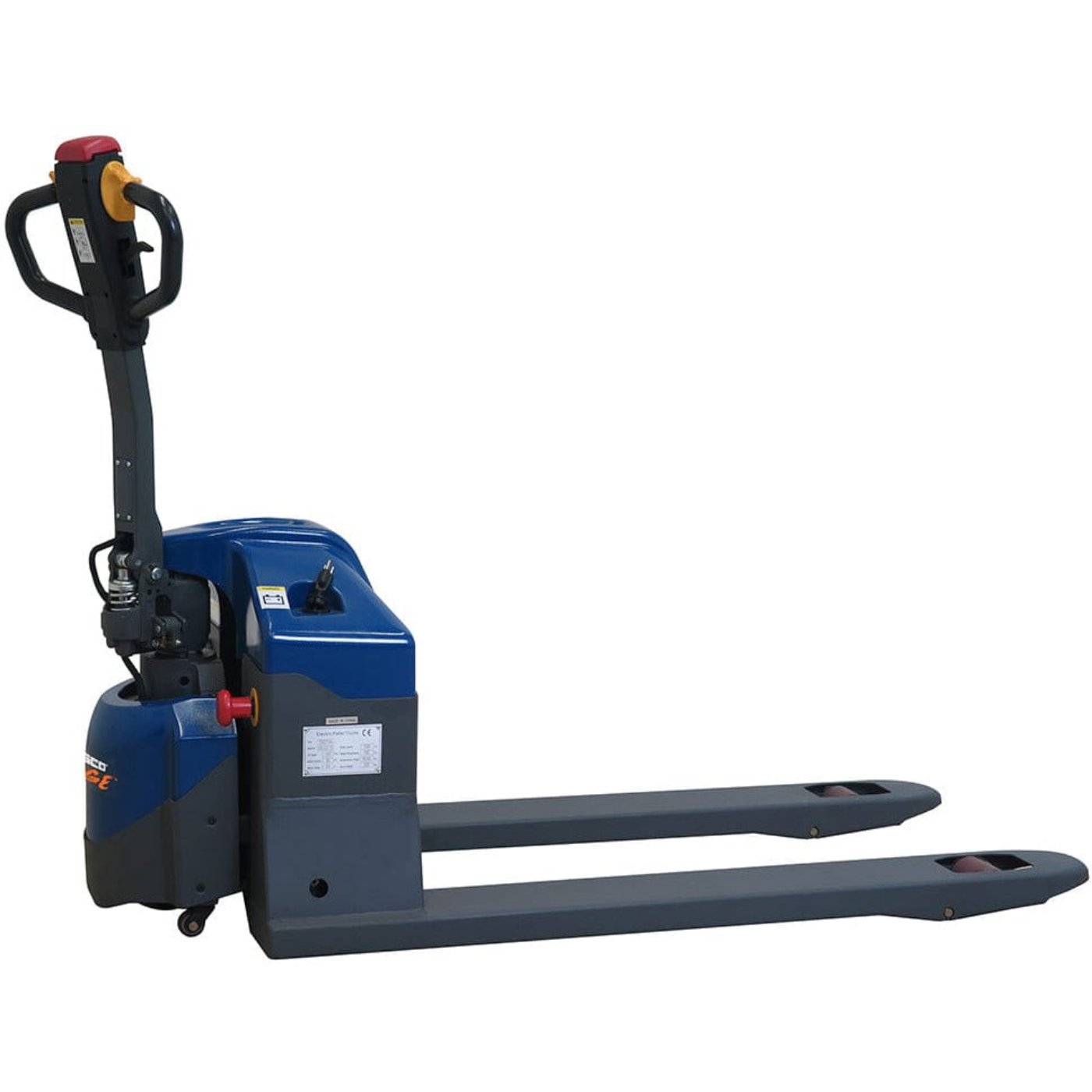

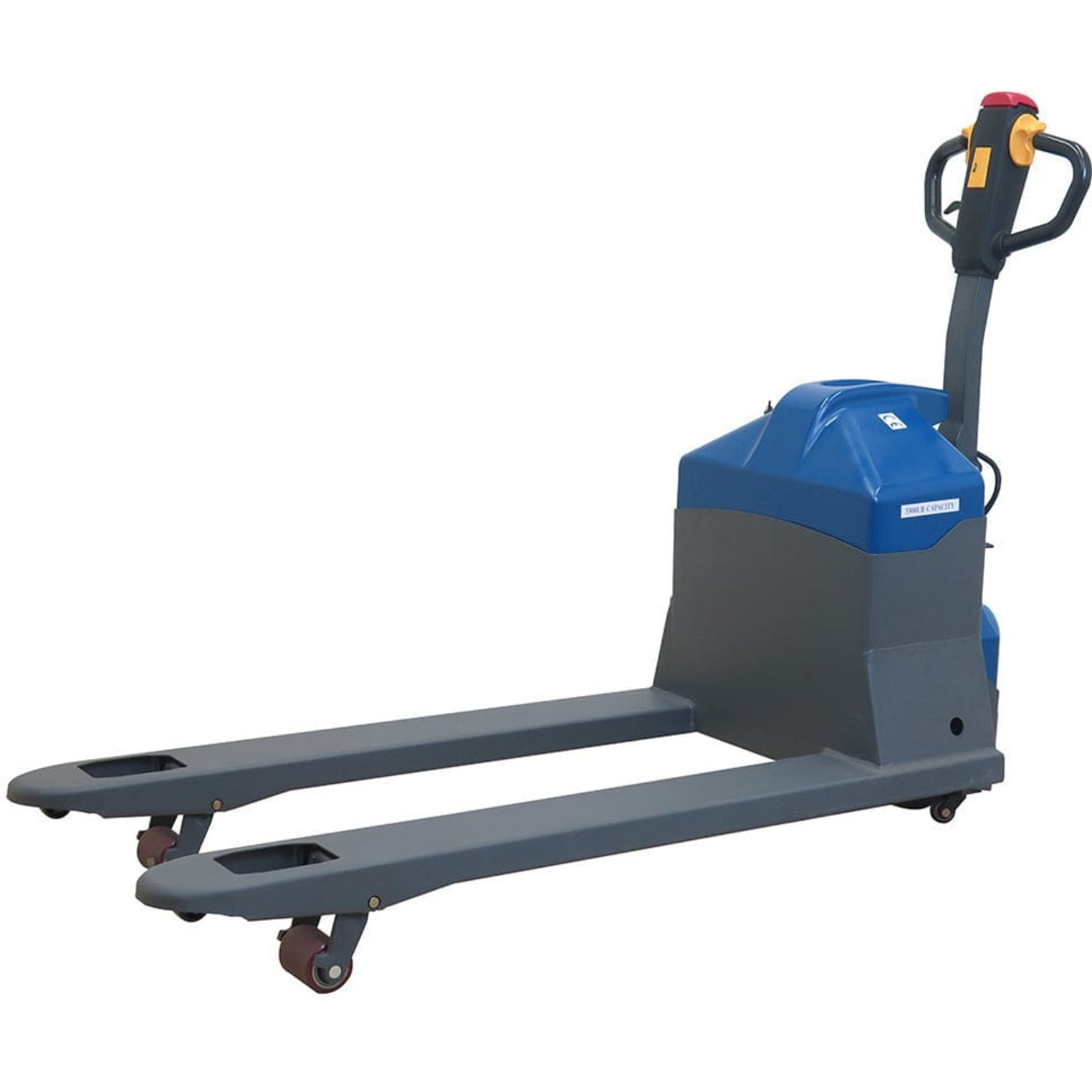

Wesco ADVANTAGE™ POWER SEMI-ELECTRIC PALLET TRUCK - 274702
Features
- 3 year pump warranty.
- 24 Volt lithium battery, 20AH capacity
- Tight turning radius for maneuverability
- Permanent magnet brushless motor

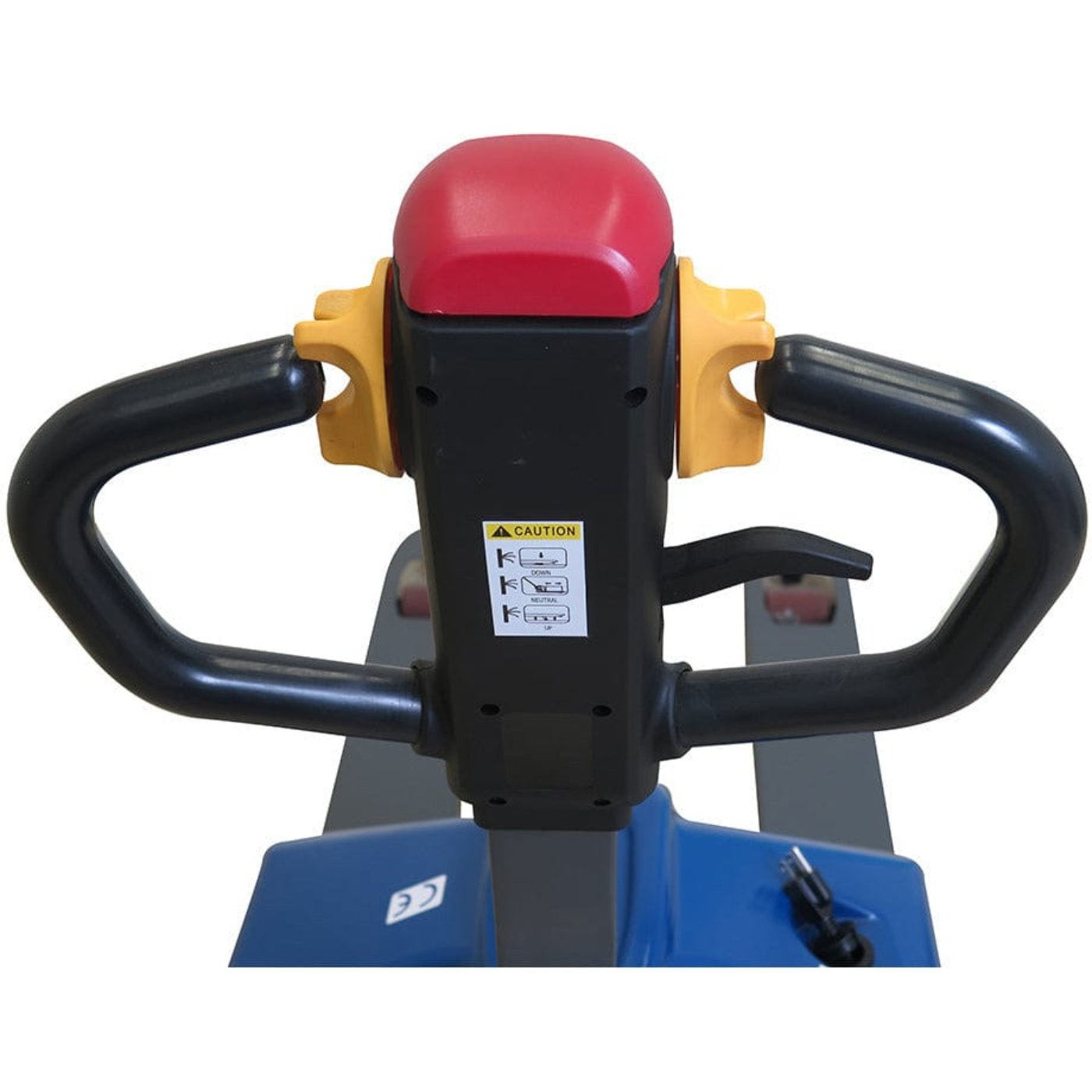

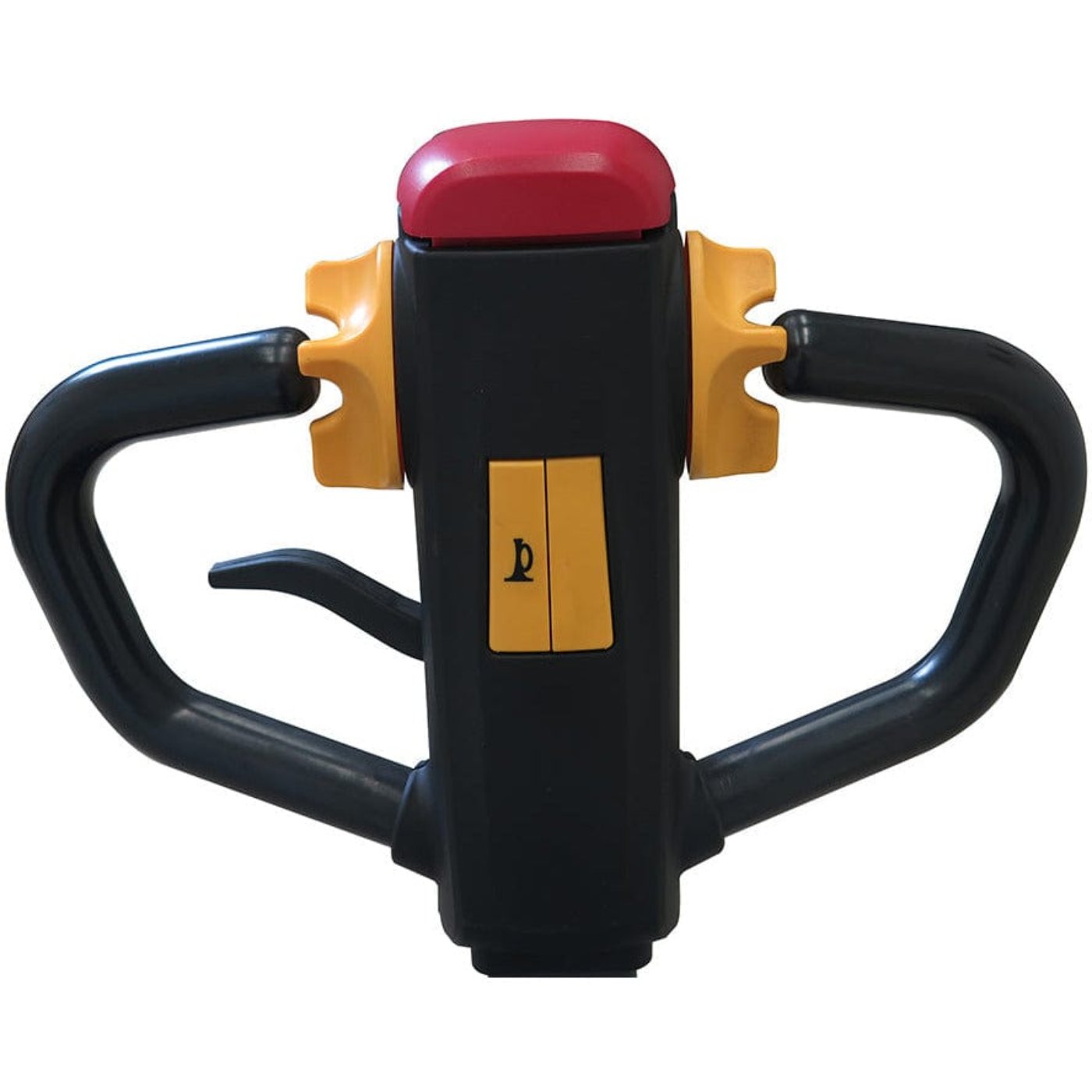

- Stepless controls for accurate speed control

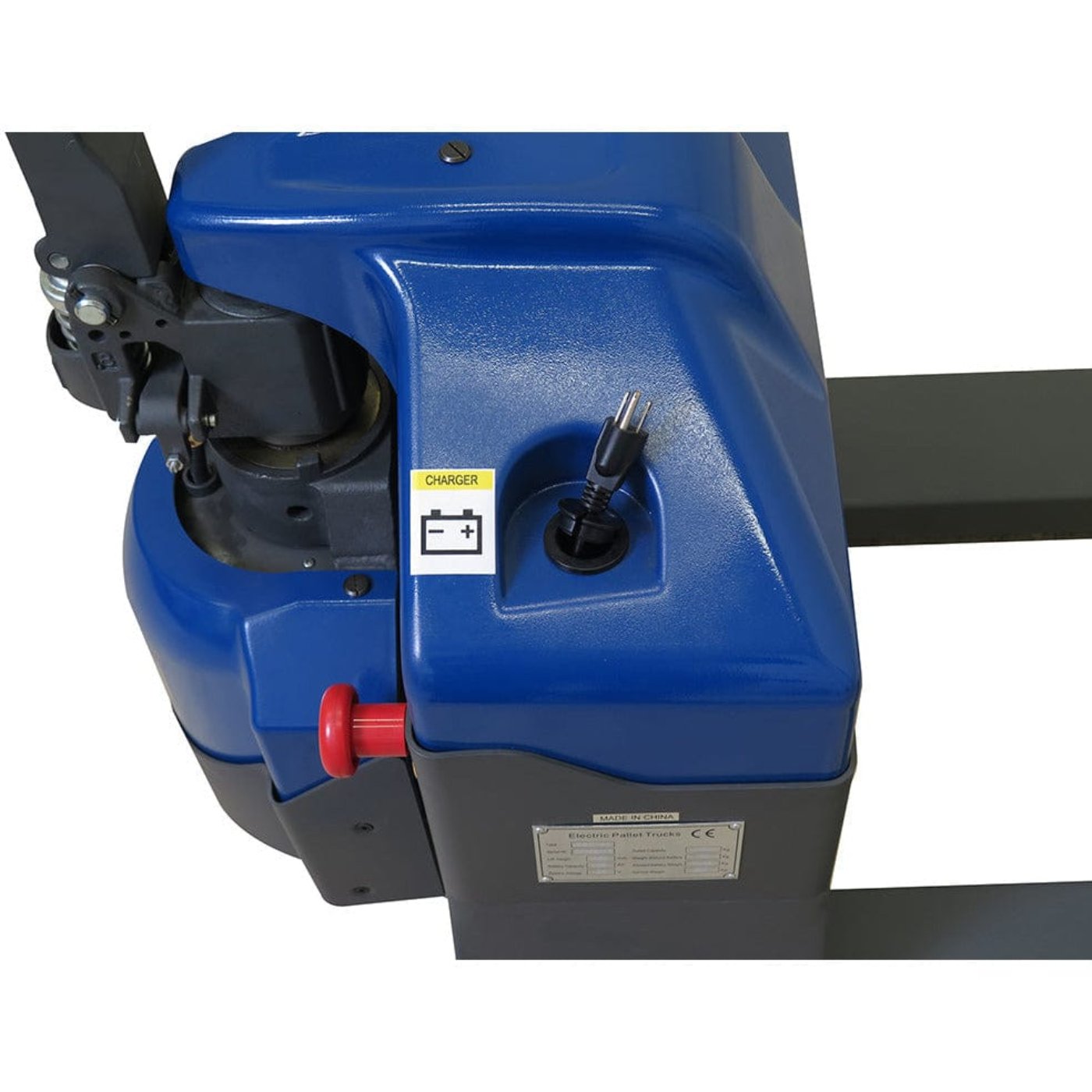

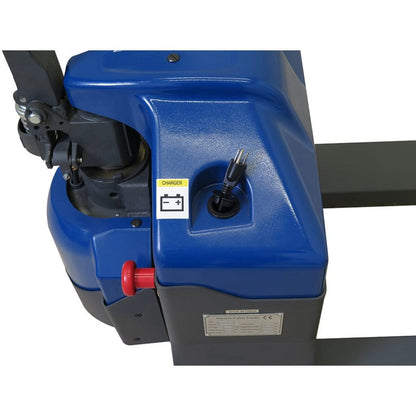

- Built-in charger
- Provides extra power for high volume use, heavy duty drive, constant speed loaded or unloaded and rotating balance wheels for improved stability
Specifications
CAPACITY |
3,300 lb |
W-1 X L-1 |
27" x 48" |
W-2 |
6" |
L-2 |
67.5" |
WHL-1 / WHL-2 |
8" / 3" |
H-1 / H-2 / H-3 |
49.5" / 3.3 "/ 7.5" |
WEIGHT |
441 lb |
Drawing
What Our Experts Think
-
Impressive Capacity: Supports up to 3,300 lbs, making it ideal for heavy-duty pallet handling and transportation in industrial environments.
-
Semi-Electric Design: Features electric lifting with manual steering, offering a cost-effective and efficient solution for material handling.
-
Ample Fork Size: 27" x 48" forks accommodate a wide range of pallet sizes, providing versatility for various loads.
-
Excellent Maneuverability: Compact design allows for easy navigation in narrow aisles and tight spaces, enhancing operational efficiency.
-
Durable and Reliable: Built to last with high-quality materials, designed to withstand the demands of daily industrial use.
Q&A
Q: What is the weight capacity of the Wesco Advantage Power Semi-Electric Pallet Truck?
A: The Wesco 274702 has a lifting capacity of up to 3,300 lbs.
Q: What are the dimensions of the forks?
A: The forks measure 27 inches by 48 inches, designed to accommodate standard pallets.
Q: What type of power does this pallet truck use?
A: It features a semi-electric design, with an electric motor for lifting and manual operation for moving the pallet truck.
Q: Is this pallet truck easy to maneuver?
A: Yes, it is equipped with ergonomic controls and smooth-rolling wheels for easy handling and movement.
Q: What are the primary applications for this pallet truck?
A: Ideal for lifting and transporting pallets and materials in warehouses, factories, and other industrial settings.
Q: What is the lift height?
A: This pallet truck can lift up to 7.5 inches in height.
Q: Does it require charging?
A: Yes, the electric motor needs to be charged to power the lift function.
Q: Is it durable?
A: Yes, built with robust materials to withstand heavy-duty, everyday use.
Q: Does it require assembly?
A: Minimal assembly may be required, with clear instructions provided.
Maintenance Tips
-
Inspect Regularly: Check forks, hydraulic components, wheels, and the frame for wear or damage monthly.
-
Lubricate Moving Parts: Grease wheels, rollers, and pivot points every 3 months to ensure smooth operation.
-
Battery Care: Ensure the battery is fully charged before use, and check terminals for corrosion or damage.
-
Hydraulic Fluid Check: Monitor hydraulic fluid levels and inspect the pump system for leaks.
-
Clean After Use: Wipe down the pallet truck to remove dirt, debris, and moisture to prevent rust.
-
Check Fasteners: Tighten bolts, screws, and fasteners regularly to maintain stability and ensure safety.
-
Test Functionality: Ensure the lift, lowering, and braking systems are operating correctly before use.
-
Respect Load Limits: Do not exceed the 3,300 lb. capacity to ensure safe and efficient operation.
