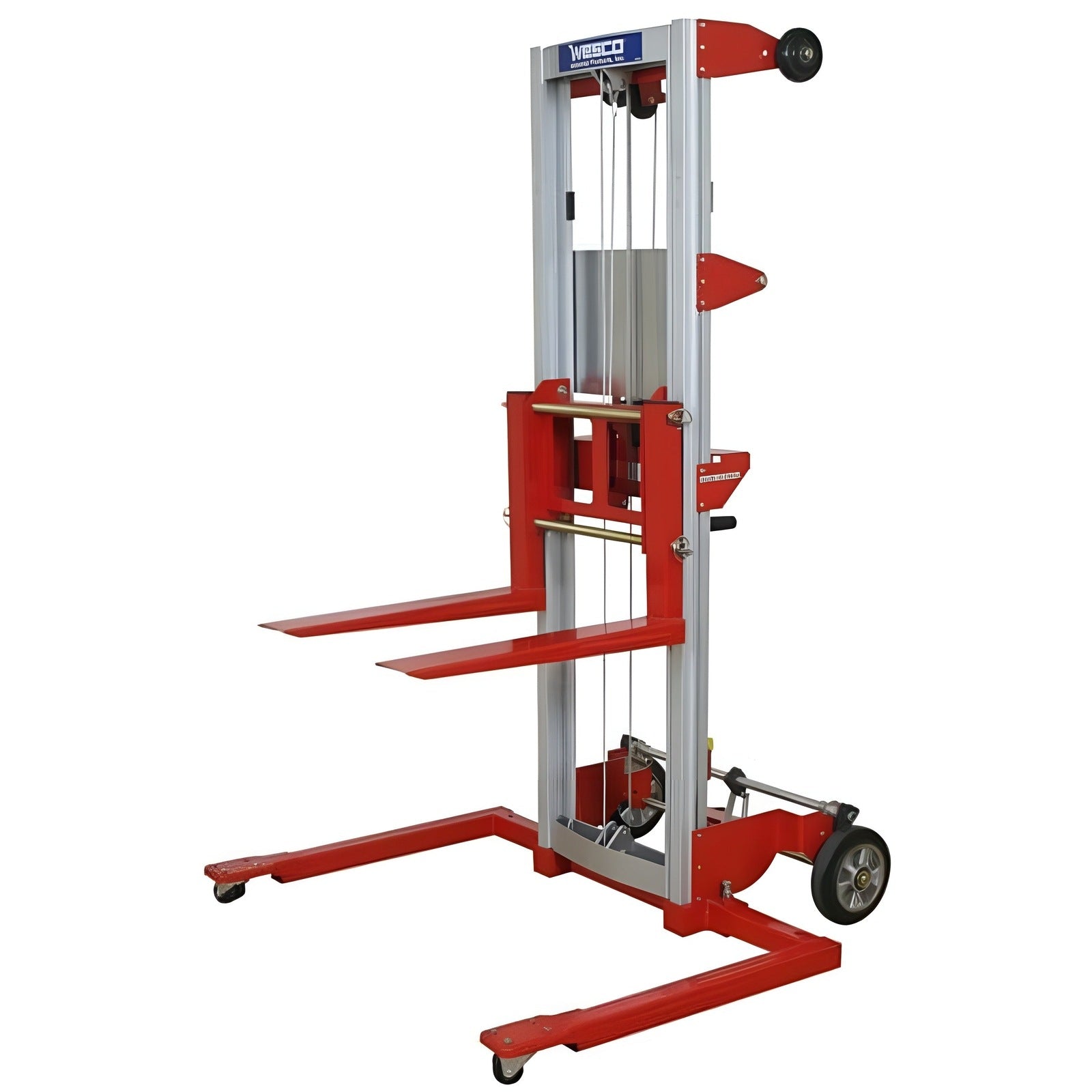

Wesco Industrial Products 500 lb. Hand Winch Lift with 22 1/2" Forks, Adjustable Straddle Base and 70" Lift Height 273514

Reduce the strain put on your employees by heavy loads and make stacking products effortless with this Wesco Industrial Products 273514 500 lb. hand winch lift!

This stacker can lift loads up to 500 lb. as high as 70" and is raised and lowered by a convenient and easy-to-use winch crank. Its aluminum and steel construction provides added durability and support during transport.

Each fork is 4" wide and 22 1/2" long for optimal surface area and stability while lifting heavy loads. The forks can be inverted for two different lift heights, depending on specific need. The adjustable straddle base is great for handling various sized pallets. It can span between 21 1/2" and 36" inside width, so pallets can be removed directly from the ground. With (2) 8" rear wheels and (2) 2" front swivel casters, this unit is simple to transport around your facility. Powered by a manual hand winch crank, this stacker is operated without the use of restricting cords or the fumes that come with other fuels, making it perfect for indoor use. Both battery and charger are included with this unit. For enhanced safety and easy transportation of goods, try this Wesco Industrial Products winch lift!

Features

• Capacity 500 lbs.
• Aluminum and steel construction.
• 8" rear wheels and 2" front swivel casters are non-marking.
• Forks can be inverted for two different lift heights. Fork size: 4"W x 22.5"L x 1.75"H.
• Winch crank handle locks to secure carriage.
• Adjustable Straddle with adjustable legs 21.5" to 36" inside width and 29" to 44" outside width.
• Top of frame rollers facilitates laying truck horizontal for transport.

Specifications

Drawing

 Drawing for Hand Winch Lifter (273514)

What Our Experts Think

The Wesco Industrial Products 500 lb. Hand Winch Lift is an efficient, manual lifting solution for a range of industrial applications. Here’s why it’s a reliable choice:

• High Lifting Capacity: Capable of lifting up to 500 lbs, ideal for handling medium-heavy loads.
• Moderate Lift Height: Offers a 70" maximum lift height, making it perfect for lower to mid-level stacking and retrieval tasks.
• Adjustable Straddle Base: The straddle base can be adjusted to fit various pallet sizes, providing flexibility and stability.
• Hand Winch Operation: Simple manual winch system allows precise control over lifting, without the need for electricity or complex controls.
• Sturdy Forks: 22 1/2" forks ensure safe and secure handling of loads during lifting and transport.
• Durable Construction: Built for long-lasting performance in industrial environments, providing reliable operation for years.

Q&A

Q: What is the maximum lifting capacity of this hand winch lift?
A: The Wesco Hand Winch Lift has a lifting capacity of 500 lbs.

Q: What are the fork dimensions?
A: The forks measure 22 1/2" in length.

Q: What is the maximum lift height?
A: It can lift up to 70".

Q: How is the lift operated?
A: The lift uses a manual hand winch for smooth and controlled lifting and lowering.

Q: Does this lift have an adjustable base?
A: Yes, it features an adjustable straddle base to accommodate different load sizes.

Q: What applications is this lift ideal for?
A: Ideal for lifting and transporting loads in tight spaces, perfect for warehouses, workshops, and industrial environments.

Q: Is the lift easy to maneuver?
A: Yes, the adjustable straddle base and design make it easy to move and position the lift as needed.

Maintenance Tips

• Inspect Regularly: Check the winch, forks, straddle base, and lifting components for wear, damage, or misalignment.
• Lubricate Components: Apply lubrication to the winch mechanism, wheels, forks, and adjustable base to ensure smooth operation and reduce friction.
• Winch and Cable Check: Periodically test the winch to ensure proper tension. Inspect the cable for signs of wear or fraying and replace if necessary.
• Clean the Lift: Wipe down the lift after use to remove dirt, debris, and rust that may affect performance and longevity.
• Verify Safety Features: Test the winch’s locking mechanism and brakes to ensure they are functioning correctly before each use.
• Observe Load Capacity: Never exceed the 500 lb. capacity to ensure safe operation and prevent undue strain on the lift.
• Proper Storage: Store the lift in a dry, clean environment to avoid exposure to moisture and prevent rust.
