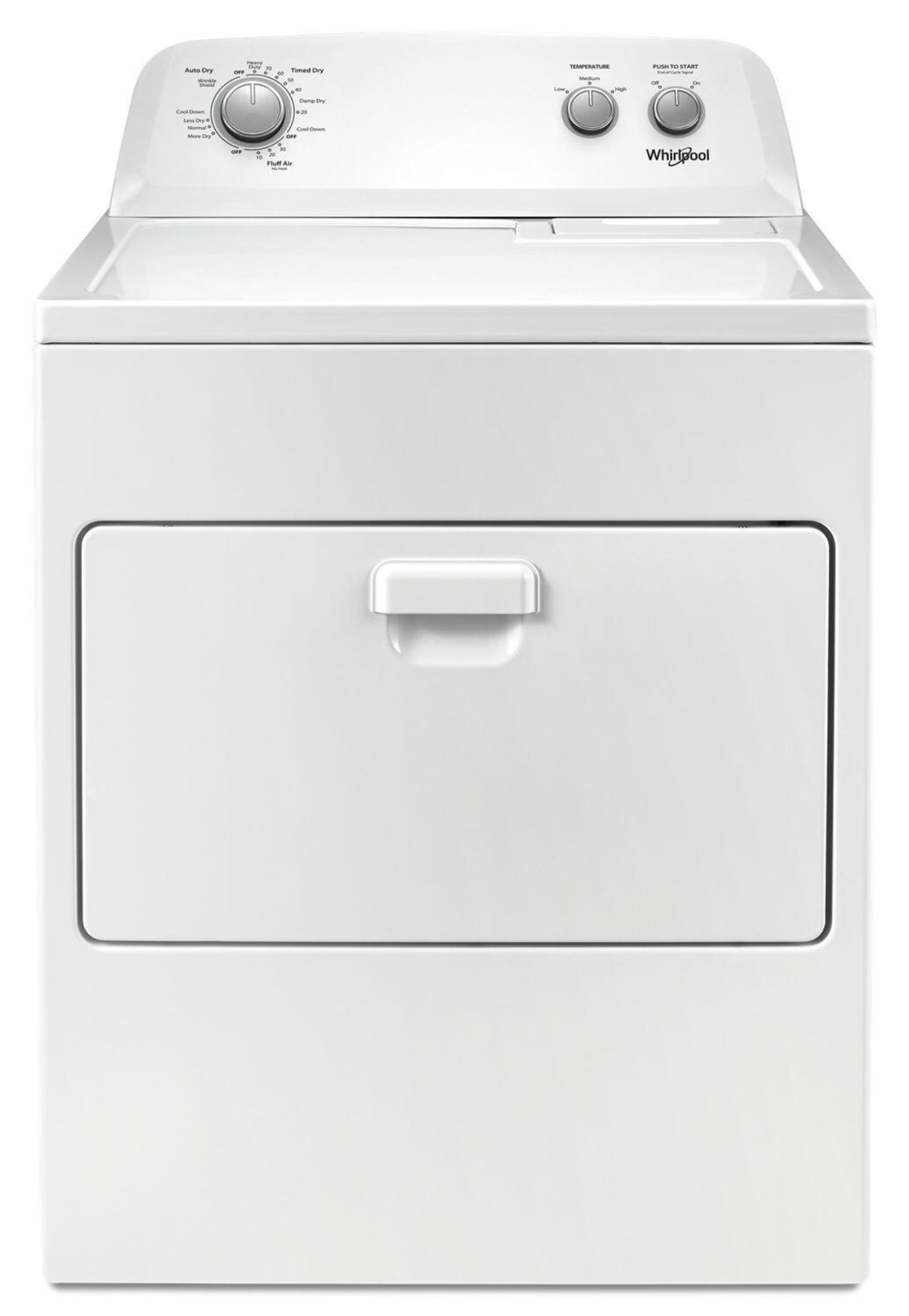

WHIRLPOOL 7.0 cu. ft. Top Load Electric Dryer with AutoDry Drying System White - WED4850HW
(P) Care for the whole family's fabrics with this large capacity top load dryer. Choose between the AutoDry system, which helps prevent overdrying, or Timed Dry, which lets you manually control your drying schedule. Help keep wrinkles from setting in with the Wrinkle Shield option and easily transfer loads from the washer to this automatic dryer with a wide-opening hamper door.(/P)
Features
- AutoDry Drying System
- Wrinkle Shield Option
- Hamper Door
- Timed Dry
- 3 Drying Temperatures
- 7.0 Cu. Ft. Capacity
- Designed, Engineered and Assembled in the U.S.A.
Specification
| End of Cycle Signal |
Yes |
| Location of Controls |
Rear Panel |
| Control Type |
Dials |
| Control Location |
Rear Panel |
| Door Style |
Hamper |
| Reversible Door |
No |
| Window |
No |
| Fuel Type |
Electric |
| Prop 65 |
CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Temperature Selection |
High , Low , Medium |
| Number of Temperatures |
3 |
| Drying Cycles Selections |
Heavy Duty , Timed Dry 20 , Timed Dry 40 , Timed Dry 50 , Timed Dry 60 , Timed Dry 70 , Fluff Air 10 , Fluff Air 20 , Fluff Air 30 , More Dry , Less Dry , Energy Preferred |
| Number of Dryer Cycles |
12 |
| Cycle Time Remaining |
No |
| Lint Filter Indicator |
No |
| Gross Weight |
120.000 lbs |
| EcoBoost /Energy Saver |
No |
| Cycle Time Remaining |
No |
| Lint Filter Indicator |
No |
| LP Convertible |
No |
| Secondary Lint Filter |
No |
| Stackable |
No |
| Pedestal Options |
No |
| Sound Package |
No |
| Depth |
28-1/4 in |
| Capacity IEC CAN |
7.0 cu. ft. |
| Capacity |
7.00 cu. ft. |
| Height |
43.0 in |
| Width |
29.0 in |
| Door Opening Width |
22-3/4 in |
| Depth With Door Open 90 Degree |
42.0 in |
| Height To Top Of Cabinet |
36.0 in |
| Fuel Type |
Electric |
| LP Convertible |
No |
| Flat Back |
No |
| Number of Dryer Cycles |
12 |
| Flat Back |
No |
| Long Vent |
No |
| Long Vent |
No |
| Drum Material |
Powder Coat |
| Drying Rack |
No |
| Eco Monitor/Efficiency Monitor |
No |
| Motor Horsepower |
1/3 HP |
| Automatic Dry Control |
Yes |
| Secondary Lint Filter |
No |
| Lint Screen Location |
Top |
| Moisture Sensor |
No |
| Door Style |
Hamper |
| Quad Baffles |
No |
| Interior Light |
Yes |
| Window |
No |
| Reversible Door |
No |
| Hz |
|
| Volts |
|
| Amps |
|
Manual
What Our Experts Think
-
Spacious 7.0 cu. ft. Capacity – Dries large loads efficiently, reducing laundry time.
-
AutoDry Drying System – Senses moisture levels to prevent overdrying and save energy.
-
Wrinkle Shield Option – Helps prevent wrinkles by intermittently tumbling clothes after the cycle ends.
-
Timed Dry & Air-Only Cycles – Customizable settings for different fabric types.
-
Wide-Opening Reversible Door – Easy loading and flexible installation options.
-
Durable & Reliable – Built to handle daily use with consistent performance.
Q&A
Q: How does the AutoDry drying system work?
A: AutoDry uses temperature sensors to monitor moisture levels and stop the cycle when clothes are dry, preventing overdrying.
Q: What is the Wrinkle Shield option?
A: It intermittently tumbles clothes after the cycle ends to reduce wrinkles.
Q: Can I manually adjust drying time?
A: Yes, it includes timed dry options to customize drying cycles based on your needs.
Q: Is this dryer energy-efficient?
A: While not ENERGY STAR , AutoDry technology helps optimize energy use.
Q: Can it handle large loads?
A: Yes, the 7.0 cu. ft. capacity is ideal for large loads, including bulky items like bedding.
Q: What are the installation requirements?
A: It requires a 240V power source and proper venting for optimal performance.
Q: Does it have a reversible door?
A: Yes, the door can be reversed to accommodate different laundry room layouts.
Maintenance Tips
-
Clean the Lint Filter – Remove lint after every cycle to maintain airflow and efficiency.
-
Inspect & Clean Vents – Check and clean the exhaust vent every 3–6 months to prevent clogs.
-
Wipe the Drum – Use a damp cloth to remove residue and prevent stains or odors.
-
Check Power Cord & Connections – Ensure the power cord is secure and undamaged for safe operation.
-
Keep Dryer Level – A properly leveled dryer reduces noise and prolongs motor life.
