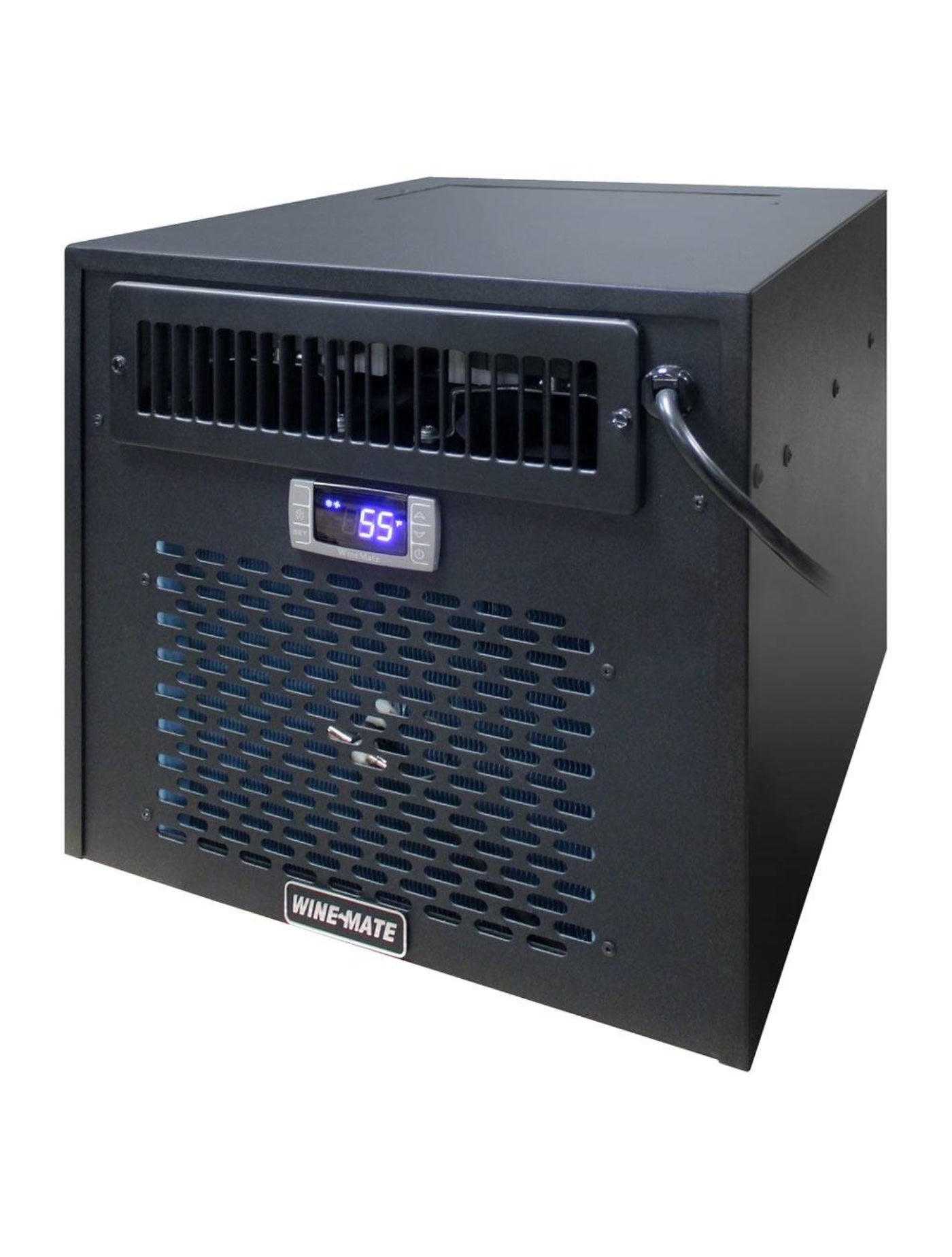

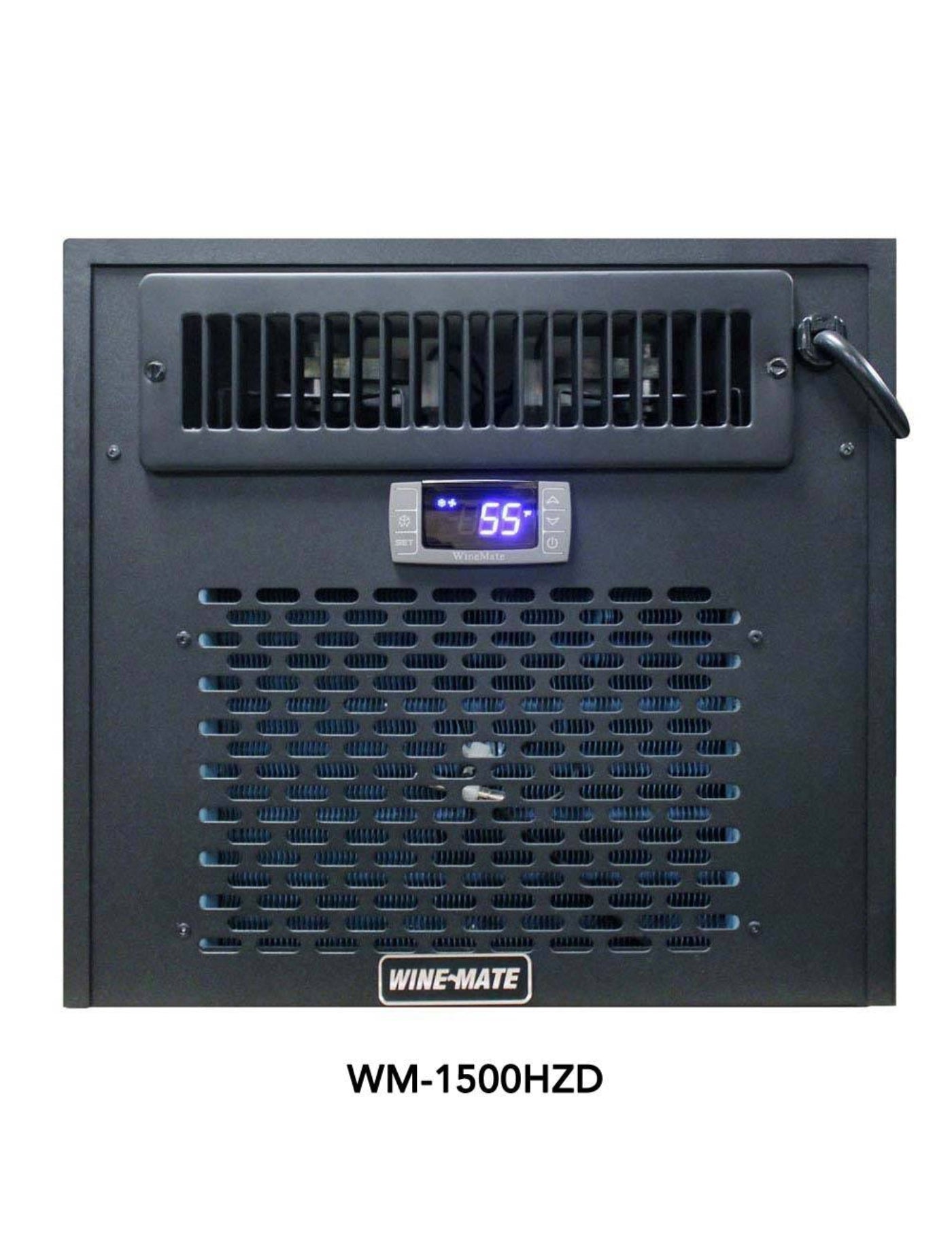

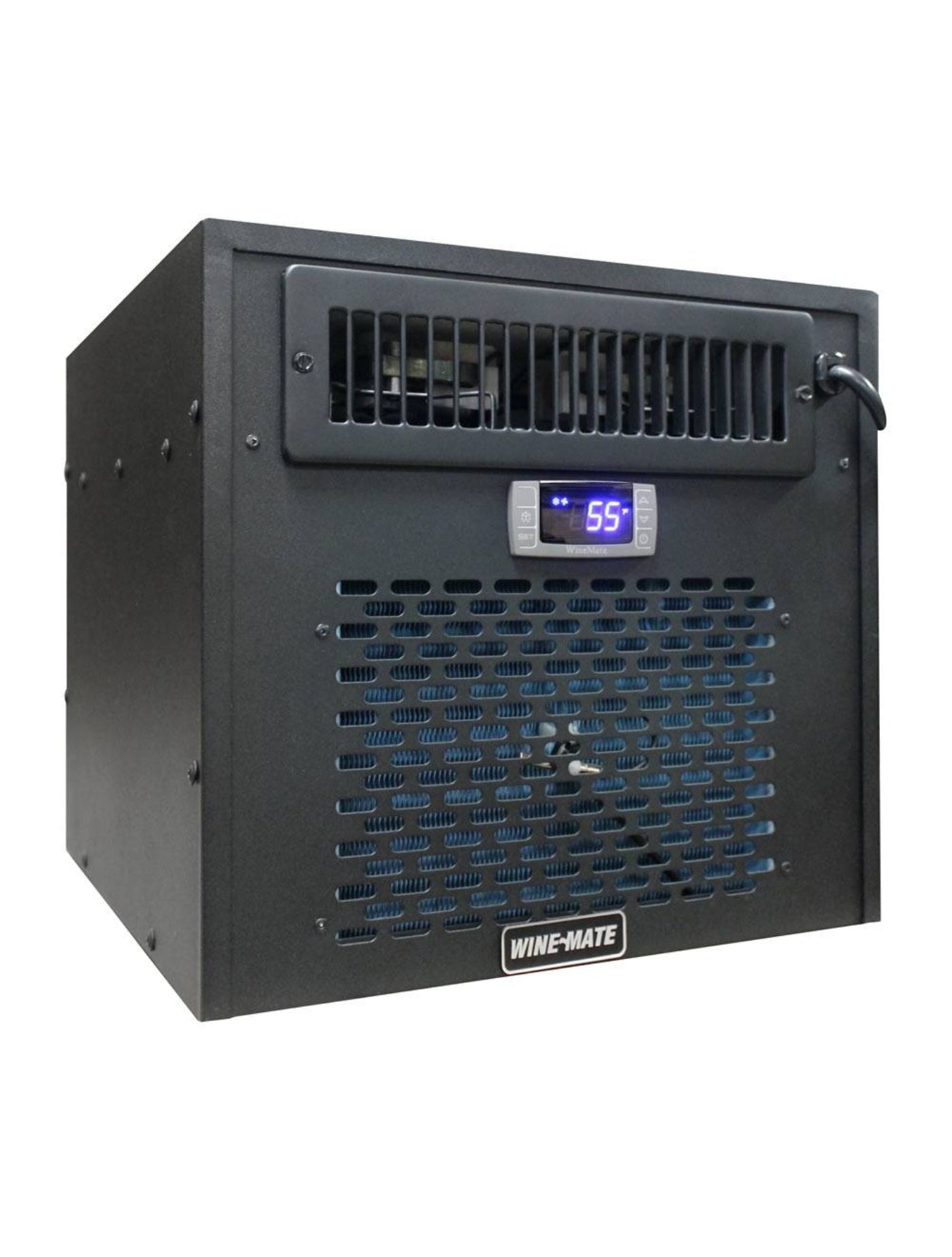

Wine-Mate 1500HZD self-contained cooling system provides horizontal cold air discharge that is optimized for use in wide cabinets or wine rooms. This durable unit is equipped with an LED digital display which includes an alarm feature that will alert you to cooling issues, an easy power on/off switch, and reliable digital electronic thermostat. This cooling unit can also be used inside a glass wine cellar. Wine-Mate Cooling Systems are long-lasting, reliable cooling units assembled to the highest quality standards. Top and rear exhaust options are available for convenient installation of this unit. Plus, no refrigeration specialists are needed--it ships to you fully-charged and ready to use.

Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs - please call for more information!

• SELF-CONTAINED: This unit is a self-contained, all-in-one, and ready for use. No copper tubing or drain line are required.
• EXHAUST: Rear (standard) or top

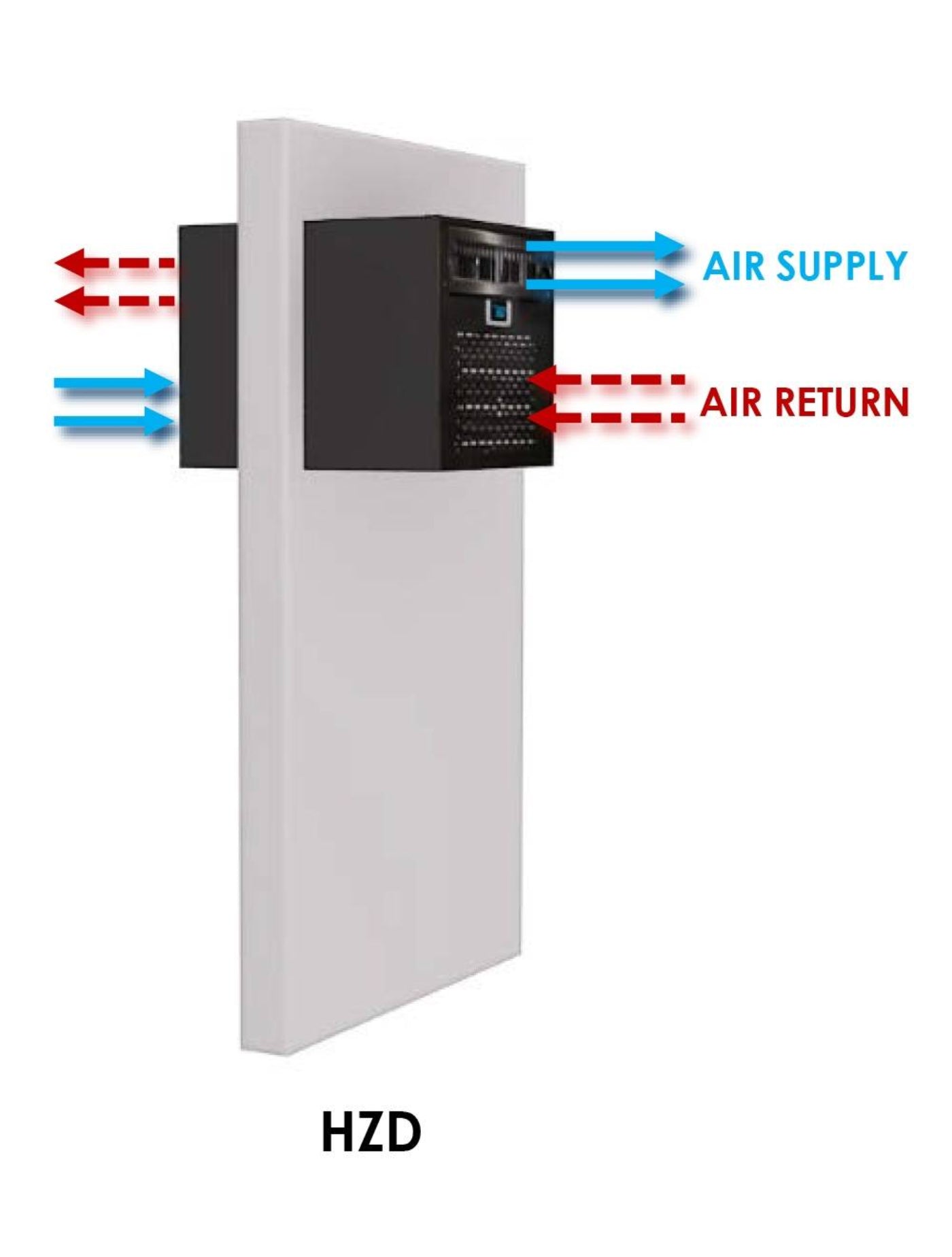

• Supply: Horizontal cold air supply is optimized for use in wine cabinets or wine rooms.
• VENTING: When installed into a wine cabinet or cellar, this unit must vent outside.
• TEMPERATURE: The WM-1500HZD cooling unit is designed and used to provide a stable temperature between 50~65 °F for a properly insulated and sized space.
• AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-1500HZD should not be higher than 78°F or lower than 50°F in order to operate properly.
• If the exhaust ambient temperature exceeds 78°F, one size larger unit must be used.
• HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
• WM-1500HZD cooling unit can only adjust fan run time for humidity, not speed. Adjust evaporator fan running time through the control program to adjust humidity.
• REFRIGERANT: Uses R134a refrigerant which is considered environmentally friendly
• DISPLAY: Digital display with easy push-button controls
• NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.
• CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.

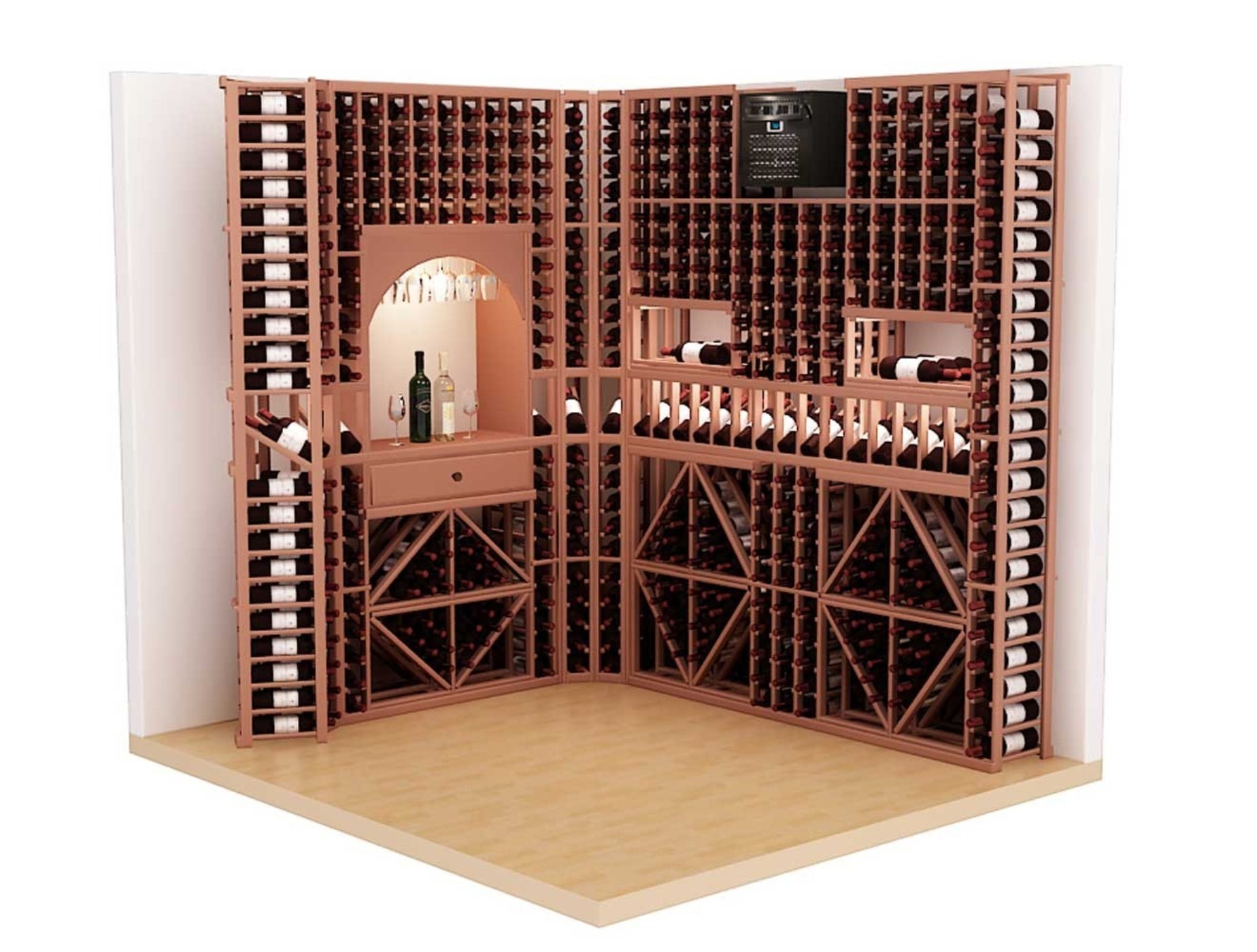

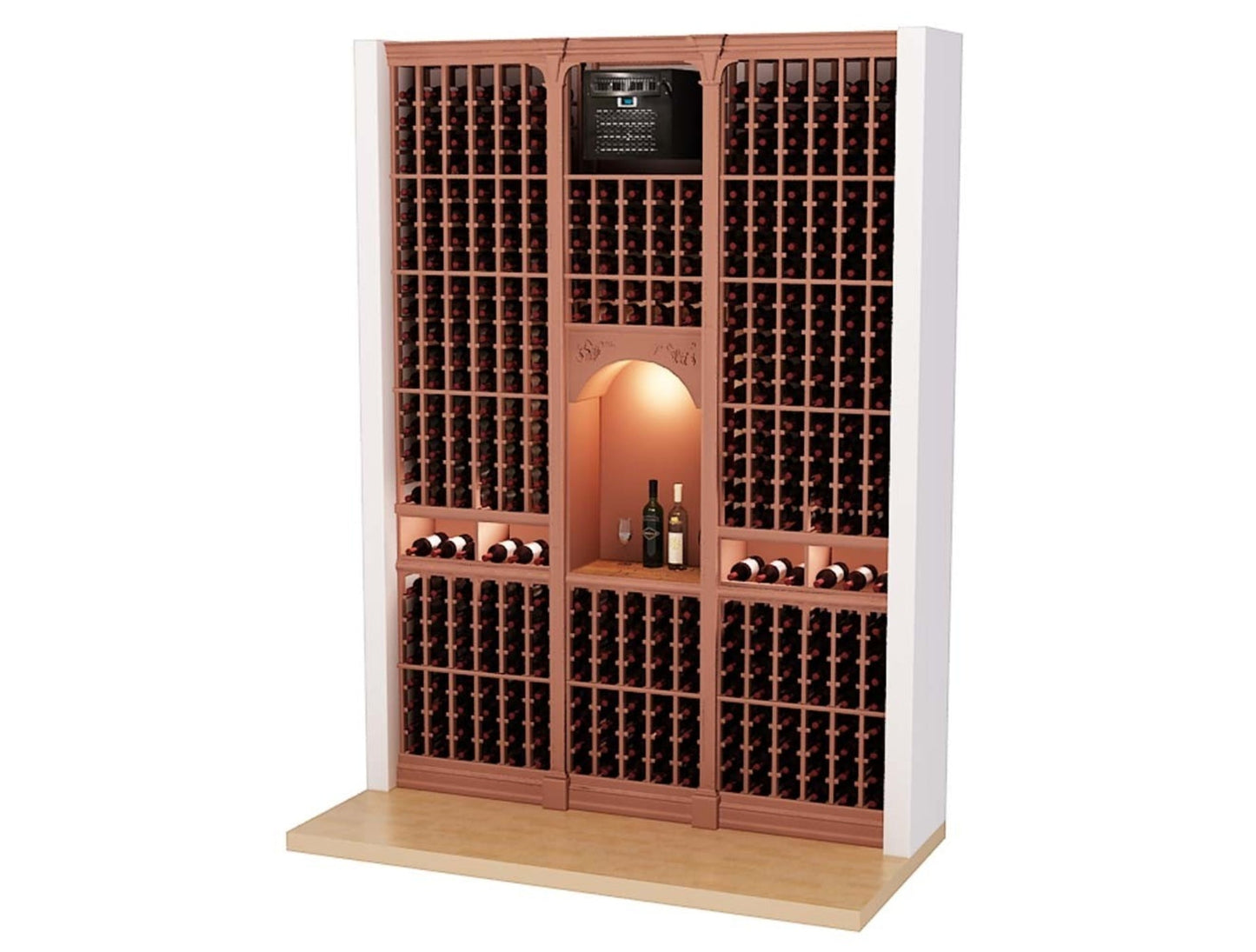

• WM-1500HZD is a wall unit, which can be mounted on or through a wall.
• Through-wall installation: This self-contained cooling system should be mounted through the wall for flushed installation.
• Four high speed fans for air efficiency
• Removable grill for easy cleaning
• WARRANTY: Self-contained units 1 year warranty on parts, 1 year labor.



NOTE: For use in a frameless glass cellar, the cooling unit should be concealed wherever is possible. The glass must be completely sealed.

Do You Have the Right Wine-Mate Wine Cooling System For Your Project?
Find the best cooling system for your wine cabinet or wine cellar by calculating the heat load using one of our calculators.

• Standard rear exhaust with the option to upgrade to top exhaust.

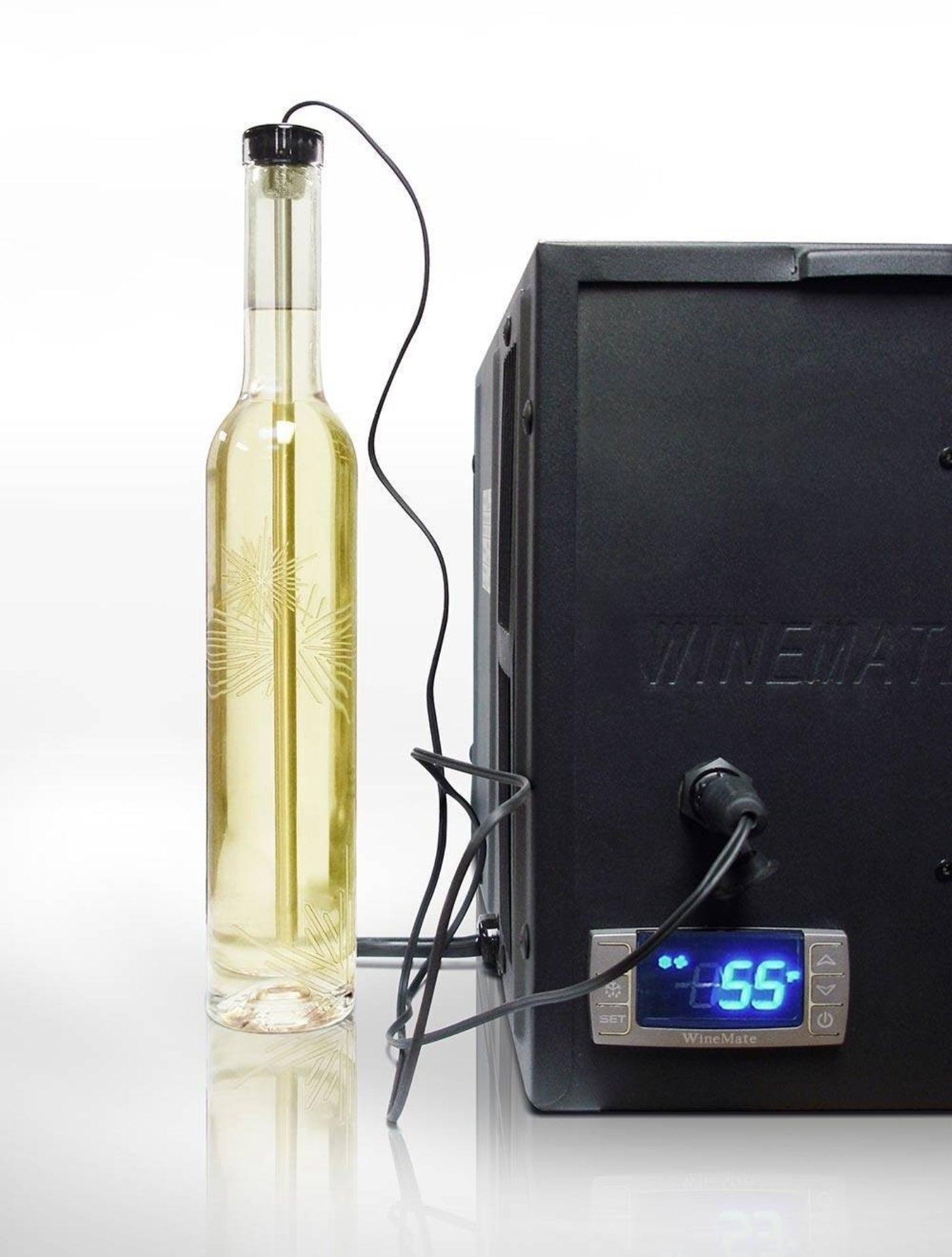

• Add the Wine Bottle Probe to receive the most accurate reading of your wine's temperature. The Wine Bottle Probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cellar cooling system.
• FOR THE FOLLOWING OPTIONS, call to order: 1-800-777-VINO (8466).
• Standard front power cord with the option to upgrade to the rear cord for an additional fee.
• Mounting brackets are available for an additional fee.
• Add the Energy Saving & Quick Chilling upgrade to a digital temperature control of Wine-Mate cooling system.
  1) Energy Saving enables the compressor to run less time in certain circumstances to save energy by increasing the set-point. To activate the Energy Saving mode, turn on the switch.
  2) Quick Chilling enables the compressor to run continuously without stopping for a period of preset time for pull-down cooling. To activate Quick Chilling press and hold the UP icon for more than 3 seconds. To end Quick Chilling press and hold the UP icon for more than 3 seconds again.
• Wine-Mate self-contained units must be operated in an upright position at all times. They should not be placed on their side or flipped upside down.



(Click image to enlarge PDF)

Click links to view

• View the Ventilation Guidelines for this unit (PDF)
• Spec Sheet (PDF)
• Owner's Manual (PDF)
• Quick Chilling & Energy Saving Instructions (PDF)
• Select a Cooling Unit for Glass Cellar

• Efficient Cooling – Ideal for wine cellars up to 90 cubic feet, maintaining optimal storage conditions.
• Self-Contained System – Easy installation with no ducting required.
• Digital Temperature Control – Precise adjustments ensure consistent cooling.
• Reliable & Quiet Operation – Engineered for minimal noise while delivering stable performance.
• Humidity Control – Helps preserve cork integrity and prevent wine spoilage.
• Durable Construction – Built with high-quality materials for long-term reliability.

Q: What is the Wine-Mate 1500HZD Self-Contained Wine Cooling System - WM-1500HZD?
A: It’s a self-contained wine cooling system designed to regulate temperature and humidity for small wine cellars.

Q: What is the cooling capacity of this unit?
A: It can efficiently cool wine cellars up to 150 cubic feet.

Q: Does it control humidity?
A: Yes, it helps maintain proper humidity levels to protect wine corks and preserve quality.

Q: Can the temperature be adjusted?
A: Yes, it features digital temperature controls for precise adjustments.

Q: Is professional installation required?
A: No, it is a self-contained unit designed for easy through-the-wall installation without professional refrigeration expertise.

Q: Where should this unit be installed?
A: It is intended for through-the-wall installation and requires proper ventilation to an adjacent space for optimal performance.

Q: Is this unit suitable for residential and commercial use?
A: Yes, it is ideal for both home wine cellars and commercial storage applications.

• Ensure Proper Ventilation – Maintain at least 6 inches of clearance around vents for optimal airflow.
• Clean Air Filters – Check and clean filters every 3-6 months to prevent dust buildup.
• Monitor Temperature & Humidity – Keep at ideal levels (55°F and 50-70% humidity) for proper wine storage.
• Inspect Condenser Coils – Vacuum or brush every 6 months to maintain cooling efficiency.
• Check for Leaks – Inspect for condensation or refrigerant leaks and address promptly.
• Avoid Overloading – Do not block airflow within the cellar to ensure consistent cooling.
• Keep Away from Heat Sources – Install in a cool, shaded location away from direct sunlight or high heat.
