Vinotemp Wine-Mate 2500-HTD Self-Contained Humidity & Temperature Wine Cooling System - WM-2500-HTD

Vinotemp Wine-Mate 2500-HTD Self-Contained Humidity & Temperature Wine Cooling System - WM-2500-HTD

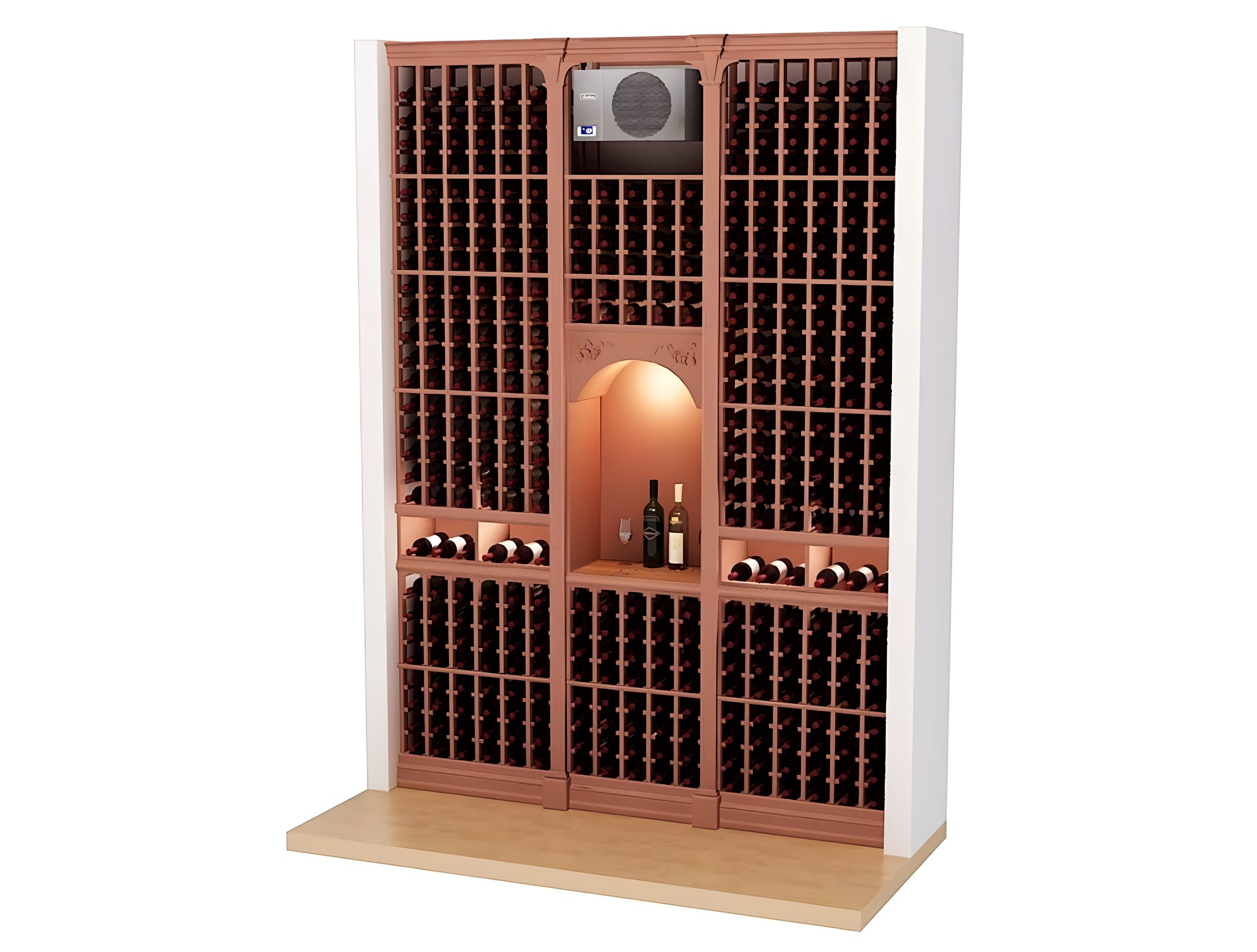

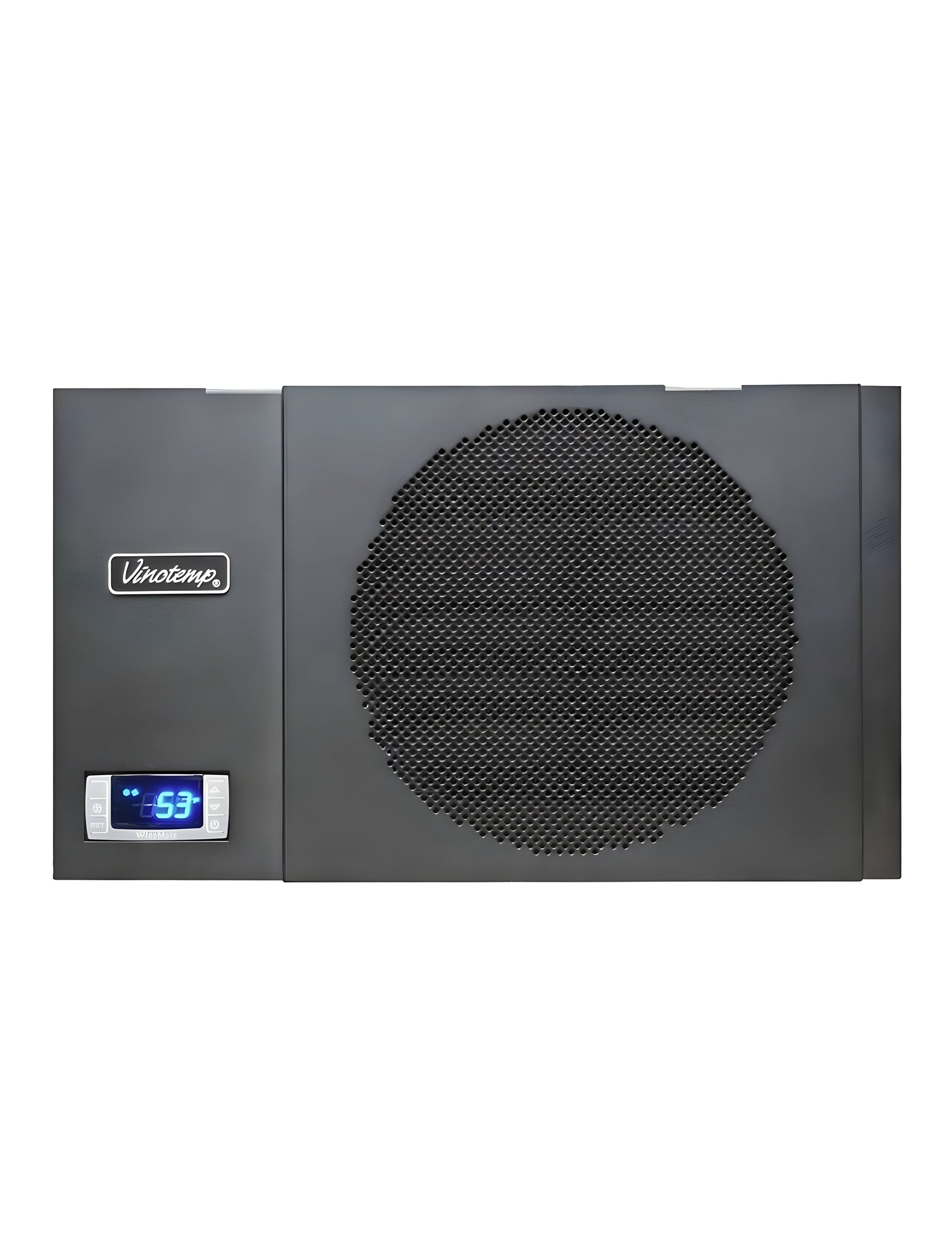

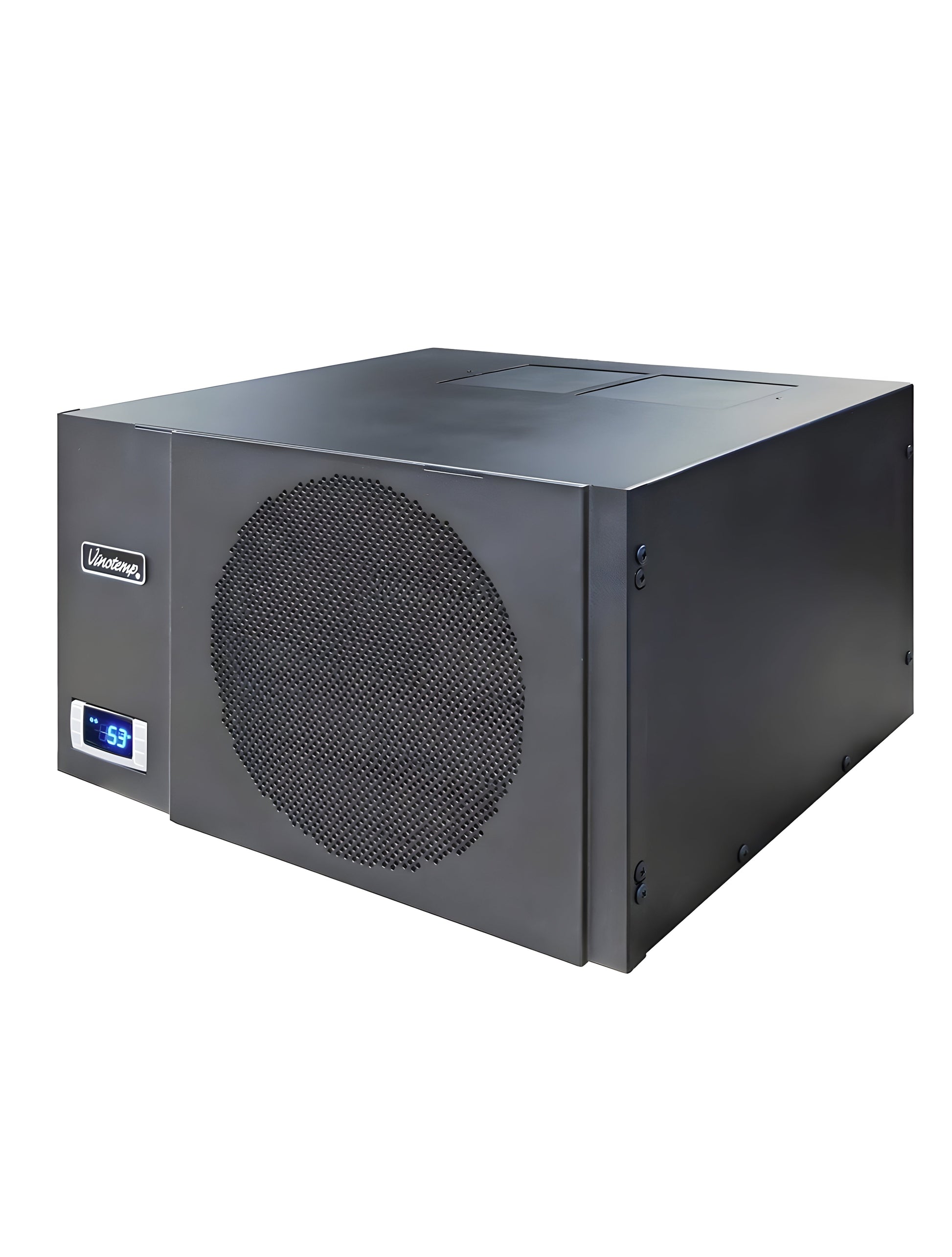

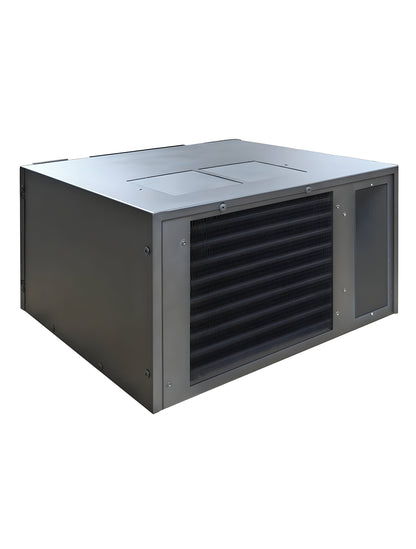

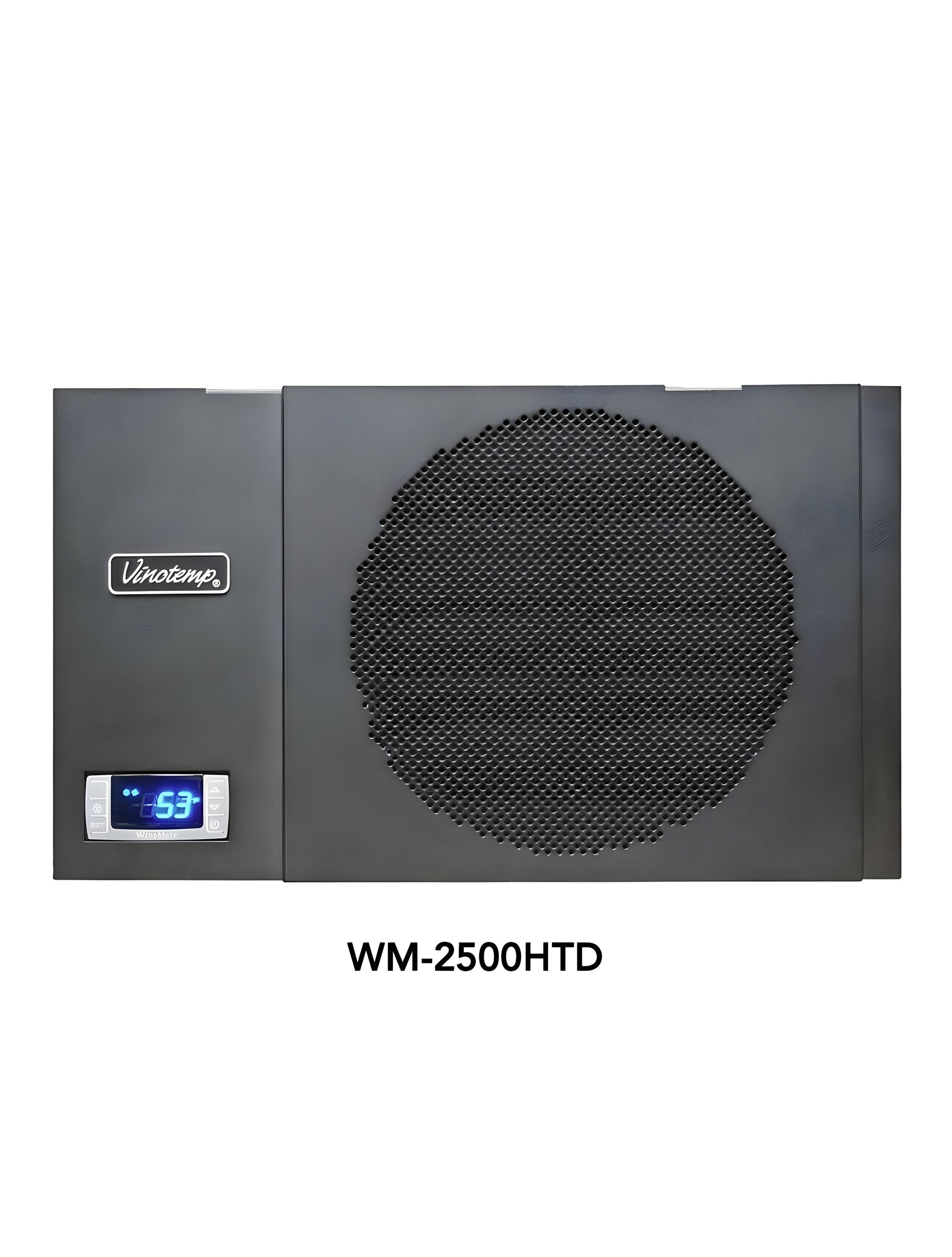

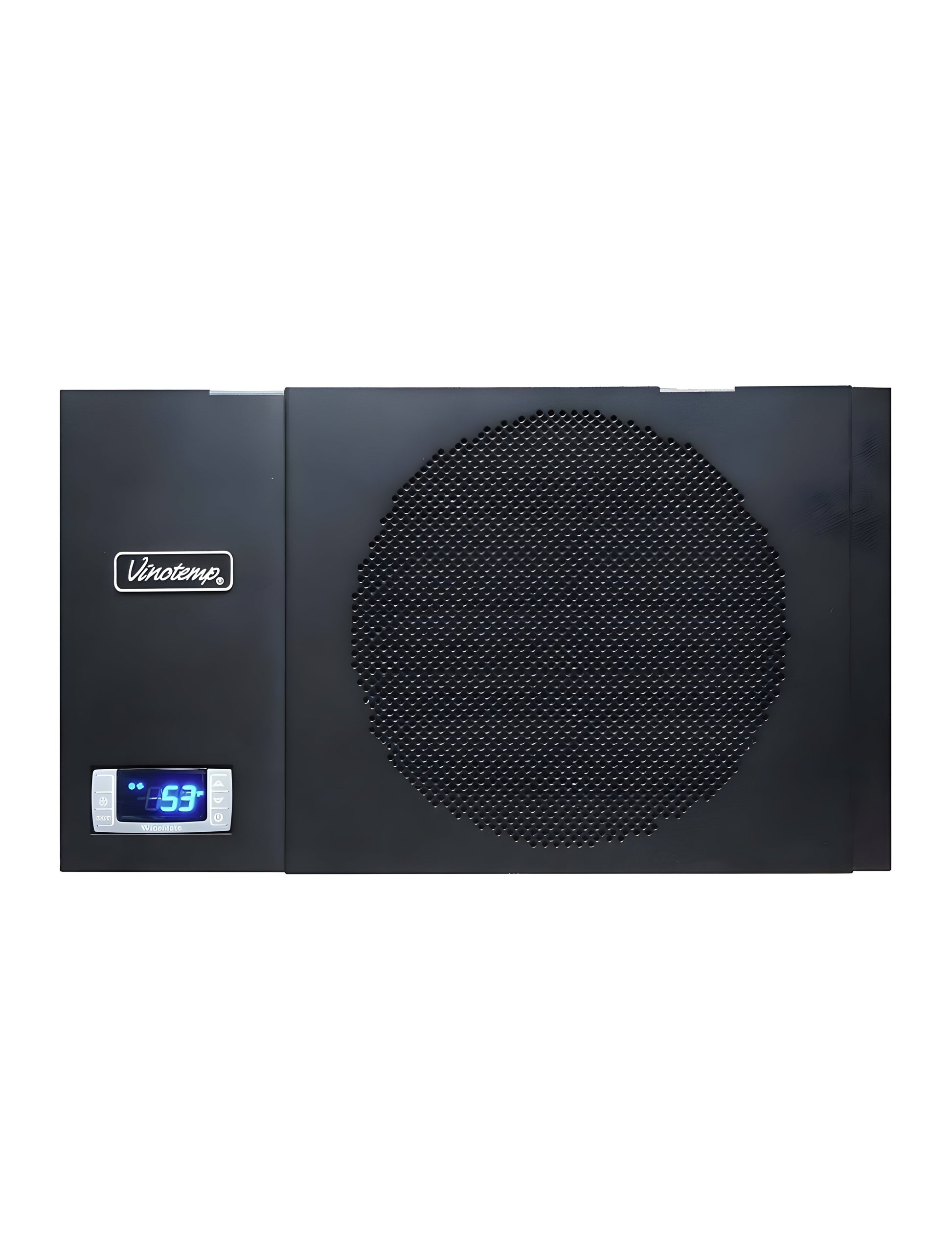

The WM-2500HTD wine cooling unit packs 1000 more BTU of cooling capacity into the same space as the VINO-1500HTD. The Wine-Mate HTD line represents our latest innovation in climate control and the 2500HTD unit has a capacity of up to 200 cubic feet. This self-contained unit not only controls the temperature in your cabinet but also moderates the humidity to a much greater degree than previous models. The new design has also been optimized for better distribution of cool air. Wine-Mate Cooling Systems are long-lasting, reliable cooling units assembled to the highest quality standards. This unit features humidity and temperature digital control using innovative technology. An over-sized evaporator provides subtle cooling, with tube-axial fans for both the condenser and evaporator. Extra insulation is provided for both thermal and noise isolation. HTD evaporator units have a special coil coating and provide two-way air supply for better operation. The 2500HTD has a robust housing and the grill size has been optimized for safety and easier cleaning. The Wine-Mate 2500HTD is a self-contained, ready-for-use cooling system with easy installation. Options: Multiple exhaust options for top or rear hot air exhaust.

Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs - please call for more information!

Do You Have the Right Wine-Mate Wine Cooling System For Your Project?
Find the best cooling system for your wine cabinet or wine cellar by calculating the heat load using one of our calculators.

HEAT LOAD CALCULATORS

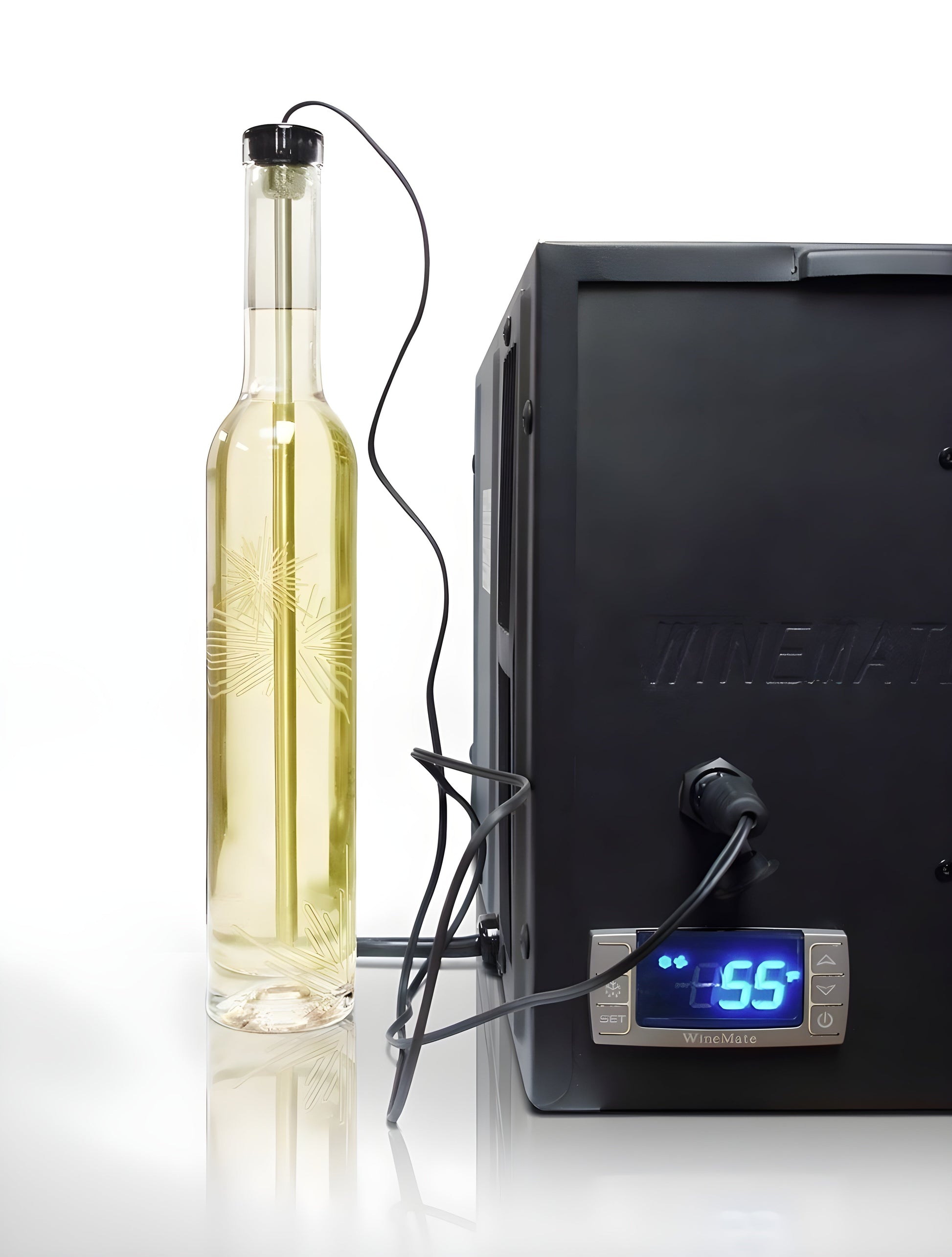

Wine Bottle Probe & Digital Control Panel
The probe provides an accurate reading of the temperature of your wine, and this easy-to-use digital control panel makes it simple to change settings.

FRONT CORD UNIT FOR FRONT EXHAUST WINE CABINET

• SELF-CONTAINED: This unit is a self-contained, all-in-one, and ready for use. No copper tubing or drain line are required.

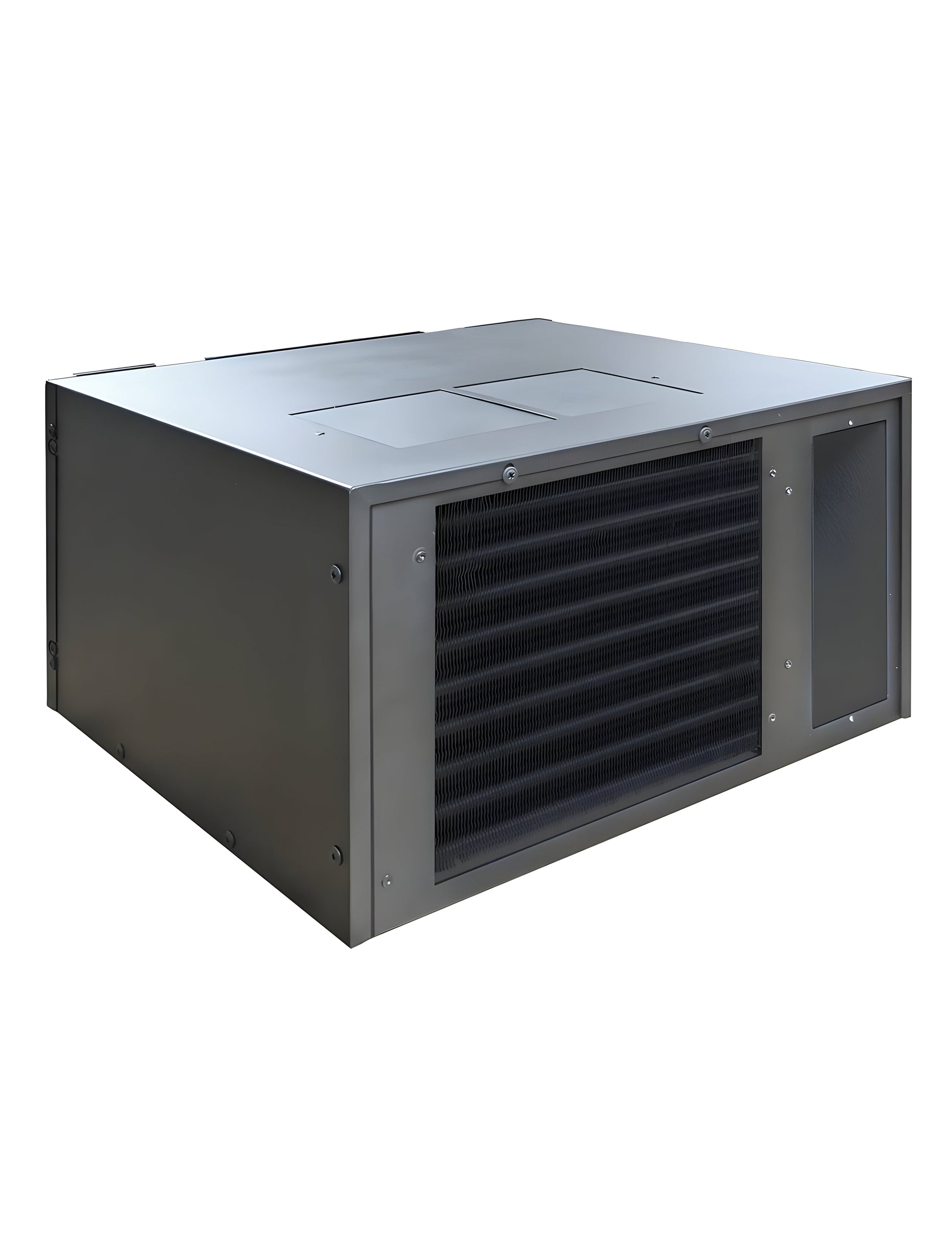

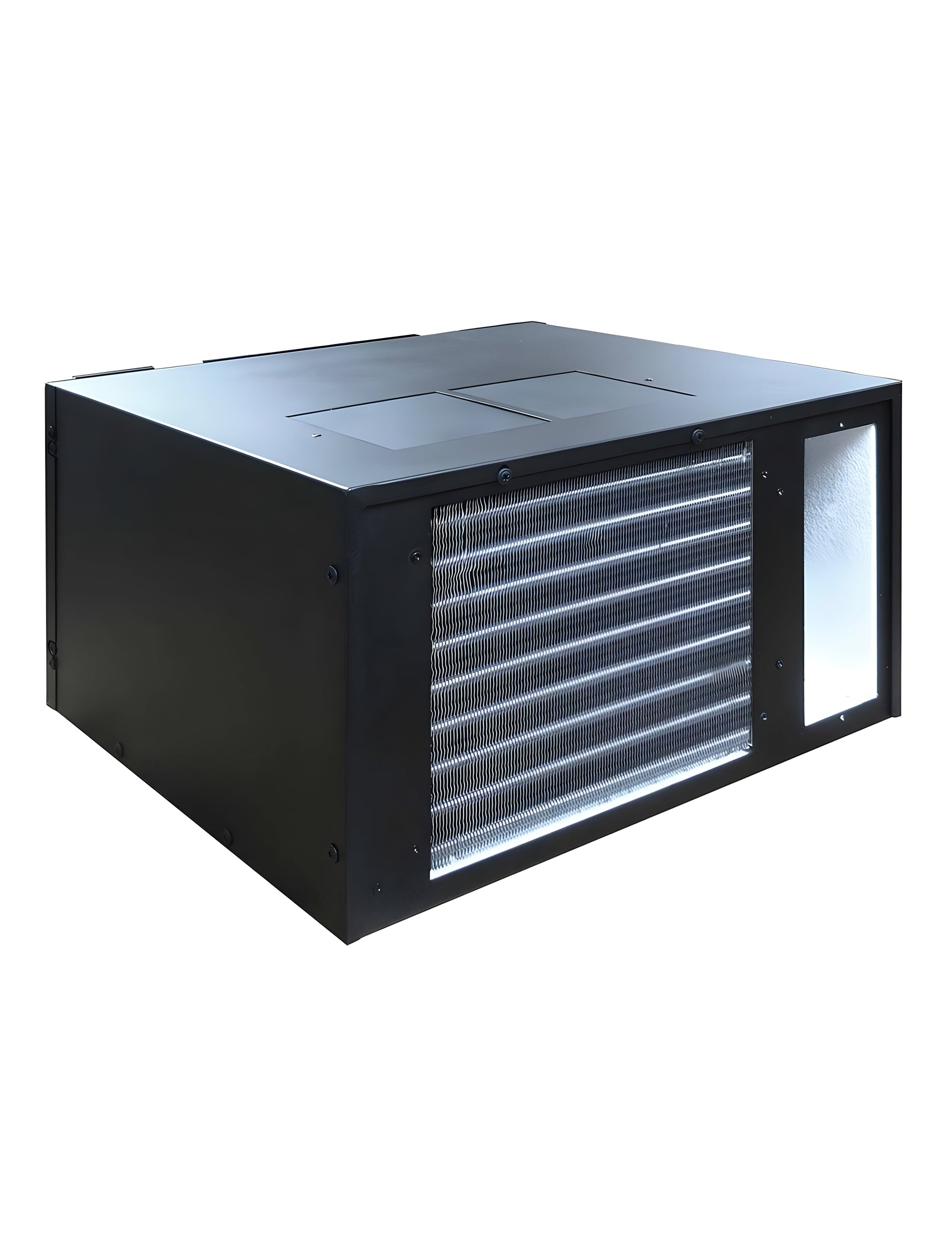

• EXHAUST: Rear (standard) or top
• VENTING: When installed into a wine cabinet, this unit must vent outside the wine cabinet.
• TEMPERATURE: The WM-2500-HTD cooling unit is designed and used to provide a stable temperature between 50~65 °F for a properly insulated and sized space.
• AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-2500-HTD should not be higher than 95°F or lower than 50°F in order to operate properly.
• If the exhaust ambient temperature exceeds 95°F, one size larger unit must be used.
• HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
• WM-2500-HTD cooling unit can only adjust fan run time for humidity, not speed. Adjust evaporator fan running time through the control program to adjust humidity.
• REFRIGERANT: Uses R134a refrigerant which is considered environmentally friendly
• DISPLAY: Digital display with easy push-button controls
• NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.
• CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
• HTD evaporators have a water-repellent self-cleaning and anti-microbial coat that helps your equipment stay efficient and actively kills harmful bio-film growth.

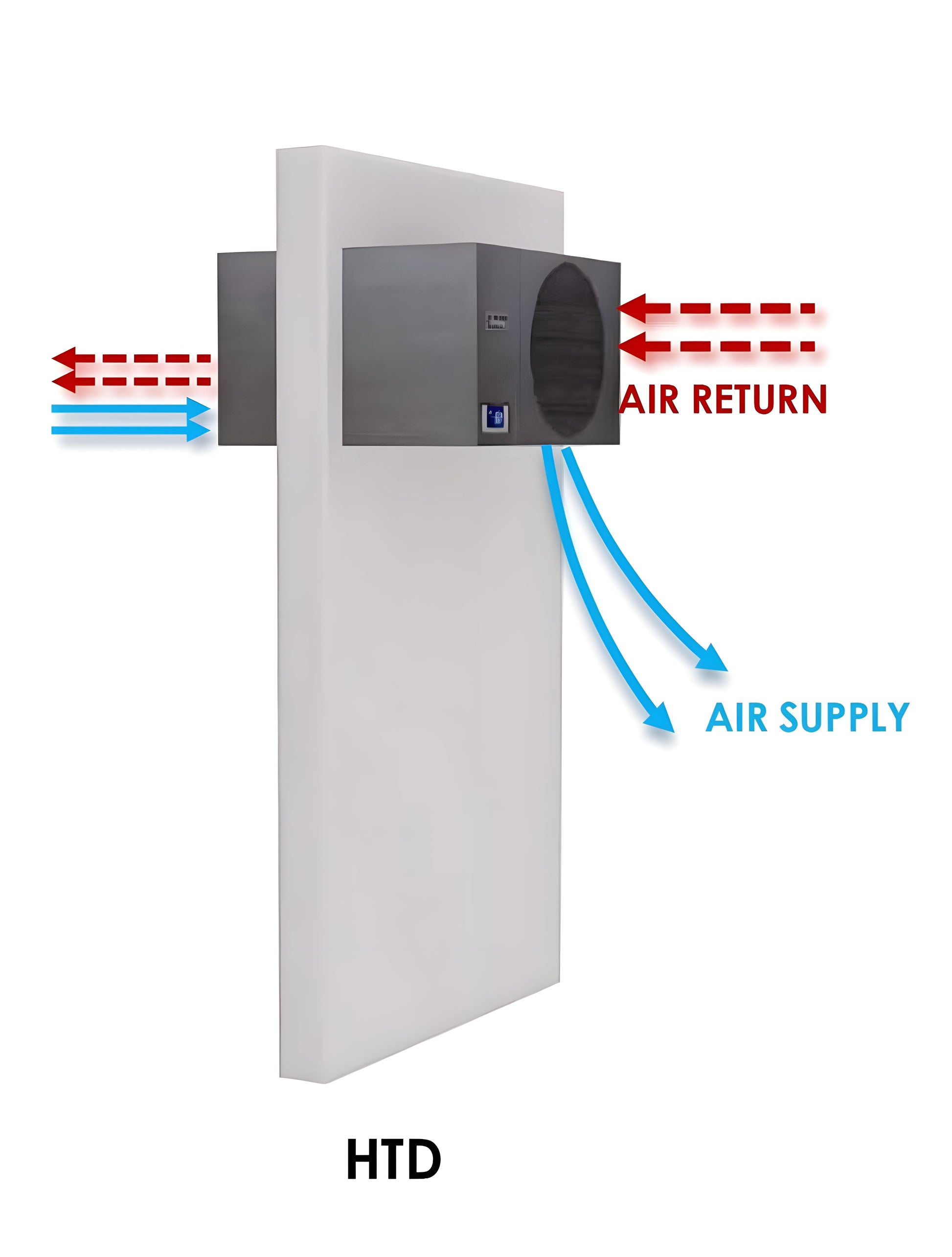

• Exchangeable supply grille can be used for front, back, and down cold air distribution.
• Extra insulations are used for both thermal and noise isolation.
• Condensate tray is used for humidity adjustment.
• WARRANTY: Self-contained units 1 year warranty on parts, 1 year labor.



• Standard rear exhaust with the option to upgrade to top exhaust.
• Add the Wine Bottle Probe to receive the most accurate reading of your wine's temperature. The Wine Bottle Probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cellar cooling system.
• FOR THE FOLLOWING OPTIONS, call to order: 1-800-777-VINO (8466).

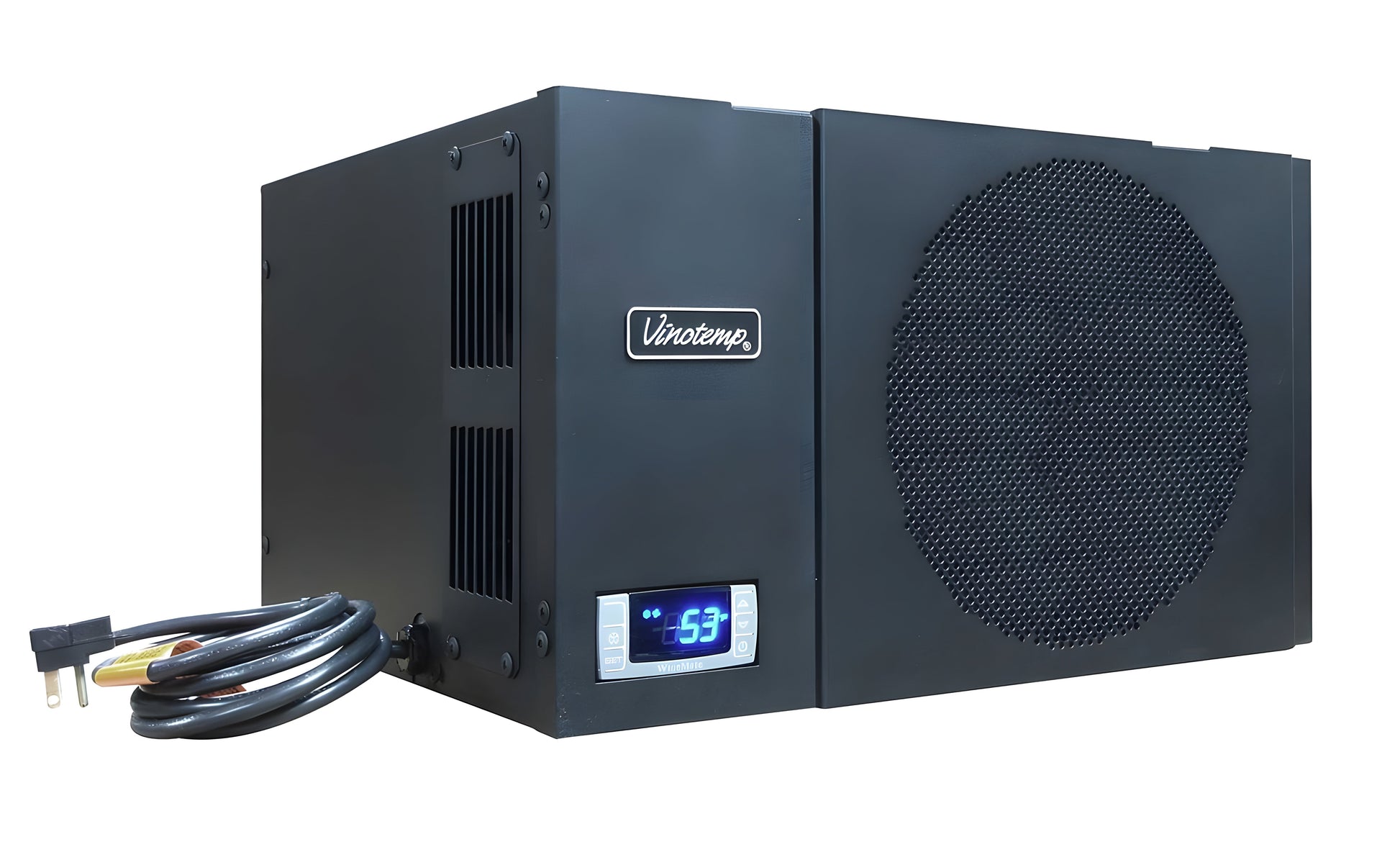

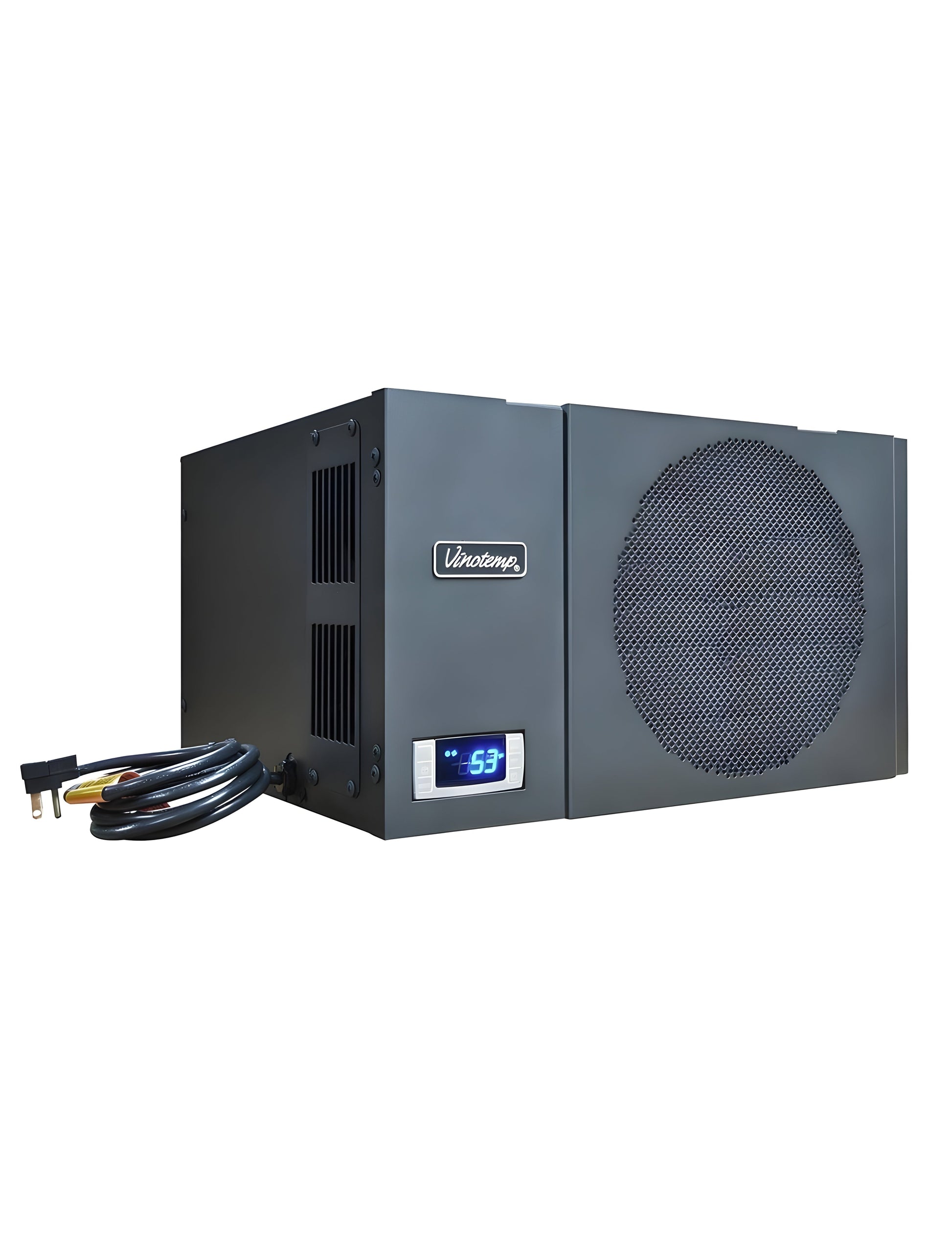

• Standard left side power cord with the option to upgrade to the rear or front cord for an additional fee.
• Mounting brackets are available for an additional fee.
• Add the Energy Saving & Quick Chilling upgrade to a digital temperature control of Wine-Mate cooling system.
  1) Energy Saving enables the compressor to run less time in certain circumstances to save energy by increasing the set-point. To activate the Energy Saving mode, turn on the switch.
  2) Quick Chilling enables the compressor to run continuously without stopping for a period of preset time for pull-down cooling. To activate Quick Chilling press and hold the UP icon for more than 3 seconds. To end Quick Chilling press and hold the UP icon for more than 3 seconds again.



(Click image to enlarge PDF)

Click links to view

• View the Ventilation Guidelines for this unit (PDF)
• Owner's Manual (PDF)
• Installation Manual (PDF)
• Spec Sheet (PDF)
• Quick Chilling & Energy Saving Instructions (PDF)

• Precision Cooling – Maintains ideal temperature and humidity levels for wine preservation.
• Self-Contained System – Easy to install without the need for ducting or complex setup.
• Powerful Performance – Effectively cools wine cellars up to 200 cubic feet.
• Digital Controls – Allows for precise adjustments to ensure optimal storage conditions.
• Quiet & Efficient Operation – Designed for minimal noise while delivering consistent cooling.
• Durable Construction – Built to last with high-quality materials for long-term reliability.

Q: What is the Vinotemp Wine-Mate 2500-HTD Self-Contained Humidity & Temperature Wine Cooling System - WM-2500-HTD?
A: It’s a self-contained wine cooling system designed to regulate both humidity and temperature for optimal wine storage.

Q: What is the cooling capacity of this unit?
A: It is designed to cool wine cellars up to 250 cubic feet.

Q: How does it control humidity?
A: It helps maintain proper humidity levels to prevent cork drying and preserve wine quality.

Q: Is professional installation required?
A: No, it is a self-contained unit that allows for easy installation without the need for a refrigeration technician.

Q: Can the temperature be adjusted?
A: Yes, it features precise digital temperature control for customized settings.

Q: Where can this unit be installed?
A: It is suitable for through-the-wall installation in properly insulated wine cellars.

Q: Does it have a ventilation system?
A: Yes, it requires proper ventilation to an adjacent room for efficient operation.

• Ensure Proper Ventilation – Keep vents clear to allow efficient airflow and prevent overheating.
• Clean Air Filters – Wash or replace filters every 3-6 months to maintain optimal air quality and performance.
• Monitor Temperature & Humidity – Regularly check settings to ensure ideal wine storage conditions (55°F, 50-70% humidity).
• Inspect Condenser Coils – Clean every 6 months using a soft brush or vacuum to prevent dust buildup.
• Check Drain Lines – Ensure drain lines are clear of blockages to prevent leaks or water buildup.
• Verify Door Seals (for enclosed units) – Make sure the gasket is clean and intact for a tight seal.
