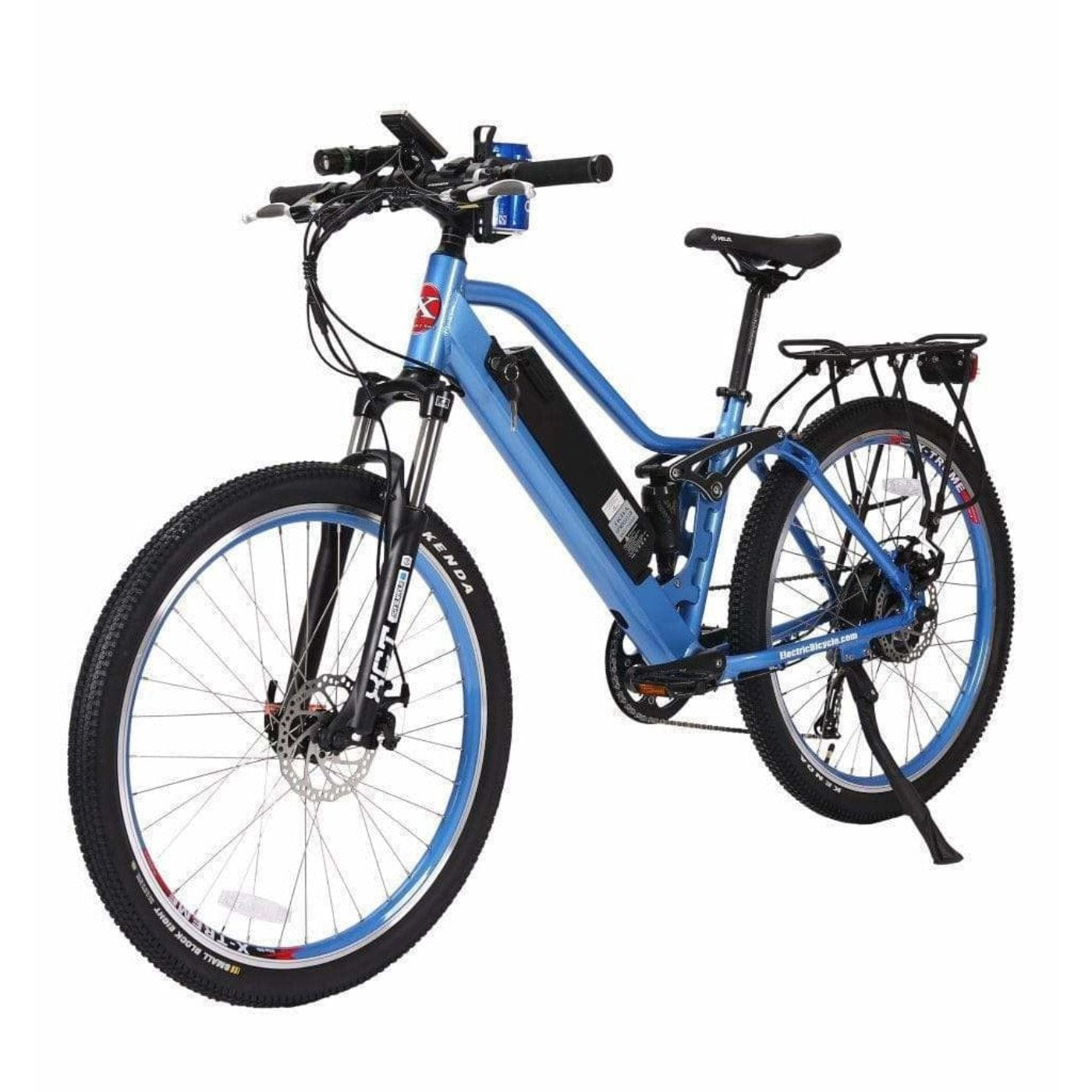

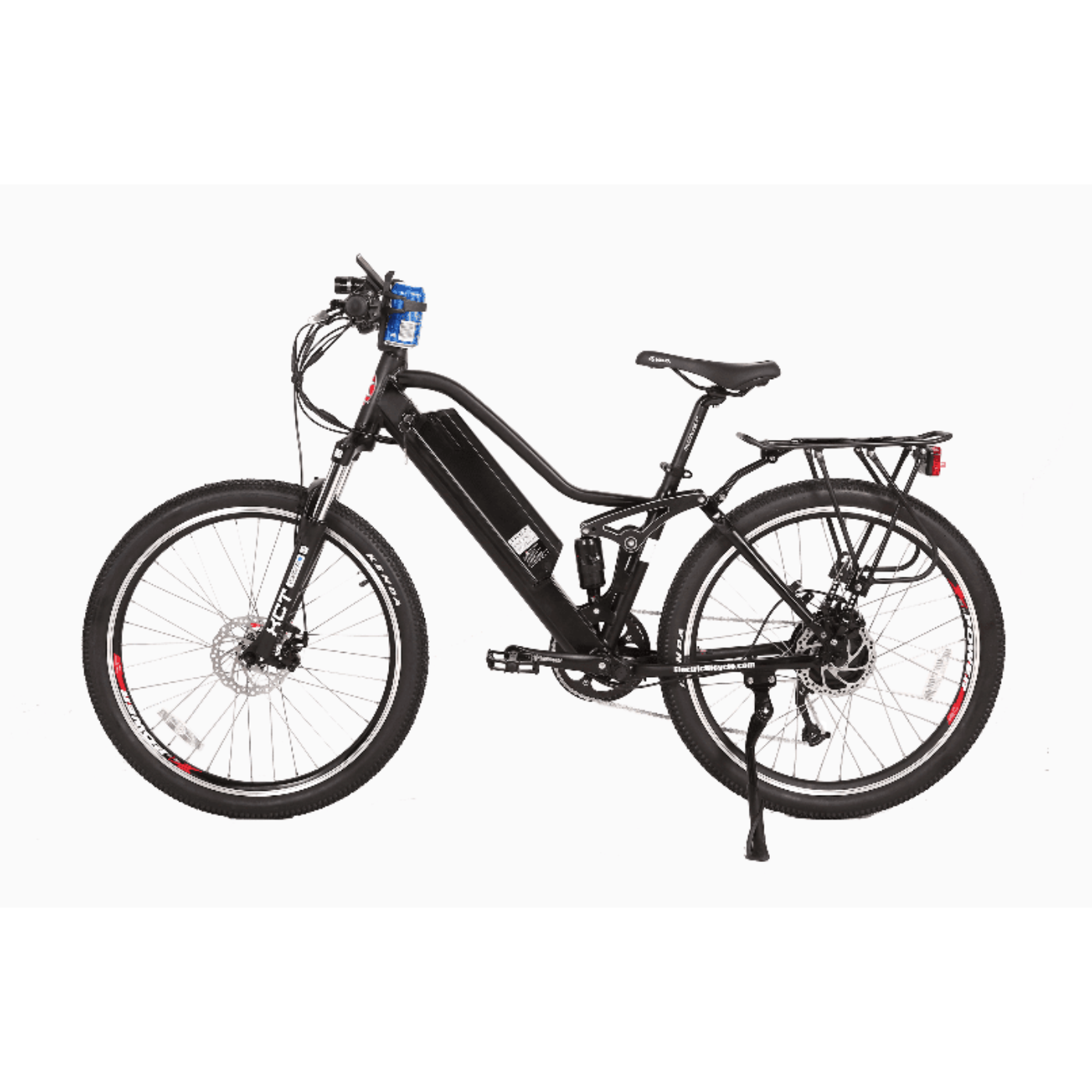

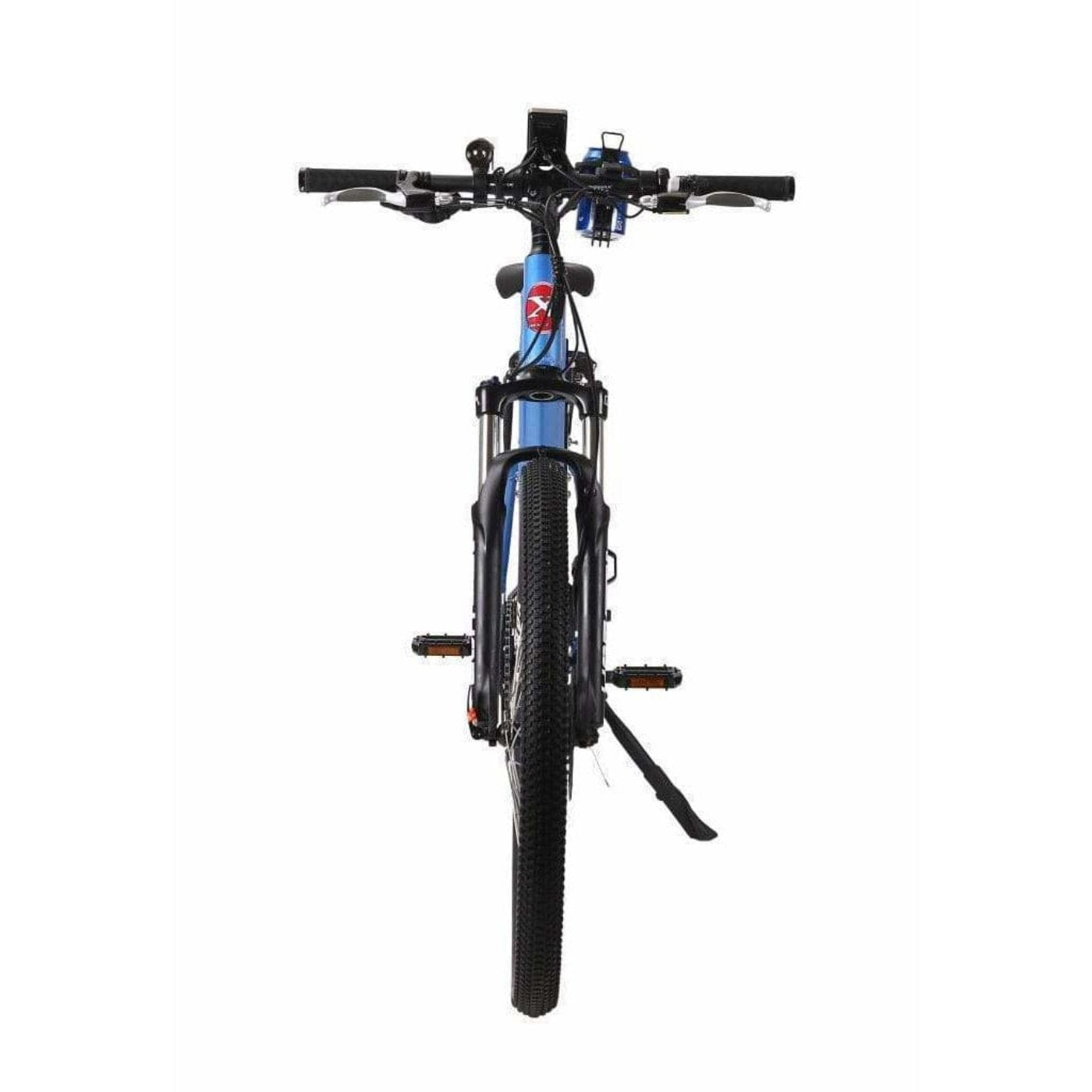

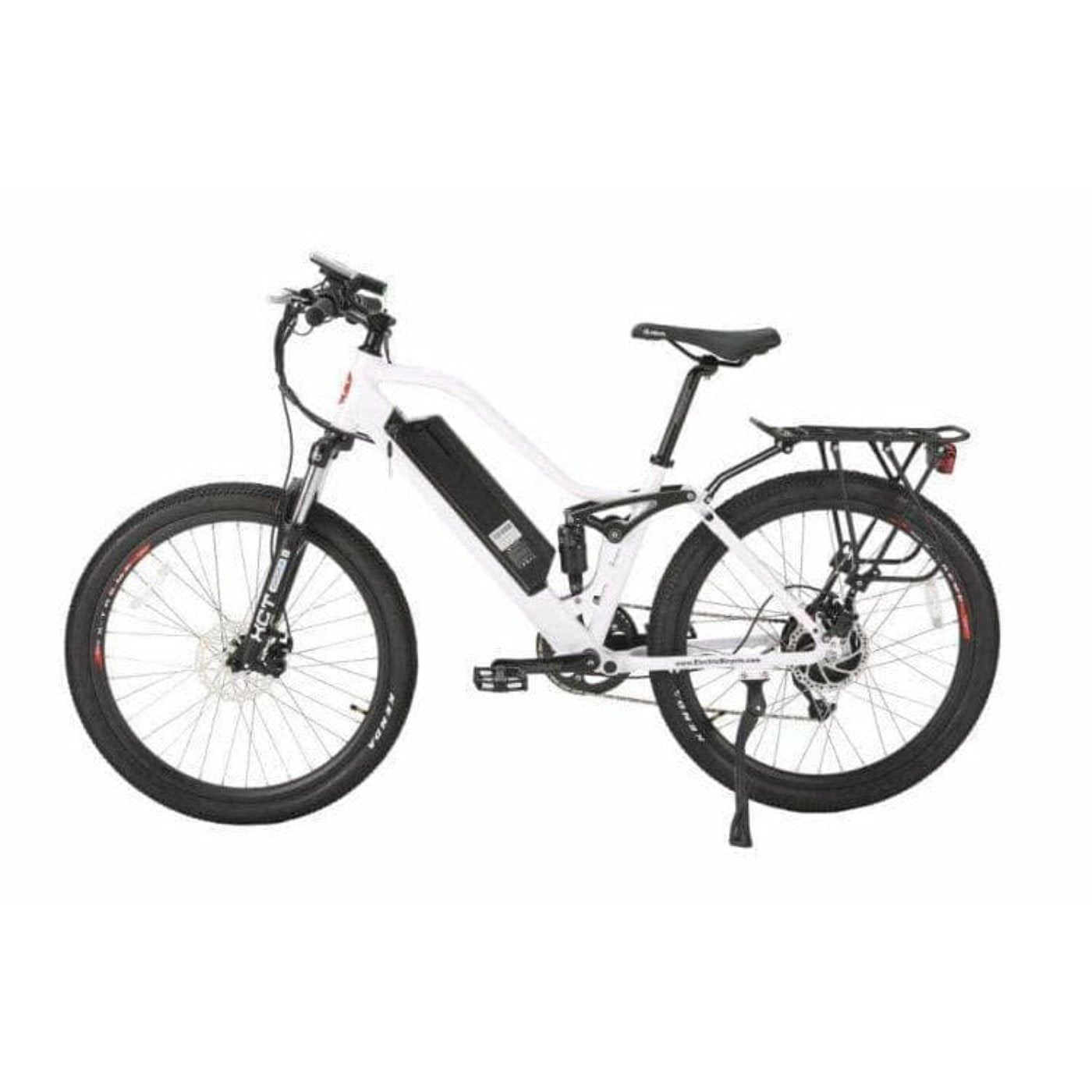

X-Treme Sedona 48 Volt 500W Step-Through Electric Mountain Bike

X-Treme Sedona 48 Volt 500W Step-Through Electric Mountain Bike

by X-treme
SKU SEDONA48 WHI
Save 10% Save 10%
$1,799.00
$1,799.00 - $1,799.00
$1,799.00
$1,619.99
$1,619.99 - $1,619.99
$1,619.99

  • Enjoy DAILY BLACK FRIDAY FLASH SALES.

  • Only items left.

  • people are also watching that product.

  • Enjoy FREE Shipping Today.

Color: Metallic White

We Are X-treme Electric Bicycles And We Work Non Stop To Make Electric Bicycling Safe, Fun And Most Important, Affordable For All.

The Sedona 48 Volt Lithium Powered Electric Mountain Bicycle is a Lithium Battery powered Electric Bicycle cranking out 500 Watts from the Bafang High Torque Zero Resistance Clutch Motor.  This bike features a lightweight, compact lithium LiPo4 48 volt 10.4 Ah integrated battery pack providing a considerable amount of power greater than our 24 volt or 36-volt models.  This bike comes with everything Aluminum - every bolt, every nut, every nipple, every spoke.  That means no rust!   The 100% hand welded lightweight aluminum frame bicycle has Atlus Shimano 9-Speed Gears & Shifting System, Suntour XCT Front Suspension & KS Rear Shock Suspension, aluminum rims with quick release axle on the front and a water proof quick disconnect on the rear.

X-Treme Sedona 48 Volt 500W Step-Through Electric Mountain Bike
Power Electric
Watts 500 Watts
Amps 10.4 AH Integrated Lithium Battery
Volts 48 Volts

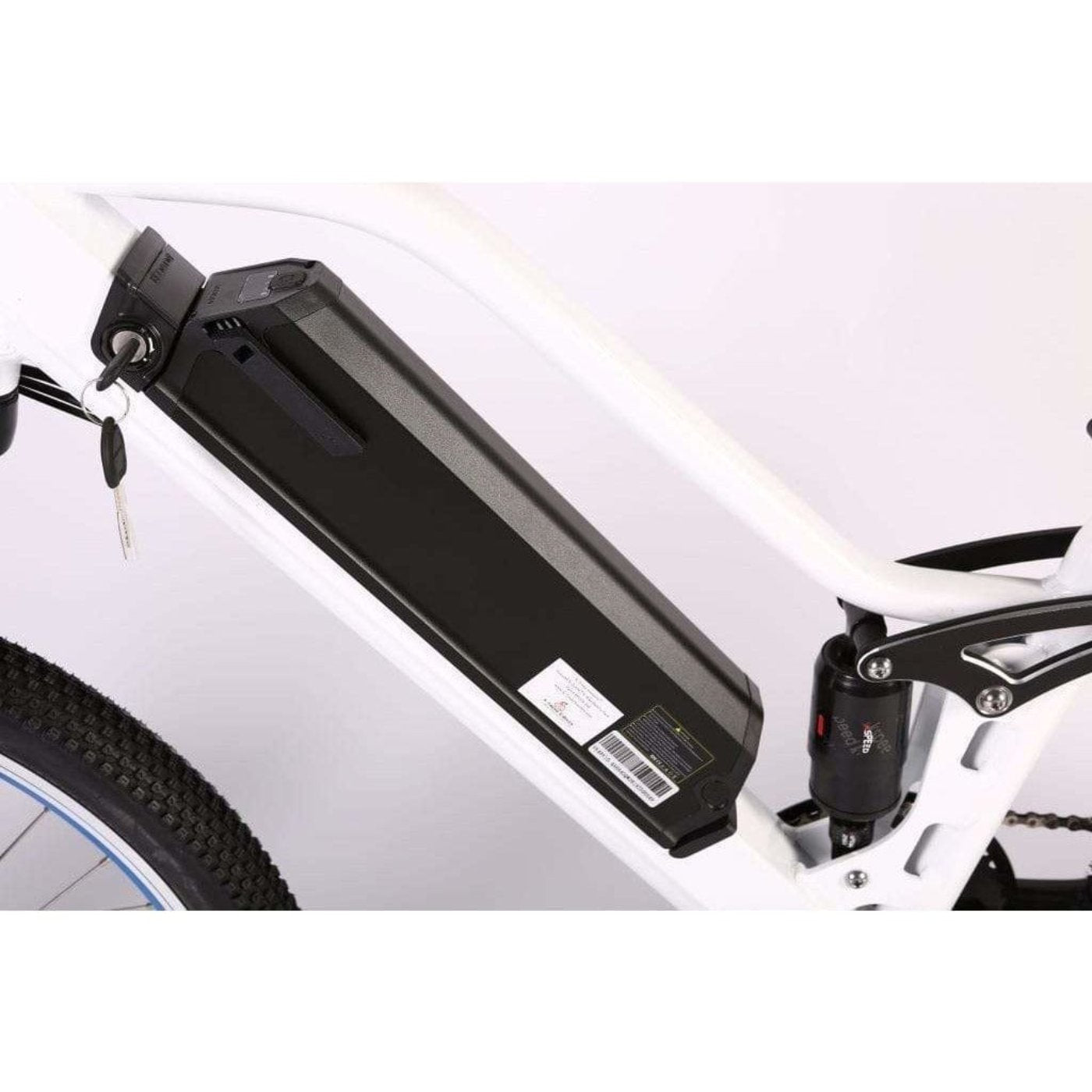

Battery 48 Volt LiPo4 Lithium (lightweight)
Drive System Chain Driven by Rear Hub Motor or Pedal Power
Distance Up To 70 Miles Range Using Low PAS & Flat Terrain While Pedal Assisting
Charger 48 Volt Output UL Certified Charger (Charging Time +/- 3 Hours)
Tire Size Kenda Mountain Tire & Tube - 26 x 2.10 Inch on Aluminum Wheels

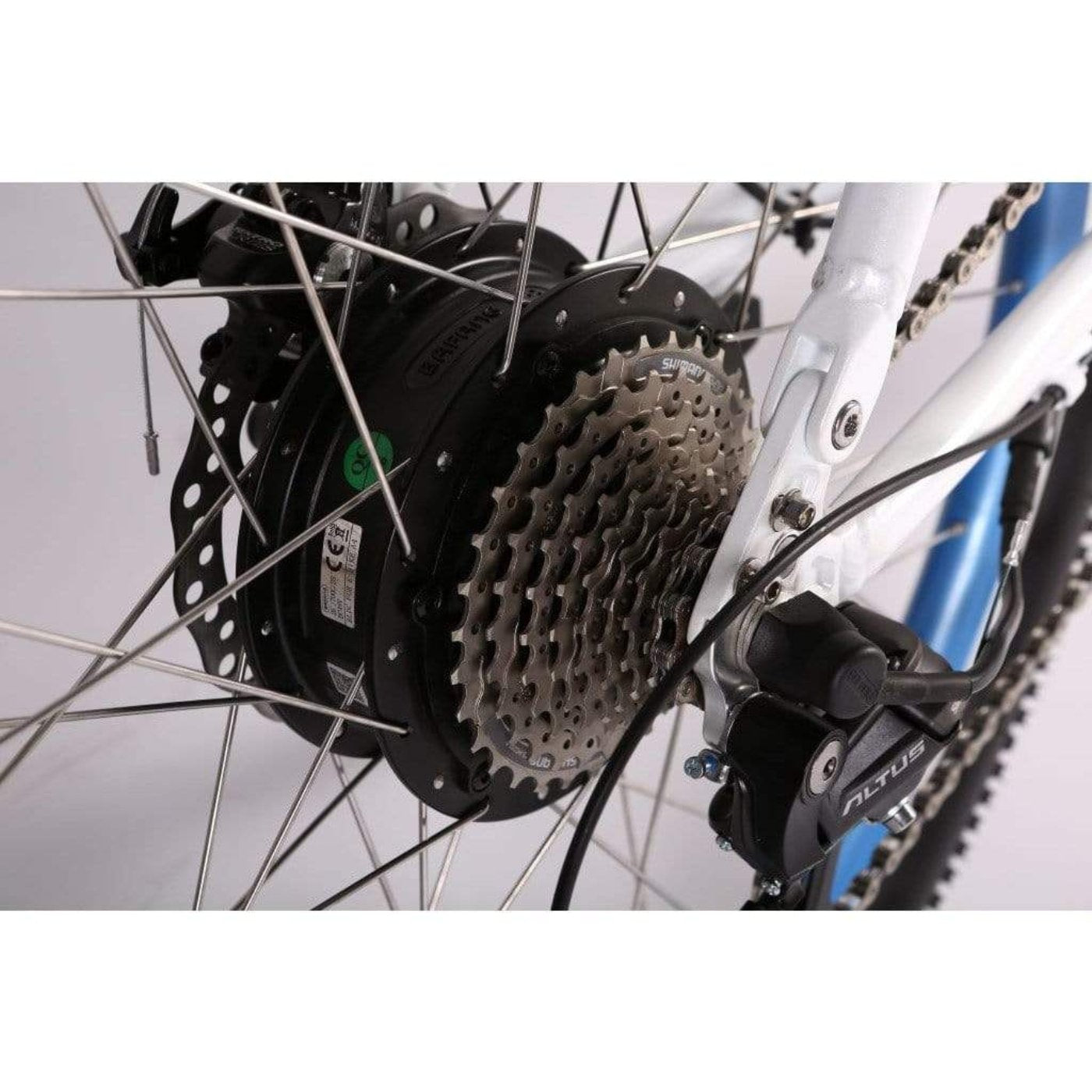

Motor Bafang 500 Watt Zero Resistance Rear Hub Motor With Clutch
Controller 48 Volt 15 Amp Sealed Smart Controller

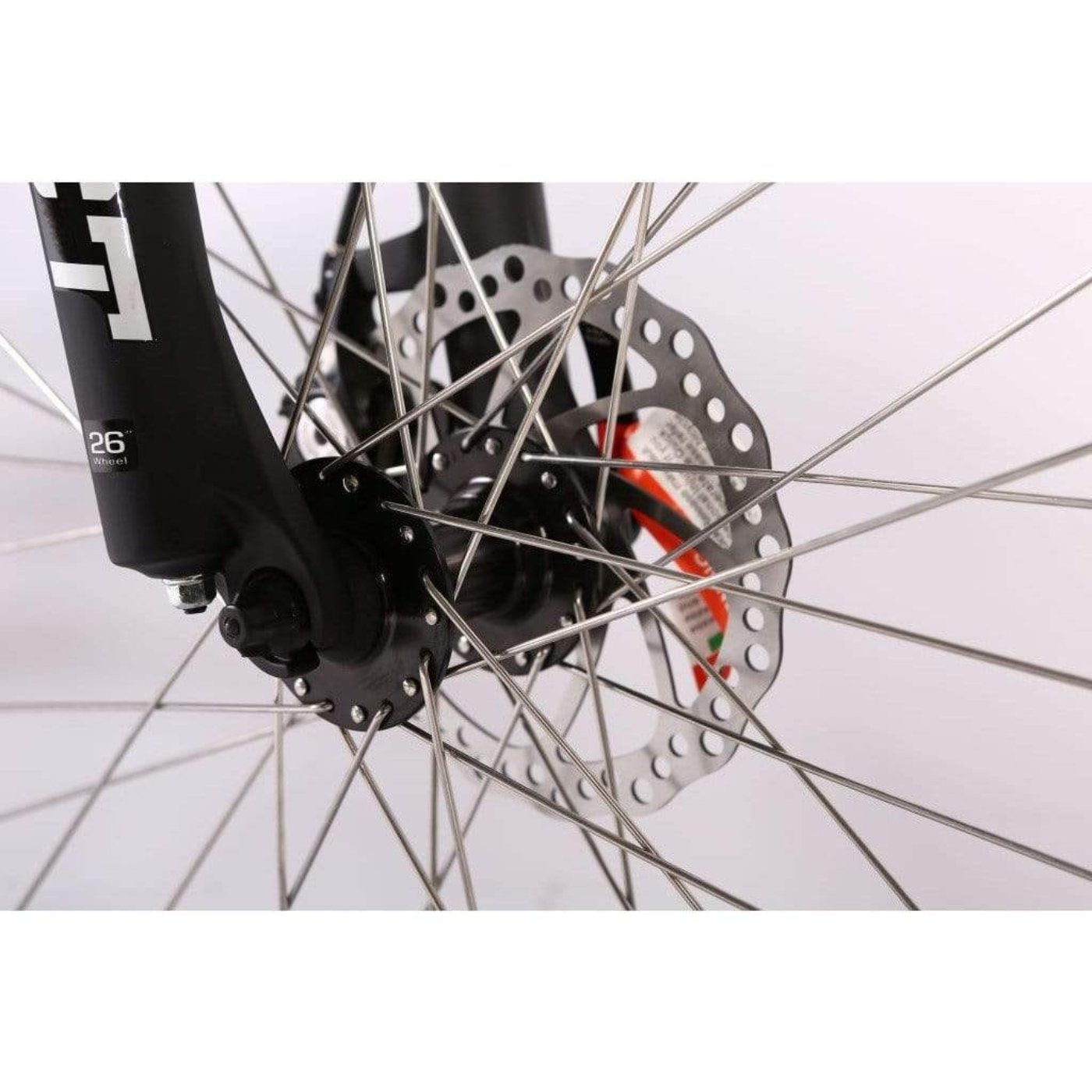

Braking System Tektro Disk Brakes
Pedals: Wellgo Aluminum Pedal Set
Front Wheel: Joytech Quick Release Hub
Throttle Type Variable Speed Thumb Throttle - SPAS Power Assisted - Pedal Power

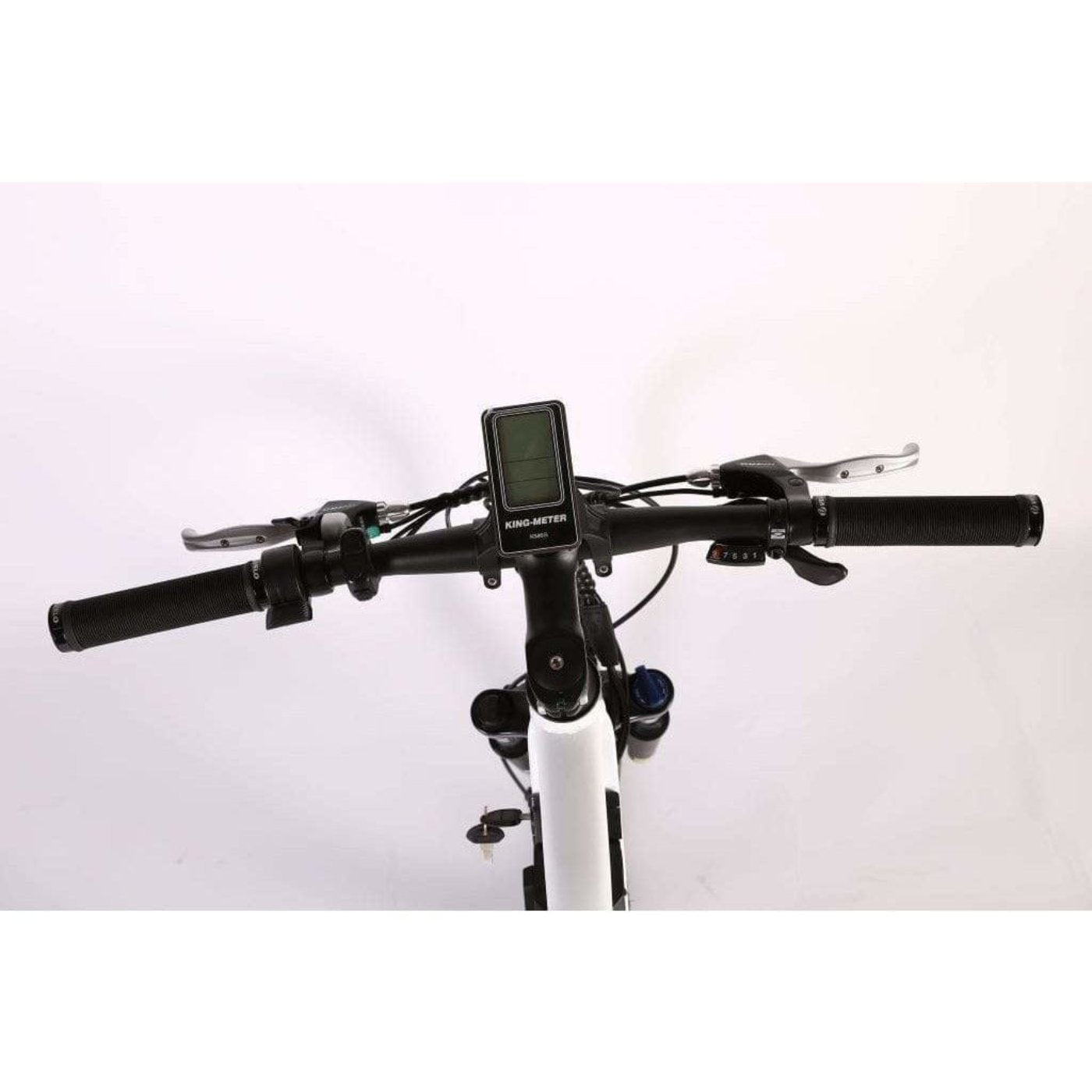

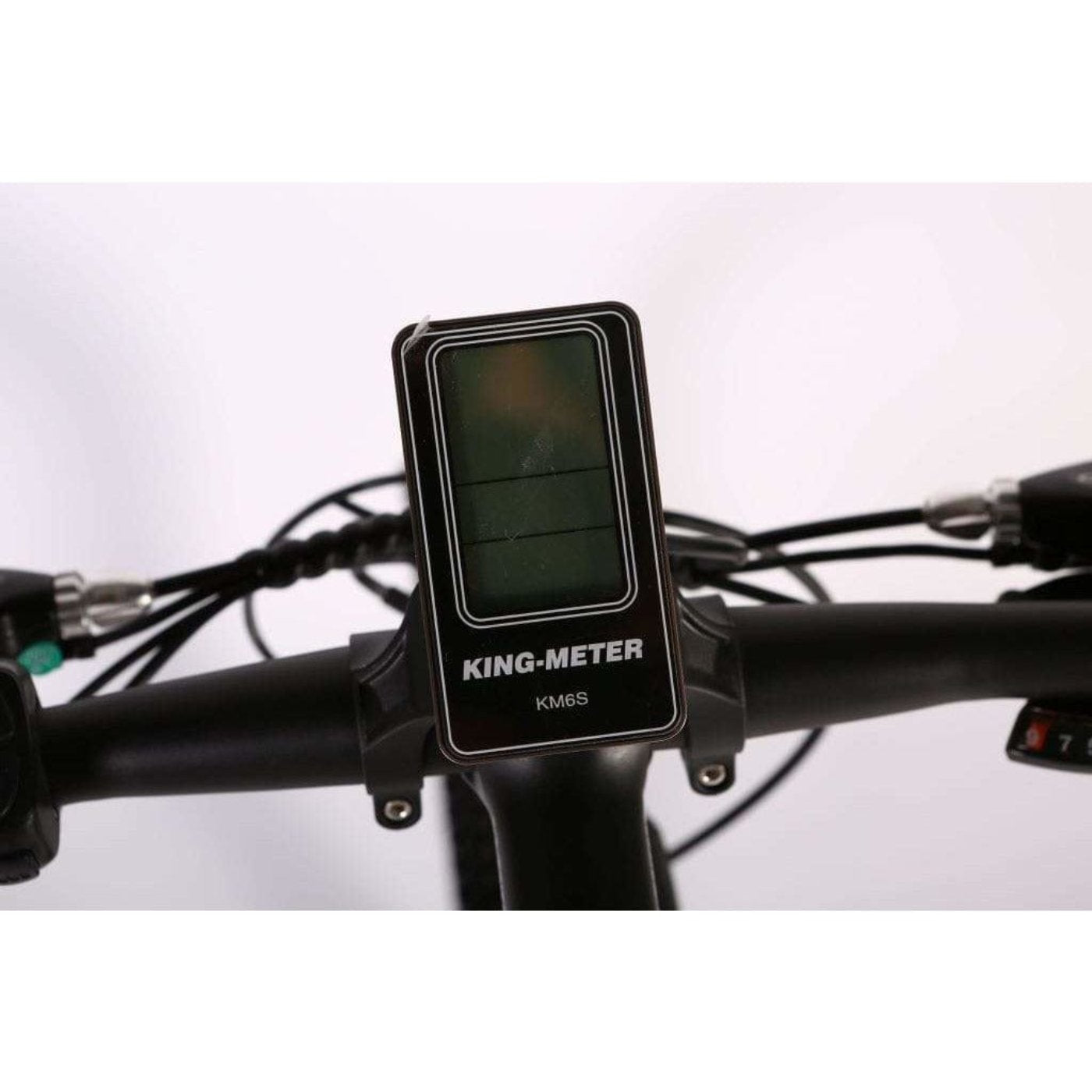

LCD Display King Meter LCD Smart PAS Digital System With USB Phone Charging Port
Cargo Rack Aluminum Rear Carry Rack
Frame Type/Size 6061-T6 Temper Aluminum Alloy - Very Lightweight - Step-Through

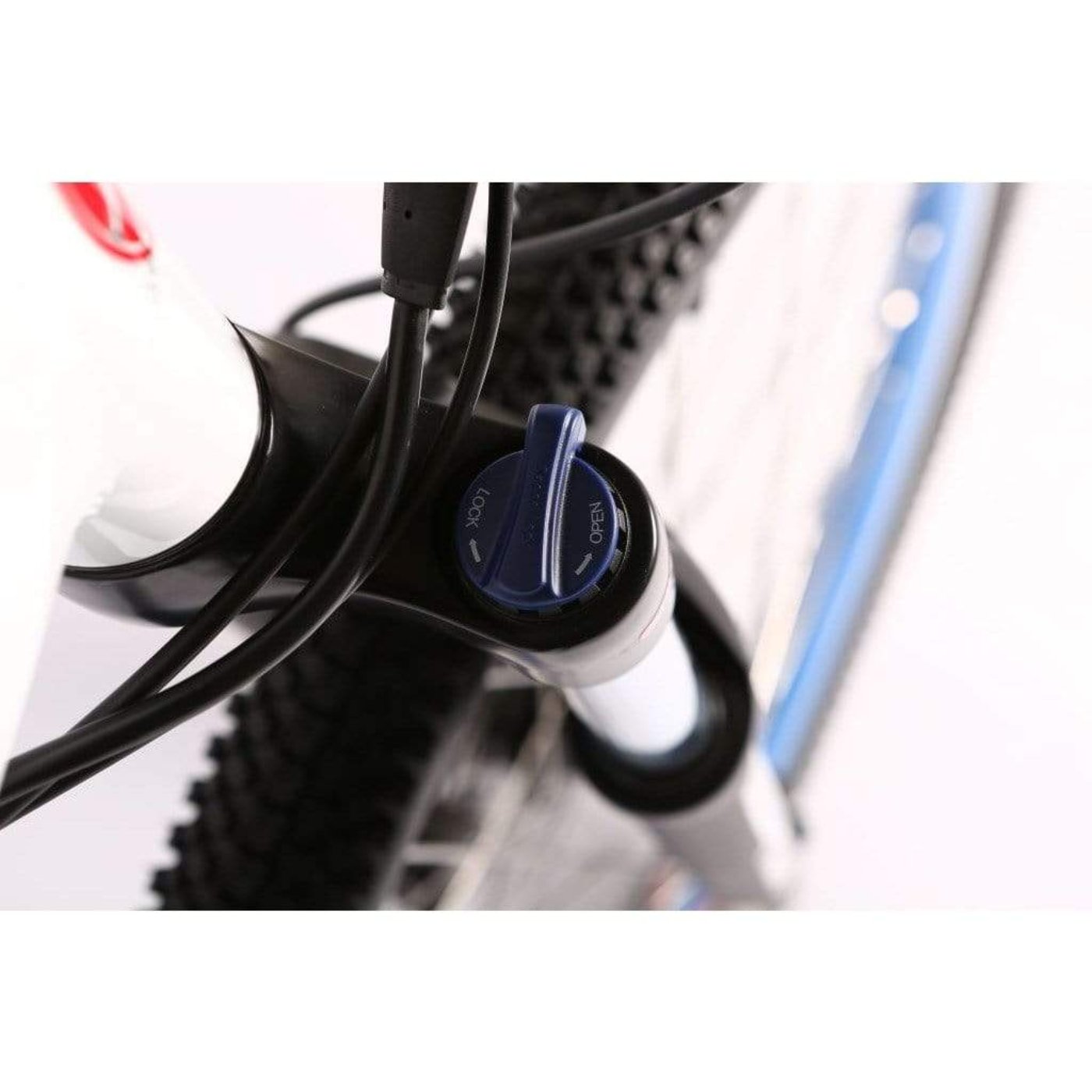

Forks Suntour® XCT Hydraulic Front Forks
Suspension Front Hydraulic Suspension Included & KS Rear Shock Suspension

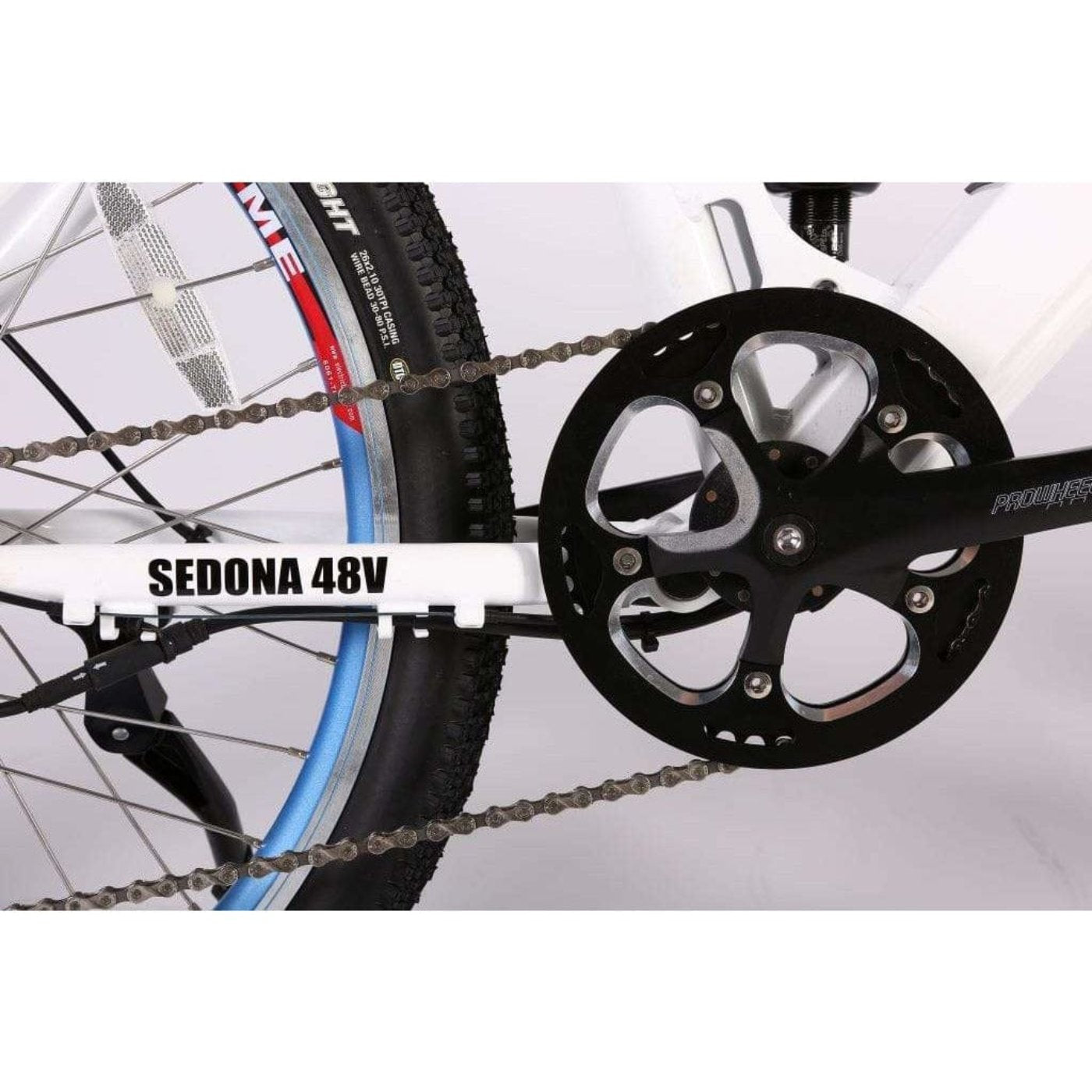

Front Sprocket Aluminum Alloy Sprocket
Derailleur Shimano® 9-Speed Atlus Gears & Shifter

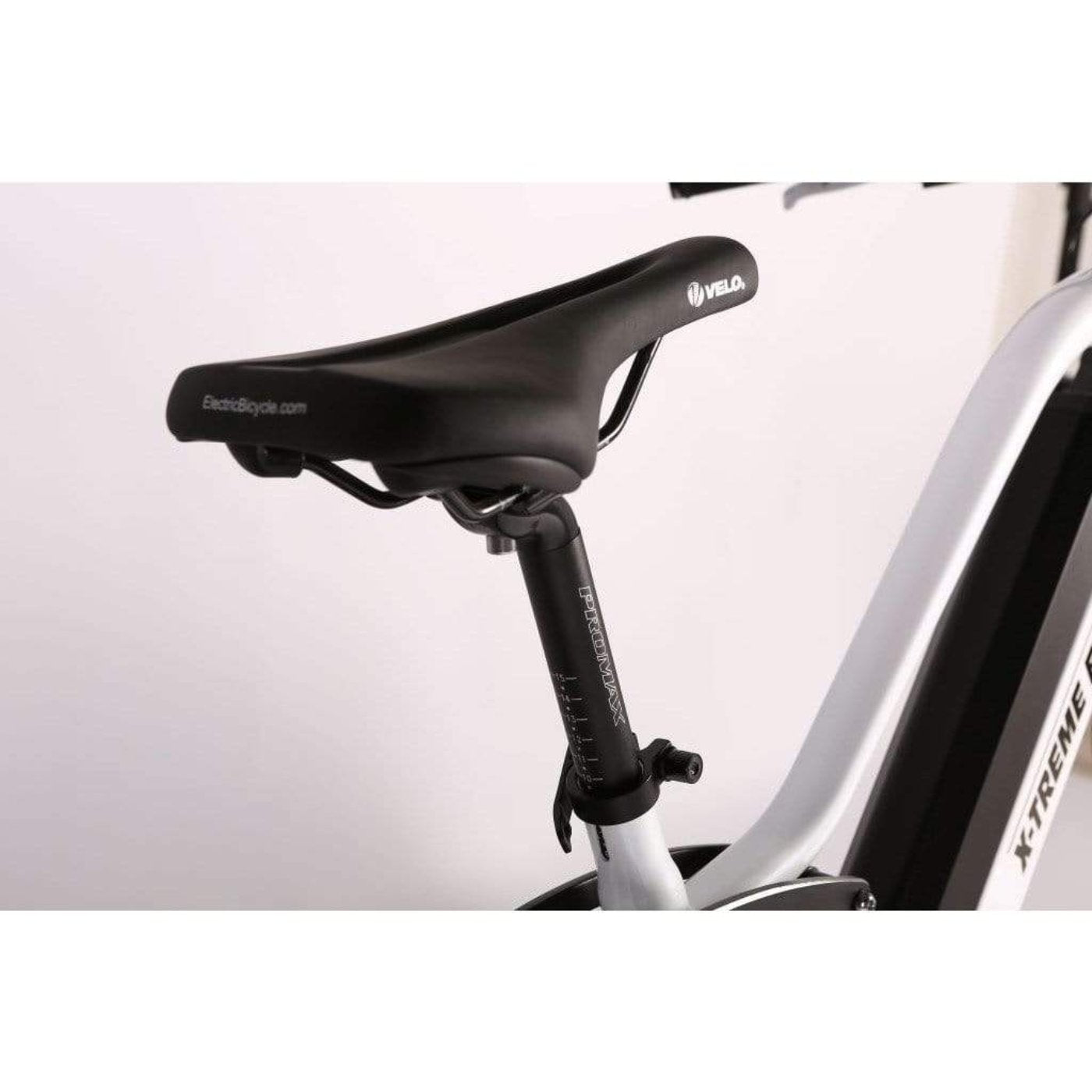

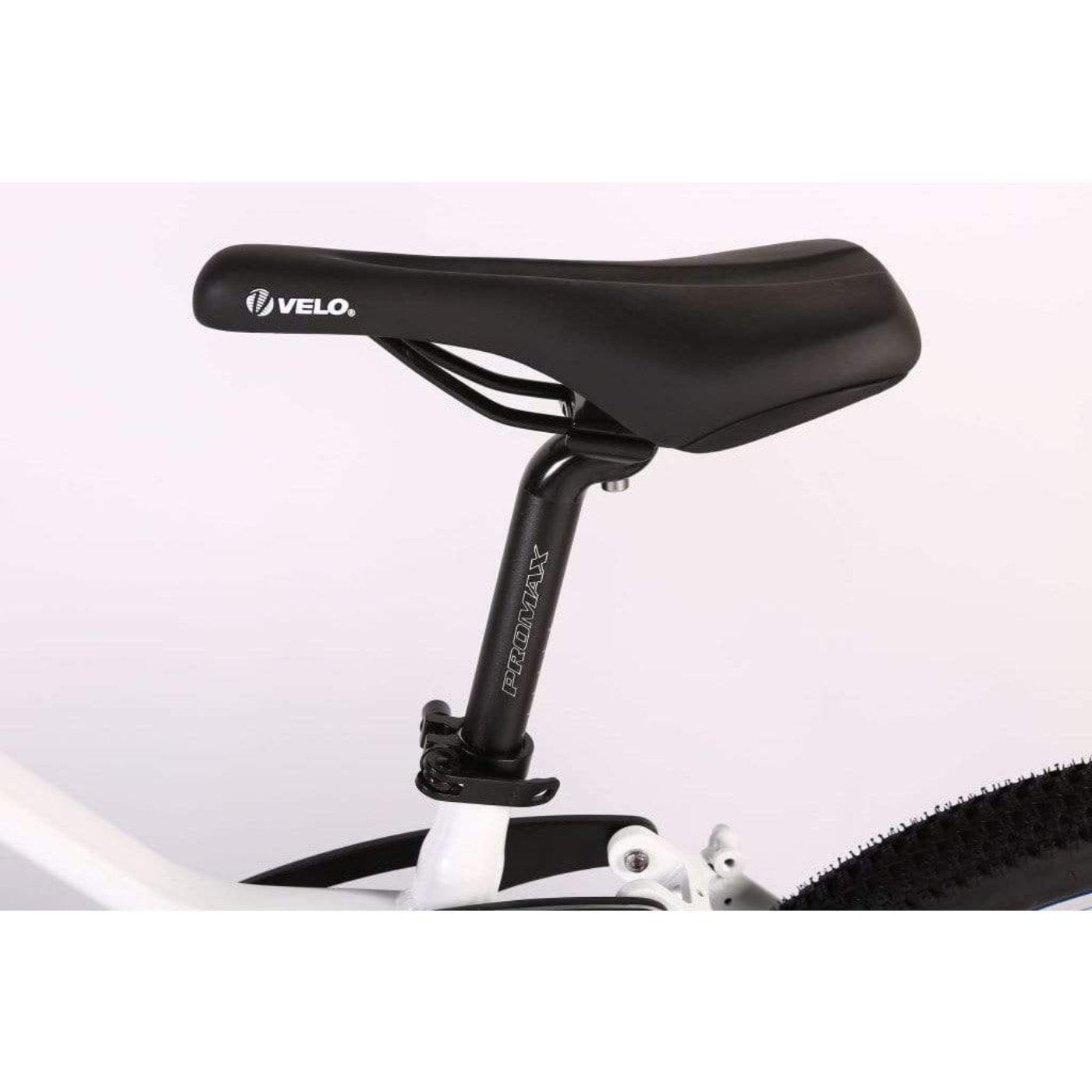

Seat & Post Aluminum Alloy Adjustable Seat Post & Velo Mountain Bike Seat
Quick Release Front & Rear Wheels Have Quick Release Axles - Flip Lever
Gooseneck Aluminum VP
Handle Bars Aluminum Alloy Mountain Bike Handle Bars
Head Light Yes, included as free accessory add on - Battery Operated Snap-On LED (Not covered under warranty)
Accessories Drink Holder On Handle Bars Included
Bicycle Measurements Max Seat Height = 37.75" Inches / Min Seat Height = 29.5" Inches / Handlebar Height = 37.75" Inches
Carton Size (L x W x H) 55 x 9 x 28
Bicycle In Box Weight 69 lbs
Bicycle Weight 59.5 lbs
Suggested Max Weight 350 lbs.
Warranty 1 Year Warranty & 1 Year Battery Warranty
Notes *depends on rider weight & terrain Distance obtainable when using SPAS

The Sedona comes equipped with the King Meter 5 Speed Smart Power Assist System (SPAS) with a USB Phone Charging Port.  The electronics of the X-Treme Electric Bicycle are controller via rider input on the LCD screen attached to the handlebars.  Smart PAS with 5 speeds will enable the bike to operate nearly twice as efficient as a non-smart assist e-bike because you select the power consumption (speed controls 1-5 setting) on the LCD during your ride.  This feature will allow your Sedona 48 Volt to possibly reach or exceed 70+ miles per charge when using low SPAS while always pedal assisting on flat ground under perfect conditions with a lightweight rider.  The LCD also indicates Speed, Distance and Battery Life.

The Sedona 48 Volt Lithium Powered Electric Mountain Bicycle is faster than any model we sell.  It has been tested climbing a 5-7% mountain grade continuously for 45 minutes while having to slow down for hairpin turns.

Front & rear Tektro disk brakes are standard on the Sedona 48 Volt Electric Mountain Bicycle along with true VELO Brand Hand Grips & Mountain Bike Seat.

This electric mountain bicycle comes standard with a high-quality beverage holder.  There is no extra charge!

  • 1-year warranty against all manufacturing defects.
  • 1 -year battery warranty.
  • X-Treme may send out spare parts and necessary parts to fix any issues.
  • Returns will not be accepted if damage is caused to the bike as a result of the rider.
  • All cancellations after 48 hours are subject to a 10% restocking fee.
  • All return fees will be at the cost of the customer unless manufacturing defect.
Order shipment preparation takes 3 days. Once shipped orders usually takes 5-8 days to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
