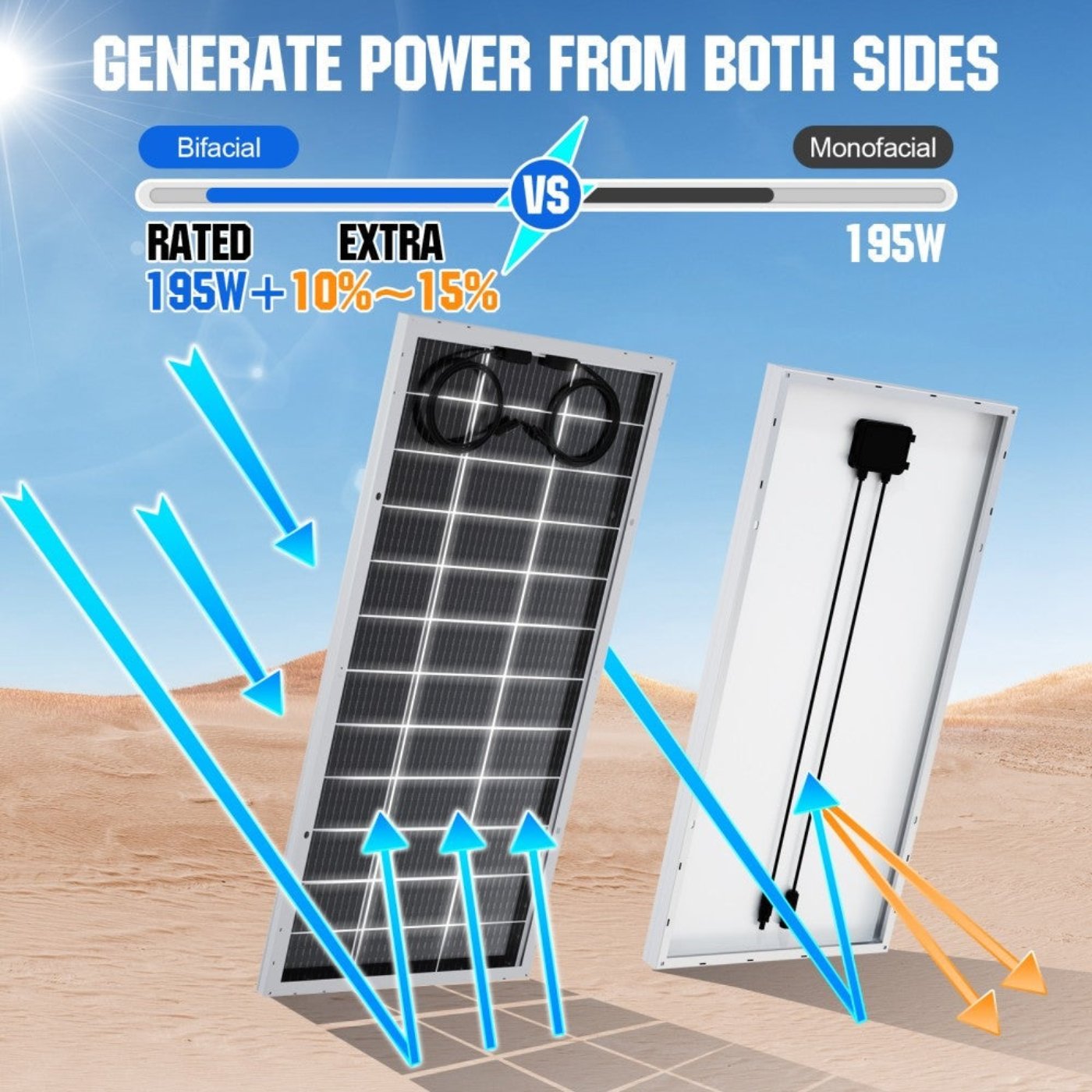

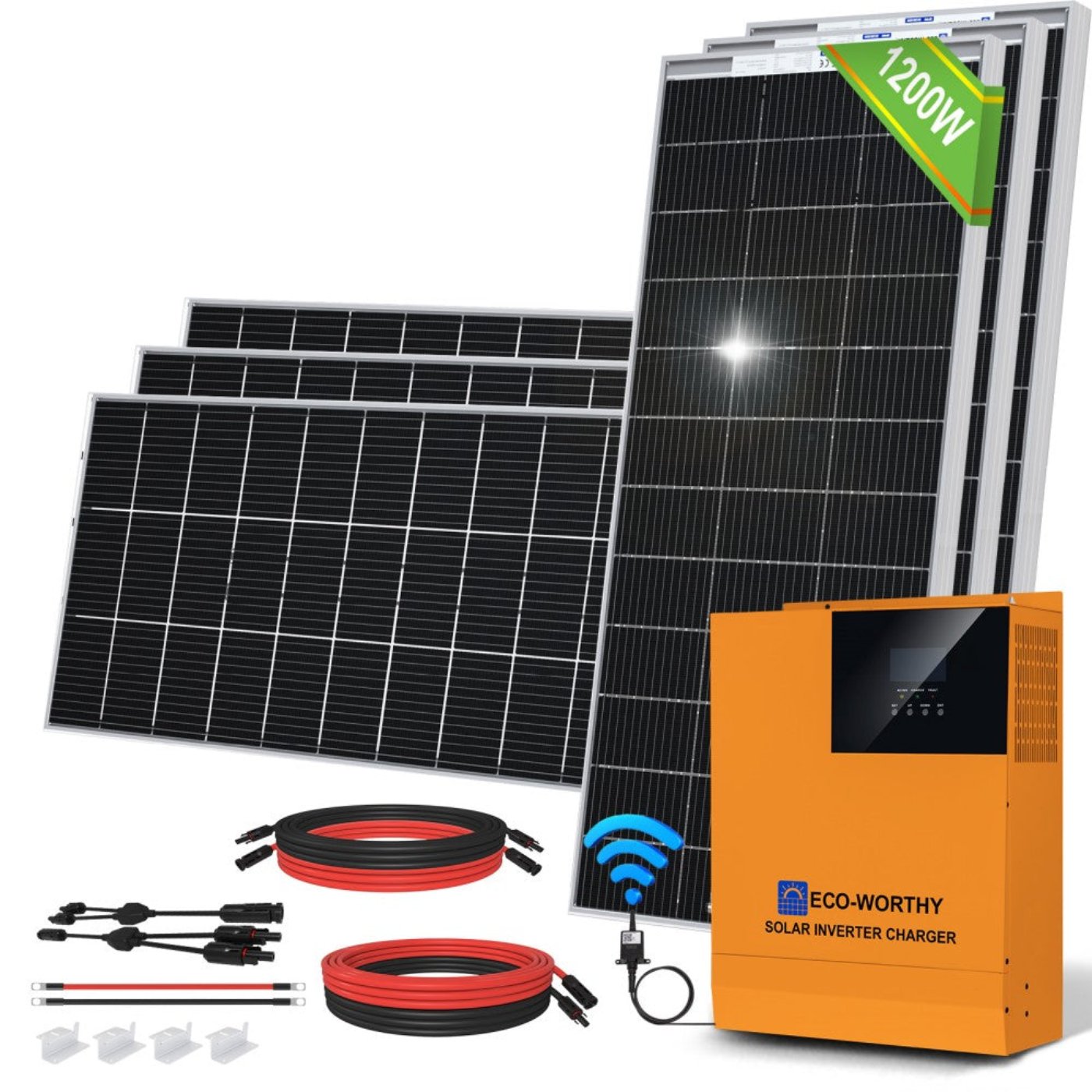

Bifacial 195W Monocrystalline Solar Panel
Rated Power: 195W |
Solar Cell: Monocrystalline |
Maximum/Peak Voltage(Vmp): 19.8V |
Open Circuit Voltage(Voc): 23.7V |
Short circuit current: 10.5A |
Maximum current: 9.85A |
Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: -40℃~ +85℃ |
Frame: Aluminum alloy frame |
Weight: 20.48 lbs(9.29 kg) |

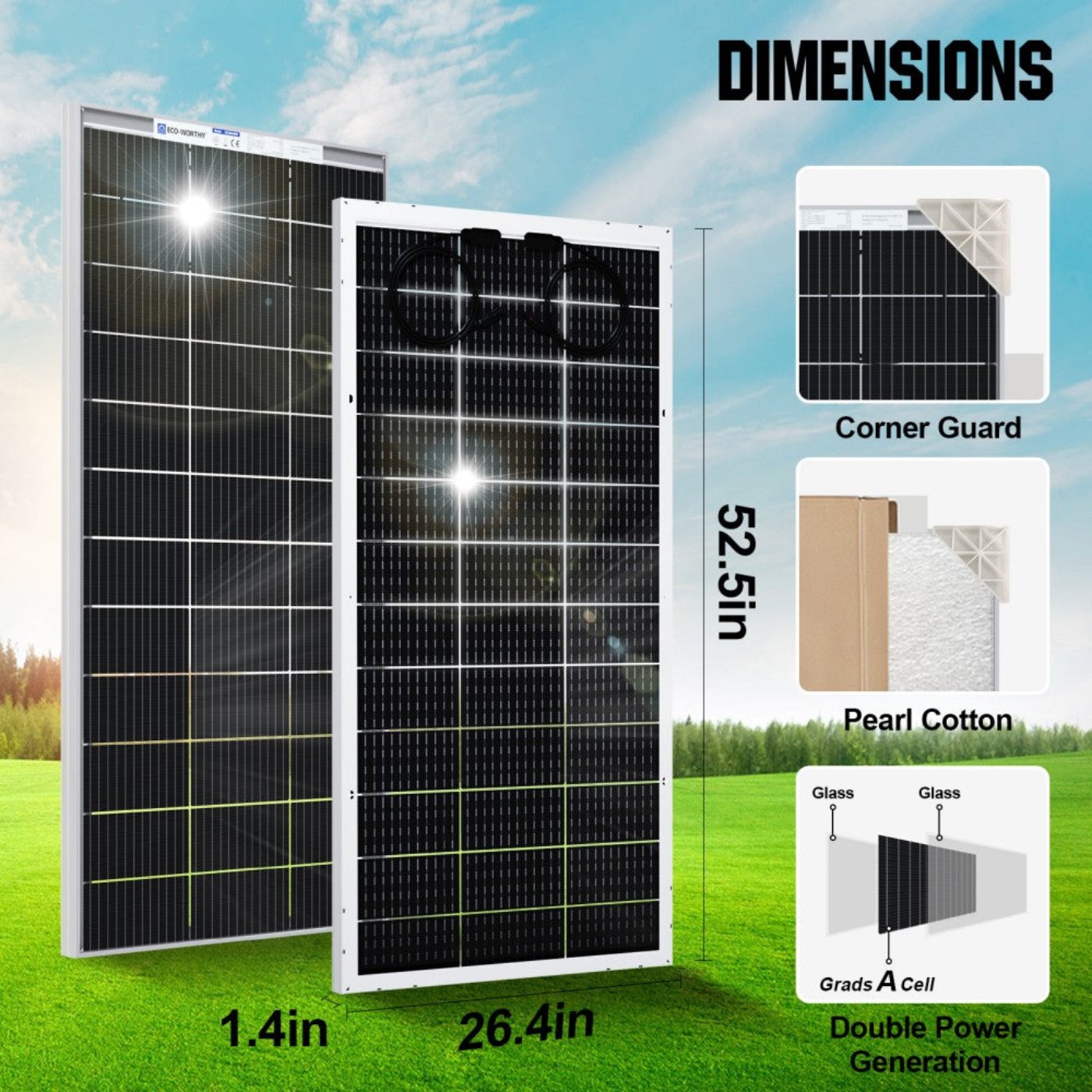

Size: 52.6x26.38x1.38in (1335*670*35mm) |
|

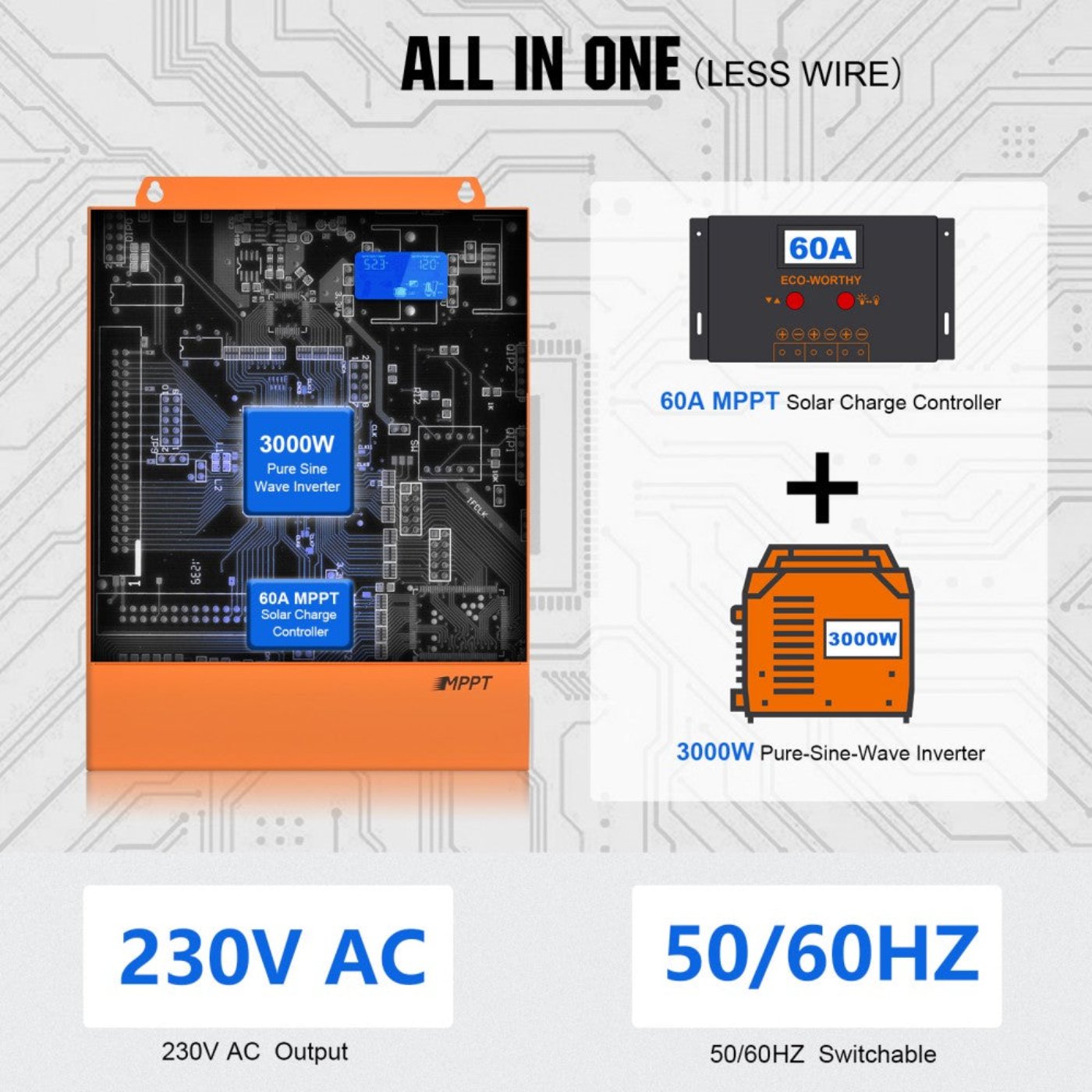

All-in-one Inverter(3000W 24V Inverter+60A controller)
Solar Charging Mode |
|
Solar Charge Mode: MPPT |
PV Charging Rated current: 60A |
Max Input Power: 1400W |
Rated Battery Voltage: 24V |
Invert Mode |
|
Output Waveform: Pure Sine Wave |
Rated Output Power: 3000W |
Rated Battery Input Voltage: 24V |
Rated Output: 110VAC 50Hz/60Hz |
Peak Power: 6000W |
|
AC/Grid Charging Mode |
|
Rated Input: 110VAC 50Hz/60Hz(auto detect) |
|

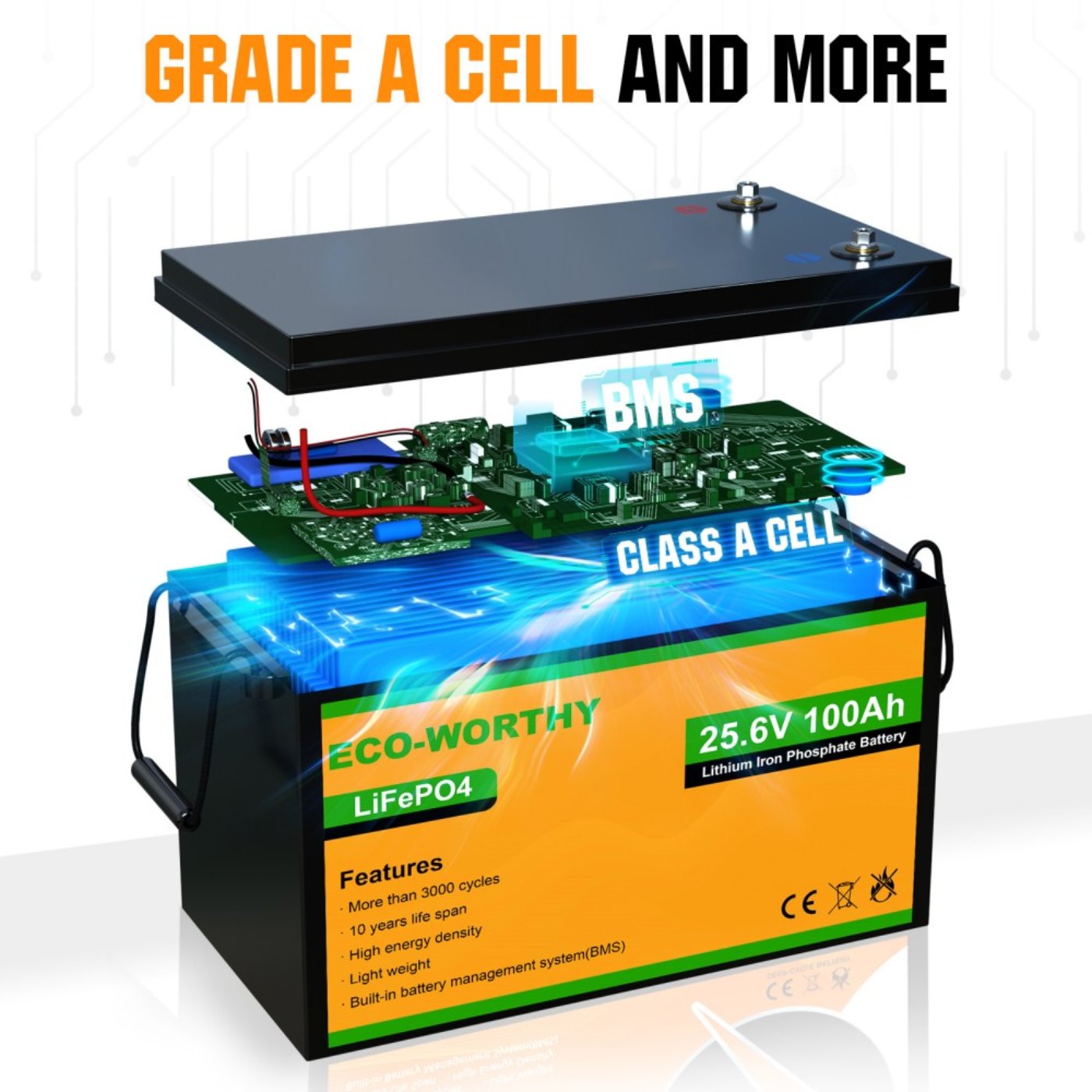

100Ah LiFePO4 Lithium Battery
Battery Capacity: 100Ah |
Battery Power: 2560Wh |
Battery Voltage: 25.6V |
Maximum Charging Current: 100A |
Maximum Discharging Current: 100A |
Max Charge Voltage: 29.2V |
Operating Temperature: -4°F to 140°F |
BMS: Integrated battery management system |
Terminal: M8 screw |
Size: 15.1*7.6*10inch |
Weight: 44.75lbs |
|

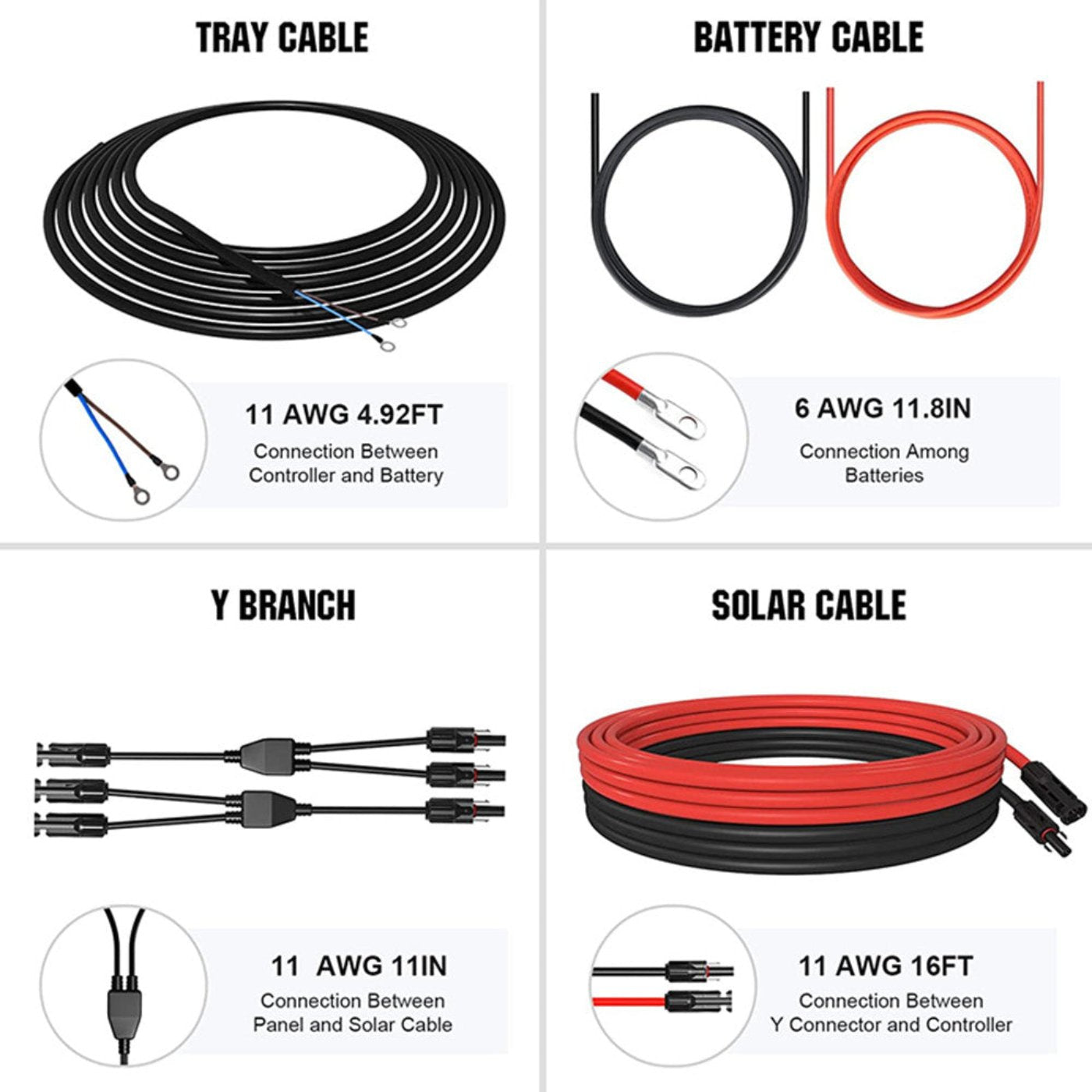

16.4 feet 12AWG Cables
Cable Type: Connecting Solar Panels to Charge Controller |
Rating Voltage: 600/1000V |
Length: 5 meters(16 ft) |
Conductor: Tinned copper wire |
AWG: 11 |
Normal Cross Sectional Area of the Conductor (mm2): 4 |
Waterproof: IP 65 Protection |
Temperature: -40°F to +185°F |
Connector: MC4 |
Weight: 0.742KG |
Z Mounting Brackets
4 pieces of Z shape solar panel brackets |
8 pieces of stainless steel nuts and cap bolts |
Y Branch Cable MC4 Connectors
Compatible with MC4 solar connector. |
Easy installation for 2 solar panels connected in parallel. |
