Eco-Worthy 1950W 24V (10x Bifacial 195W) Complete MPPT Off Grid Solar Kit

Name: Eco-Worthy 1950W 24V (10x Bifacial 195W) Complete MPPT Off Grid Solar Kit
Brand: ECO-WORTHY
Price: 4179.99 USD
Availability: InStock

by ECO-WORTHY

SKU US-L02M195TM-MCWMZIUS3000L400-10

Save 5%

$4,399.99

$2,649.99 - $4,399.99

$4,399.99

$4,179.99

$2,517.99 - $4,179.99

$4,179.99

CLEARANCE SALE.
ITEMS LEFT.
PEOPLE are also watching that product.

Quantity

Description
Specifications

Description

Eco-Worthy 1950W 24V (10x Bifacial 195W) Complete MPPT Off Grid Solar Kit

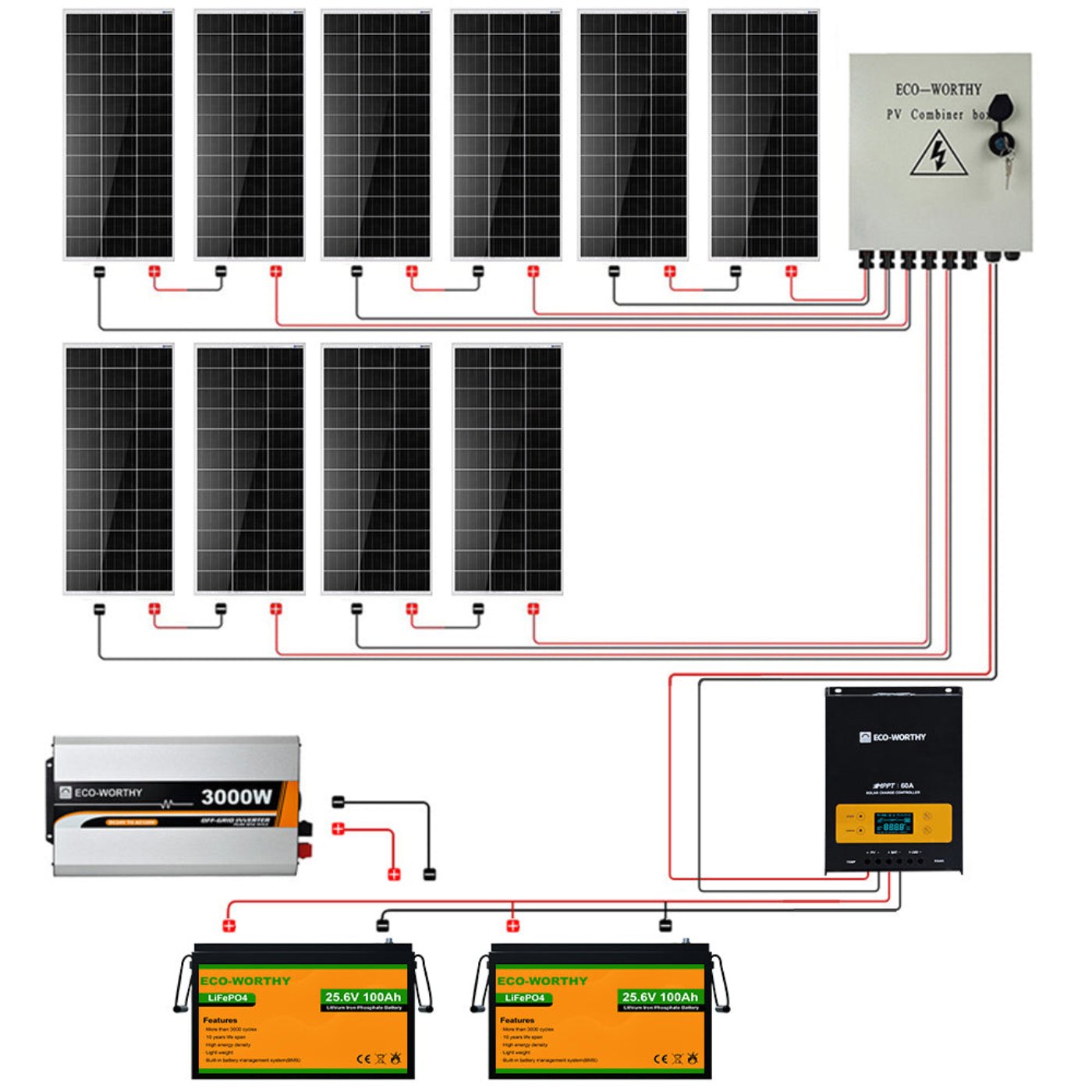

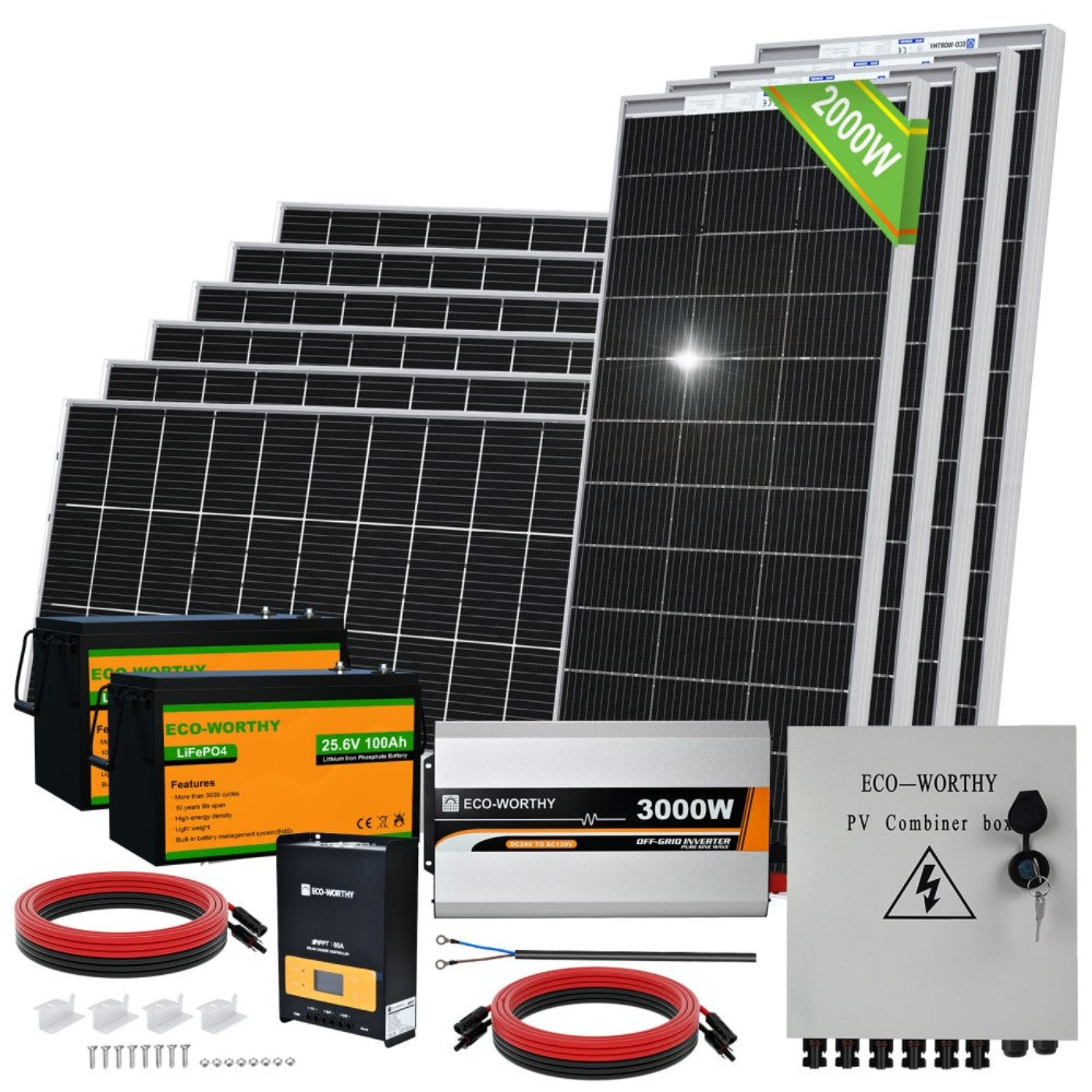

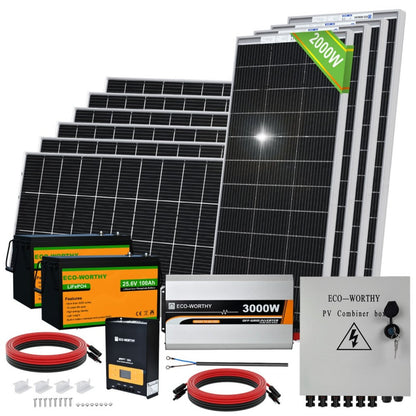

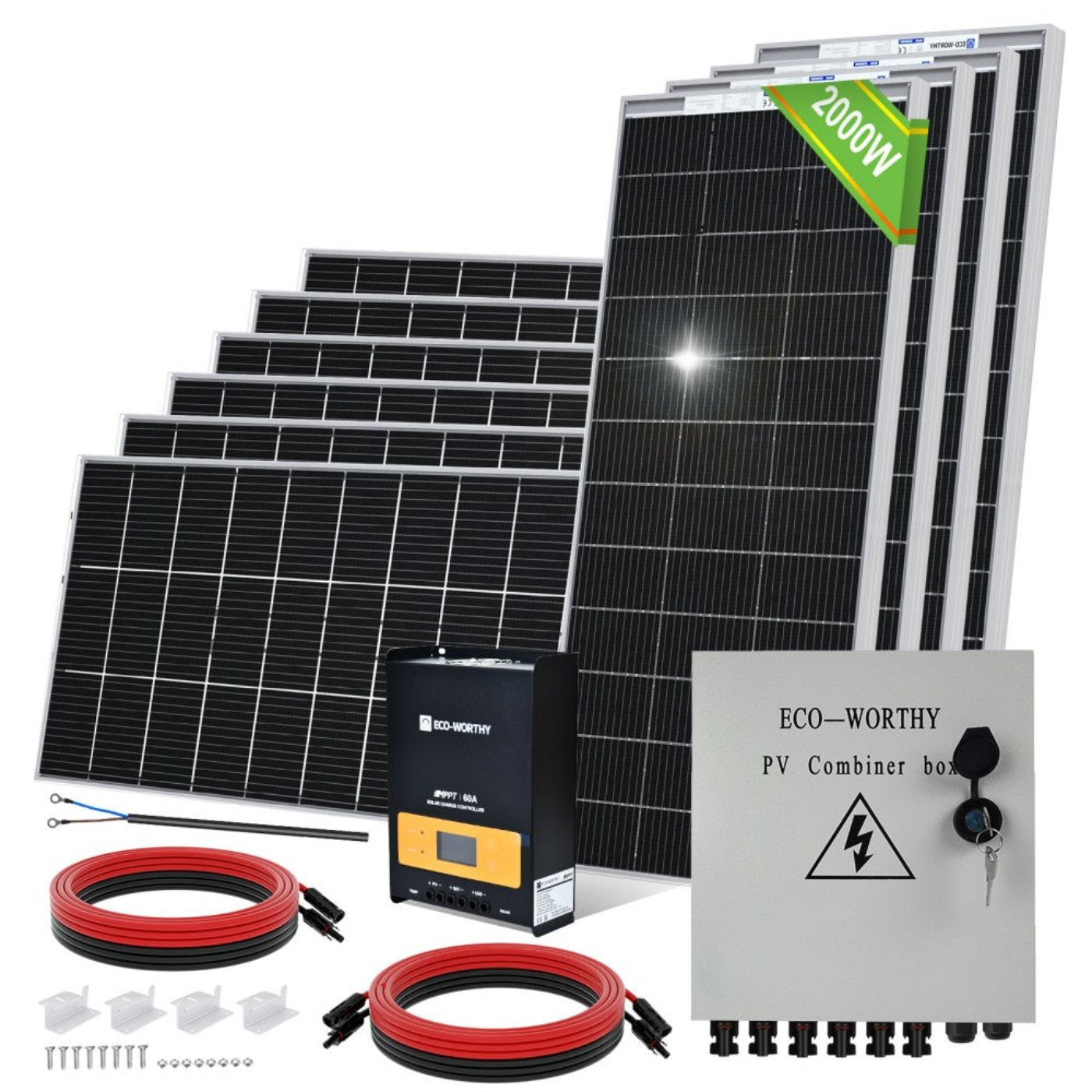

Package Includes
10x Bifacial 195W Mono Solar Panel
1x 6 String PV Combiner Box
1x 60A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
5x 5M 12AWG MC4-MC4 Extension Cable(Panel to Combiner Box)
10x Z Mounting Bracket
Inverter & Battery Bank Options-
Inverter & 4.8kWh Lithium Battery Bank (optional)
with
1x 3000W 24V-110V Pure Sine Wave Inverter
2x 100Ah 24V LiFePO4 Lithium Battery
2x 6AWG Battery Interconnect Cable

Specifications

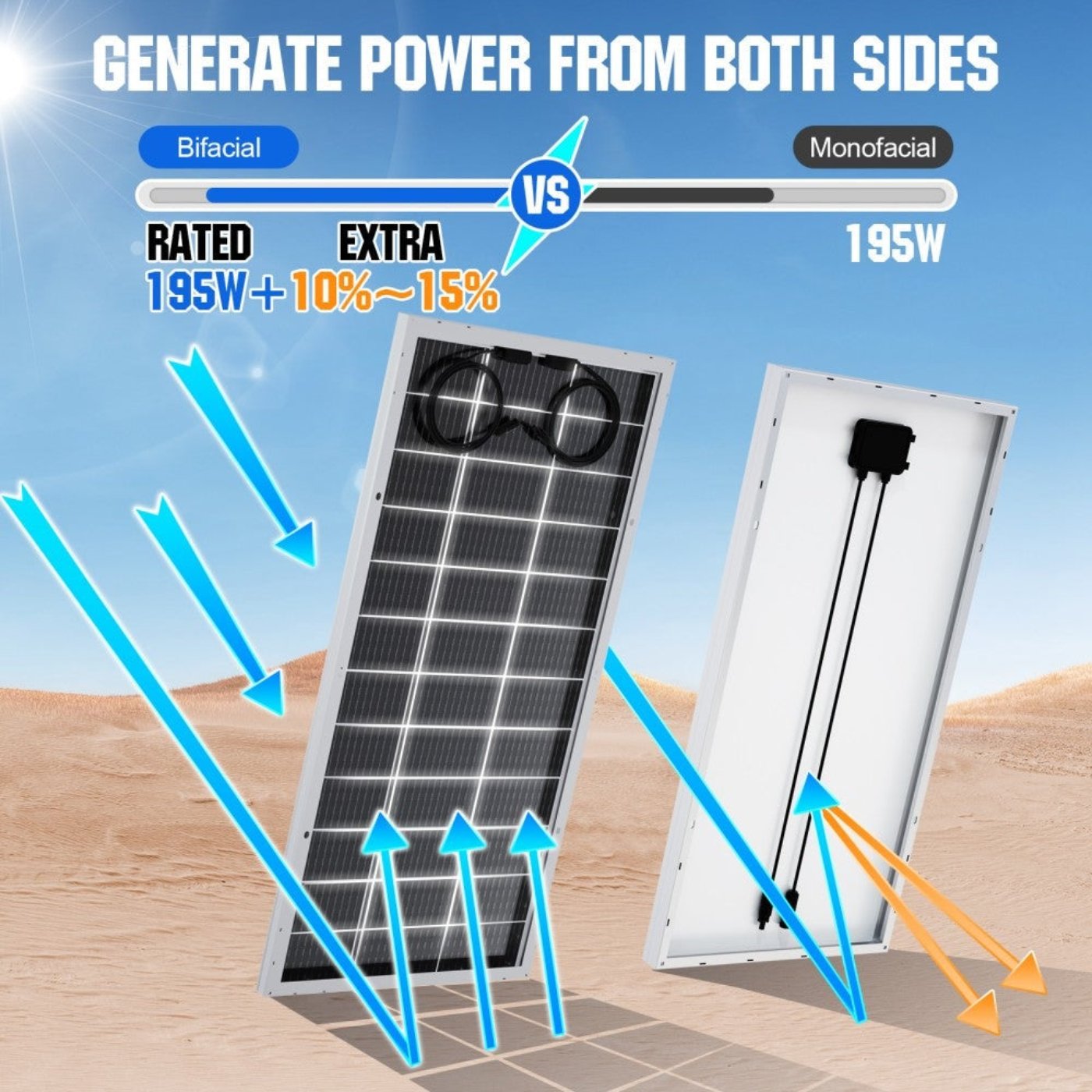

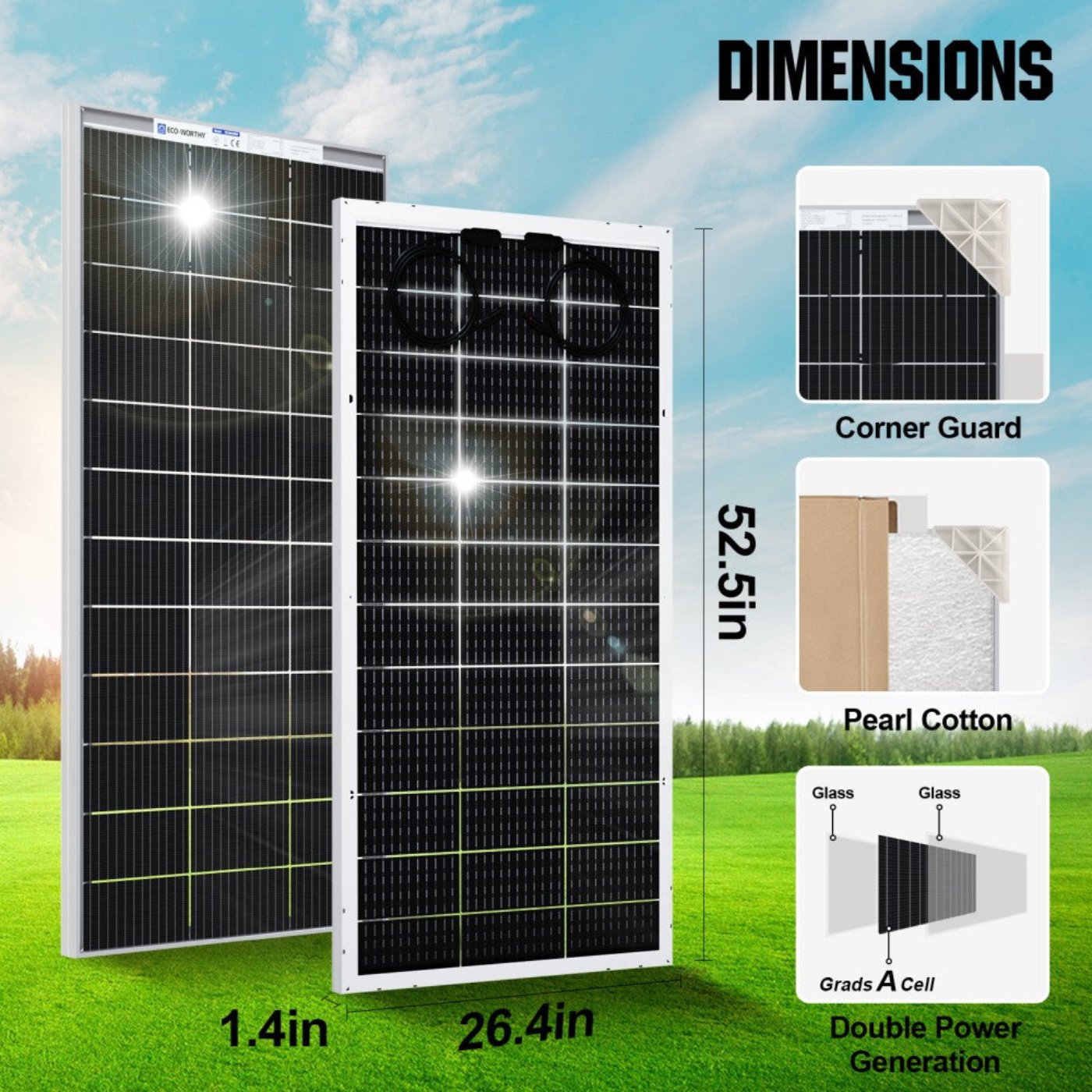

Bifacial 195W Monocrystalline Solar Panel

Rated Power: 195W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 19.8V	Open Circuit Voltage(Voc): 23.7V
Short circuit current: 10.5A	Maximum current: 9.85A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Weight: 20.48 lbs(9.29 kg)
Size: 52.6x26.38x1.38in (133567035mm)

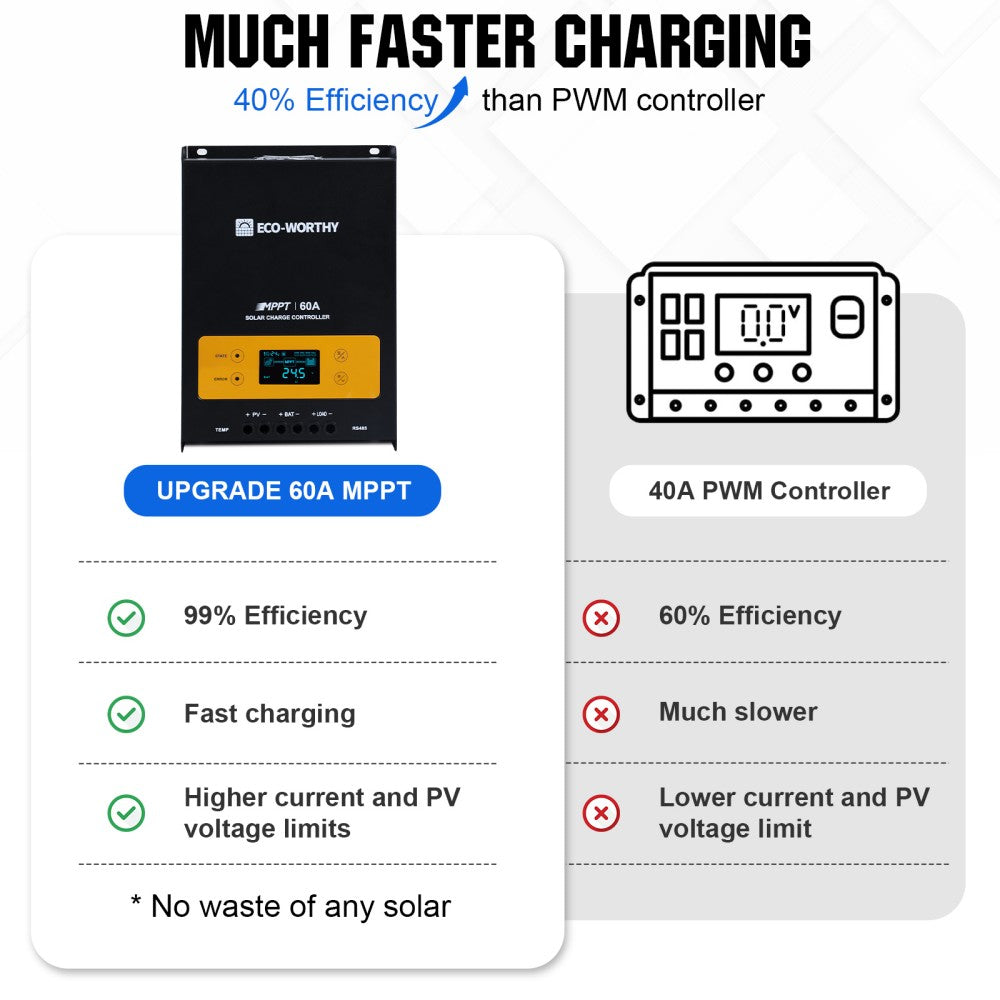

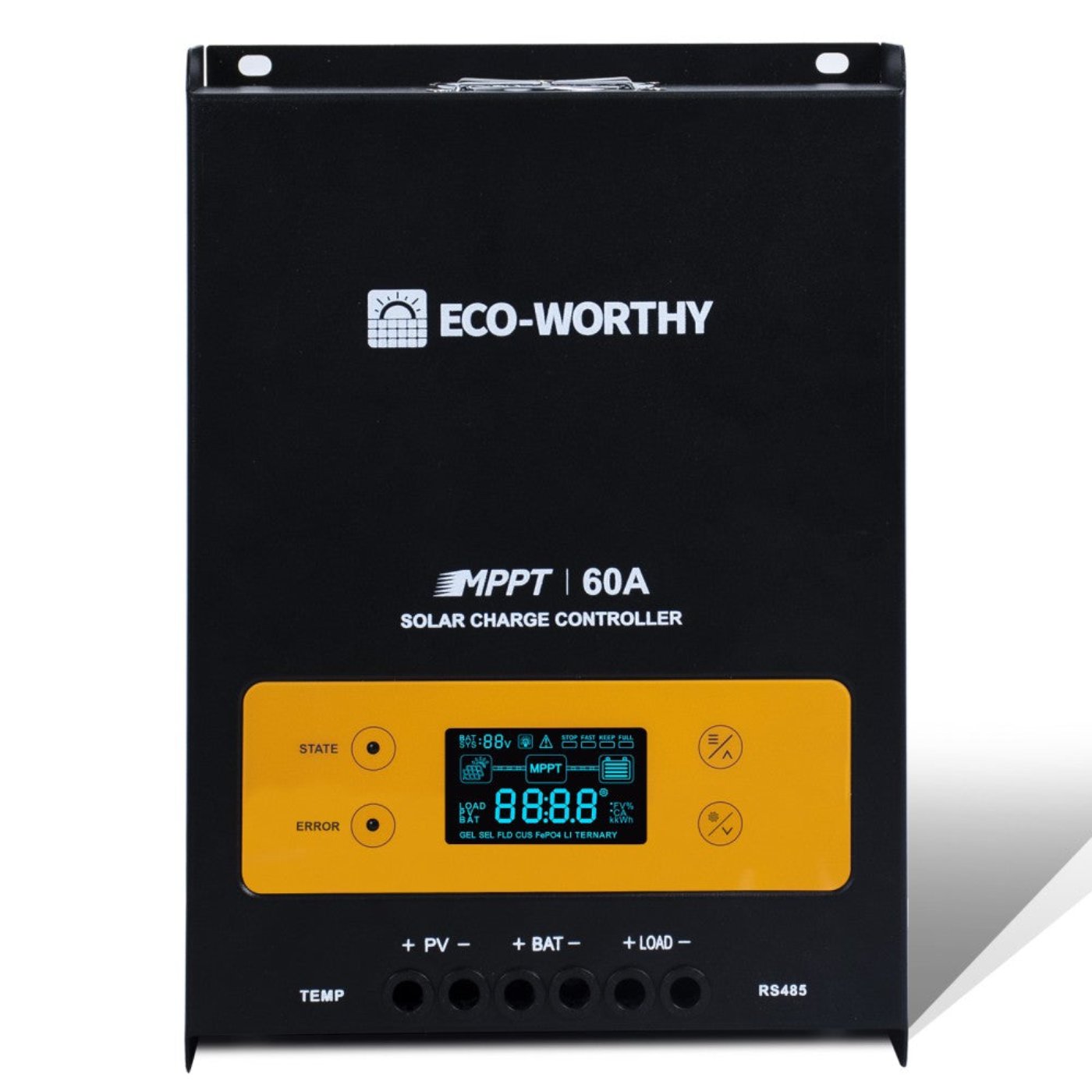

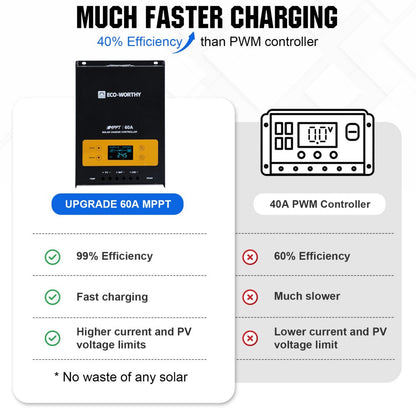

60A MPPT Solar Charge Controller

Battery voltage：12V/24V/36V/48V	Max Solar Input Power：780W(12V)/1560W(24V)/2340W(36V)/3120W(48V)
Charging mode：MPPT	Rated Load Current：30A
Charge Efficiency (Peak)：97%	Max Charge current：60A
Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded	No-load static loss: 0.5W-1.2W
Size：24016665mm	Weight：1.96KG
Maximum wire size: 20mm2

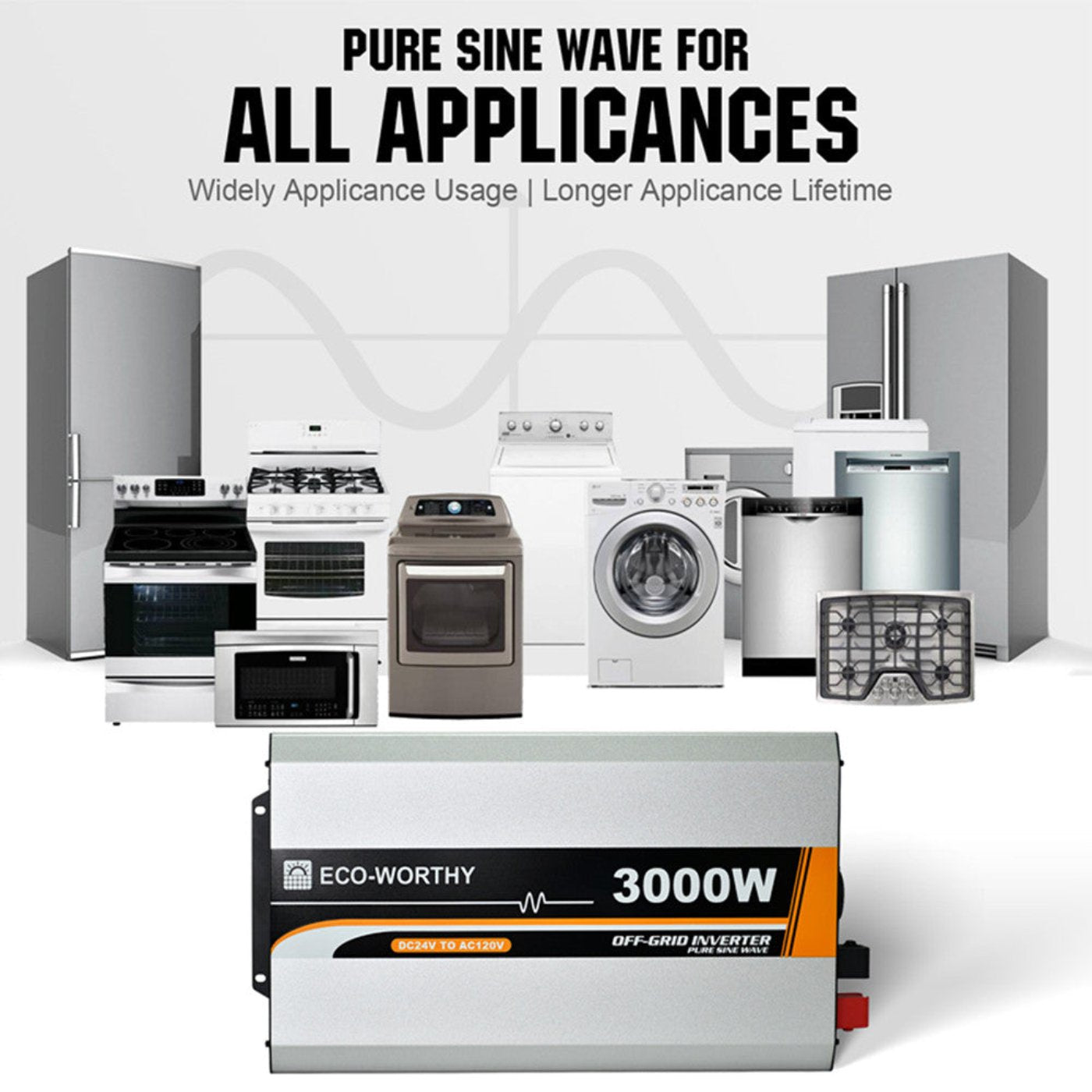

3000W 24V Off Grid Inverter

Continuous output power: 3000W	Surge power: 6000W
Surge current when power on: < 100A	Output voltage: 110VAC (±3%); 120VAC (-6%~+3%);240VAC (-9%~+3%)
Output frequency: 50/60Hz ± 0.2%	Output wave: Pure Sine Wave
Output distortion THD: THD≤3% (Resistive Load)	Rated input voltage: 24VDC
Input voltage range: 21.6 ~ 32.0VDC	Rated output efficiency: > 90.0%
Max. output efficiency: > 94.0% (30% loads)	Idle current: < 0.15A
No-load current: < 1A	Input terminal: M6
Dimension (L x W x H): 521 × 270 × 143mm	Mounting size: 495 × 145mm
Mounting hole size: Φ6mm	Net Weight: 8.5kg

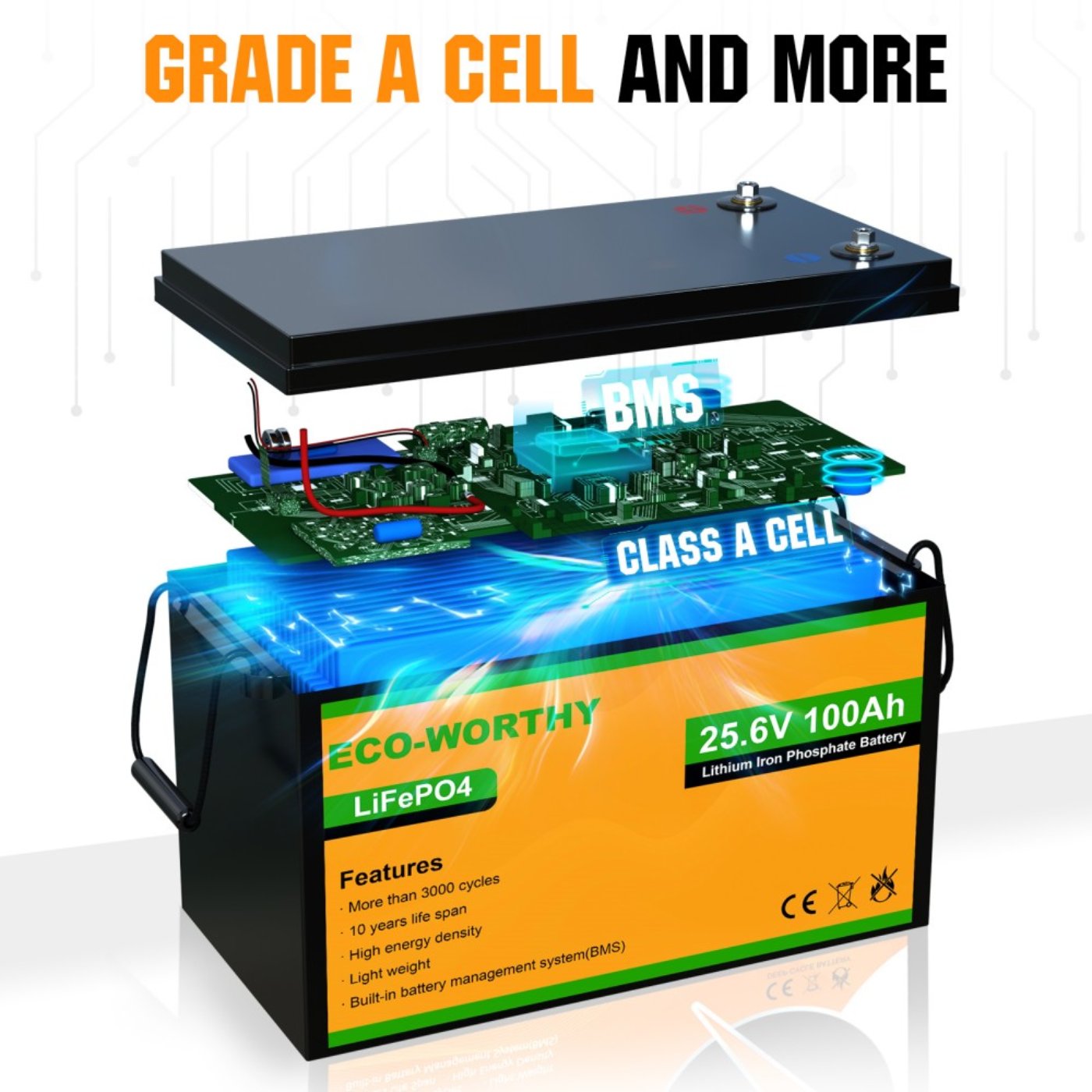

100Ah LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 2560Wh
Battery Voltage: 25.6V	Maximum Charging Current: 100A
Maximum Discharging Current: 100A	Max Charge Voltage: 29.2V
Operating Temperature: -4°F to 140°F	BMS: Integrated battery management system
Terminal: M8 screw	Size: 15.17.610inch
Weight: 44.75lbs

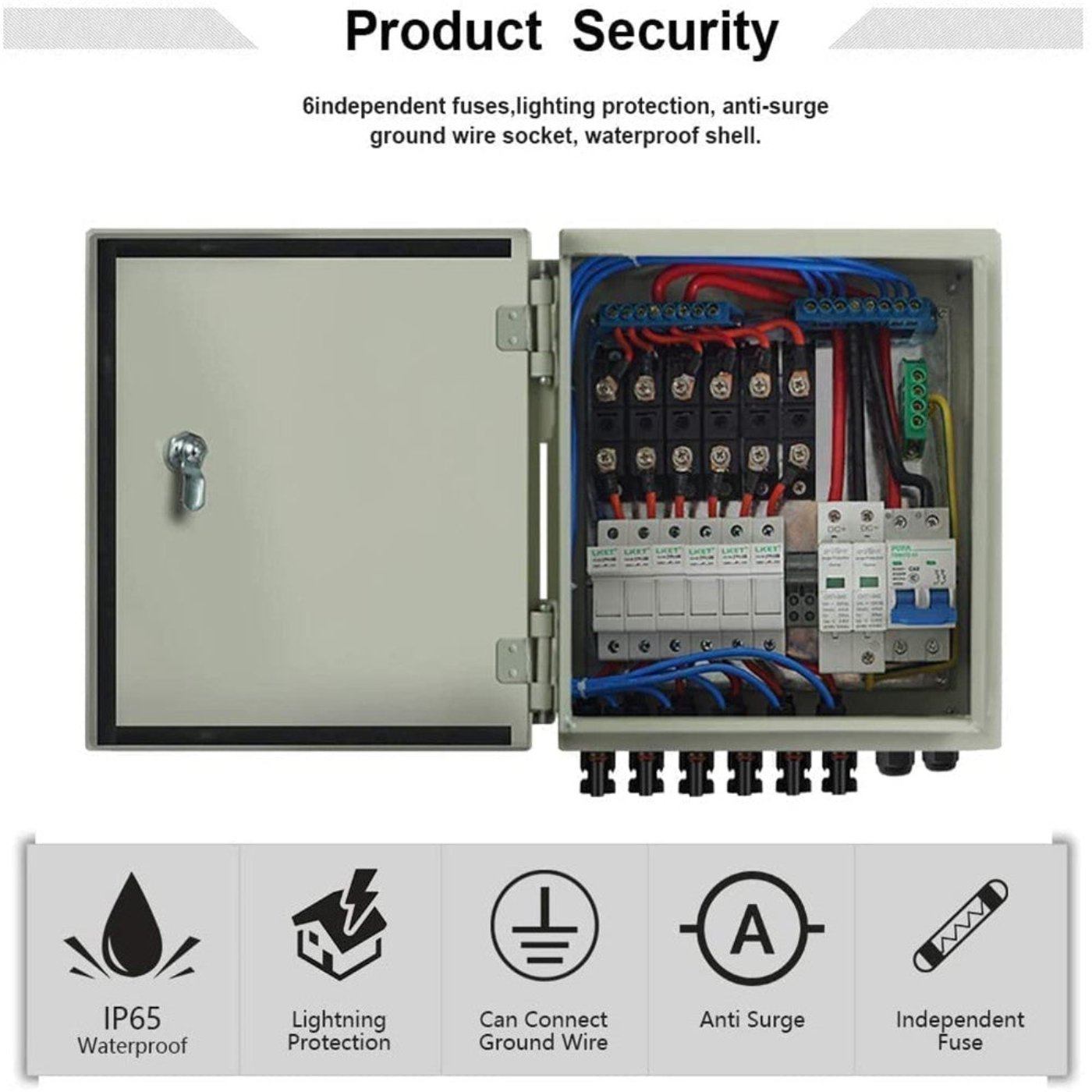

6 String PV Combiner Box

Number of Max. connection solar array: 6	Max input current of single solar array: 10A
Total input current of solar array: 60A	Max input solar system wattage (12/24/48V): 1080/2160/4320W
Max Input Voltage of single solar array: 250V	Max Output Voltage: 250V
Number of circuit breaker poles: 2	Circut breaker rated current: 63A
Product Weight: 4.9kg	Product Size: 260320115mm

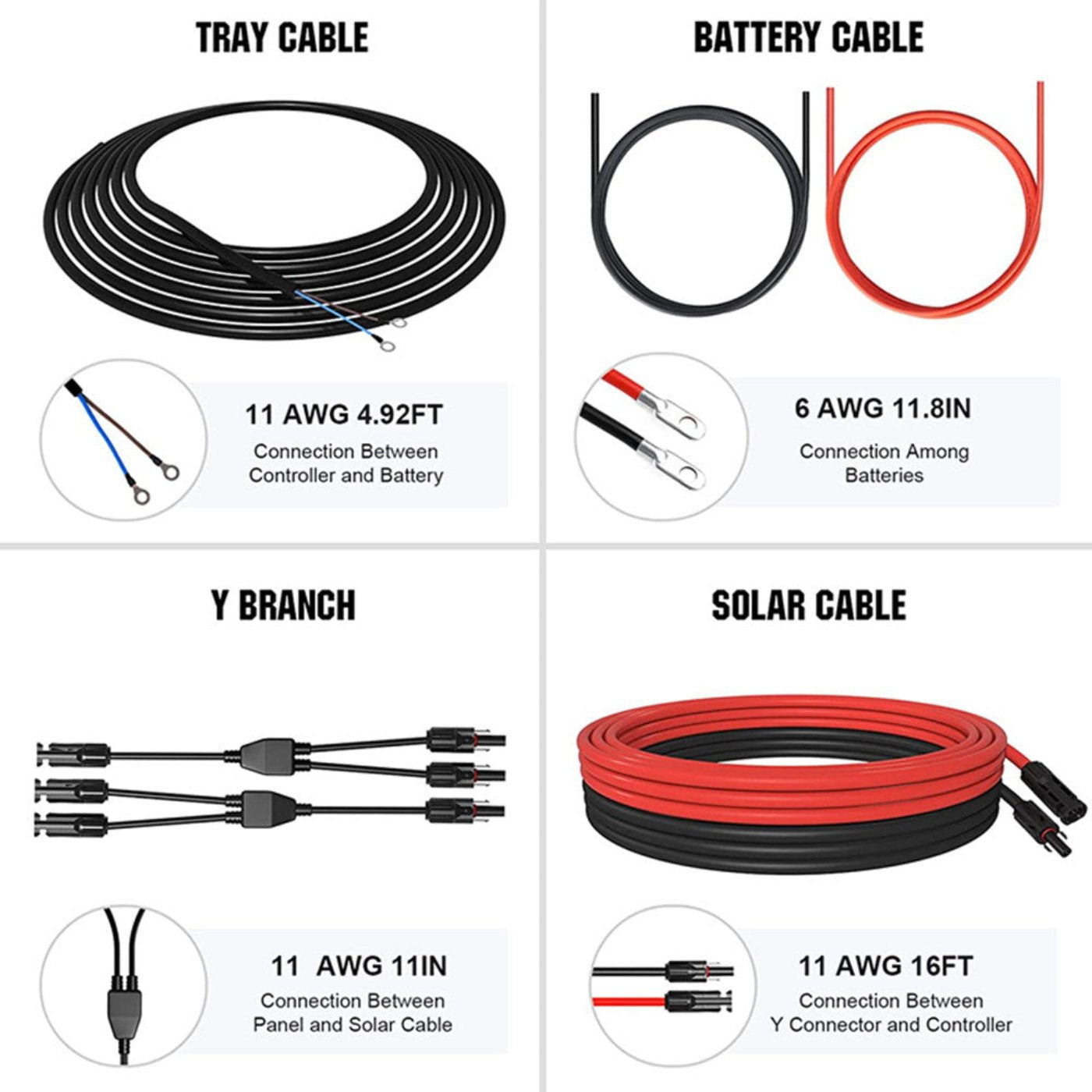

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets

8 pieces of stainless steel nuts and cap bolts
