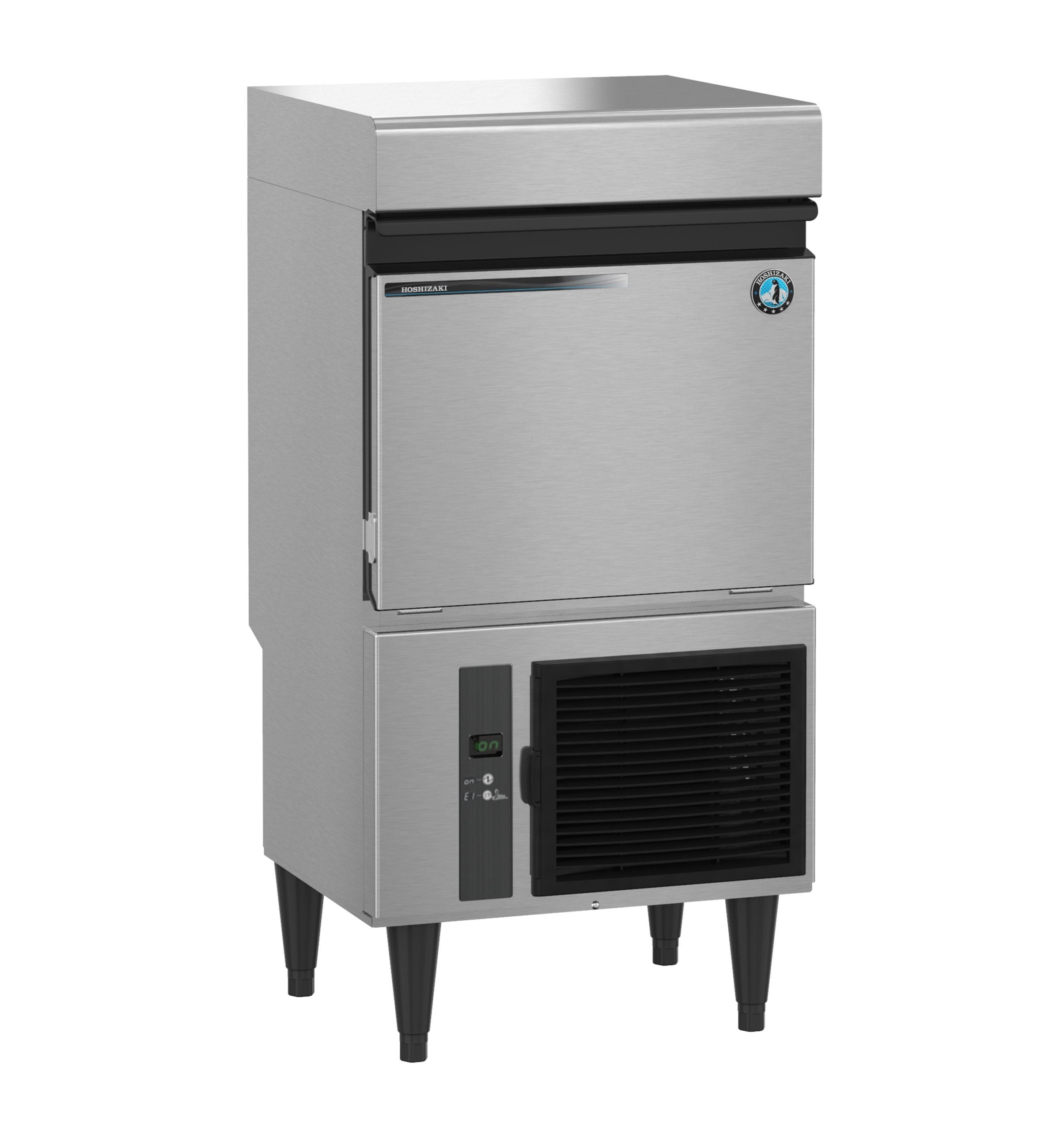

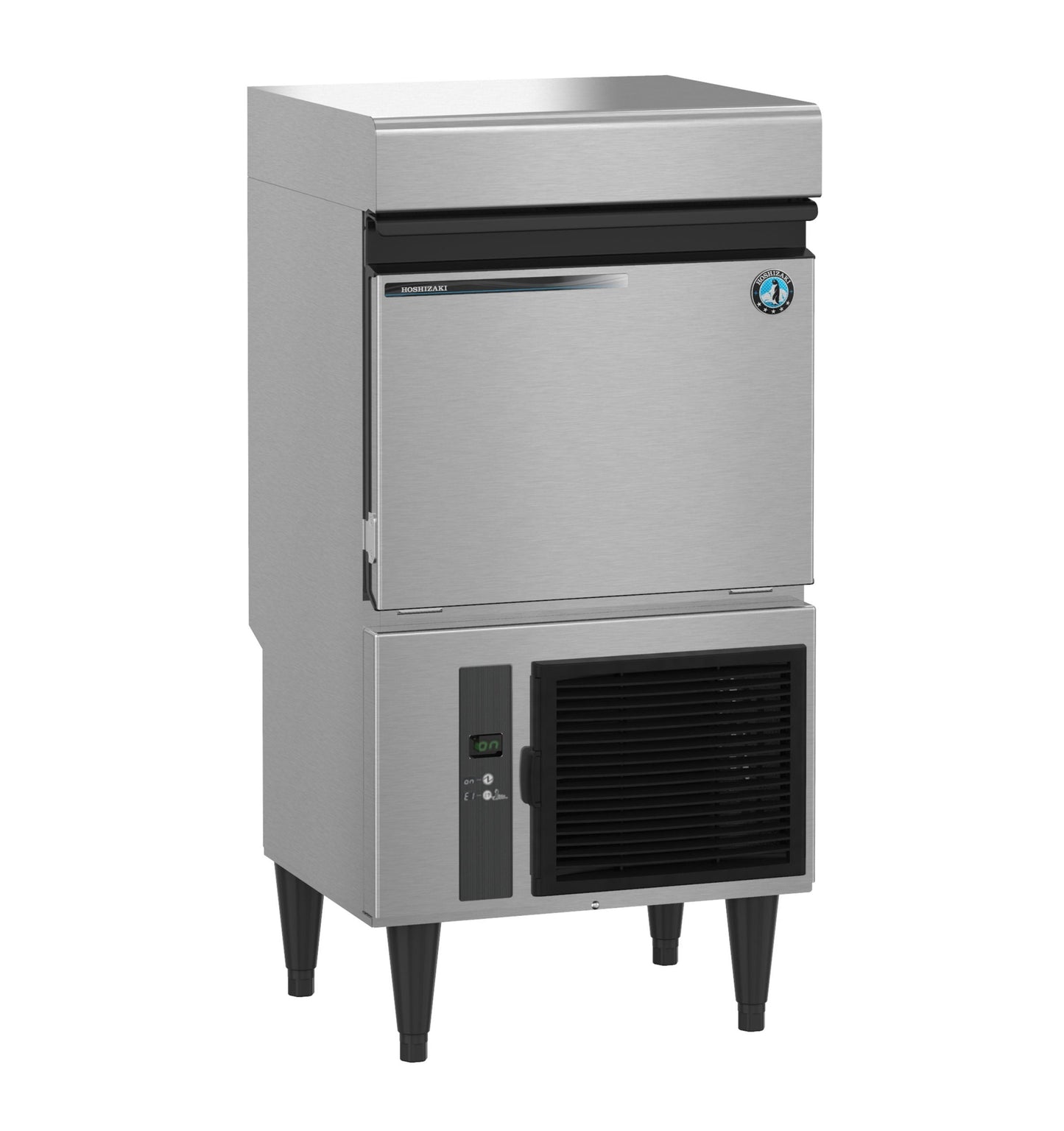

Hoshizaki | 20" Wide Air-Cooled Square Cuber Ice Maker w/ Built-In Storage Bin - IM-50BAA-LM

Hoshizaki  | 20" Wide Air-Cooled Square Cuber Ice Maker w/ Built-In Storage Bin - IM-50BAA-LM

The IM-50BAA-LM is capable of producing approximately 50 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with minimal dilution. This Air-cooled, Built in Storage Bin icemaker features Up to 22 lbs of built-in storage capacity* and its Small footprint can easily fit under a bar counter. The IM-50BAA-LM is Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug and uses R-134a refrigerant (6.0 oz. / 170 g). Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice

Features

• Dimensions: 19-3/4″ W x 17-3/4″ D x 39- 1/2 ” H
• Up to 50 lbs of ice produced per 24 hours
• Up to 22 lbs of built-in storage capacity
• Produces individual clear, solid 1.9″ x 1.9″ x 2.3″ cubes
• Durable stainless steel exterior
• Front in, back out airflow
• Ice scoop included
• Foam injected polyurethane for insulation (HFC free)
• Small footprint can easily fit under a bar counter
• R-134a refrigerant (6.0 oz. / 170 g)
• Heat Rejection:1500 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 5 amps (15 Amp Max fuse)
• 15.7 kwh/100 lbs.90/70
• Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span

 Specifications

What Our Experts Think

The Hoshizaki IM-50BAA-LM 20" Wide Air-Cooled Square Cuber Ice Maker is a premium choice for those who need crystal-clear, slow-melting ice cubes in a compact, efficient design. Here’s why it stands out:

• Exceptional Ice Quality: Produces perfectly square, dense, and slow-melting cubes—ideal for upscale beverages.
• Compact & Space-Saving: 20” wide design fits seamlessly under counters or in tight spaces.
• Built-In Storage Bin: Holds up to 22 lbs of ice, ensuring a steady supply.
• Efficient Air-Cooled System: Reduces water waste while maintaining optimal performance.
• Durable Stainless Steel Construction: Ensures longevity and easy cleaning.

Q&A

Q: What is the Hoshizaki IM-50BAA-LM Ice Maker?
A: The IM-50BAA-LM is a 20" wide, air-cooled square cuber ice maker with a built-in storage bin, designed for commercial and residential use.

Q: How much ice can it produce?
A: It produces up to 50 lbs of crystal-clear square ice cubes per day.

Q: What is the storage capacity?
A: The built-in bin holds up to 22 lbs of ice, ensuring a steady supply for daily needs.

Q: Is it energy efficient?
A: Yes! This model is ENERGY STAR® certified, providing efficient operation and reduced energy costs.

Q: What type of ice does it make?
A: It produces dense, slow-melting square cubes, perfect for cocktails, beverages, and food presentations.

Q: Is it suitable for undercounter installation?
A: Yes, its compact design allows for seamless undercounter or freestanding installation.

Q: Does it have a built-in filter?
A: While it does not include a built-in filter, using an external water filter is recommended for optimal performance and ice quality.

Q: What kind of maintenance is required?
A: Regular cleaning and descaling are recommended to maintain peak performance and ice purity.

Maintenance Tips

• Clean Regularly – Wipe exterior with a damp cloth and clean the interior with a food-safe sanitizer.
• Descale & Sanitize – Remove mineral buildup and sanitize the ice-making components per manufacturer guidelines.
• Check Air Filters – Clean or replace air filters to maintain efficient cooling and performance.
• Inspect Water Lines – Ensure hoses and connections are secure and free of leaks or blockages.
• Empty & Dry Storage Bin – Prevent mold and odors by regularly emptying and drying the ice bin.
