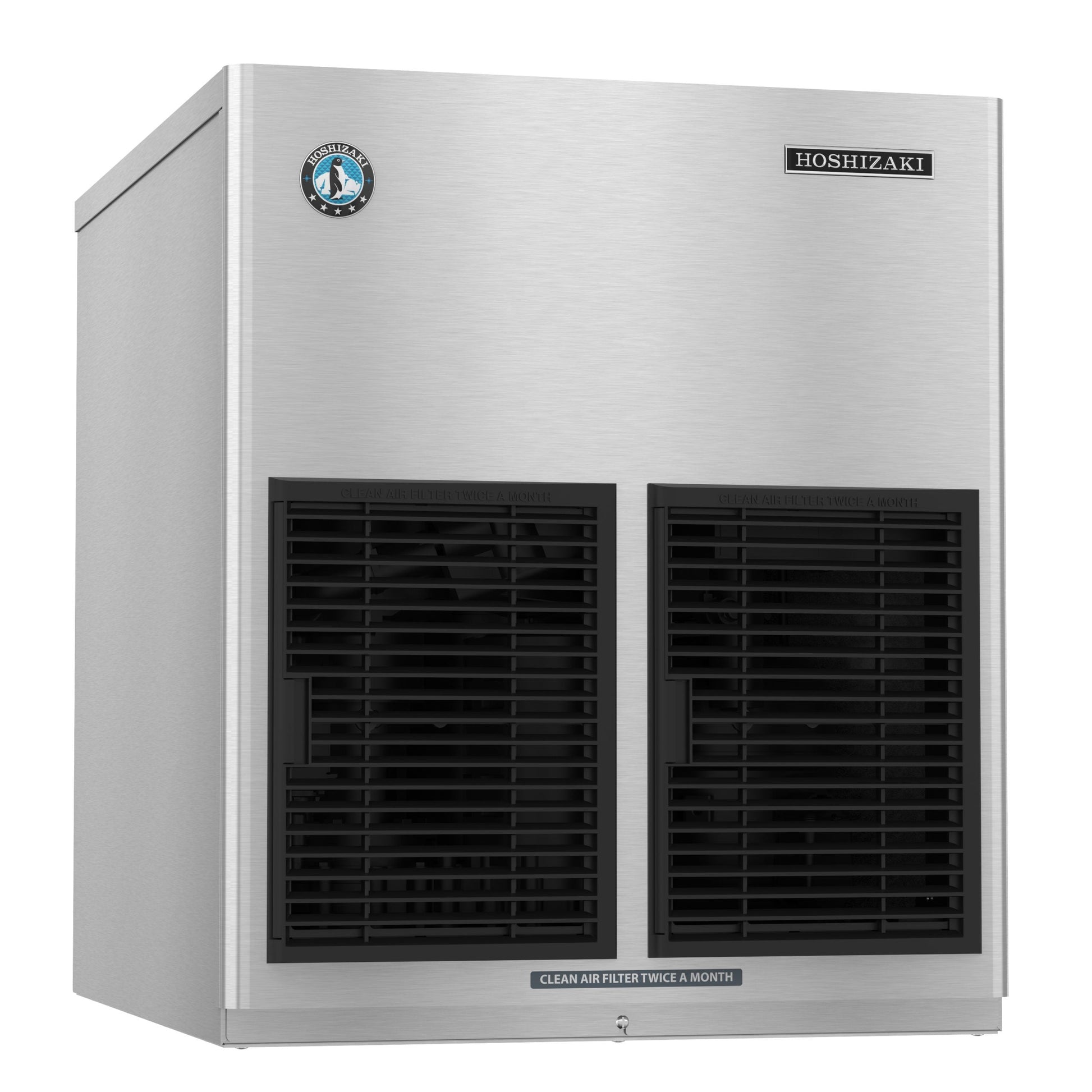

Hoshizaki | 22" Wide Air-Cooled Small Cubelet Ice Maker (Bin Sold Separately) - F-1002MAJ-C
The F-1002MAJ-C is capable of producing approximately 890 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1002MAJ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 22″ W x 27-3/8″ D x 25-15/16″ H
- Up to 890 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces small cubelet nugget-style ice
- Durable stainless steel exterior

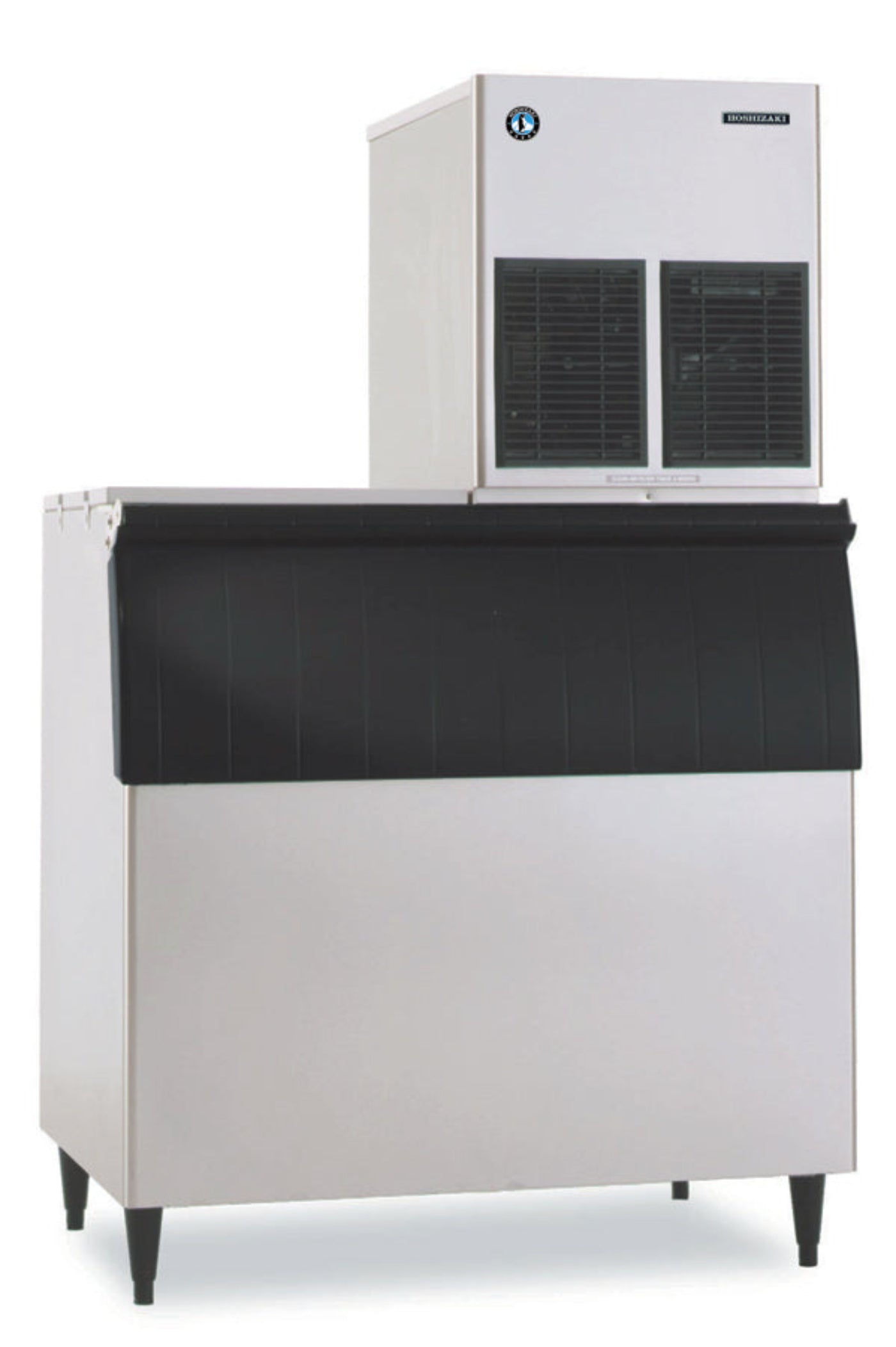

- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (2 lbs. 4 oz. / 1025 g)
- Heat Rejection:8700 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 15.23 amps (20 Amp Max fuse)
- 4.57 kwh/100 lbs. 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
Specifications
| Brand |
Hoshizaki |
| Model Number |
F-1002MAJ-C |
| Weight |
205 lbs |
| Width |
22" |
| Depth |
27.38" |
| Height |
26" |
| Compatible With |
ice storage bin |
| Cooling |
air-cooled |
| Ice Type |
nugget ice |
| Refrigeration |
self-contained refrigeration |
| Production per 24 hr (Lbs) |
890 |
| Voltage |
115 |
| Phase |
1 |
| Drain Type |
gravity drain |
What Our Experts Think
The Hoshizaki F-1002MAJ-C 22" Wide Air-Cooled Small Cubelet Ice Maker is a compact yet powerful ice-making solution for businesses that require soft, chewable ice. Here’s why it’s a great choice:
-
High Ice Production: Generates up to 890 lbs. of small cubelet ice per day—ideal for healthcare, hospitality, and beverage applications.
-
Air-Cooled System: Efficient operation with lower water usage, reducing utility costs.
-
Soft, Chewable Ice: Perfect for drinks, blended beverages, and healthcare use.
-
Compact 22" Width: Space-saving design that fits well in various commercial setups.
-
Durable Stainless Steel Build: Ensures longevity, easy maintenance, and corrosion resistance.
-
Bin Sold Separately: Allows businesses to customize their storage capacity to match their needs.
Q&A
Q: What is the Hoshizaki F-1002MAJ-C Ice Maker used for?
A: The Hoshizaki F-1002MAJ-C is a 22-inch-wide, air-cooled small cubelet ice maker designed for restaurants, healthcare facilities, and beverage stations that need a reliable supply of chewable ice.
Q: How much ice does this machine produce daily?
A: It produces up to 890 lbs. of small cubelet ice per day, making it ideal for high-demand environments.
Q: What type of ice does it make?
A: It produces soft, chewable small cubelet ice, perfect for blended drinks, soft drinks, and medical applications.
Q: Does this ice maker include a storage bin?
A: No, the ice storage bin is sold separately, allowing users to customize their setup based on their storage needs.
Q: What are the benefits of an air-cooled system?
A: Air-cooled systems are energy-efficient and cost-effective, requiring no additional water for cooling, reducing overall operating costs.
Q: Is this ice maker new?
A: Yes, the F-1002MAJ-C is brand-new, offering high-performance ice production with Hoshizaki’s durable and hygienic design.
Maintenance Tips
-
Clean the Exterior: Wipe the stainless steel surface regularly with a damp cloth and mild detergent to maintain cleanliness and prevent buildup.
-
Sanitize Ice-Making Components: Every 3-6 months, clean and sanitize the evaporator, auger, and water system with a Hoshizaki-approved cleaning solution.
-
Inspect & Replace Water Filters: Regularly check and replace water filters to prevent mineral buildup, improve ice quality, and maintain efficiency.
-
Monitor Ice Production: If ice appears wet, clumped, or irregularly shaped, check for scale buildup, water flow issues, or airflow restrictions.
-
Maintain the Ice Bin (Sold Separately): Regularly clean the bin to prevent ice contamination and ensure proper storage conditions.
-
Check & Clean Air Filters: Inspect air filters monthly and clean them to maintain proper airflow and prevent overheating.
-
Inspect Condenser Coils: Keep the air-cooled condenser free of dust and debris for optimal heat dissipation and performance.
-
Schedule Professional Maintenance: Arrange an annual service with a qualified technician to inspect refrigerant levels, electrical components, and overall system efficiency.
