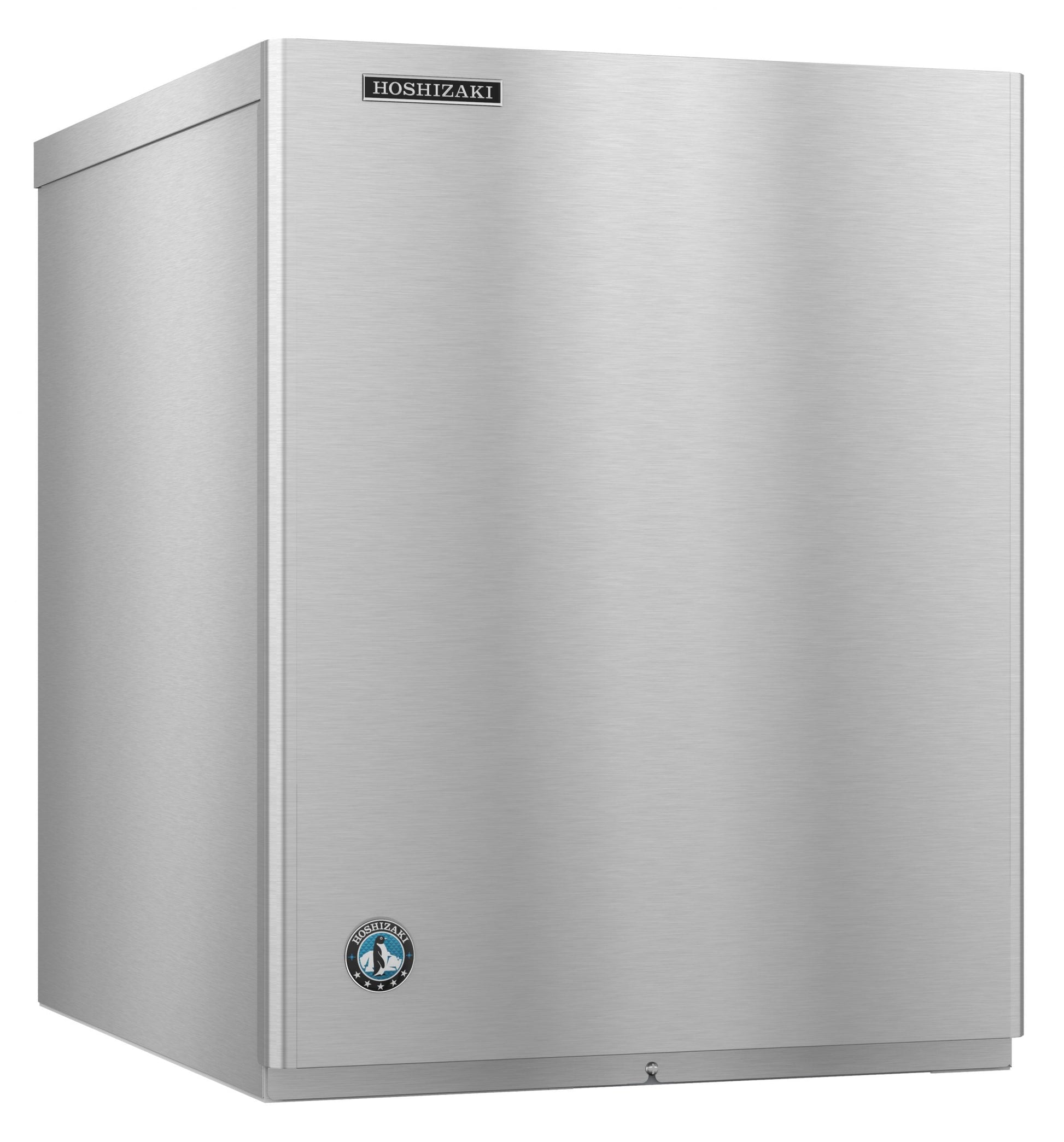

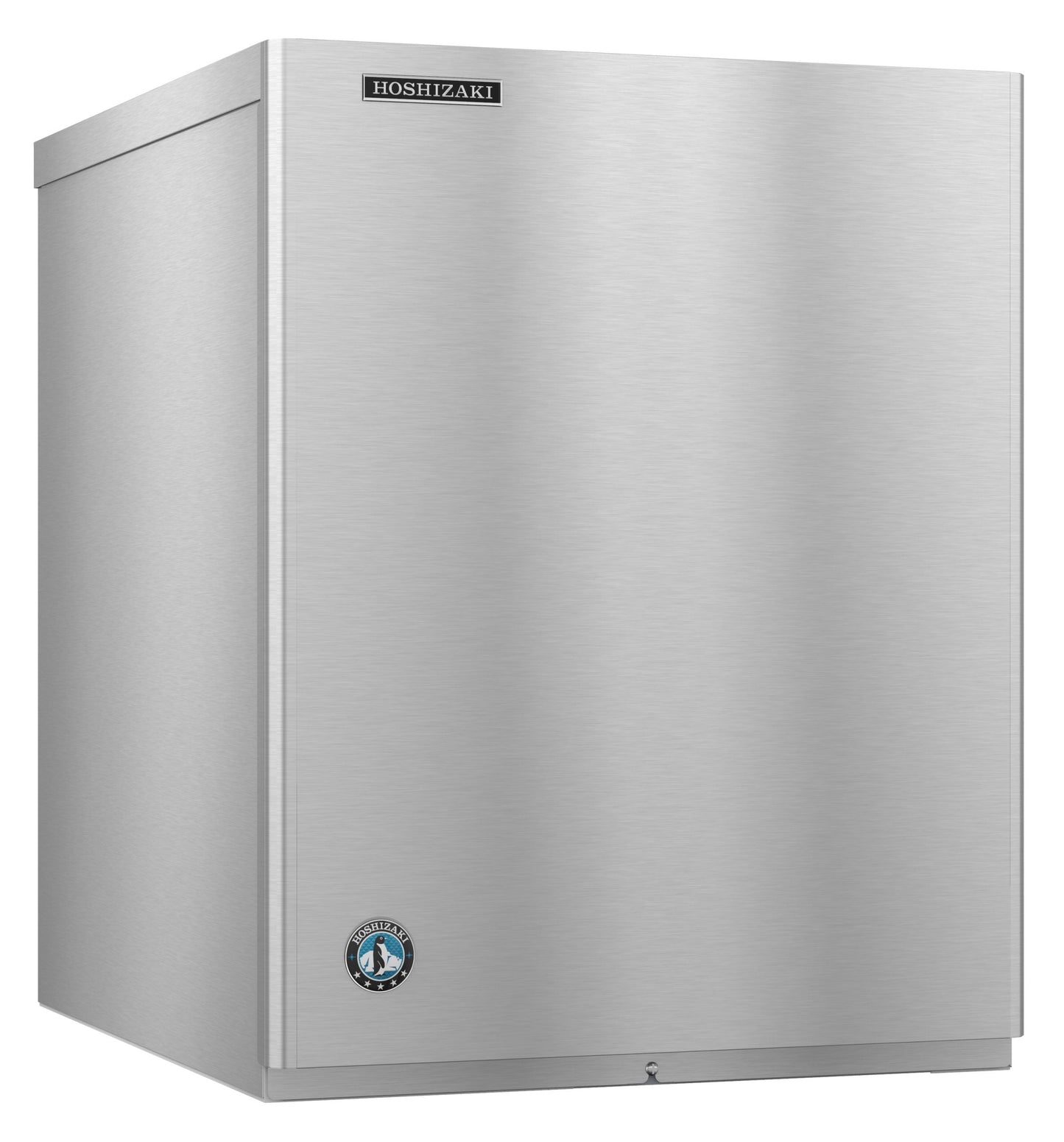

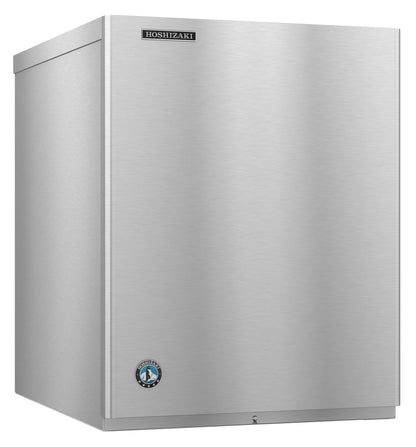

Hoshizaki | 22" Wide Water-Cooled Crescent Cuber Ice Maker (Bin Sold Separately) - KM-660MWJ
The KM-660MWJ is capable of producing approximately 647 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Slim Line Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-660MWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details. Replaces KM-650MWJ.
Features
- Dimensions: 22″ W x 27-3/8″ D x 28″ H
- Up to 647 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior

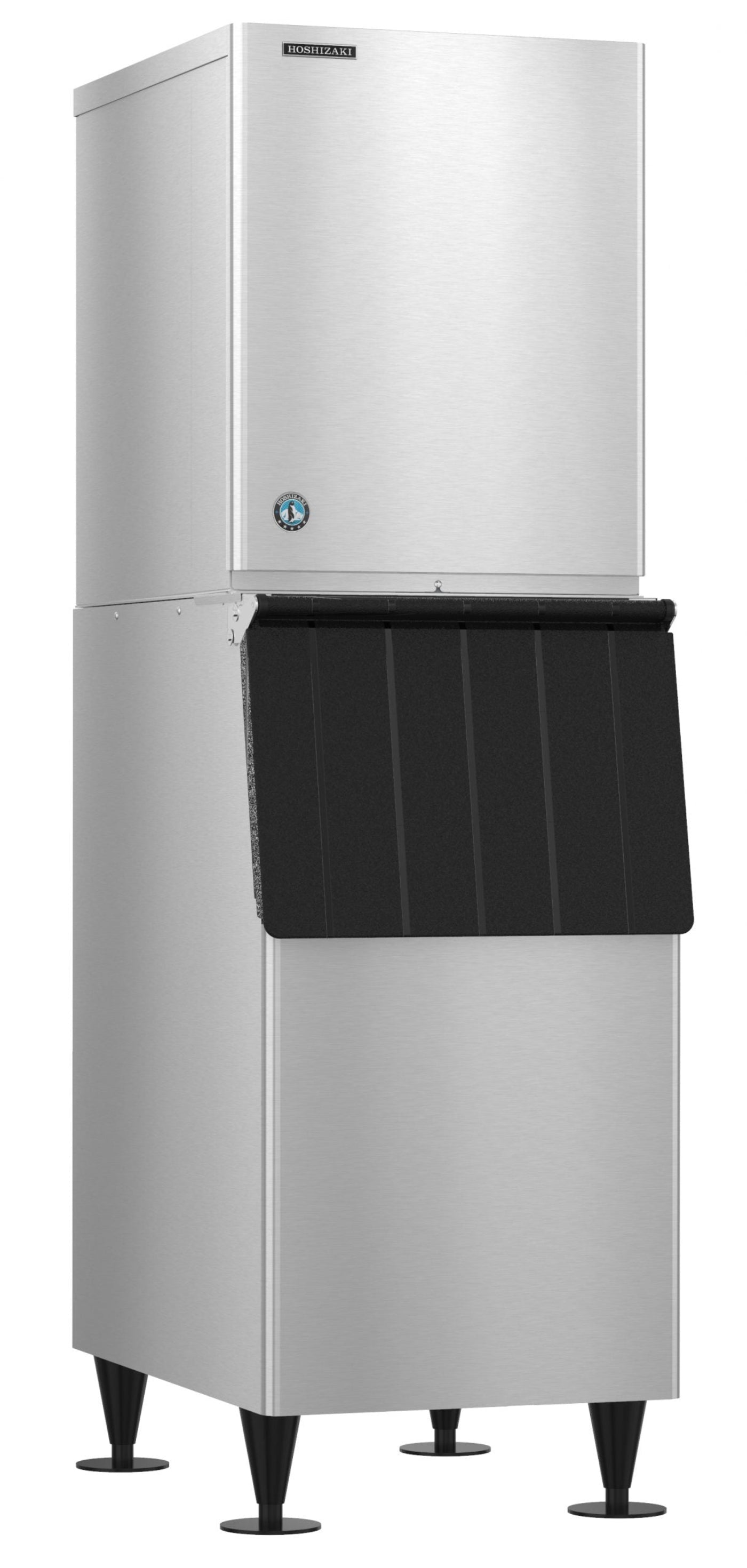

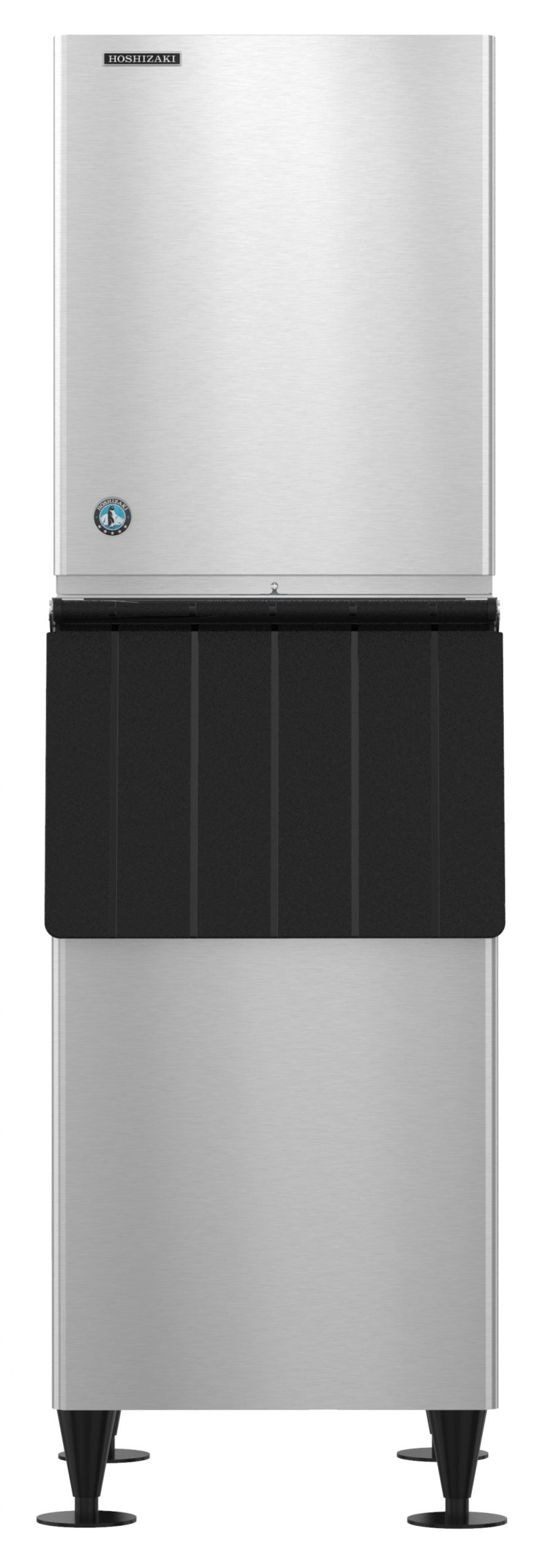

- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
- EverCheck™ alert system
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (15.2 oz. / 431 g)
- Heat Rejection:11100 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 12.35 amps (20 Amp Max fuse)
- 4.28 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts & Labor warranty on evaporator.
Specifications
| Brand |
Hoshizaki |
| Model Number |
KM-660MWJ |
| Weight |
180 lbs |
| Width |
22" |
| Depth |
27.38" |
| Height |
28" |
| Compatible With |
ice bin or dispenser |
| Cooling |
water-cooled |
| Ice Type |
crescent cubes |
| Refrigeration |
self-contained refrigeration |
| Production per 24 hr (Lbs) |
669 |
| Voltage |
115 |
| Phase |
1 |
| Drain Type |
gravity drain |
What Our Experts Think
-
Compact & Powerful: 22-inch wide design provides efficient ice production in smaller spaces, perfect for medium-volume needs.
-
Water-Cooled System: Water-cooled technology reduces noise and ensures consistent performance, ideal for controlled indoor environments.
-
Crescent Ice: Produces high-quality, slow-melting crescent-shaped ice, perfect for beverages and commercial use.
-
Durable & Reliable: Built for continuous, heavy-duty use in demanding commercial settings, ensuring a consistent supply of ice.
-
Bin Sold Separately: Customizable ice storage with the option to purchase the appropriate bin for your specific needs.
Q&A
A: The Hoshizaki KM-660MWJ is a 22-inch wide water-cooled crescent cuber ice maker designed for high-efficiency ice production in commercial environments. (Bin sold separately.)
Q: What type of ice does the Hoshizaki KM-660MWJ produce?
A: It produces crescent-shaped ice, known for its slow melting and ideal cooling properties, perfect for beverages and food service applications.
Q: Is the ice maker water-cooled?
A: Yes, the KM-660MWJ is water-cooled, ensuring efficient performance and reducing heat buildup, making it suitable for commercial environments with water cooling requirements.
Q: Does the Hoshizaki KM-660MWJ come with a bin?
A: No, the bin is sold separately, giving you the flexibility to choose the right bin for your storage needs.
Q: How much ice does the Hoshizaki KM-660MWJ produce?
A: The KM-660MWJ can produce up to 660 pounds of crescent ice per day, ideal for medium to high-volume commercial applications.
Maintenance Tips
-
Regular Cleaning: Clean the exterior and interior with a damp cloth and mild detergent to remove dust and grime.
-
Descale the Unit: Perform regular descaling to prevent mineral buildup, which can impact ice production and efficiency.
-
Inspect Water Supply: Ensure the water supply line is clear, securely connected, and free of blockages to prevent leaks or poor water flow.
-
Check Water Filter: Replace or clean the water filter periodically to ensure the water quality remains high.
-
Empty Ice Bin: Regularly empty the ice bin to maintain ice quality and prevent contamination or odors.
