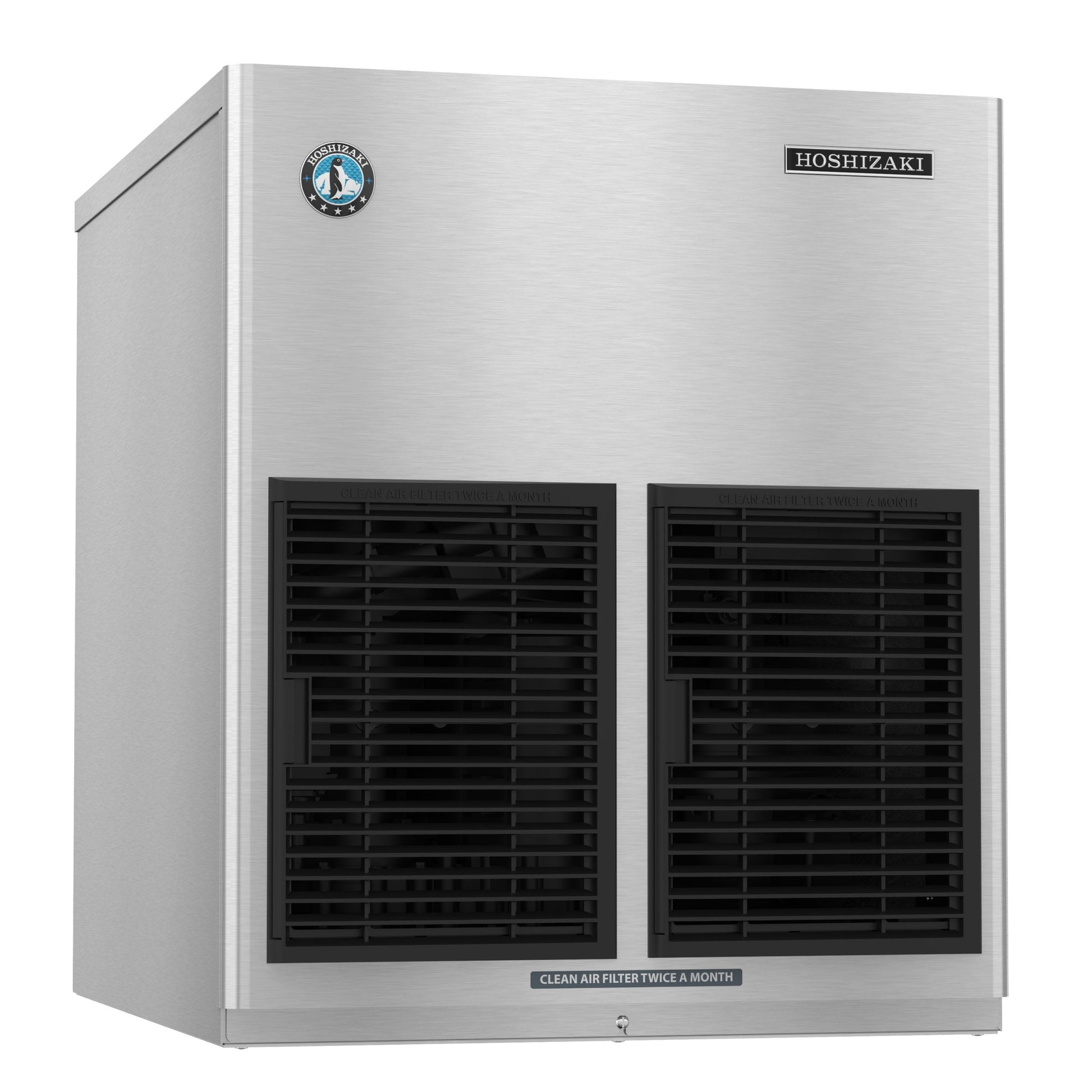

Hoshizaki | 22" Wide Water-Cooled Small Cubelet Ice Maker (Bin Sold Separately) - F-801MWJ-C
The F-801MWJ-C is capable of producing approximately 632 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Water-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-801MWJ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 22″ W x 27-3/8″ D x 26″ H
- Up to 632 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production

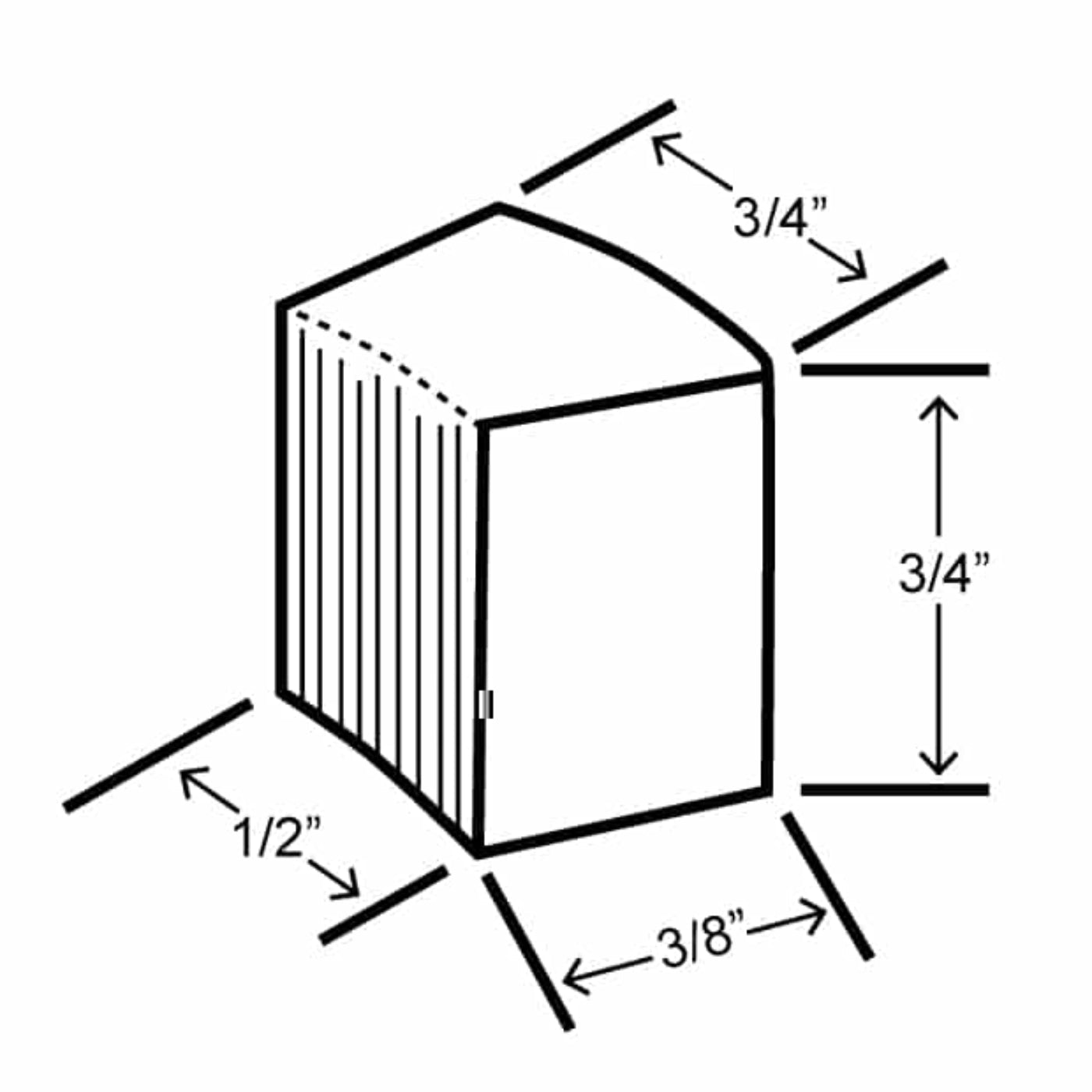

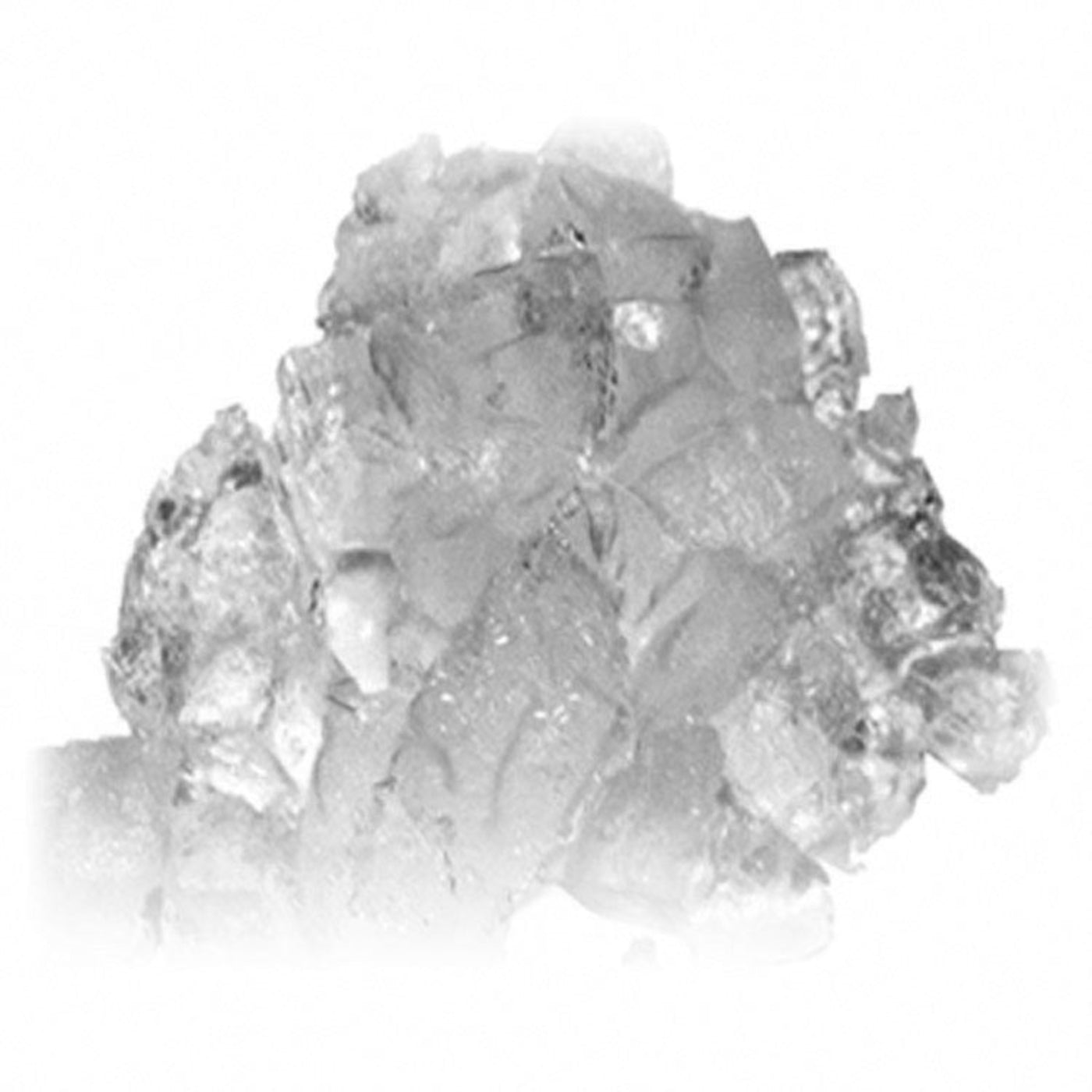

- Produces small cubelet nugget-style ice
- Durable stainless steel exterior

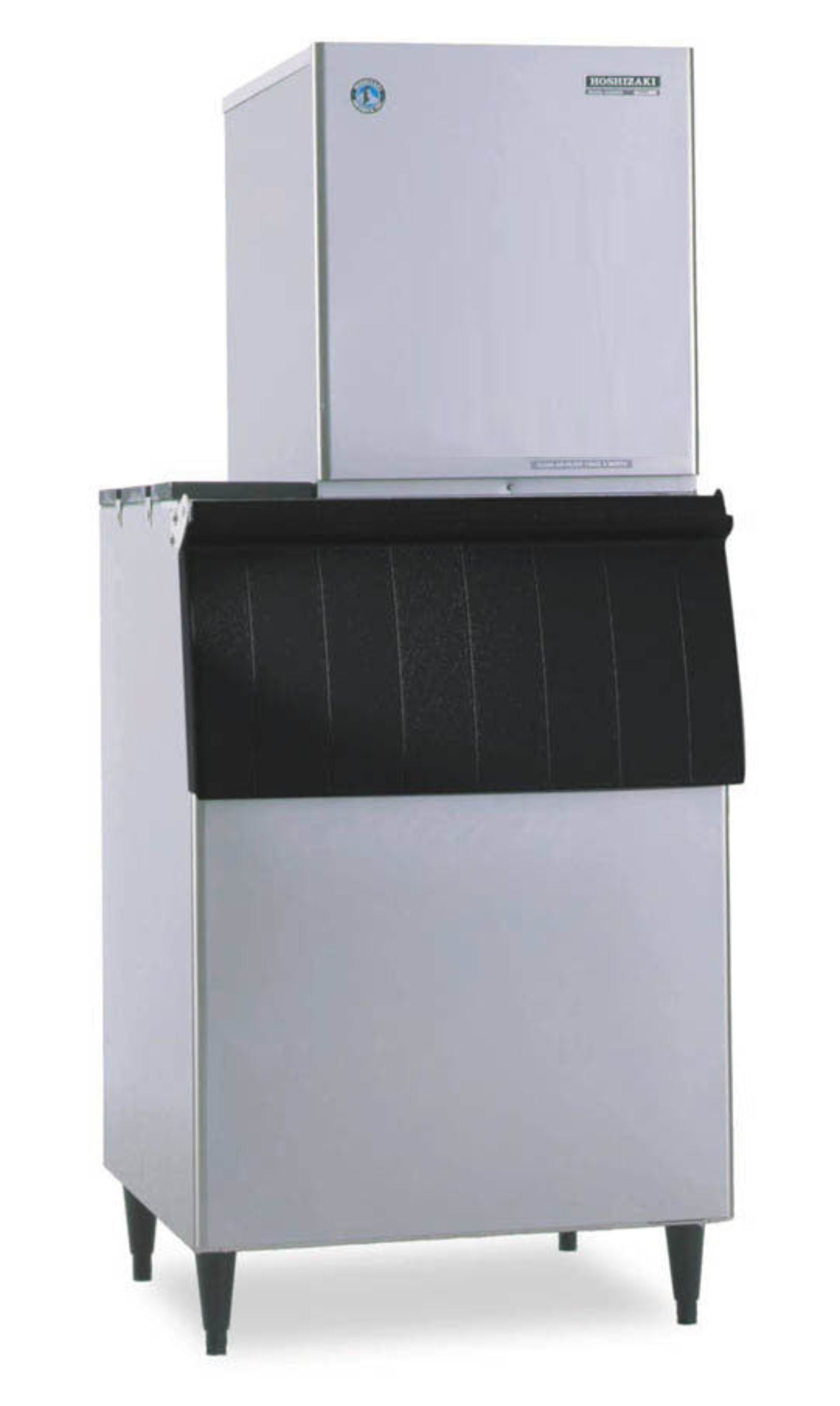

- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650
- 2 second rinse every hour to remove sediment for cleaner ice
- Advanced CleanCycle24™ design
- Infrared bin control for easy cleaning and reliability
- R-404A refrigerant (1 lbs. 12 oz. / 790 g)
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 11.5 amps (15 Amp Max fuse)
- 4.13 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Infrared bin control for easy cleaning and reliability
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Specifications
| Brand |
Hoshizaki |
| Model Number |
F-801MWJ-C |
| Weight |
200 lbs |
| Width |
22" |
| Depth |
27.38" |
| Height |
26" |
| Compatible With |
ice storage bin |
| Cooling |
water-cooled |
| Ice Type |
nugget ice |
| Refrigeration |
self-contained refrigeration |
| Production per 24 hr (Lbs) |
632 |
| Voltage |
115 |
| Phase |
1 |
| Drain Type |
gravity drain |
What Our Experts Think
-
Compact & Efficient: 22-inch wide design perfect for spaces with limited room but high ice production needs.
-
Water-Cooled System: Water-cooled technology provides quieter operation and efficient performance, ideal for indoor environments.
-
Small Cubelet Ice: Produces small, chewable cubelet ice that’s perfect for beverages and easy to handle.
-
Reliable & Durable: Built for consistent, high-quality ice production, ensuring dependable service in commercial settings.
-
Bin Sold Separately: Offers flexible ice storage options with a separate bin purchase, allowing for customized capacity.
Q&A
Q: What is the Hoshizaki F-801MWJ-C?
A: The Hoshizaki F-801MWJ-C is a 22-inch wide water-cooled small cubelet ice maker designed for efficient ice production in commercial environments. (Bin sold separately.)
Q: What type of ice does the Hoshizaki F-801MWJ-C produce?
A: It produces small, cubelet ice, ideal for beverages, providing quick chilling and a smooth texture.
Q: Is the ice maker water-cooled?
A: Yes, the F-801MWJ-C is water-cooled, ensuring efficient performance and optimal cooling in settings where water cooling is preferred.
Q: Does the Hoshizaki F-801MWJ-C come with a bin?
A: No, the bin is sold separately, allowing you to choose the right ice storage solution for your needs.
Q: How much ice does the Hoshizaki F-801MWJ-C produce?
A: The F-801MWJ-C can produce up to 800 pounds of ice per day, making it ideal for medium to high-demand commercial applications.
Maintenance Tips
-
Regular Cleaning: Wipe the exterior and interior with a damp cloth and mild detergent to remove dirt and stains.
-
Descale the Unit: Regular descaling is crucial to prevent mineral buildup and ensure efficient operation.
-
Check Water Filter: Clean or replace the water filter regularly to maintain water quality and avoid clogging.
-
Inspect Water Supply: Ensure the water supply line is properly connected and clear to prevent blockages or leaks.
-
Empty Ice Bin: Empty the ice bin regularly to maintain ice freshness and prevent odors or contamination.
