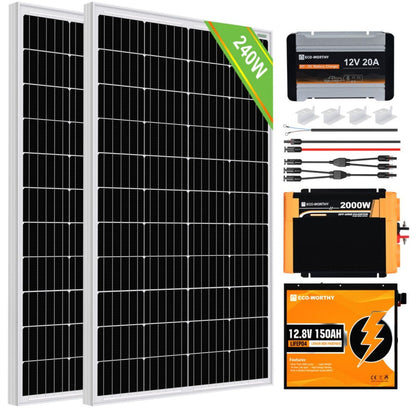

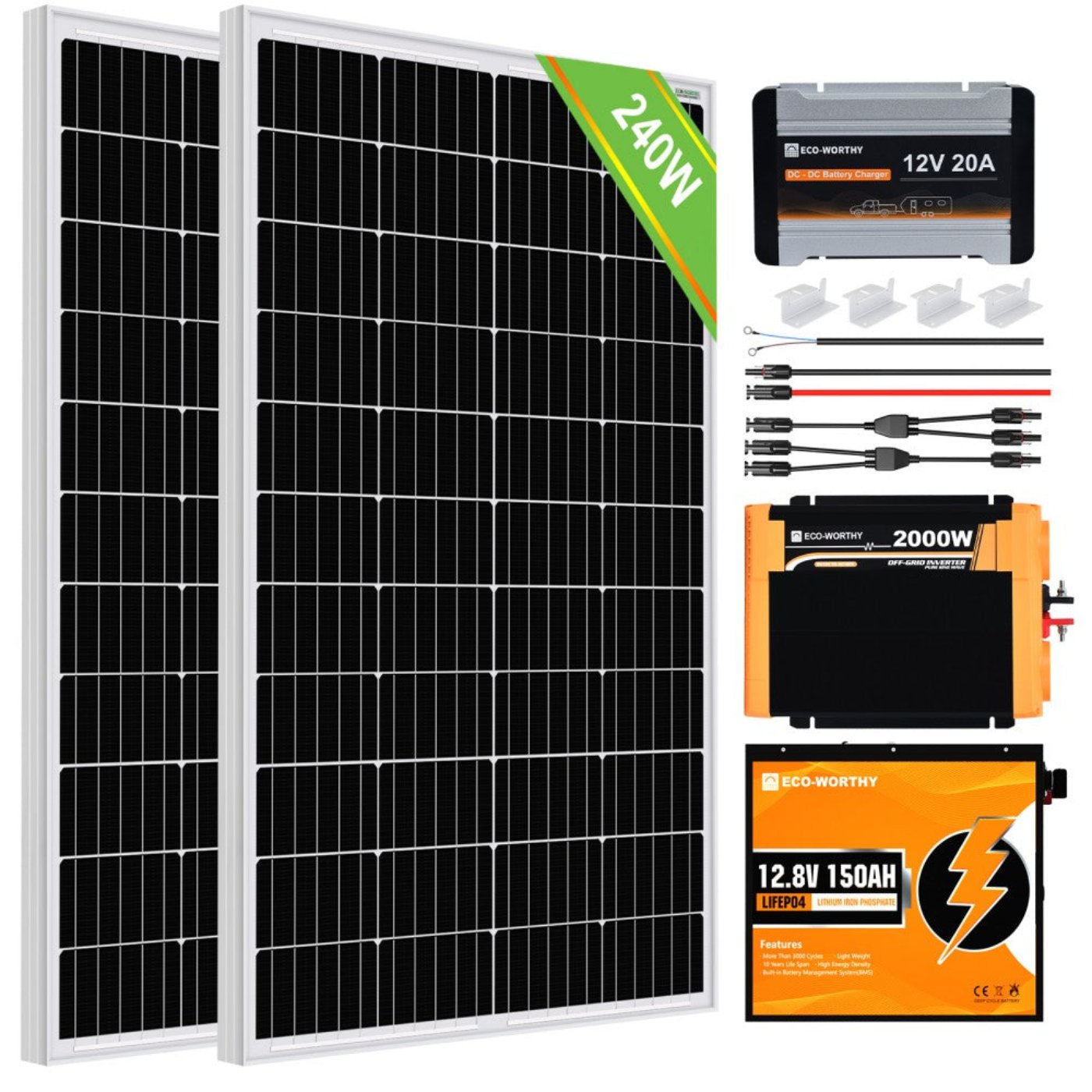

120W Monocrystalline Solar Panel
| Rated Power: 120W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 18V |
Open Circuit Voltage(Voc): 21.6V |
| Short circuit current: 7.72A |
Maximum current: 6.67A |
| Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame |
Length of extension cable: 90cm（2.95ft） |
| Size of extension cable: 4mm²（11AWG）/MC4 Connector |
Size: 37.8' x 26.3' x 1.4' |
| Weight: 16.5 lbs(7.5 kg) |
|

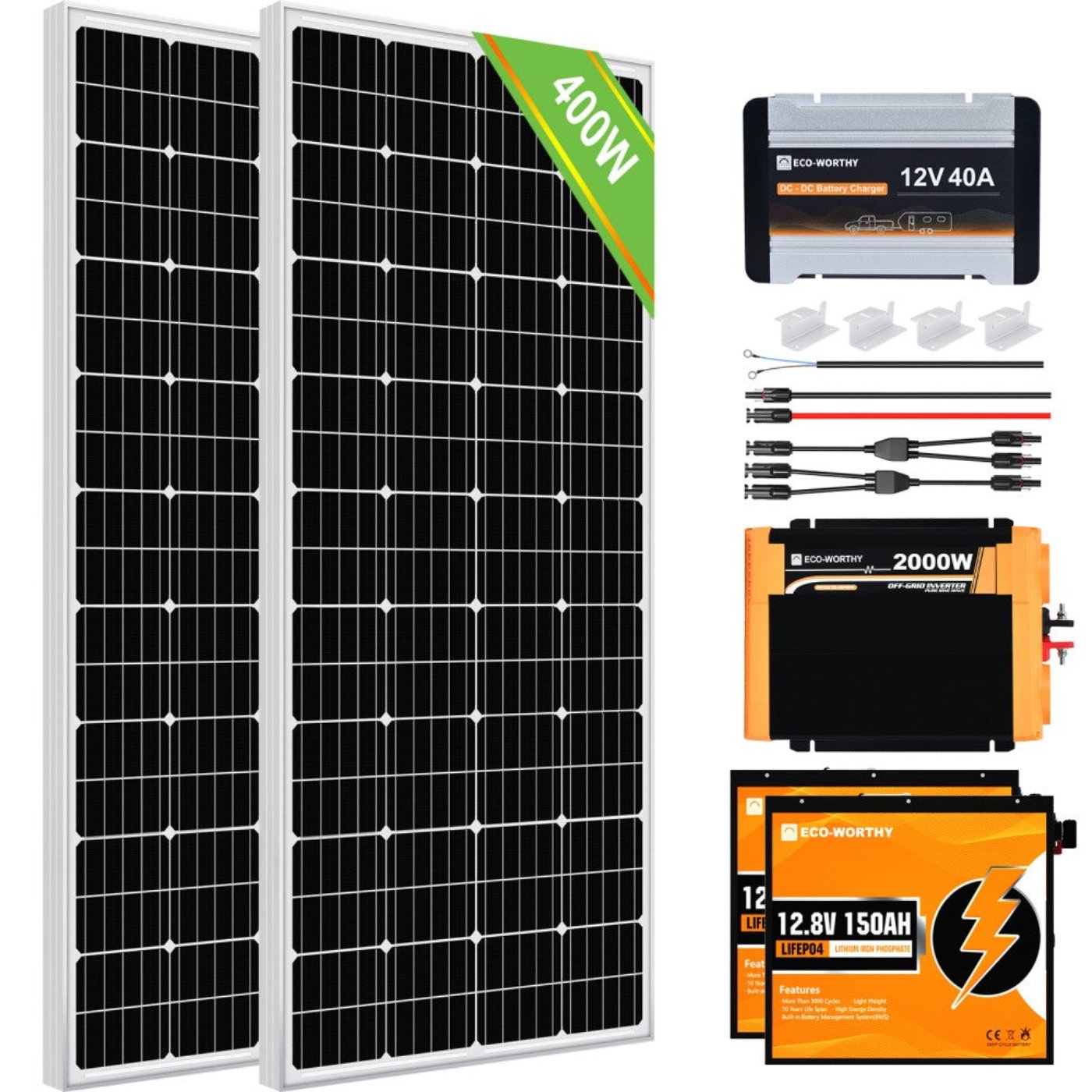

195W Monocrystalline Solar Panel
| Rated Power: 195W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 20.2V |
Open Circuit Voltage(Voc): 24.5 V |
| Short circuit current: 10.14A |
Maximum current: 9.65A |
| Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range:－40℃～ +85℃ |
| Frame: Aluminum alloy frame |
Length of extension cable: 90cm（2.95ft） |
| Size of extension cable: 4mm²（11AWG）/MC4 Connector |
Weight: 21.47 lbs(9.74 kg) |
| Size: 58.26x26.3x1.38in (1480*668*35mm) |
|

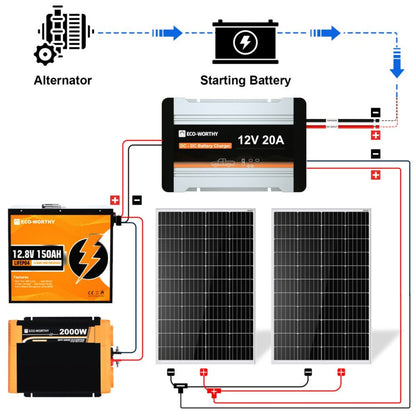

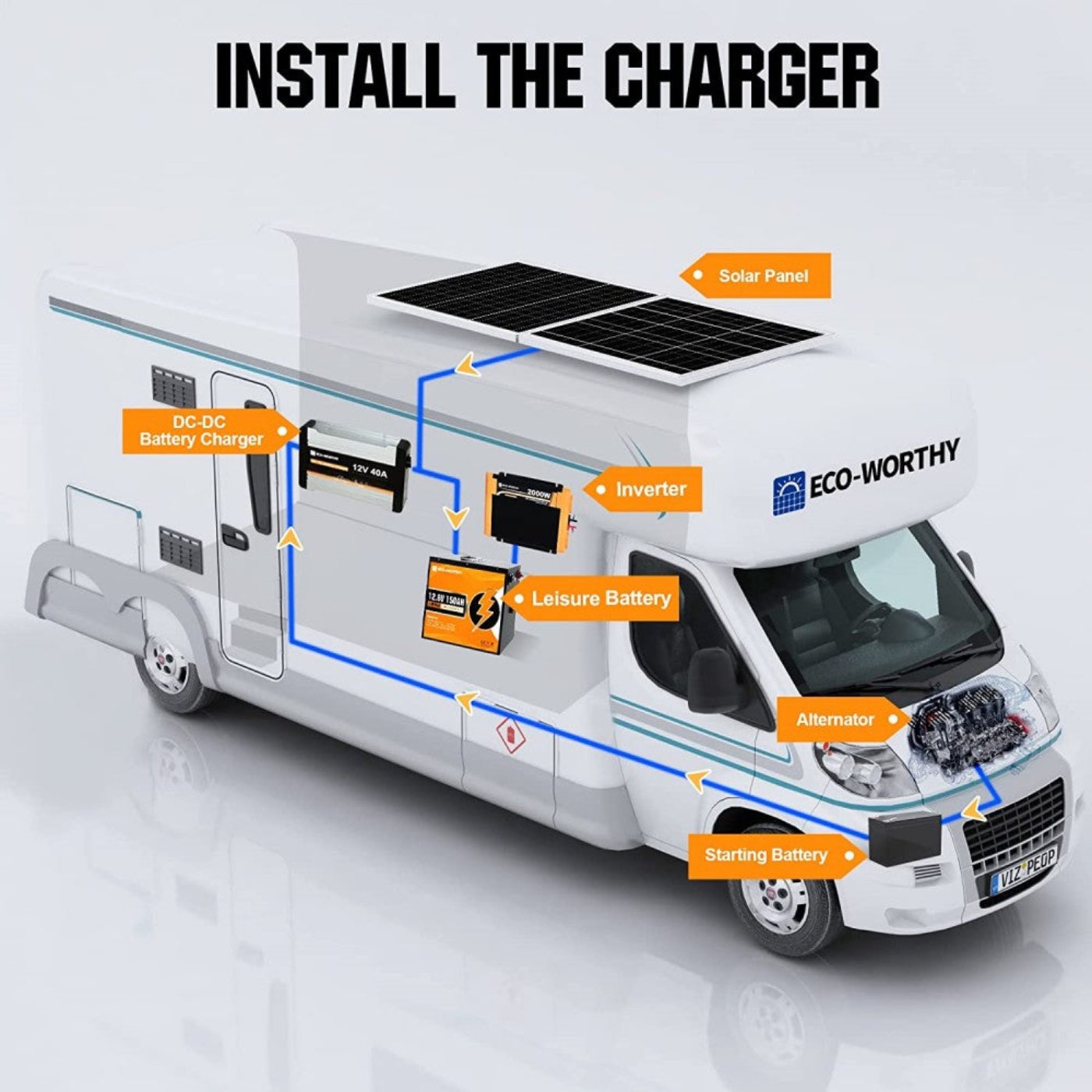

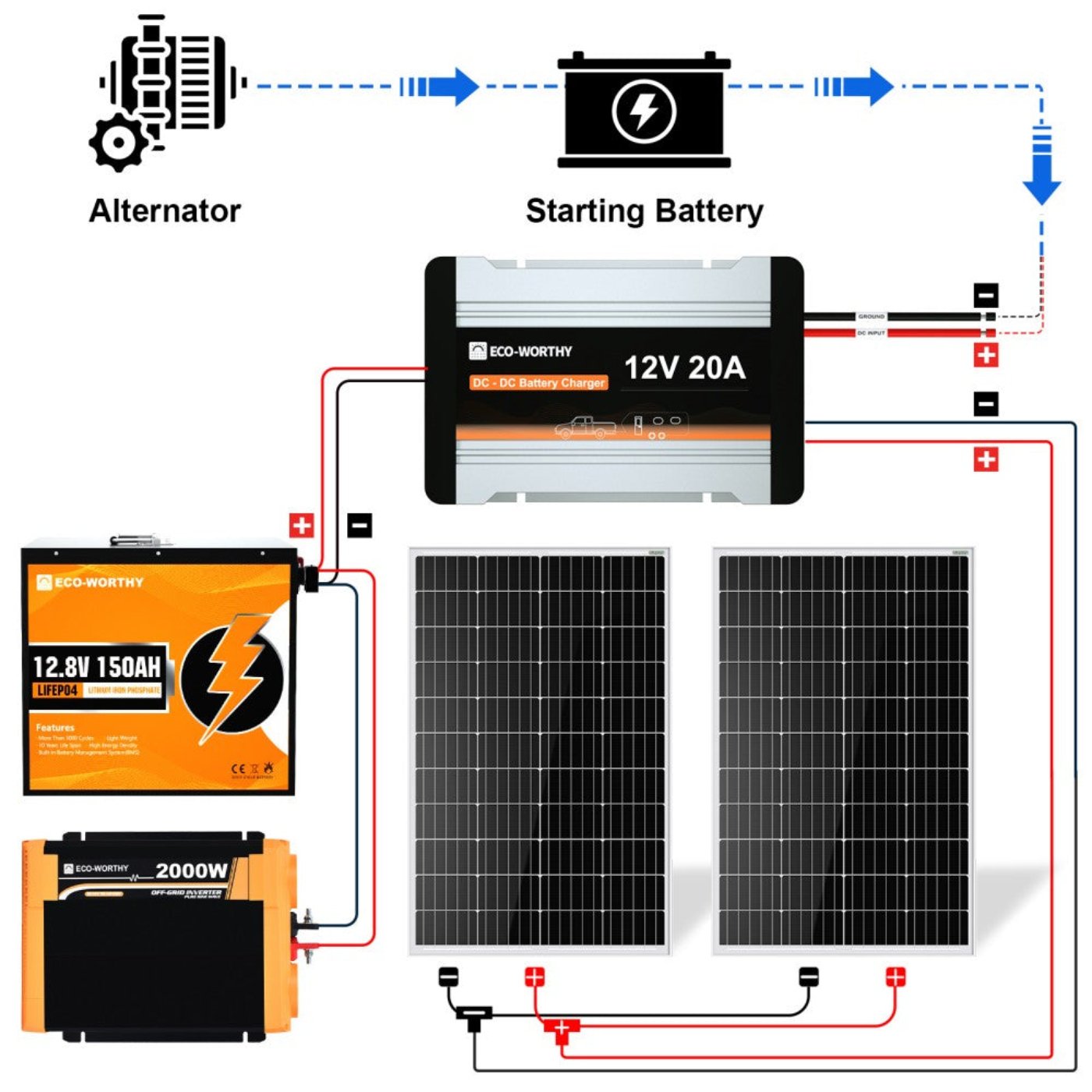

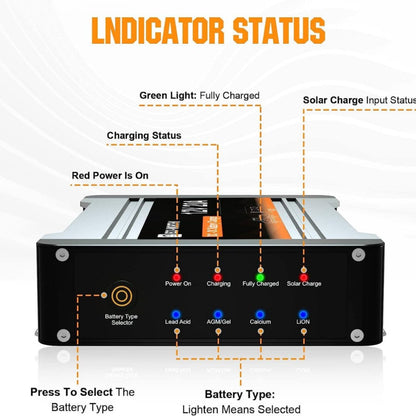

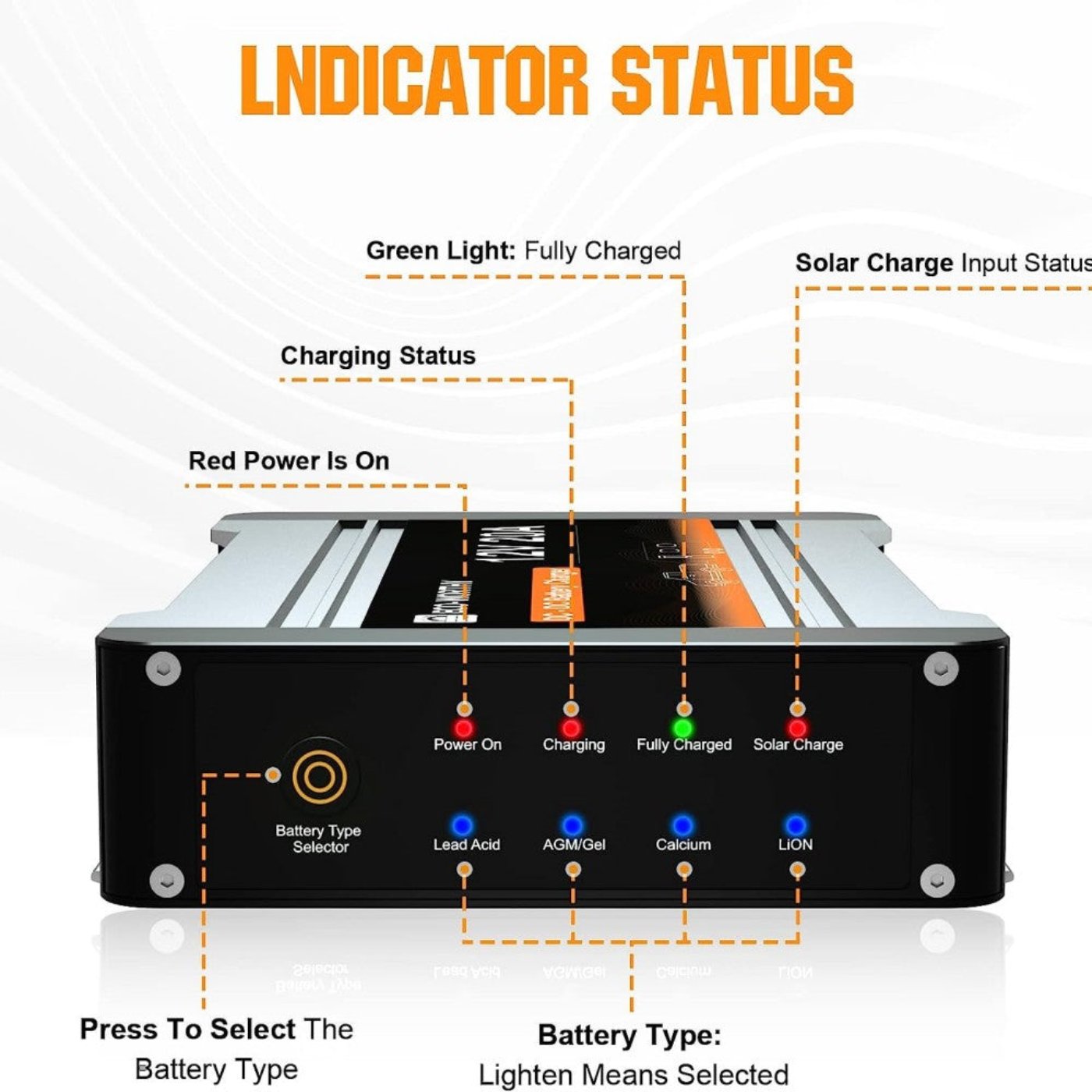

20A DC to DC Charger
| Type: Multi Stage |
Input: DC battery: 12.4-16.0V; Solar input: 16-25V |
| Output / Charging Voltage: 14.4-15.4V |
Output Current: DC Output: 20A; Solar Output: 20A |
| Minimum Start Voltage: 2.0V-For Battery Being Charged |
Soft Start: Yes |
| Soft Charge Current: 20A |
|

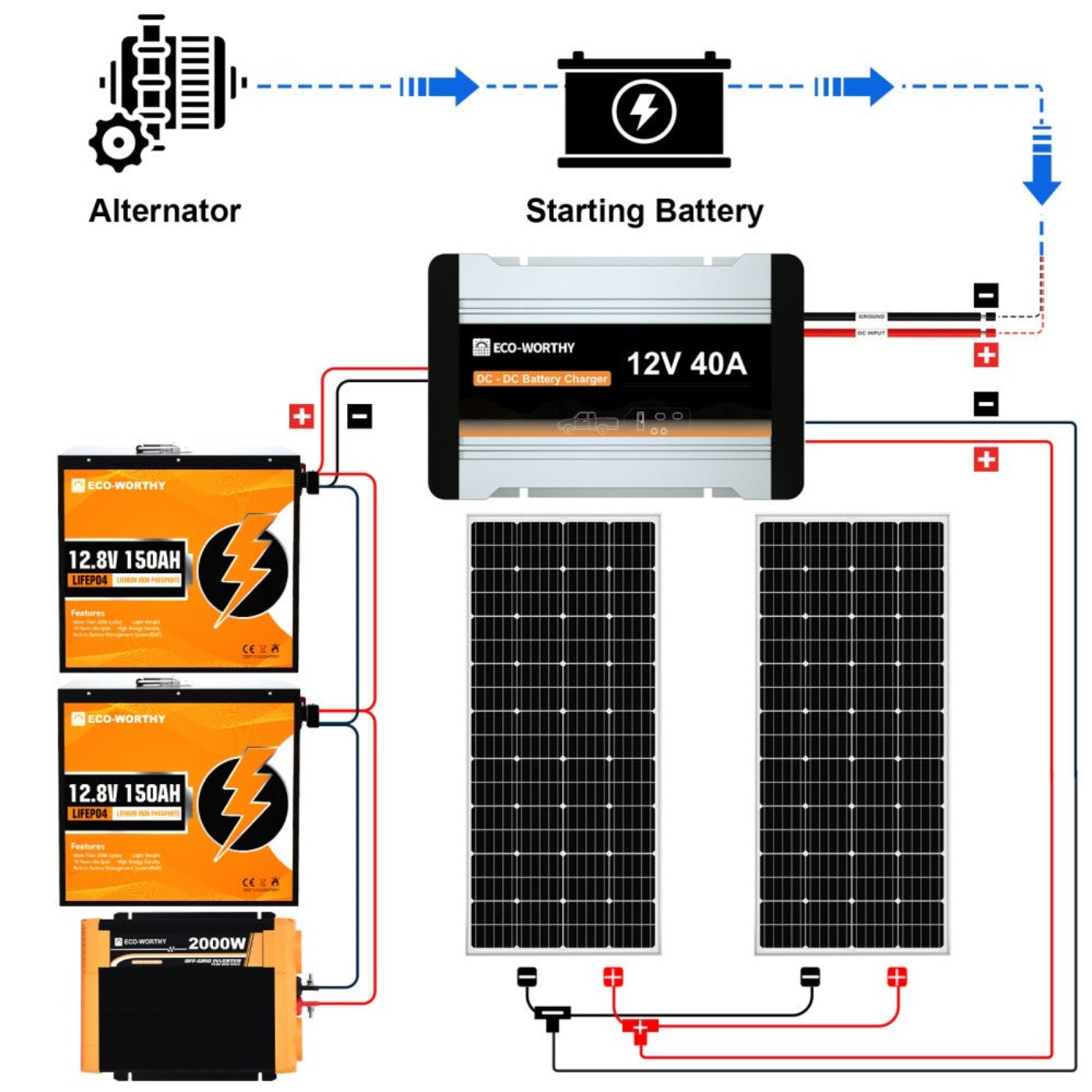

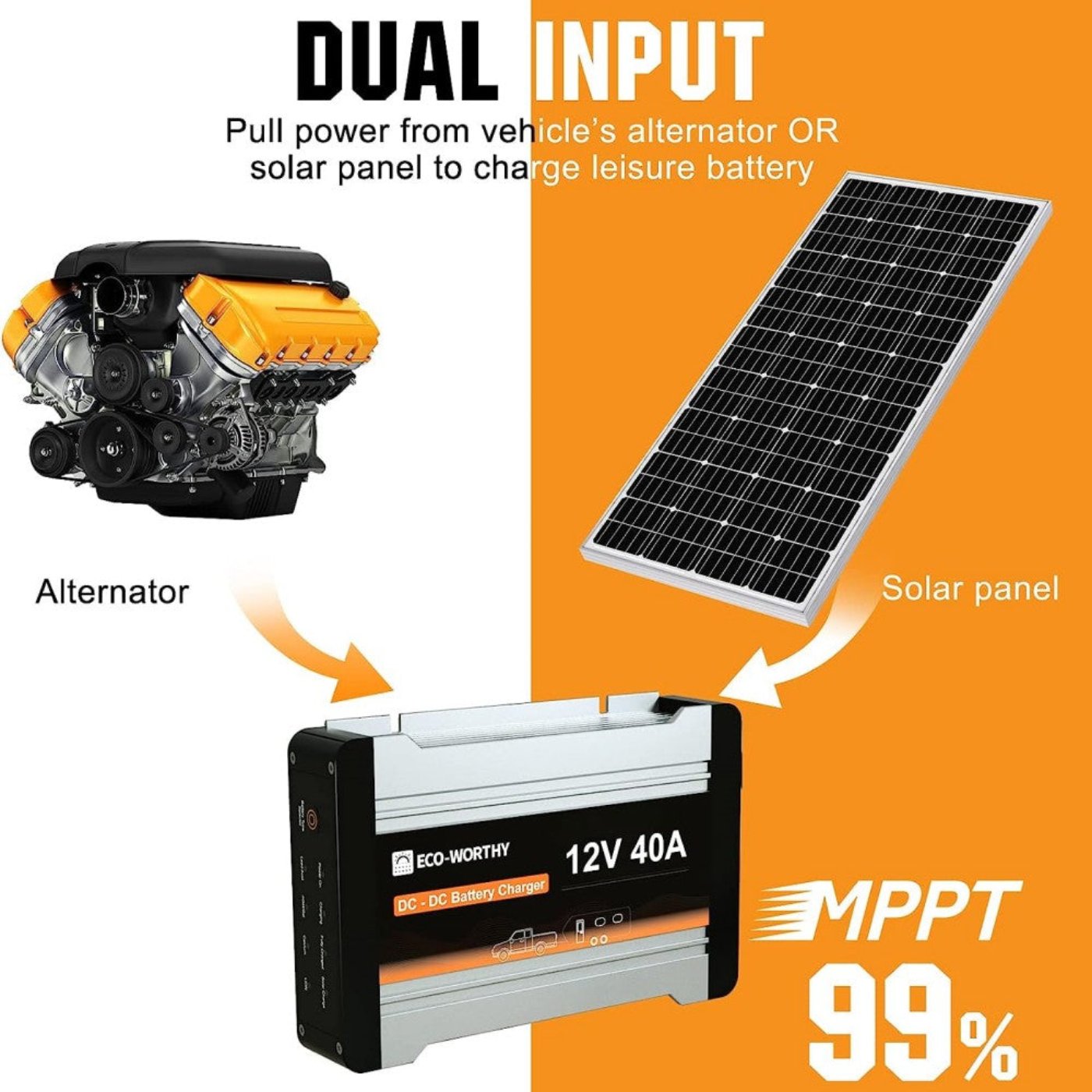

40A DC to DC Charger
| Type: Multi Stage |
Input: DC battery: 12.4-16.0V; Solar input: 16-25V |
| Output / Charging Voltage: 14.4-15.4V |
Output Current: DC Output: 40A; Solar Output: 40A |
| Minimum Start Voltage: 2.0V-For Battery Being Charged |
Soft Start: Yes |
| Soft Charge Current: 40A |
|
2000W 12V Off Grid Inverter
| Output Continuous Watts(W): 2000W+18W USB |
Surge Capacity (PeakPower): 4000W |
| Rated Input DC (V,A): 12V Battery, 200A |
Input Voltage Range: 10.5-16Vdc±0.3V |
| Rated Frequency (Hz): 60Hz±1 |
Rated Output AC (V,A): 115Vac±10%, 18A |
| Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) |
No Load Current: <1.2A |
| Optimum Efficiency: 85% min |
Fuse (A): 40A*6 |
| FuseType: Internal Blade |
Output Wave Form: Pure Sine Wave |
| Touch Temperature: 65℃(149℉)max |
Operating Temperature: -20℃~40℃ (4℉~104℉) |
| Operating/Storage Humidity RH: 5~95% |
Cooling System: Thermo Fan |
| THD: <4.5% |
Dimensions (L*W*H): 16.8*9.8*4.1 in |
| Assembled Weight (kg): 7.67 lbs |
|
150Ah LiFePO4 Lithium Battery
| Battery Capacity: 150ah |
Battery Power: 1920Wh |
| Battery Voltage: 12.8V |
Maximum Charge/ Discharge Current: 80A/100A |
| Charge Temperature Range: 0-55℃ |
Disharge Temperature Range: ﹣20－55℃ |
| Maximum Charge Voltage: 14.5V |
Discharge Cut-Off Voltage: 10V |
| Screw size: M8 |
Battery Size: 330*175*215mm（13.0*6.9*8.5inch） |
| Weight: 42.9lbs |
|
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller |
Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） |
Conductor: Tinned copper wire |
| AWG: 11 |
Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection |
Temperature: -40°F to +185°F |
| Connector: MC4 |
Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets |
8 pieces of stainless steel nuts and cap bolts |
Y Branch Cable MC4 Connectors
| Compatible with MC4 solar connector. |
Easy installation for 2 solar panels connected in parallel. |
