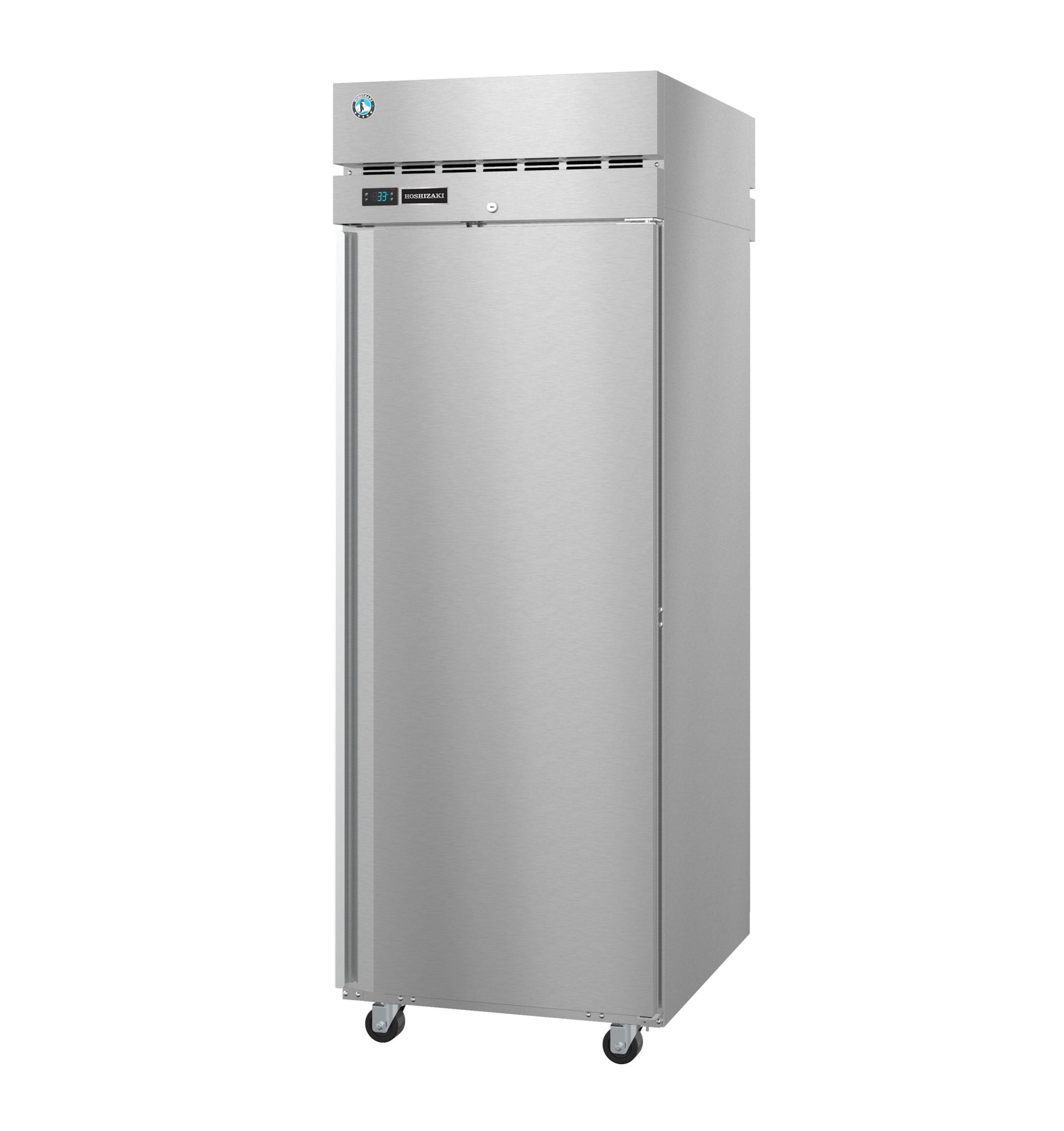

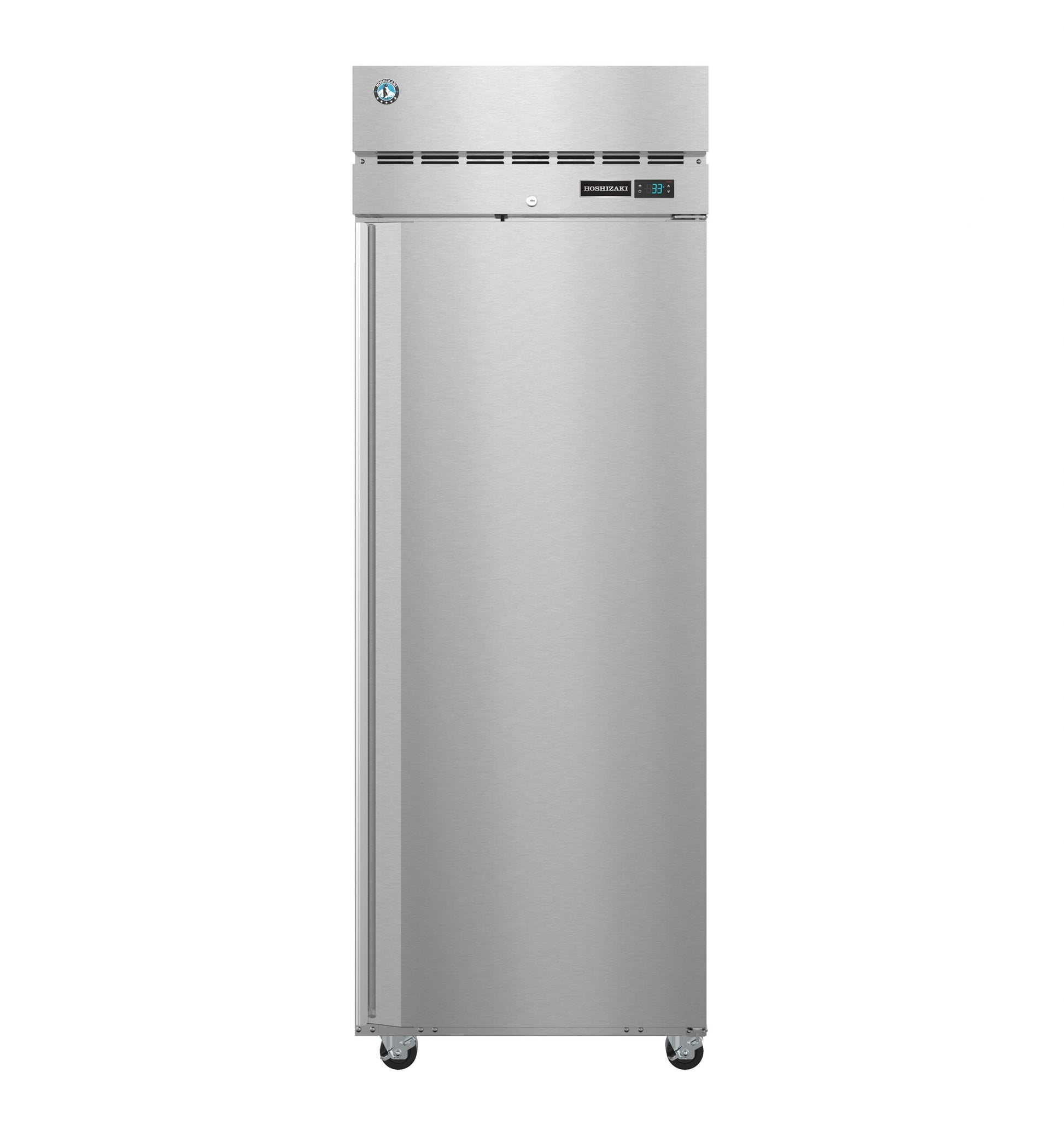

Hoshizaki PT1A-FS-FS | 28" Wide 2 Door Top Mount Pass-Thru Refrigerator - PT1A-FS-FS
The PT1A-FS-FS Steelheart Series Pass Thru single section refrigerator with a full stainless door is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a interior capacity of 24.2 cubic feet this efficient pass thru refrigerator and front air flow design is perfect for hot/tight kitchens. The PT1A-FS-FS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The PT1A-FS-FS also includes Interior LED light bar is mounted horizontally on the ceiling, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing doors with stay open feature (no kit req’d). Electrical consumption of 1.31 kWh/day at 5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ENERGY STAR® Qualified and includes a six years parts , five years labor , and seven years compressor .
Features
- Dimensions: 27.5″ W x 35.75″ D x 79.5″ H
- Interior capacity of 24.2 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing doors with stay open feature (no kit req’d)
- One piece, full door length, extruded aluminum flush mount door handle
- Lockable Full Stainless Doors
- Insulated with 2 3/8″ CFC free, foamed in place polyurethane
- Interior LED light bar is mounted horizontally on the ceiling
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (4) 4″ Stem Casters (2 with brakes) are standard

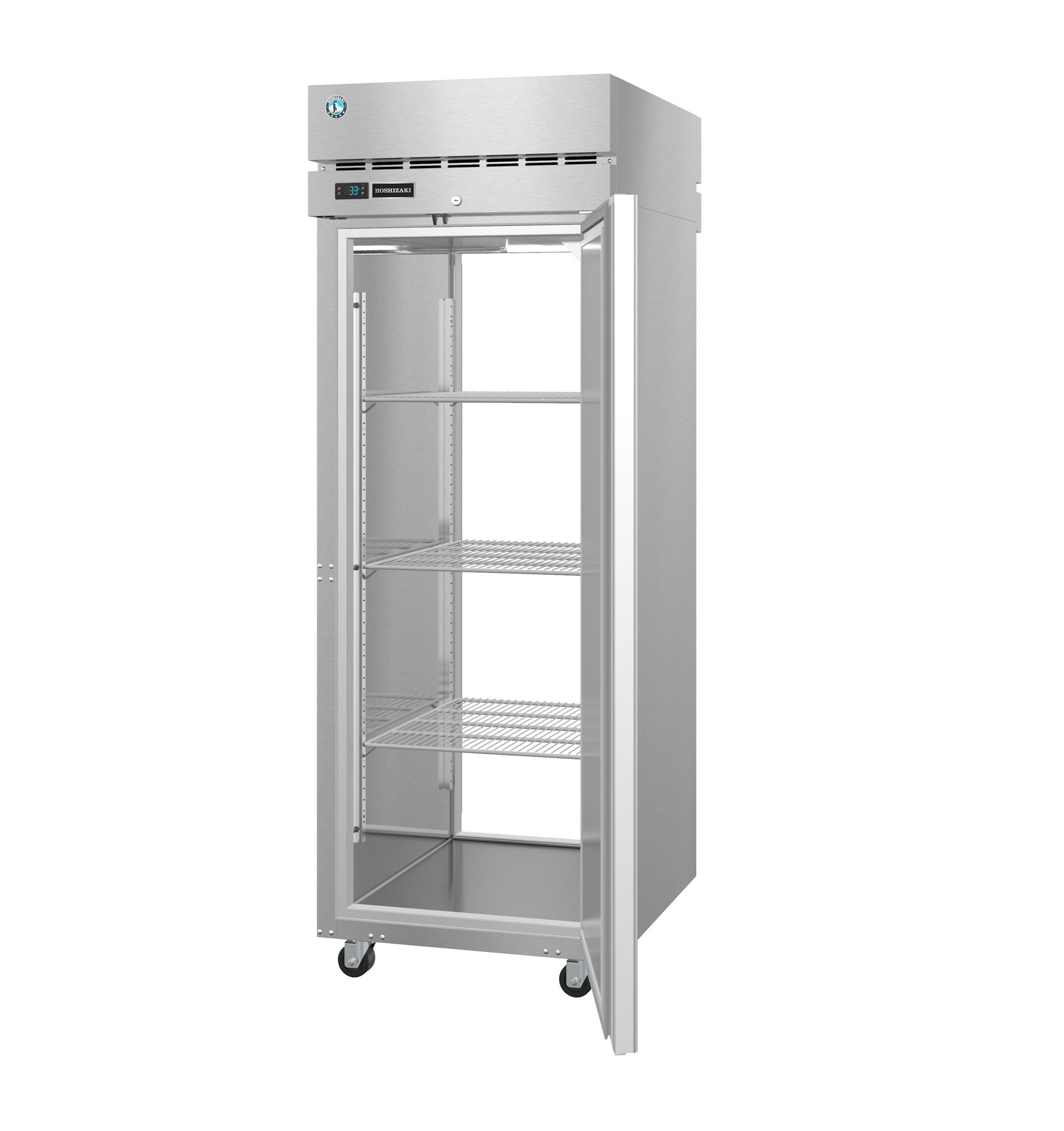

- Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 770 BTU/hr at 1/4 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 38.25″ L x 31.5″ D x 81″ H at 357 lbs
- ENERGY STAR Qualified
Specifications
| Brand |
Hoshizaki |
| Model Number |
PT1A-FS-FS |
| Weight |
357 lbs |
| Width |
27.5" |
| Depth |
35.75" |
| Height |
79.5" |
| Door Type |
solid |
| Refrigerator Type |
Pass-Thru |
| Size |
1 section |
| Door Quantity |
2 |
| Exterior Finish |
stainless steel front & sides |
| Compressor Location |
top mounted |
| Compressor HP |
1/4 HP |
| Energy Efficiency |
ENERGY STAR® |
| Capacity (Cu. Ft.) |
24 |
| Interior Finish |
all stainless steel interior |
| Supports |
casters |
| Hinge Location |
right |
| Door Style |
swing / full |
What our Experts Think
-
Space-Saving 28-Inch Width – Compact yet efficient, ideal for kitchens with limited space.
-
Pass-Thru Design – Dual-sided access allows for seamless kitchen workflow, perfect for busy commercial environments.
-
Top-Mounted Refrigeration – Keeps the cooling system away from floor debris and ensures efficient temperature regulation.
-
Durable Stainless Steel Build – Corrosion-resistant, easy to clean, and designed for long-term commercial use.
-
Precise Temperature Control – Maintains consistent cooling to keep food fresh and safe.
Q&A
Q: What is the Hoshizaki PT1A-FS-FS Pass-Thru Refrigerator?
A: The Hoshizaki PT1A-FS-FS is a 28" wide, top-mount pass-thru refrigerator with two stainless steel doors, designed for commercial kitchens requiring efficient cold storage with dual-access convenience.
Q: Who is the Hoshizaki PT1A-FS-FS ideal for?
A: This refrigerator is perfect for restaurants, catering services, and food prep areas where staff need access from both sides for seamless workflow and organization.
Q: What are the key features of the Hoshizaki PT1A-FS-FS?
A: It features a durable stainless steel construction, a top-mounted refrigeration system for maximum storage space, self-closing doors, and energy-efficient cooling technology.
Q: How is the Hoshizaki PT1A-FS-FS different from other commercial refrigerators?
A: Its pass-thru design allows access from both front and back, improving efficiency in busy kitchens. The top-mounted compressor also maximizes internal storage capacity.
Q: How durable is the Hoshizaki PT1A-FS-FS?
A: Built with high-quality stainless steel inside and out, it ensures long-lasting durability, easy cleaning, and resistance to corrosion in high-demand environments.
Maintenance Tips
-
Clean Interior & Exterior – Wipe stainless steel surfaces with mild detergent and warm water; avoid abrasive cleaners.
-
Check & Clean Condenser Coils – Every 3–6 months, vacuum or brush the coils to maintain efficient cooling.
-
Monitor Temperature – Ensure the unit maintains the correct temperature (typically 34-40°F) for food safety.
-
Inspect Door Gaskets – Regularly clean and check for cracks to ensure a tight seal and prevent cold air loss.
-
Keep Air Vents Clear – Avoid blocking airflow inside the refrigerator to ensure uniform cooling.
-
Clear Drain Lines – Periodically check and clean the drain to prevent water buildup or leaks.
-
Schedule Professional Maintenance – Have a technician inspect and service the unit regularly for peak performance.
