Hoshizaki PT1A-FG-FG | 28" Wide 2 Glass Door Top Mount Pass-Thru Refrigerator - PT1A-FG-FG

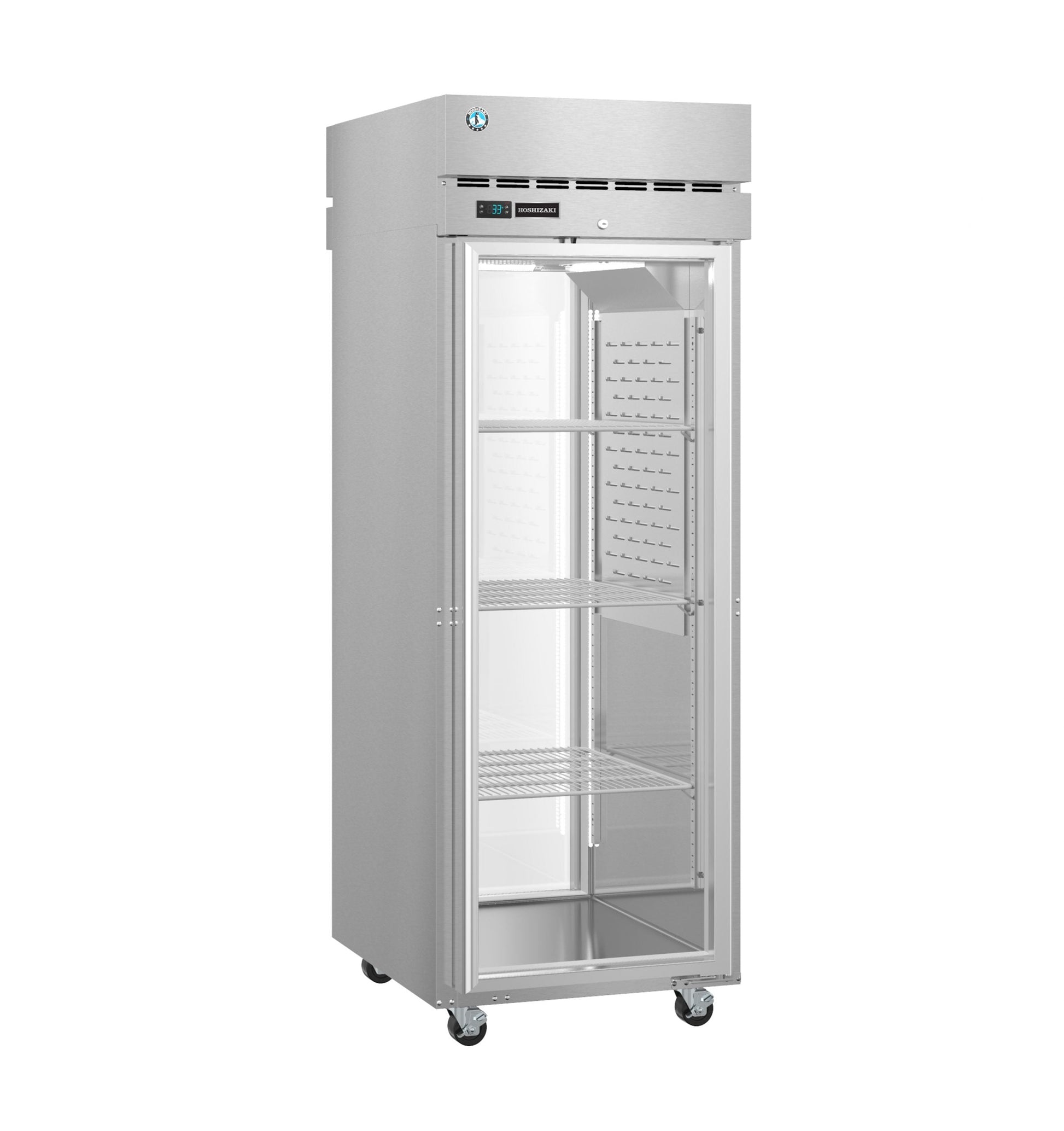

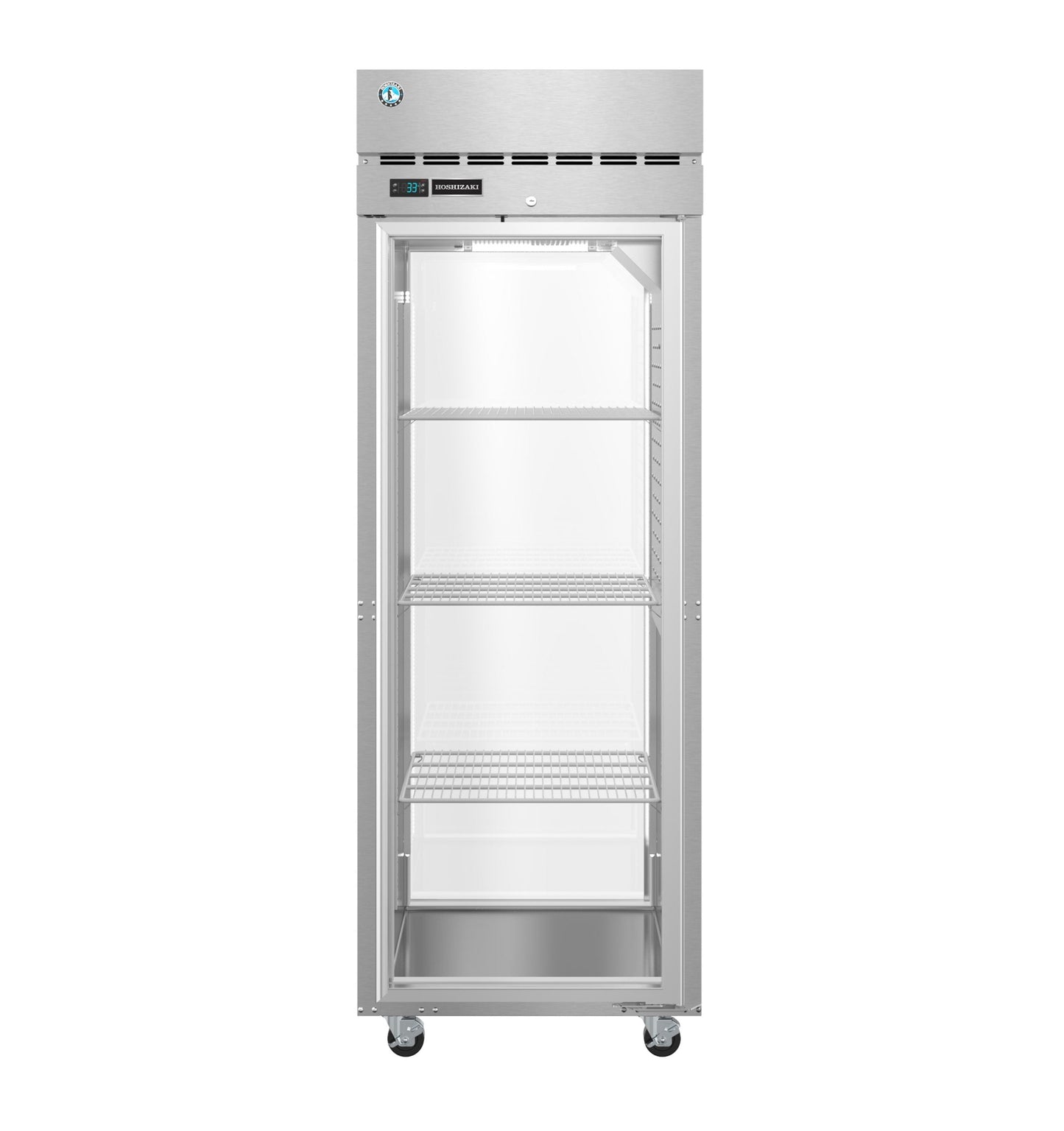

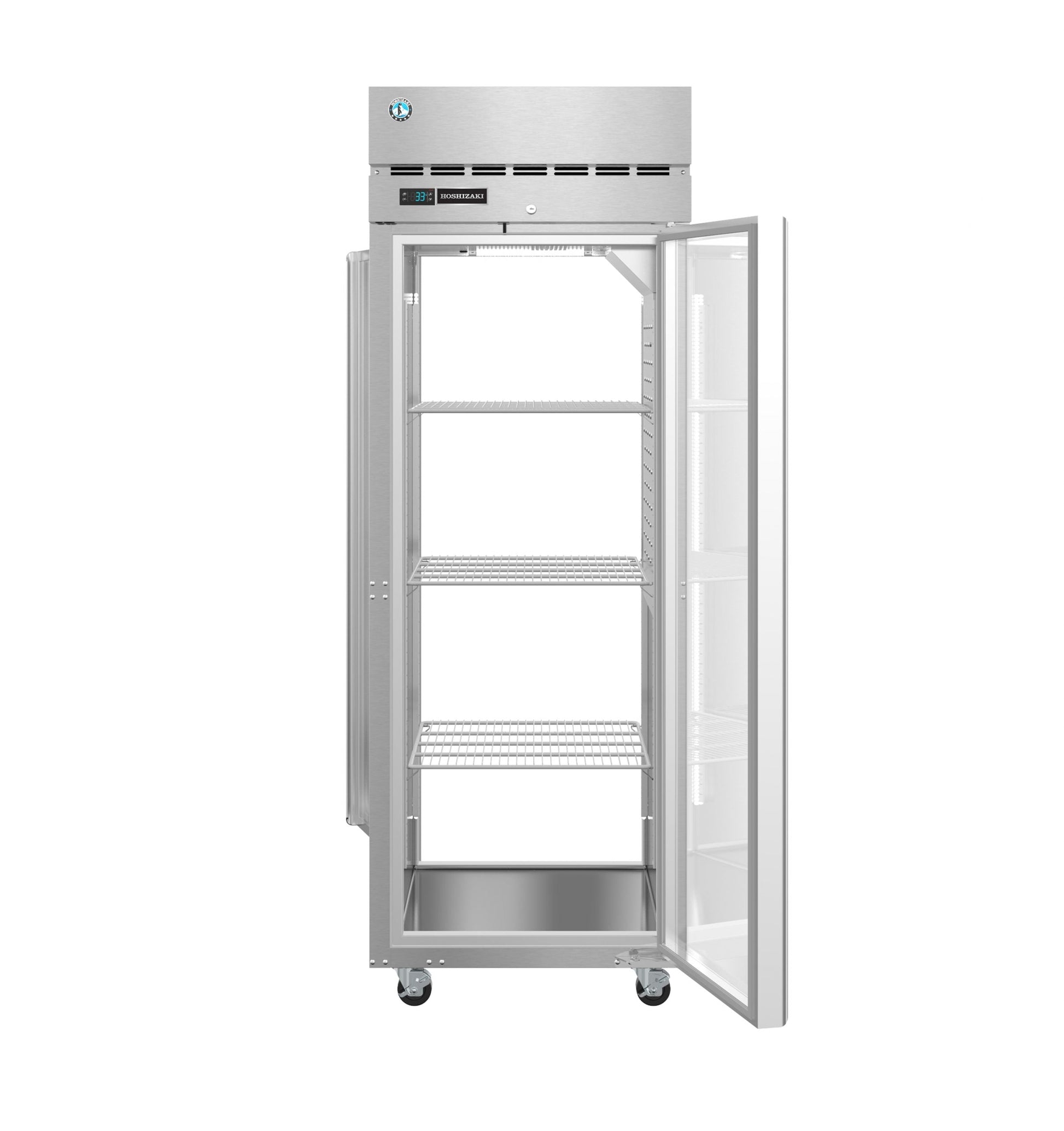

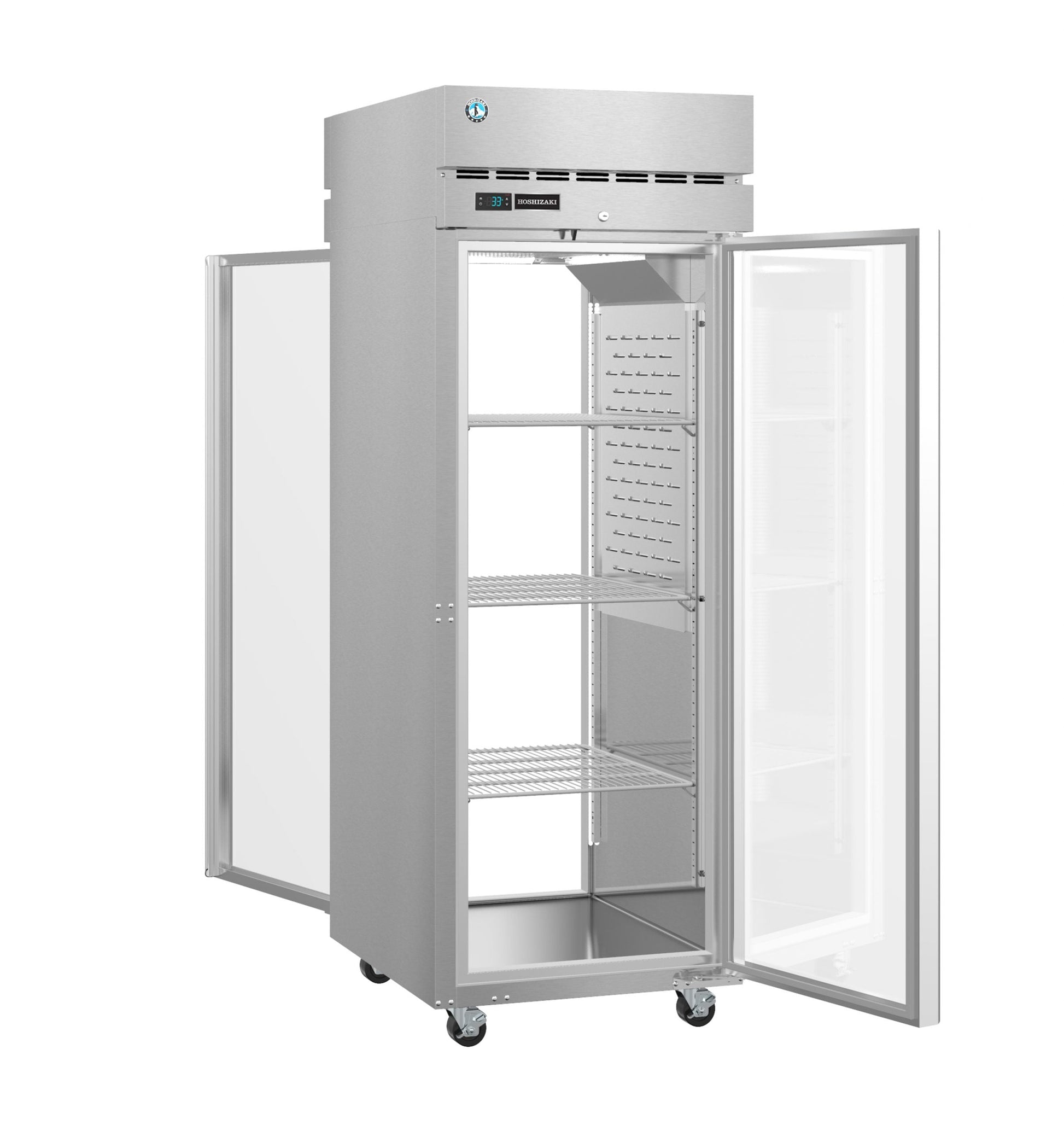

The PT1A-FG-FG Steelheart Series Pass Thru single section refrigerator with a full glass door is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a interior capacity of 24.2 cubic feet this efficient pass thru refrigerator and front air flow design is perfect for hot/tight kitchens. The PT1A-FG-FG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The PT1A-FG-FG also includes Interior LED light bars are vertically mounted on each wall and one along the ceiling, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing doors with stay open feature (no kit req’d). Electrical consumption of 2.68 kWh/day at 5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts , five years labor , and seven years compressor .
Features
- Dimensions: 27.5″ W x 37.75″ D x 79.5″ H
- Interior capacity of 24.2 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing doors with stay open feature (no kit req’d)
- One piece, full door length, chrome door handle
- Lockable Full Glass Doors
- Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks
- Interior LED light bars are vertically mounted on each wall and one along the ceiling
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (4) 4″ Stem Casters (2 with brakes) are standard
- Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Additional air filter
- Nominal Compres. of 770 BTU/hr at 1/4 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 38.25″ L x 31.5″ D x 81″ H at 367 lbs
- Top mounted energy efficient non-electric evaporation system
Specifications
| Brand |
Hoshizaki |
| Model Number |
PT1A-FG-FG |
| Weight |
367 lbs |
| Width |
27.5" |
| Depth |
37.75" |
| Height |
79.5" |
| Door Type |
glass |
| Refrigerator Type |
Pass-Thru |
| Size |
1 section |
| Door Quantity |
2 |
| Exterior Finish |
stainless steel front & sides |
| Compressor Location |
top mounted |
| Compressor HP |
1/4 HP |
| Capacity (Cu. Ft.) |
24 |
| Interior Finish |
all stainless steel interior |
| Supports |
casters |
| Hinge Location |
right |
| Door Style |
swing / full |
What our Experts Think
-
Pass-Thru Convenience – Dual glass doors allow easy access from both sides, enhancing workflow in busy kitchens.
-
Compact Yet Spacious – 28" width fits tight spaces while still offering ample cold storage capacity.
-
Top-Mounted Refrigeration – Keeps the compressor away from floor debris for improved efficiency and easier cleaning.
-
Energy-Efficient Design – Features LED lighting, advanced insulation, and precise temperature control for optimal food preservation.
-
Durable & Stylish – Stainless steel exterior and glass doors enhance durability and product visibility.
Q&A
Q: What is the Hoshizaki PT1A-FG-FG Refrigerator?
A: The Hoshizaki PT1A-FG-FG is a 28" wide, top-mount pass-thru refrigerator with two glass doors, designed for commercial kitchens, restaurants, and food service operations.
Q: What makes this refrigerator a pass-thru model?
A: It features doors on both sides, allowing easy access from either side—ideal for kitchen layouts requiring efficient food transfer between prep and service areas.
Q: Is this unit energy-efficient?
A: Yes, it is built with high-performance insulation and an energy-efficient top-mounted refrigeration system for optimal cooling.
Q: What type of shelving does it have?
A: The unit includes adjustable, heavy-duty shelves to accommodate various storage needs.
Maintenance Tips
-
Clean Glass Doors & Gaskets: Wipe daily to maintain a tight seal and visibility.
-
Monitor & Maintain Temperature: Keep at 34-40°F for optimal food preservation.
-
Inspect & Clean Coils: Every 3 months, remove dust for efficient cooling.
-
Check & Clear Drain Lines: Prevent water buildup and potential leaks.
-
Avoid Overloading: Ensure proper airflow for consistent refrigeration.
