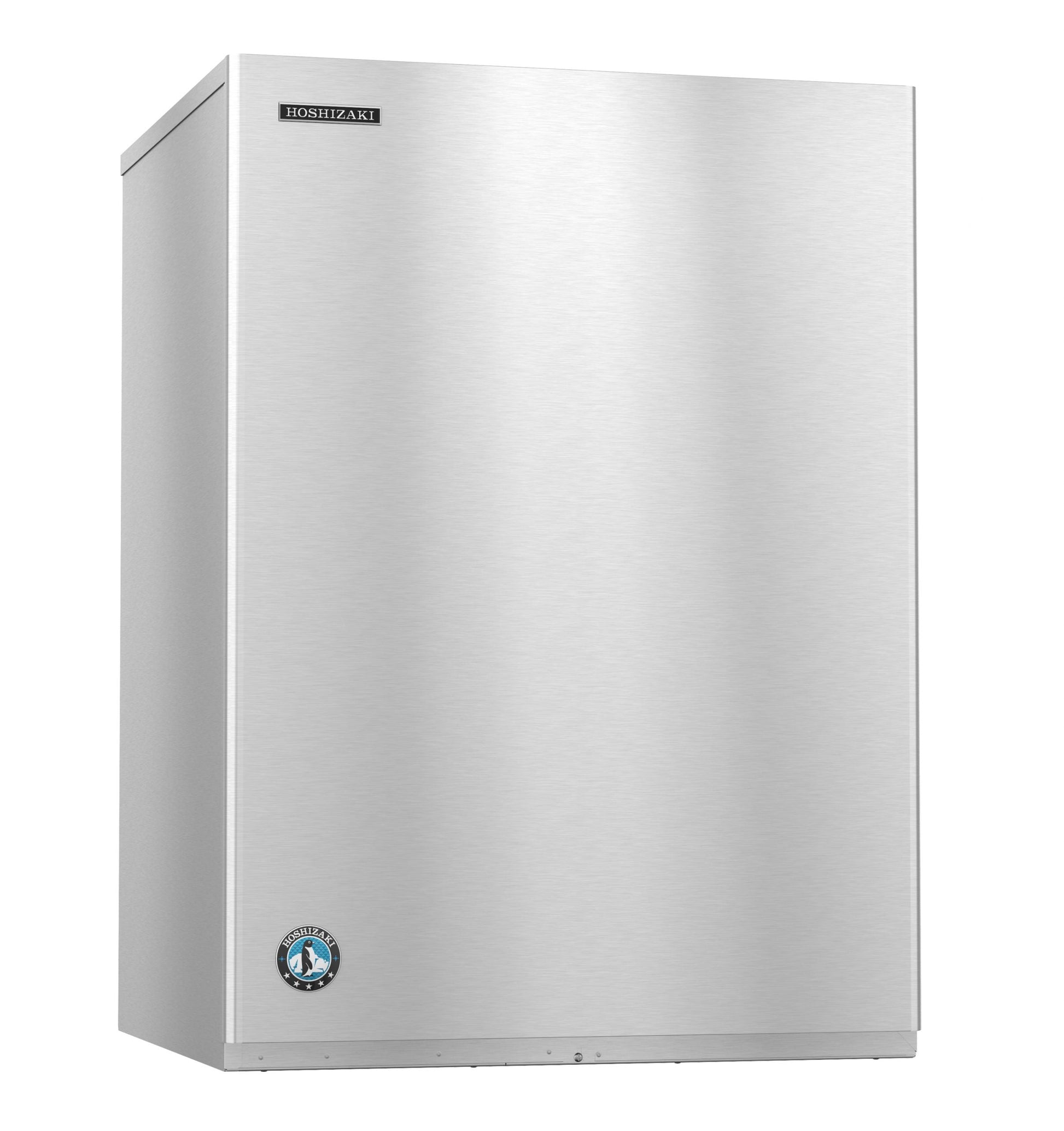

Hoshizaki | 30" Wide Remote-Cooled Crescent Cuber Ice Maker (Bin & Condenser Sold Separately) - KM-1601MRJZ
The KM-1601MRJZ is capable of producing approximately 1594 lbs of crescent cubed ice, Mount 2 units side-by-side for 2x the ice production in the same floor space! Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-22FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1601MRJZ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 30″ W x 27-3/8″ D x 41- 5/8 ” H
- Up to 1594 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior

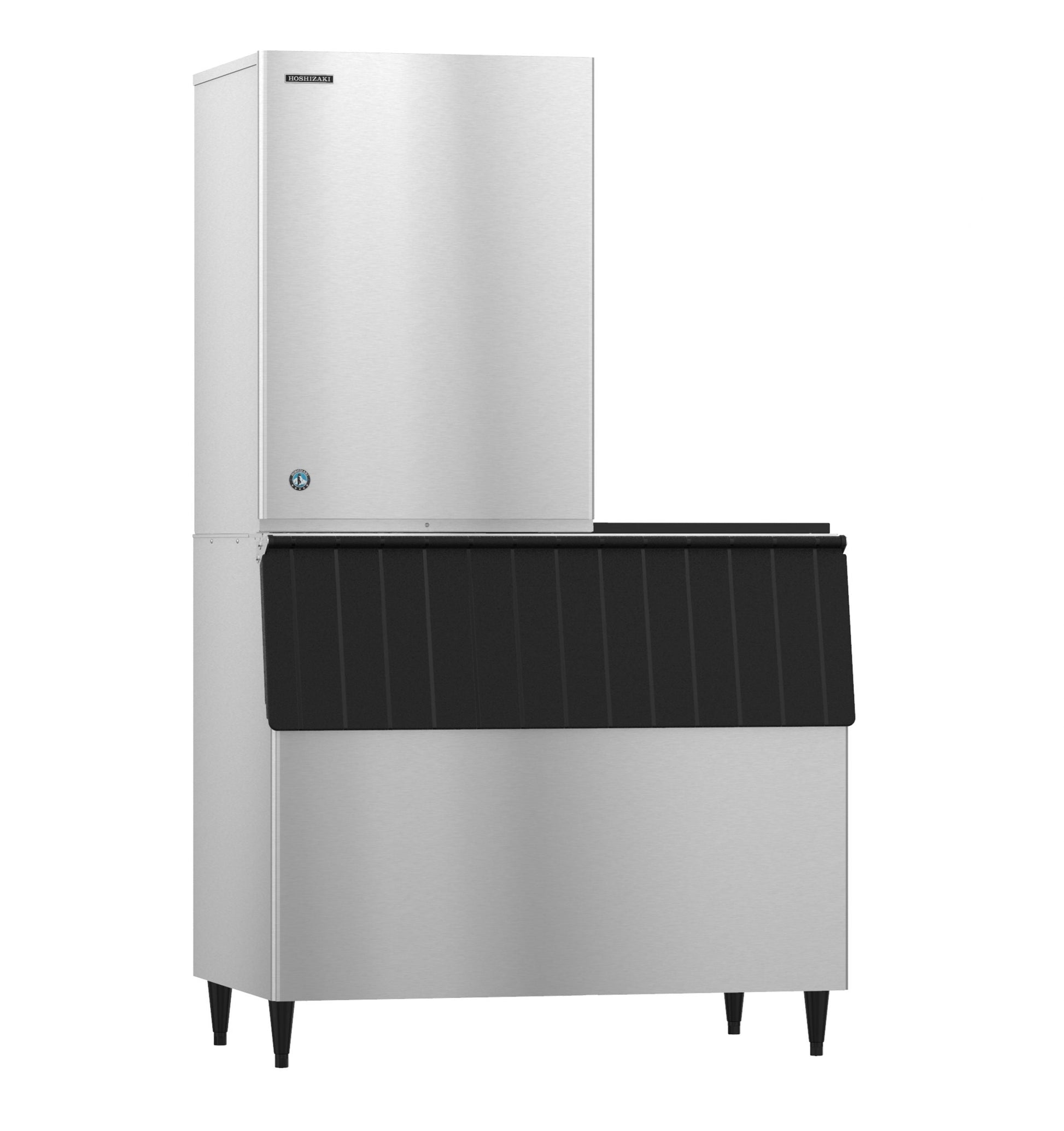

- Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheck™ alert system
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (8 lbs. 2.5 oz. / 3700 g)
- Heat Rejection:24300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 15.9 amps (20 Amp Max fuse)
- 4.35 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts & Labor warranty on evaporator.
Specifications
| Brand |
Hoshizaki |
| Model Number |
KM-1601MRJZ |
| Weight |
316 lbs |
| Width |
30" |
| Depth |
27.38" |
| Height |
41.62" |
| Compatible With |
ice storage bin |
| Cooling |
air-cooled |
| Ice Type |
crescent cubes |
| Refrigeration |
remote (refrigeration not included) |
| Production per 24 hr (Lbs) |
1594 |
| Voltage |
208/230 |
| Phase |
1 |
| Drain Type |
gravity drain |
What Our Experts Think
-
High-Capacity Production: 30-inch wide unit capable of producing large volumes of crescent-shaped ice, perfect for high-demand environments.
-
Remote-Cooled System: Efficient remote cooling for quieter operation and reduced heat buildup, ideal for space-sensitive areas.
-
Crescent Ice: Produces high-quality, slow-melting crescent ice, perfect for bars, restaurants, and hospitality businesses.
-
Durable & Reliable: Designed for heavy-duty commercial use, providing consistent ice production even in high-traffic environments.
-
Bin & Condenser Sold Separately: Customizable setup with separate bin and condenser options to suit specific storage and cooling needs.
Q&A
Q: What is the Hoshizaki KM-1601MRJZ?
A: The Hoshizaki KM-1601MRJZ is a 30-inch wide remote-cooled crescent cuber ice maker designed for high-output ice production in commercial settings. (Bin and condenser sold separately.)
Q: What type of ice does the Hoshizaki KM-1601MRJZ produce?
A: It produces crescent-shaped ice, which is ideal for beverages and is known for its slower melt and consistent cooling.
Q: Is the ice maker remote-cooled?
A: Yes, the KM-1601MRJZ is a remote-cooled unit, which helps reduce heat and noise in the area where the ice maker is located, providing optimal performance.
Q: Does the Hoshizaki KM-1601MRJZ come with a bin or condenser?
A: No, the bin and condenser are sold separately, allowing you to choose the right options for your specific needs.
Q: How much ice does the Hoshizaki KM-1601MRJZ produce?
A: The KM-1601MRJZ can produce up to 1,600 poun
Maintenance Tips
-
Regular Cleaning: Clean the exterior and interior with a damp cloth and mild detergent to remove dirt and stains.
-
Descale the Unit: Regularly descale to prevent mineral buildup and ensure efficient ice production.
-
Inspect Airflow: Check the condenser for any dirt or debris and clean it to maintain proper airflow and cooling efficiency.
-
Check Water Supply: Ensure the water supply line is clear and securely connected to avoid clogs or leaks.
-
Empty Ice Bin: Regularly empty the ice bin to maintain ice quality and prevent odors or contamination.
