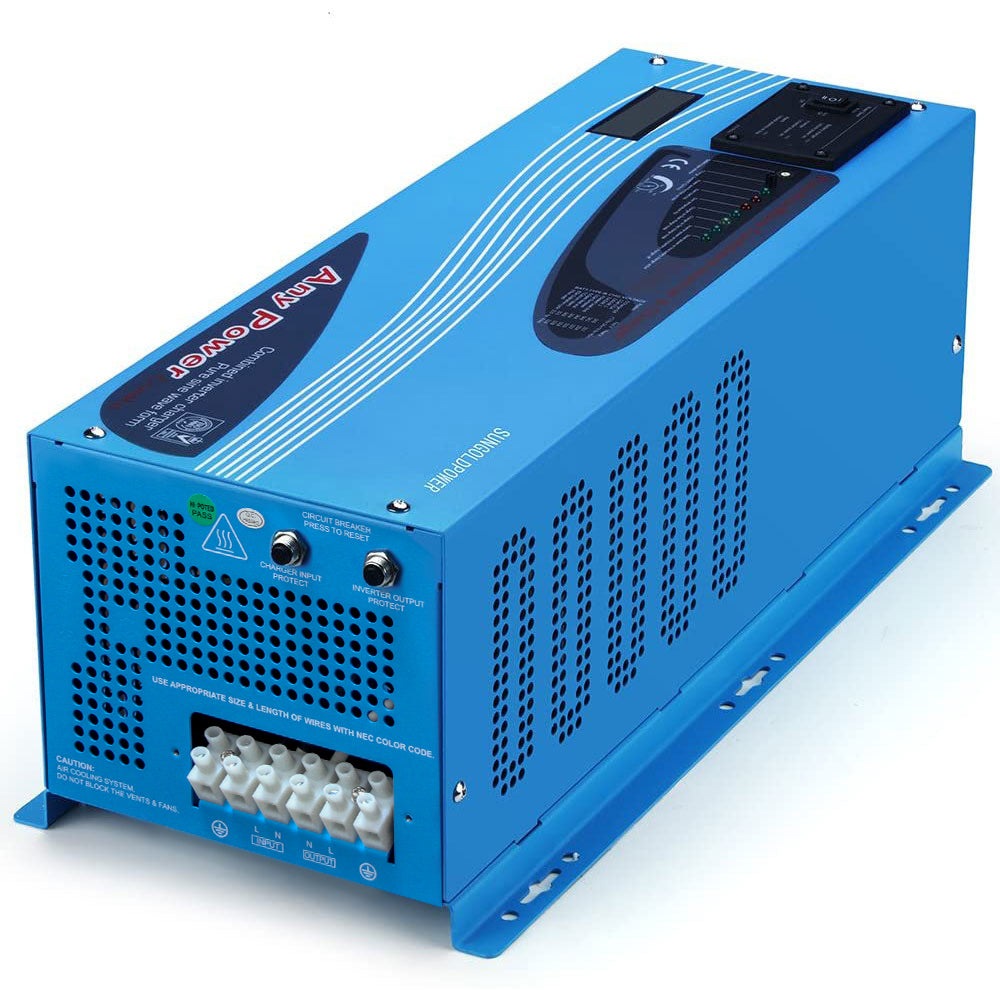

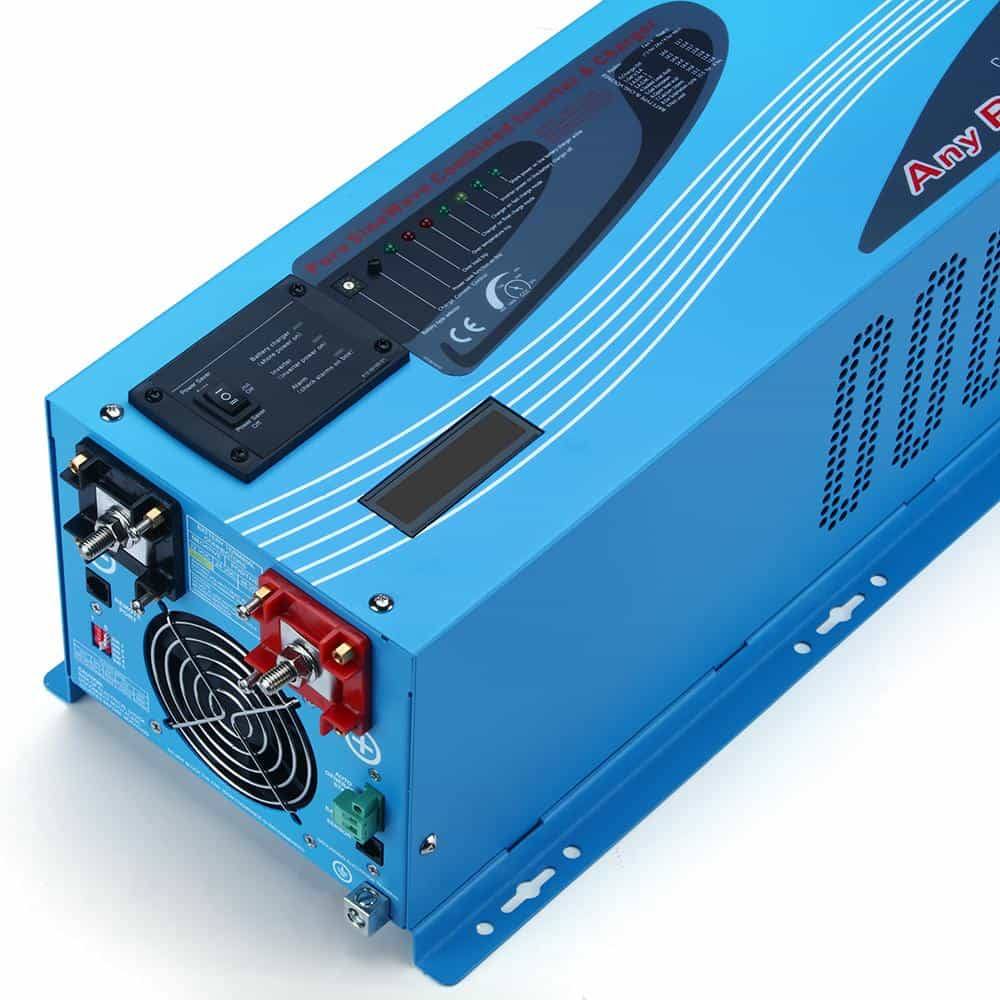

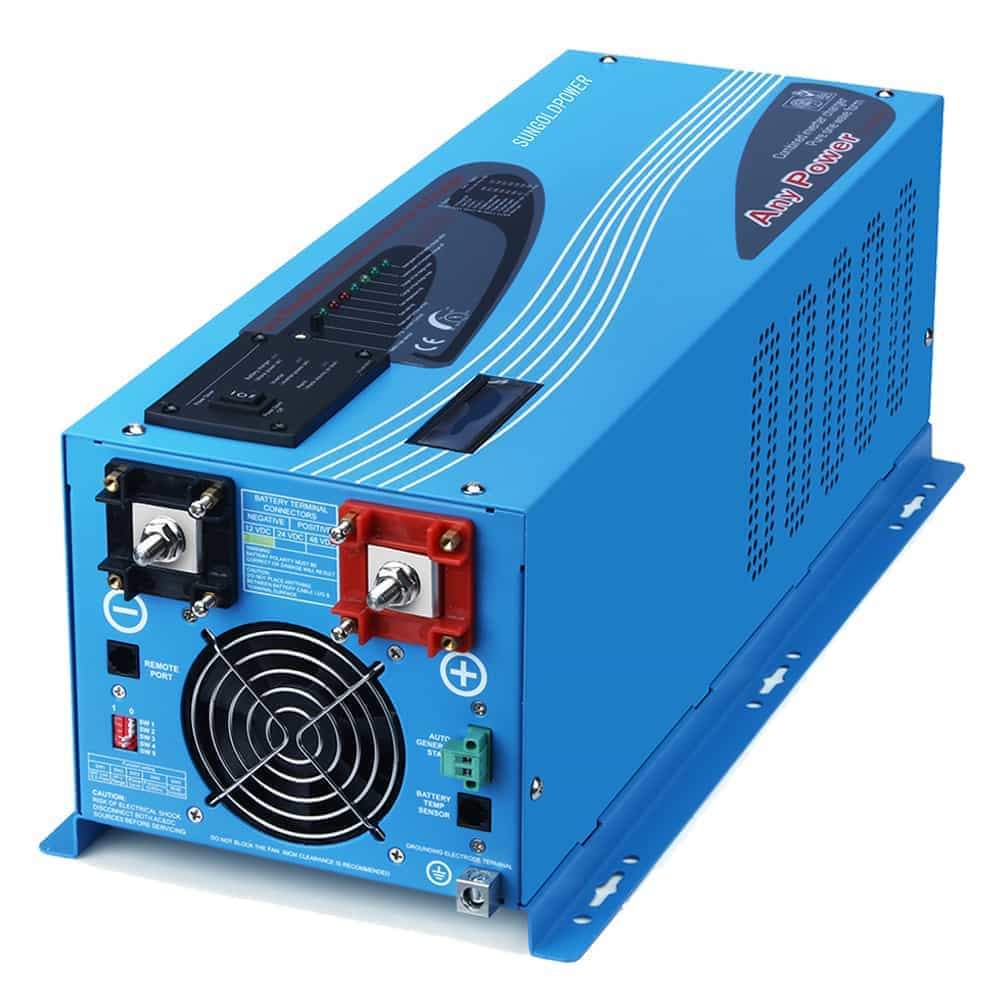

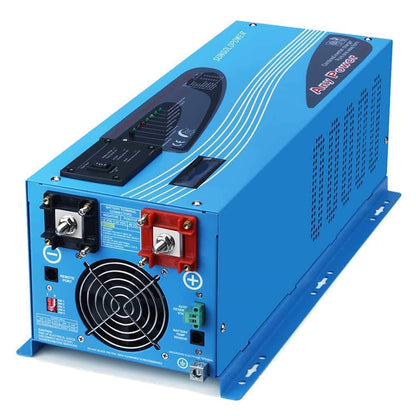

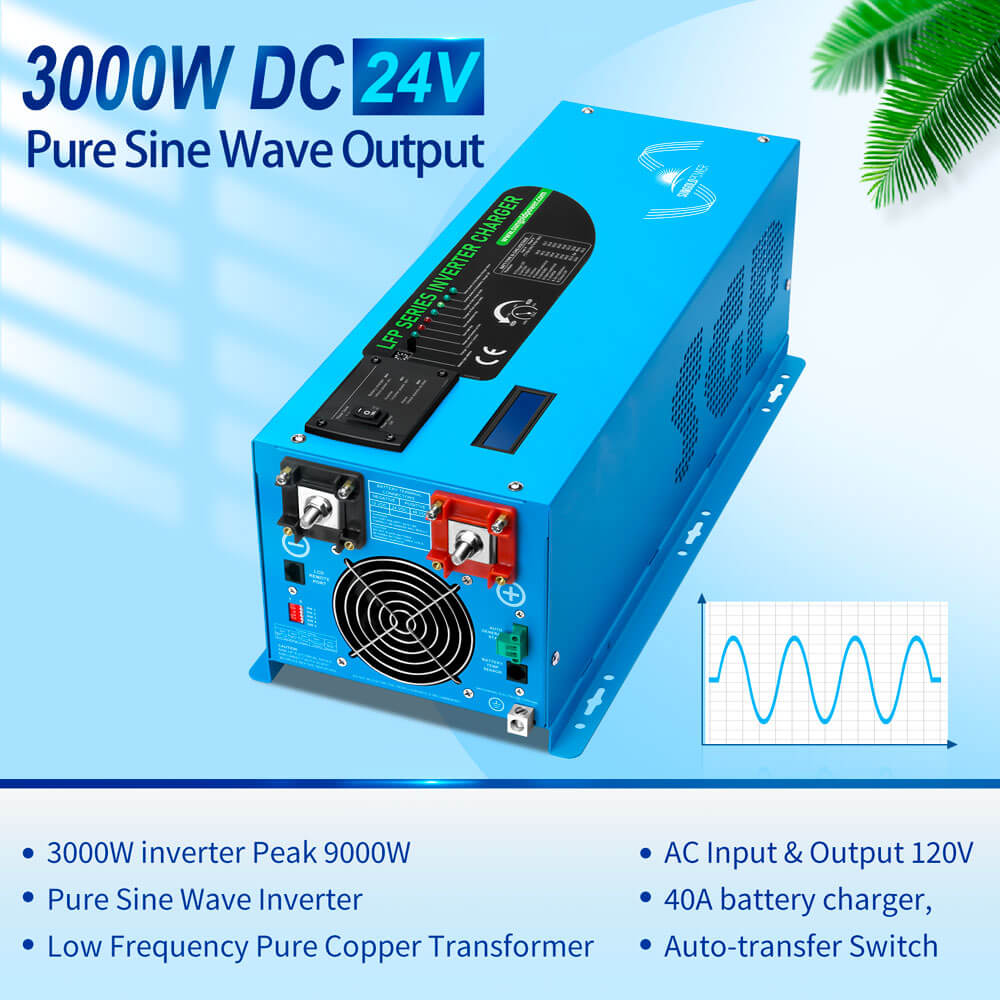

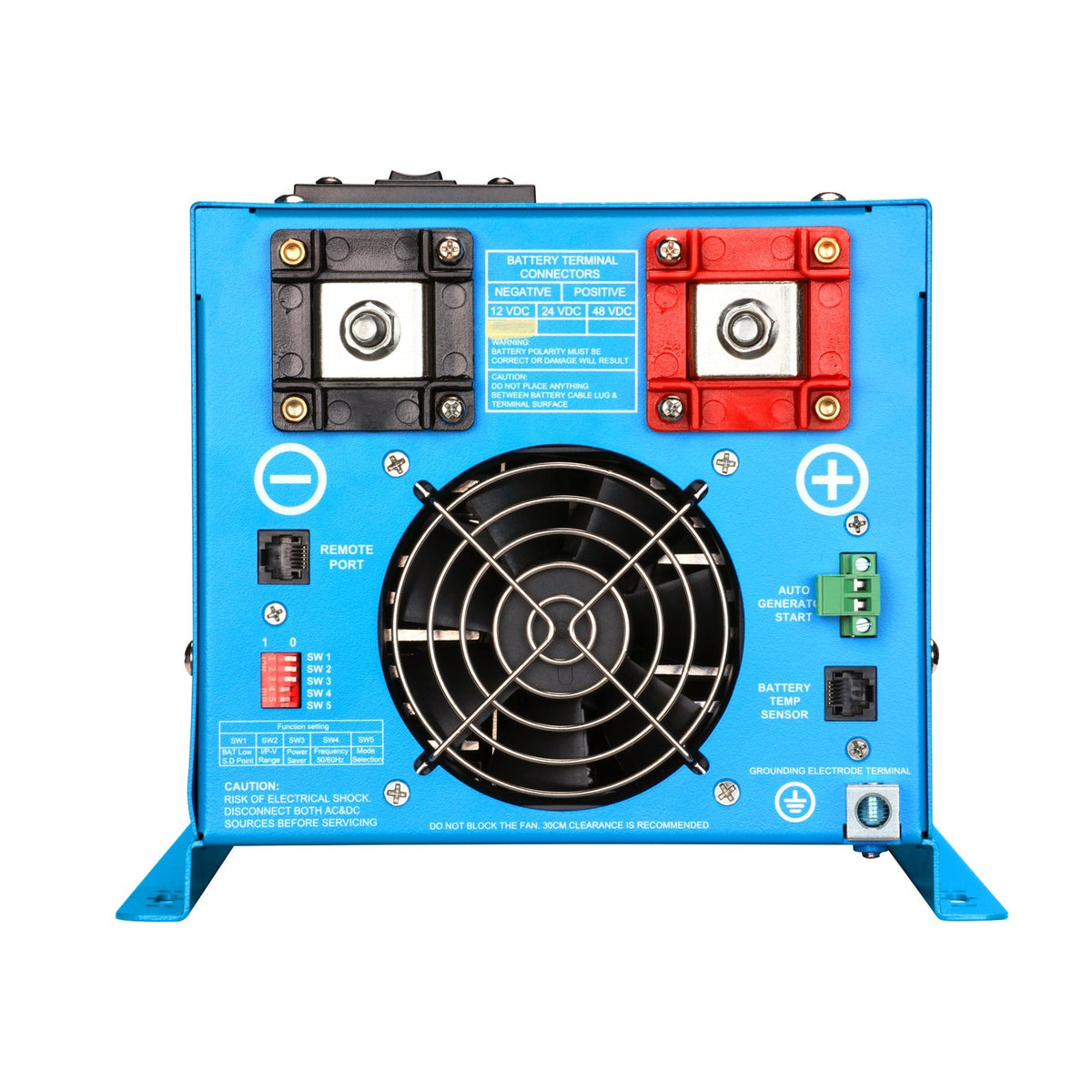

3000W DC 24V Pure Sine Wave Inverter With Charger - LFP3K24V120VSG

"Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sungoldpower Business Philosophy And Long-term Development Goals.

Product Highlight:

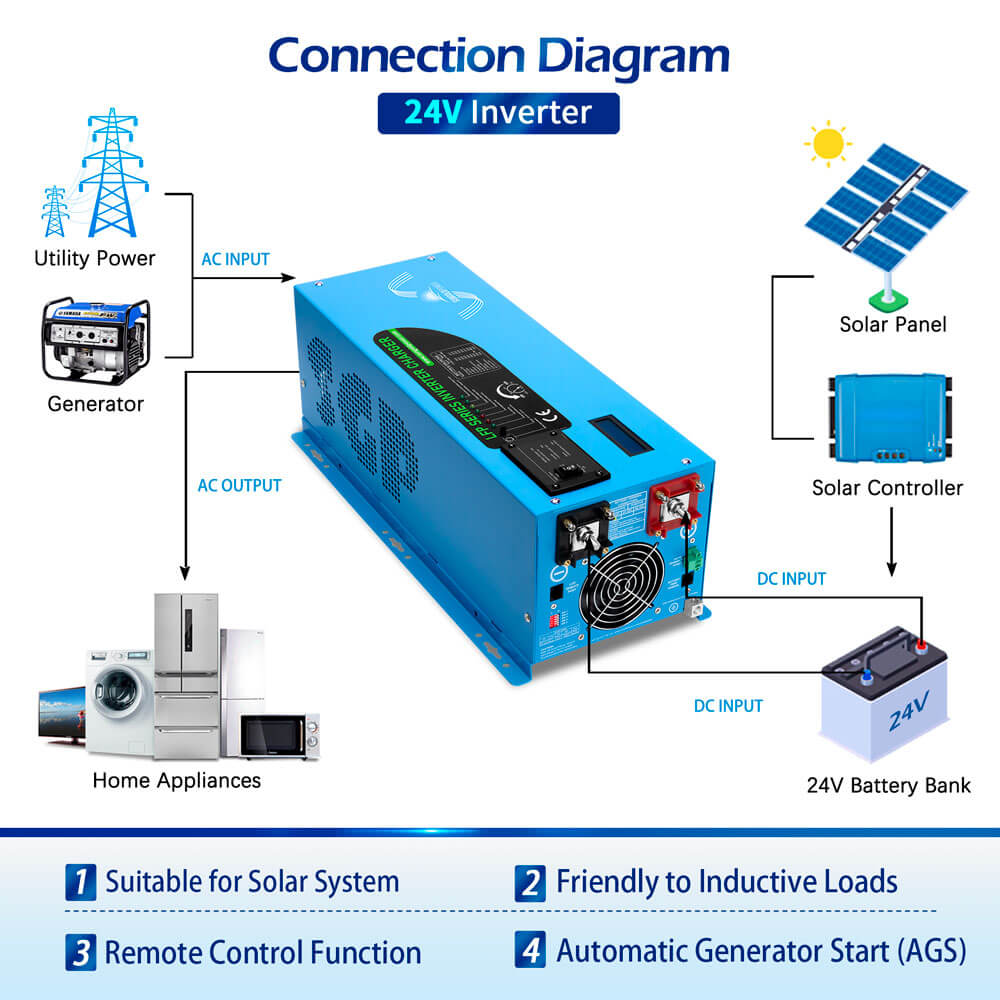

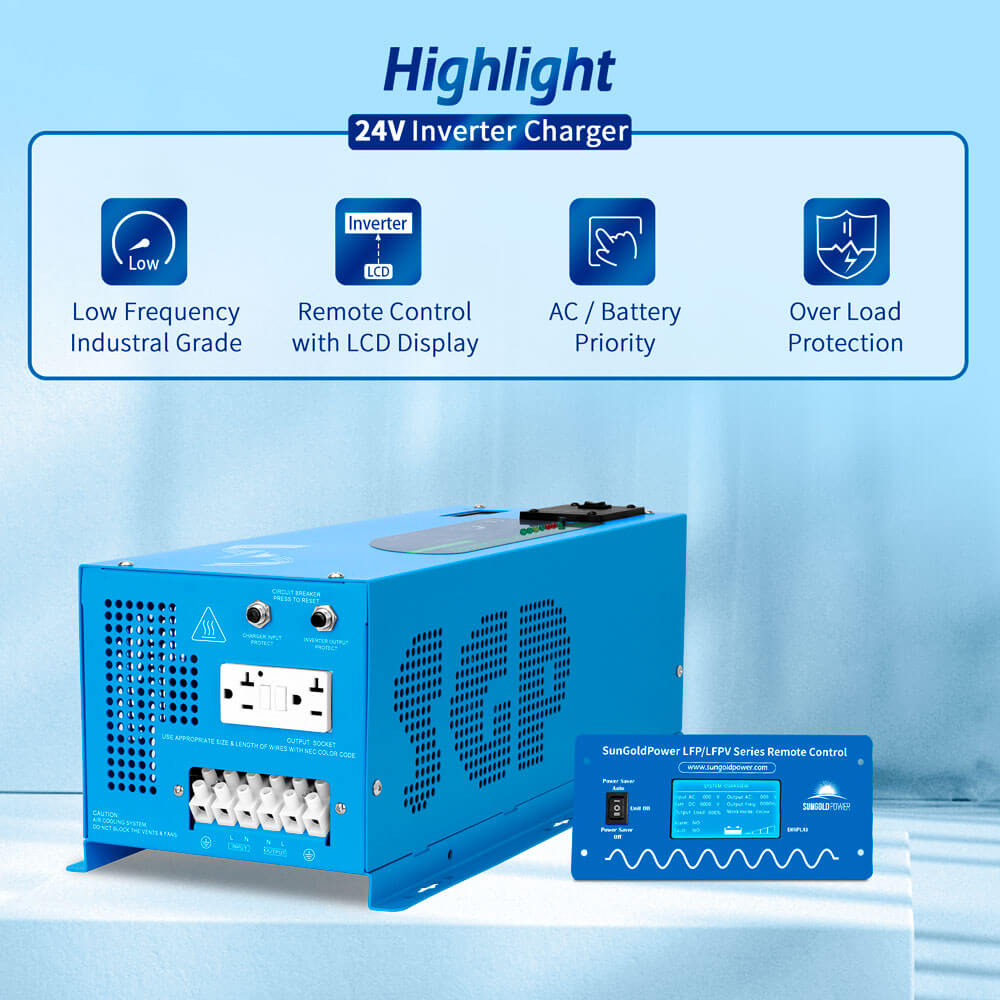

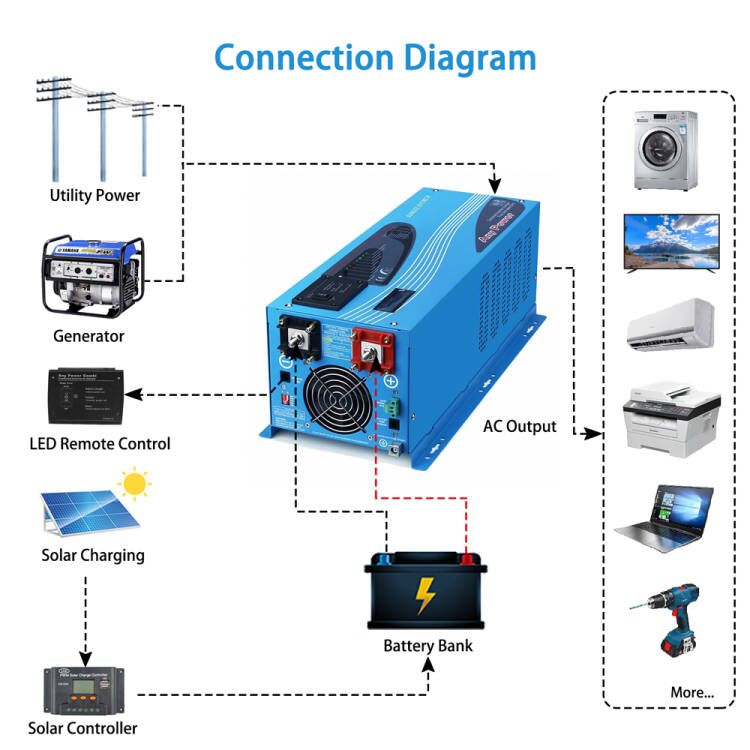

• ★ This LFP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger, and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control.

• ★ This power inverter 3000w requires 120VAC input and can provide 120VAC output power for the appliances, and it can output 50 or 60Hz via the SW4.

• ★ AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

• ★ Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.

• ★ Auto Gen Start: The inverter can start up a generator when the battery voltage goes low, and turn the generator off after battery charging is finished.

See Features below:

• 3000W LFP Series Low-Frequency Pure Sine Inverter With Charger.
• AC/Battery Priority Selector.
• Automatic Generator Start.
• GFCI Socket, Safety and Convenient.
• Marine Coated and Protected.

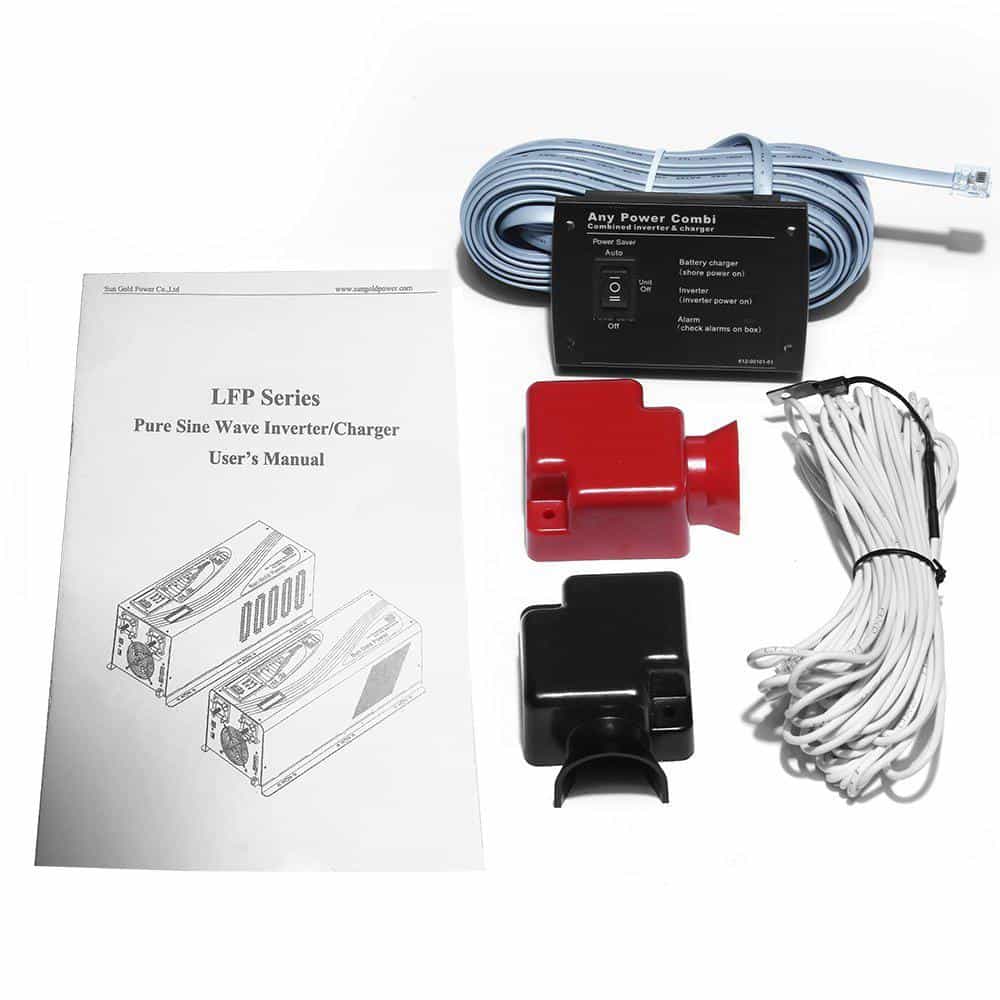

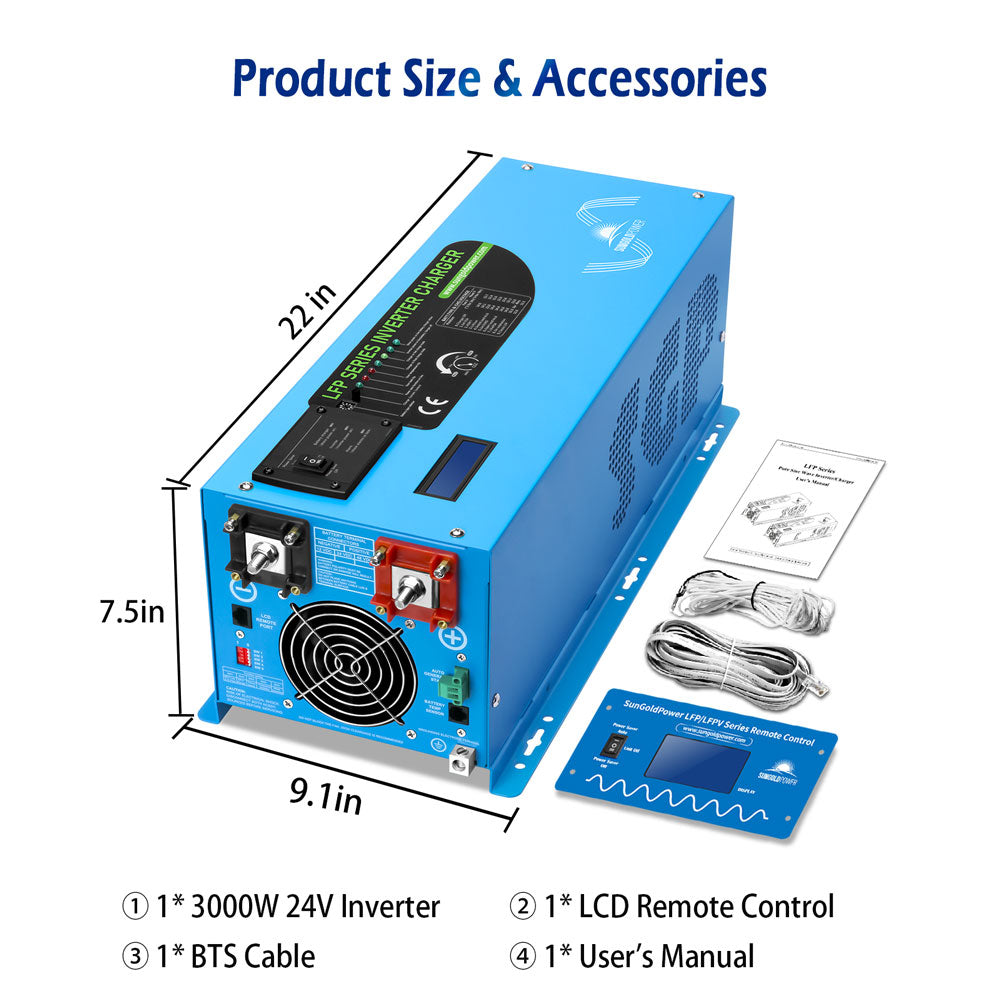

• LCD Display, Remote Control, BTS including.
• Low Idle Consumption.

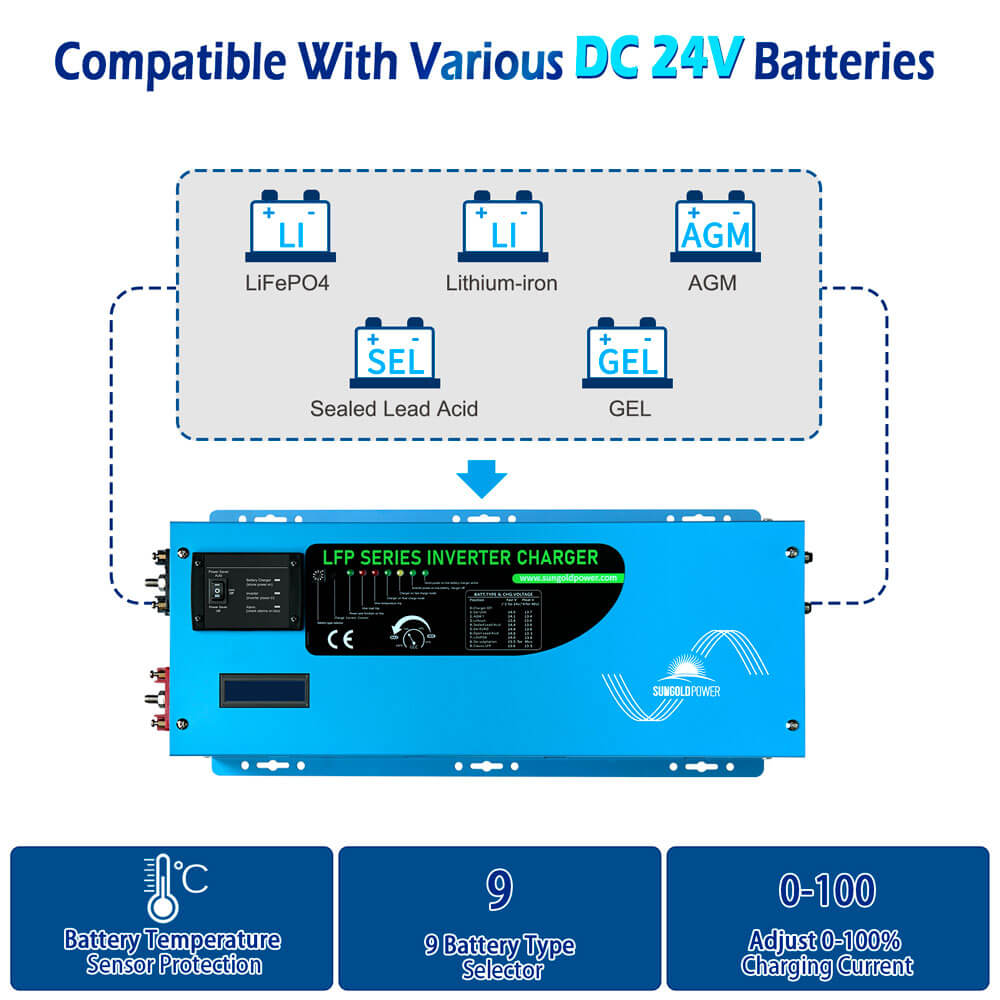

• 7 battery type settings for the charger.
• Multi Stage Smart charger Max 40A, the charger can be disabled.
• 10 msec typical transfer time.

Main Specification：

Inverter Output:

• Continuous Output Power: 3000W
• Surge Rating: 9000W (20 Seconds)
• Output: 120VAC, 60hz
• Output Wave: Pure Sine Wave (bypass mode)
• Typical Transfer Time: 10ms (MAX)
• Nominal Efficiency: >88%

DC Input:

• Nominal Input Voltage: 24.0Vdc
• Minimum Start Voltage: 20.0Vdc
• Low Battery Alarm: 21.0Vdc-22.0Vdc
• Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
• High Voltage Alarm: 32.0Vdc
• Low battery Voltage Restart: 26Vdc
• Idle Consumption: 39W
• Power Saver Mode Idle Consumption: 16W

AC Charger :

• Charger Rate: Max 40A
• AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (selected by SW2)
• Over Charge Protection Shutdown: 31.4V
• Selectable Charge Setting based on battery type Adjustable charge current: off-20%-100%
• 4-step intelligent battery charger

Download LFP Series Pure Sine Wave Inverter/Charger User's Manual
