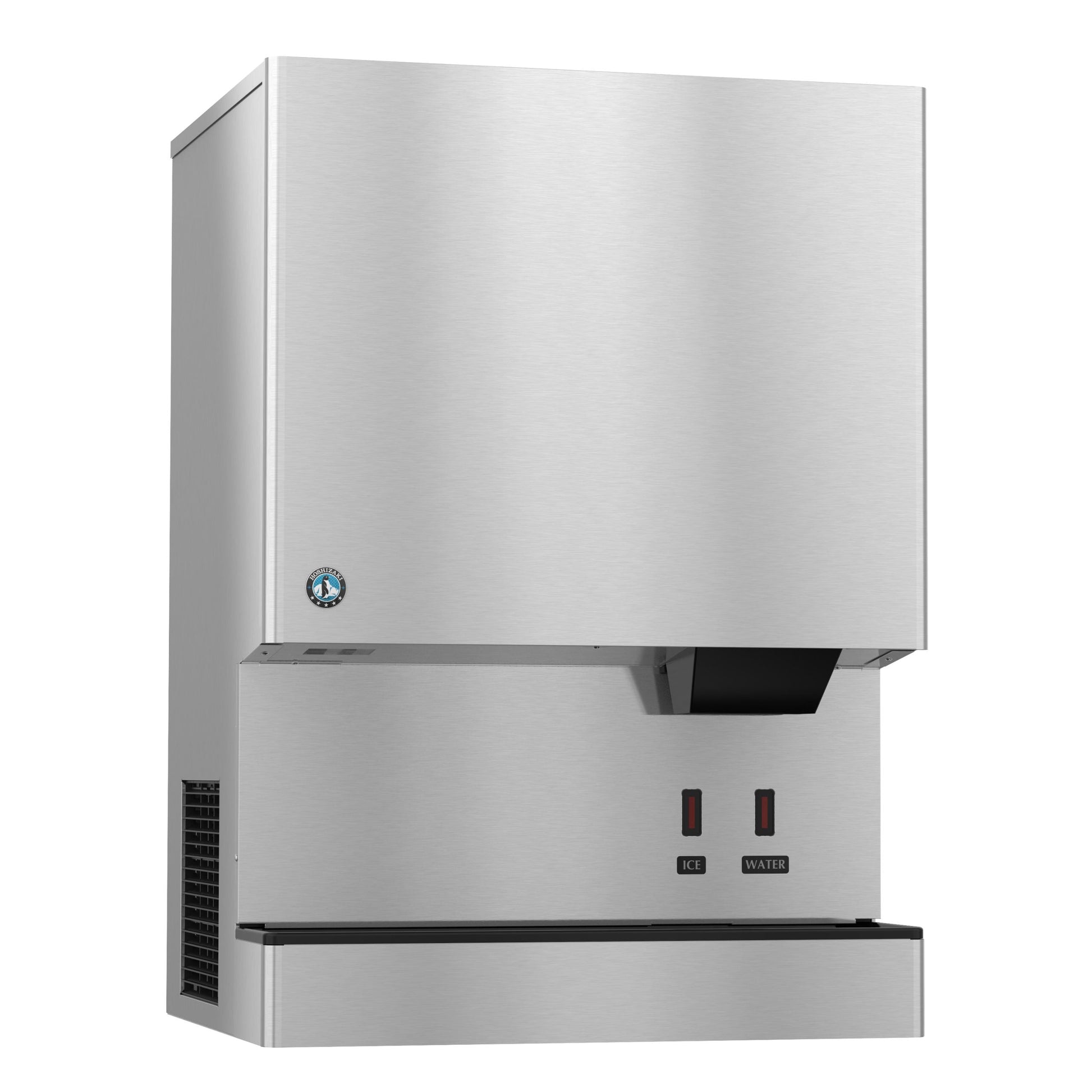

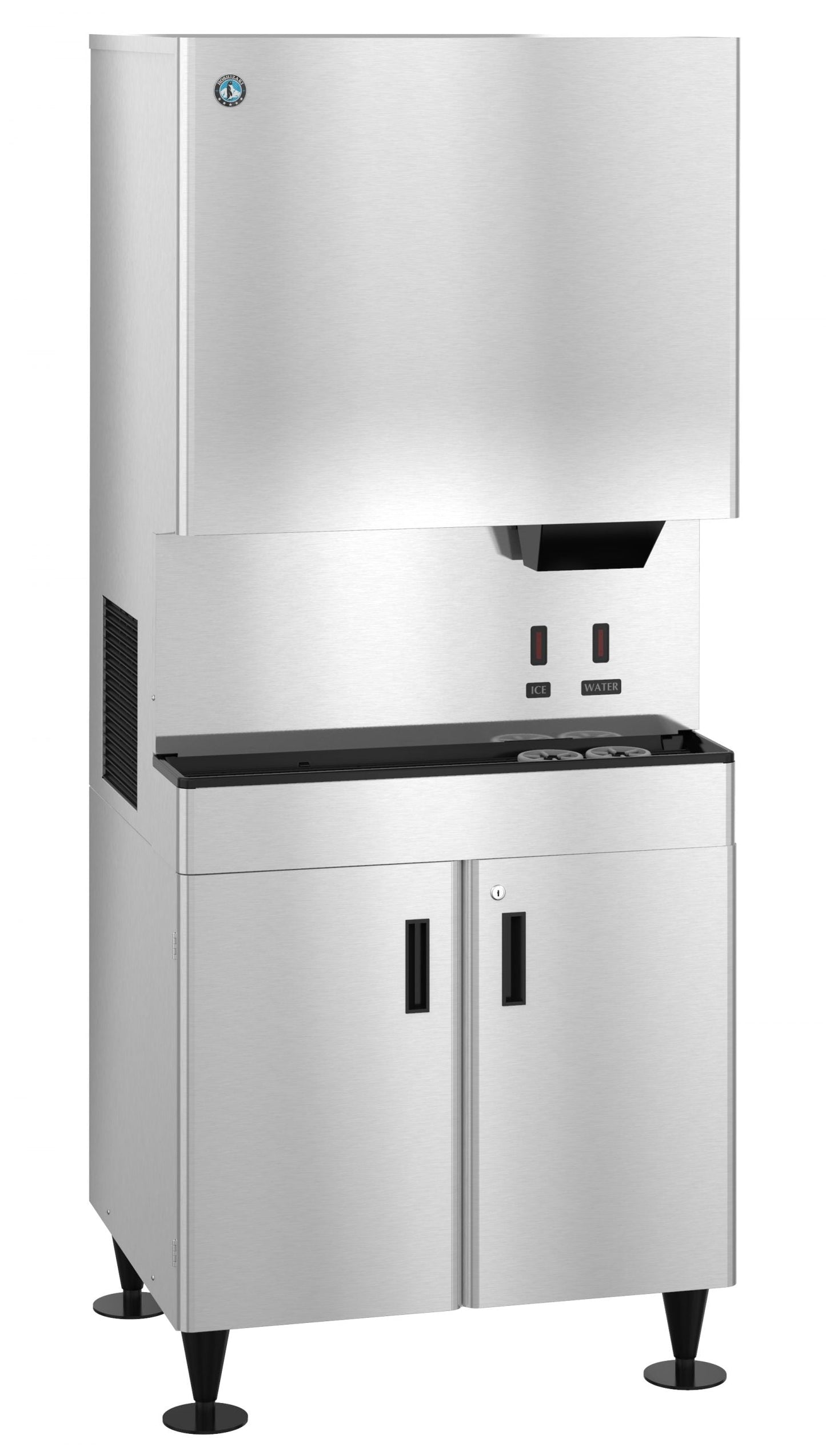

Hoshizaki | 34" Wide Hands Free Air-Cooled Small Cubelet Ice & Water Dispenser w/ Built-In Storage Bin - DCM-752BAH-OS
The DCM-752BAH-OS is capable of producing approximately 708 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 95 lbs of ice* at a time. This Air-cooled icemaker has an LED remote sensor for hands-free operation with opaque containers. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed hands free. This model features Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Features
- Dimensions: 34-1/16″ W x 28-1/2″ D x 48-1/16″ H
- Up to 708 lbs of ice produced per 24 hours
- Up to 95 lbs of built-in storage capacity (3.2ft3)

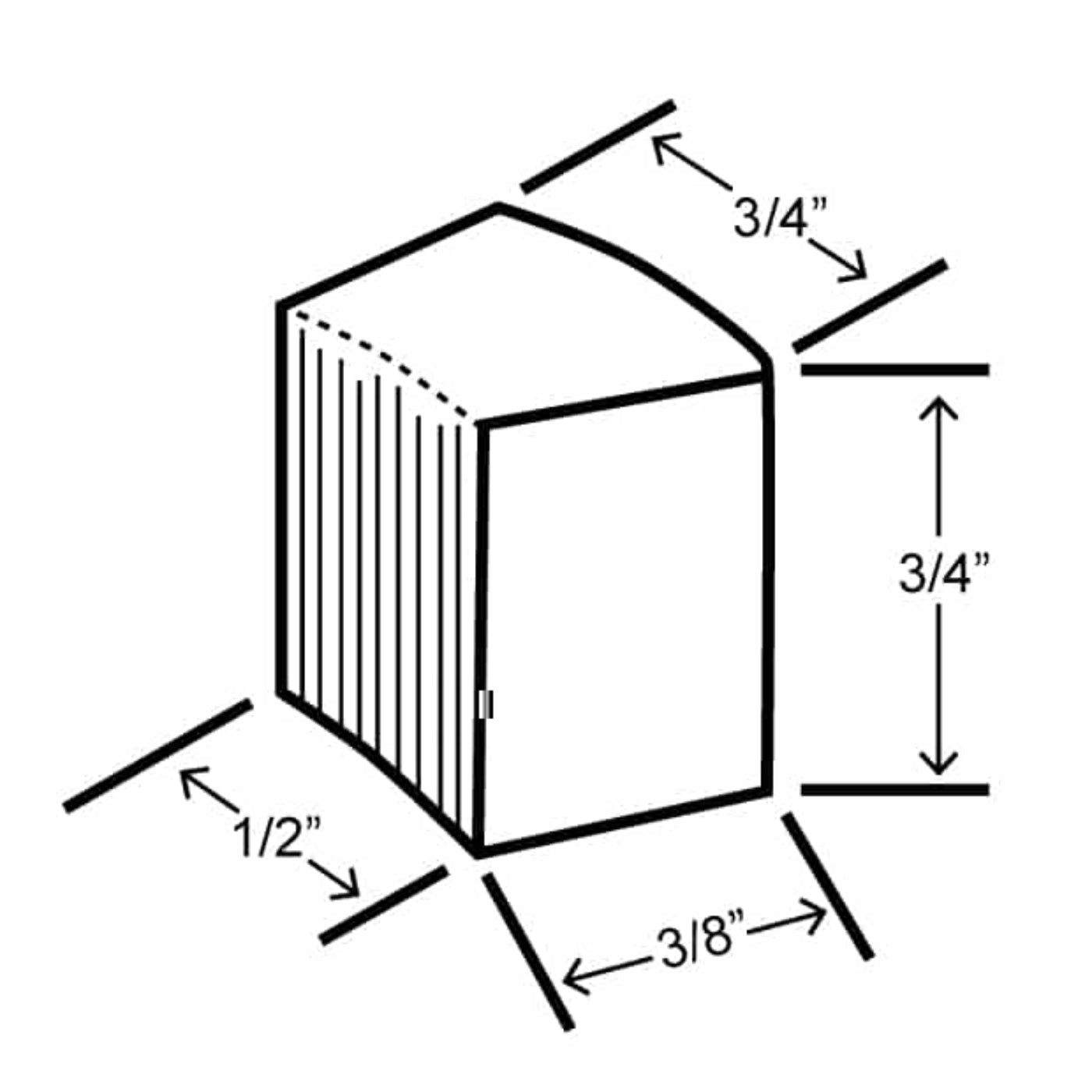

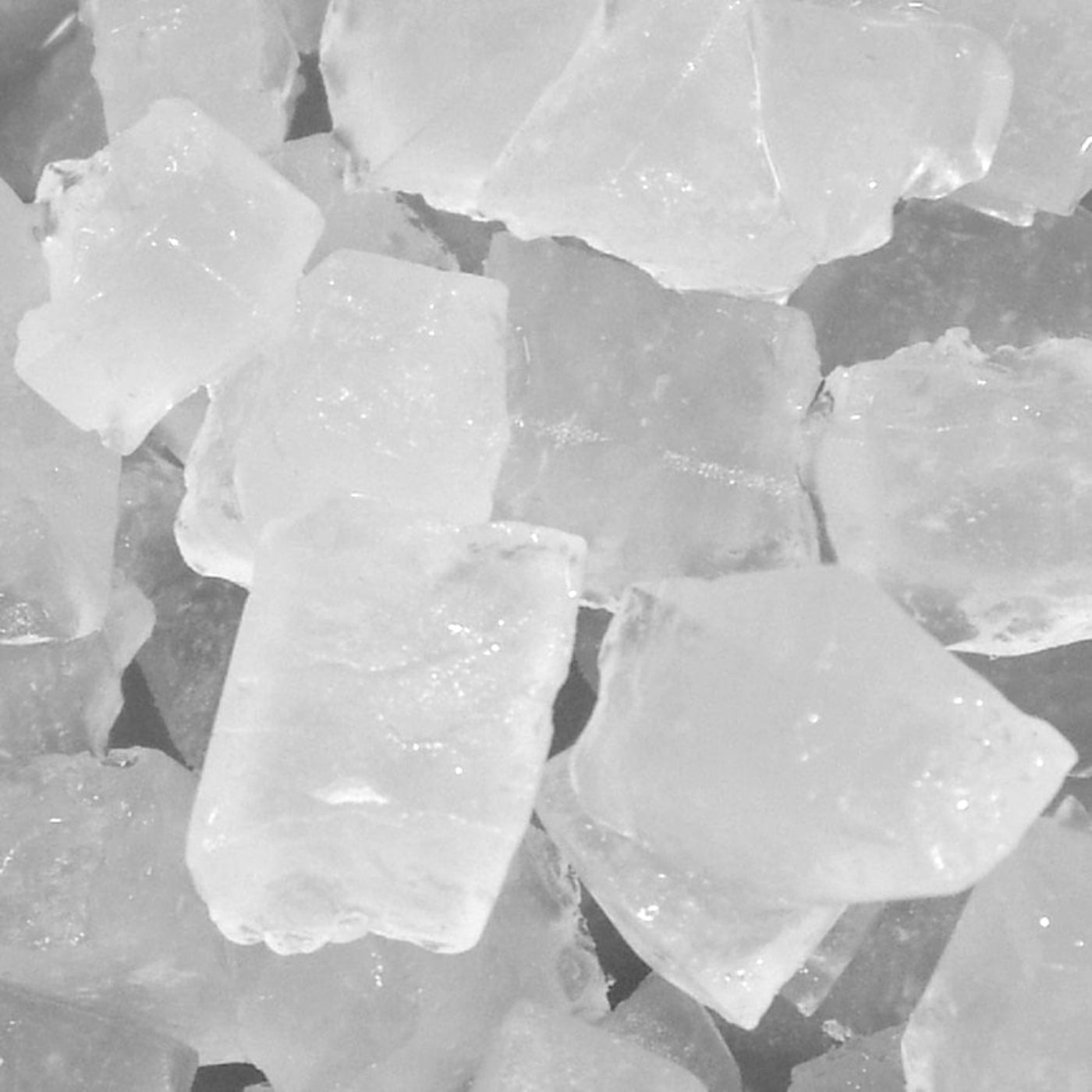

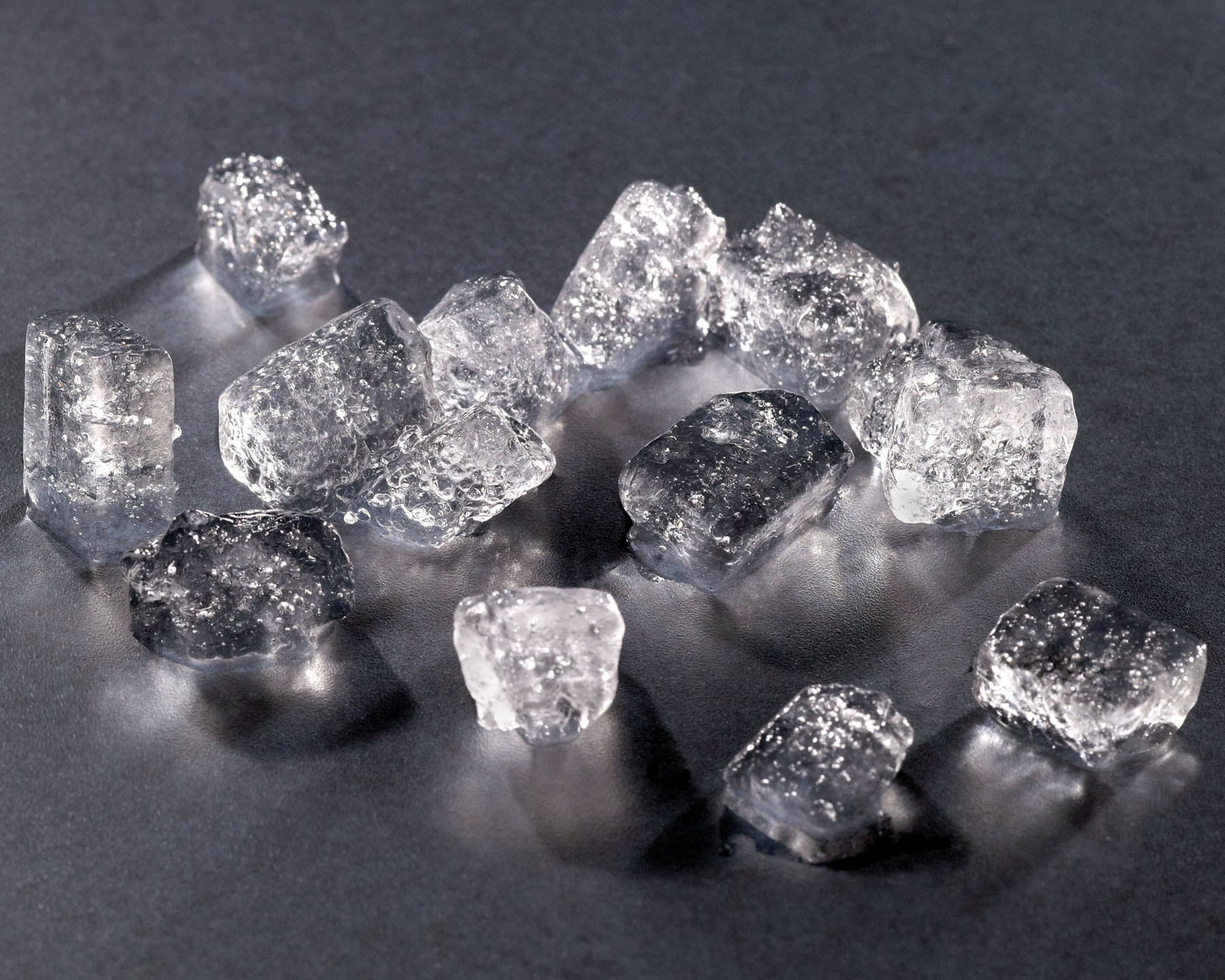

- Produces small cubelet nugget-style ice
- Durable stainless steel exterior

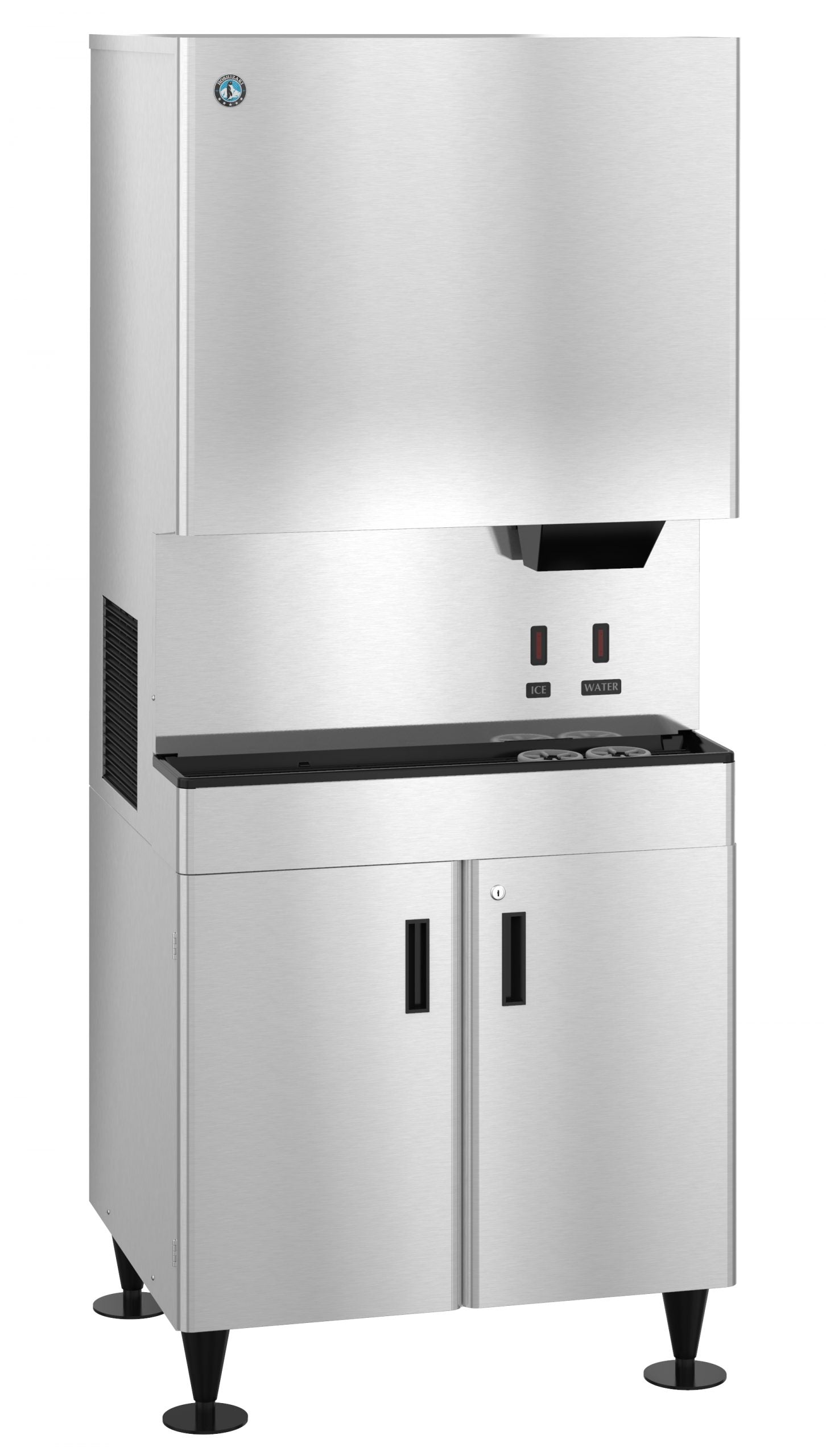

- Place on countertop or optional stand: SD-700, SD-750
- LED remote sensor for hands-free operation with opaque containers
- Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (1 lbs. 10 oz. / 737 g)
- Heat Rejection:6900 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 13 amps (20 Amp Max fuse)
- 5.1 kwh/100 lbs. 90/70
- Single phase, 115v/60/1
- Clean ice and easy maintenance lead to longer unit life span
Specifications
| Brand |
Hoshizaki |
| Model Number |
DCM-752BAH-OS |
| Weight |
345 lbs |
| Width |
34.06" |
| Depth |
28.5" |
| Height |
48.06" |
| Installation Type |
countertop |
| Cooling |
air-cooled |
| Ice Type |
nugget ice |
| Refrigeration |
self-contained refrigeration |
| Dispenser Type |
sensor |
| Dispenses |
Ice & Water |
| Production per 24 hr (Lbs) |
708 |
| Bin storage capacity (Lbs) |
95 |
| Voltage |
115 |
| Phase |
1 |
What Our Experts Think
The Hoshizaki DCM-752BAH-OS is a high-capacity, hands-free ice and water dispenser designed for hygiene and efficiency in commercial settings.
-
Touch-Free Operation – Infrared sensor technology minimizes contamination risks.
-
Small Cubelet Ice – Soft, chewable ice ideal for beverages and healthcare applications.
-
Air-Cooled System – Reduces water usage while maintaining consistent ice production.
-
34” Wide Space-Saving Design – Fits seamlessly into busy environments.
-
Built-In Storage Bin – Ensures convenient, on-demand access to fresh ice.
Q&A
Q: What is the daily ice production capacity?
A: The DCM-752BAH-OS can produce up to 782 lbs of small cubelet ice per day under optimal conditions.
Q: How much ice can the built-in storage bin hold?
A: The integrated storage bin holds up to 95 lbs of ice, ensuring a steady supply.
Q: What type of ice does this dispenser produce?
A: It produces soft, chewable small cubelet ice, which is ideal for beverages, healthcare, and blended drinks.
Q: Does this unit dispense both ice and water?
A: Yes, it is designed to dispense both ice and water for added convenience.
Q: Is this unit hands-free?
A: Yes, the OS (Opti-Serve) model features a touch-free sensor for hygienic, hands-free dispensing.
Q: Is this unit air-cooled?
A: Yes, the DCM-752BAH-OS features an air-cooled system, making it energy-efficient without additional water usage.
Q: What are the dimensions of this dispenser?
A: It is 34 inches wide, making it a high-capacity yet space-efficient solution.
Q: Is professional installation recommended?
A: Yes, a certified technician should install the unit to ensure proper operation, drainage, and performance.
Maintenance Tips
-
Clean & Sanitize Regularly: Use a Hoshizaki-approved cleaner to remove scale buildup and disinfect the dispenser for hygiene.
-
Maintain Air Filters: Keep air filters clean and free from dust to ensure proper airflow and cooling efficiency.
-
Inspect Water Lines & Connections: Check for leaks, blockages, or kinks that could impact water flow and ice production.
-
Sanitize the Storage Bin: Regularly clean and disinfect the built-in bin to prevent mold, bacteria, and ice contamination.
-
Check Hands-Free Sensors: Keep sensors clean and unobstructed to ensure smooth touchless operation.
