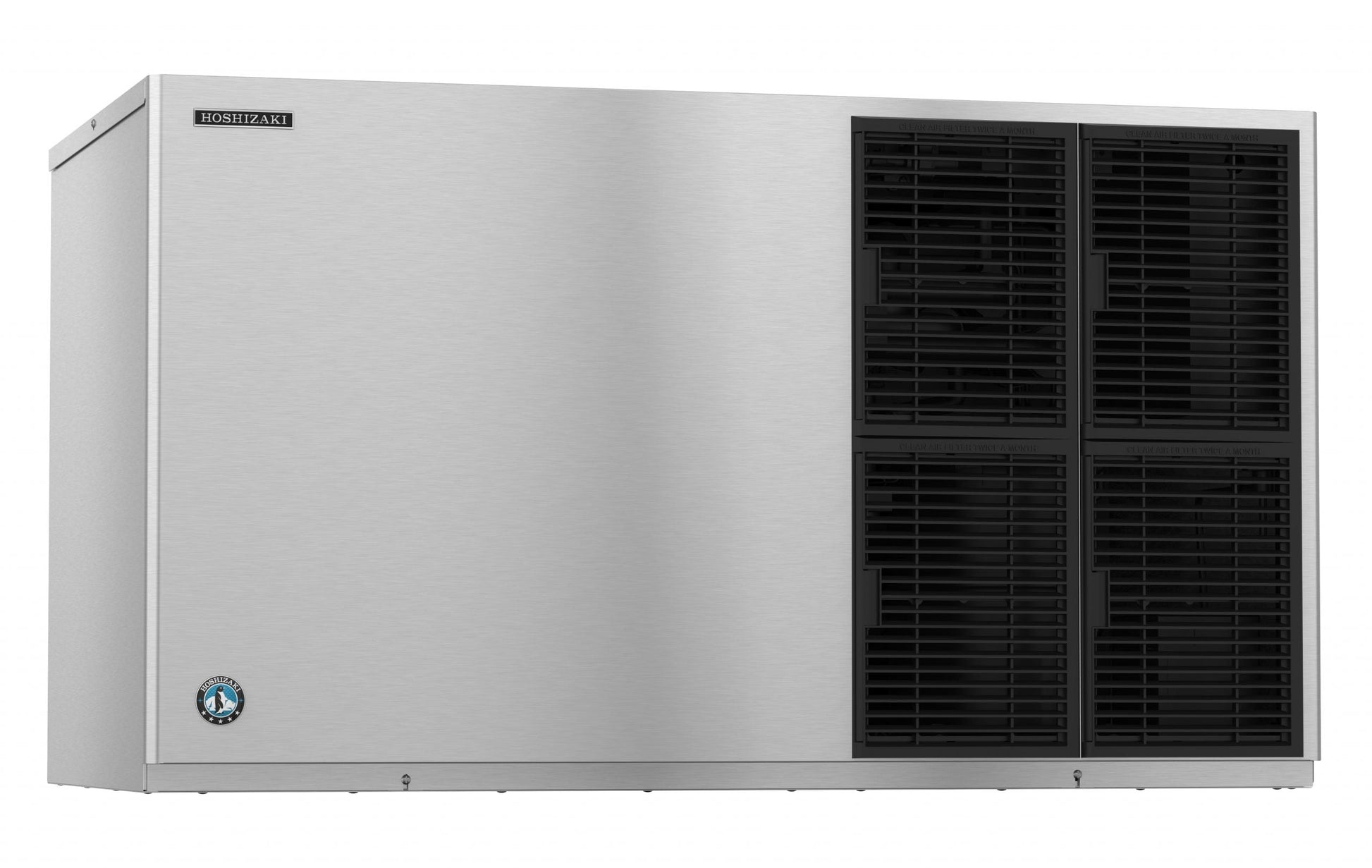

Hoshizaki 48" Wide 3 Phase Air-Cooled Crescent Cuber Ice Maker (Bin Sold Separately) - KM-1601SAJ3
The KM-1601SAJ3 is capable of producing approximately 1513 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Stackable, 3 Phase icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1601SAJ3 requires a Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces KM-1601MAH3.
Features
- Dimensions: 48″ W x 27-3/8″ D x 27-3/8″ H
- Up to 1513 lbs of ice produced per 24 hours
- Stack 2 units for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior

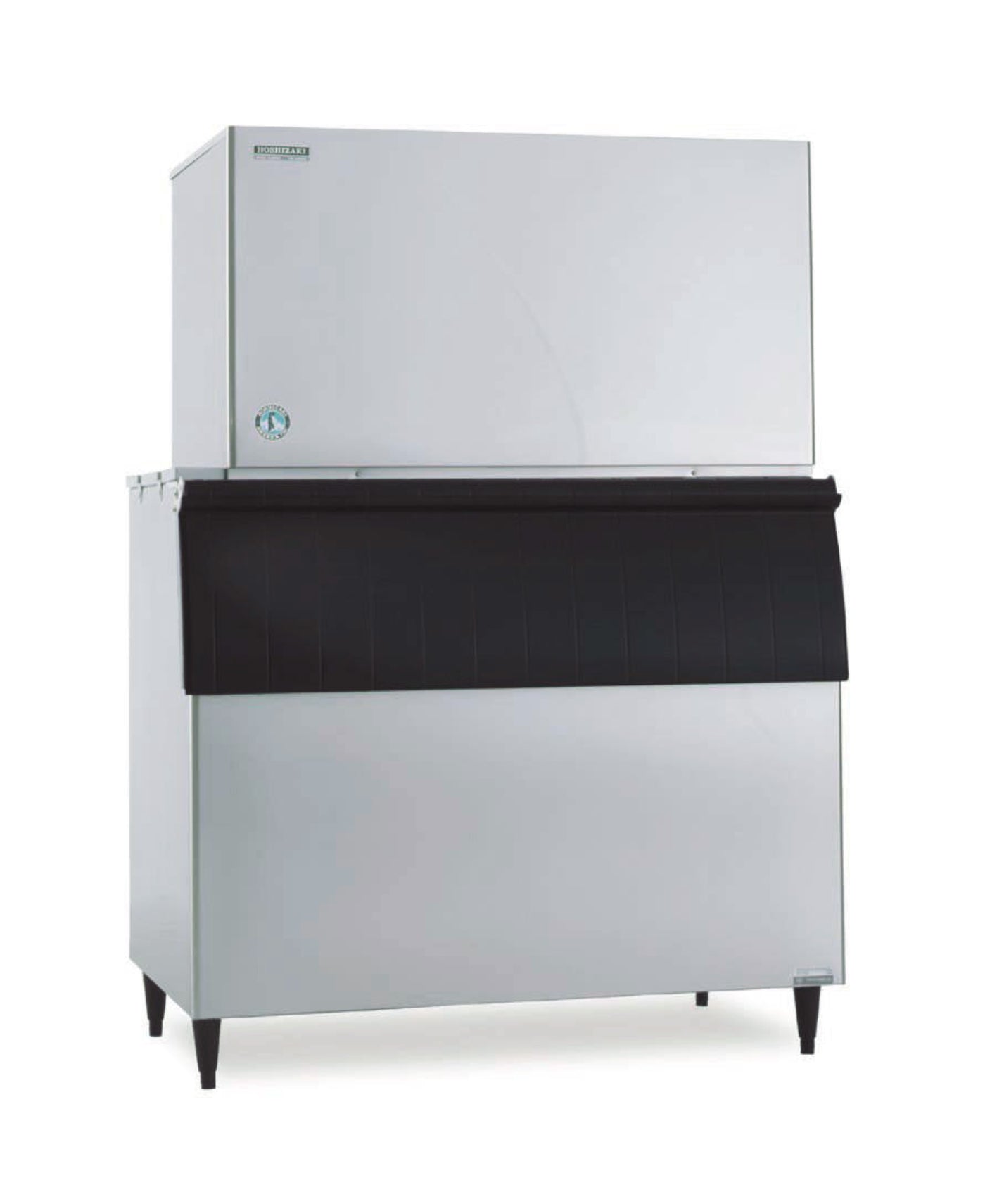

- Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheck™ alert system
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (5 lbs. 1.1 oz. / 2300 g)
- Heat Rejection:16400 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 12.9 amps (20 Amp Max fuse)
- 4.4 kwh/100 lbs.@ 90/70
- Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts & Labor warranty on evaporator.
In the event that proper registration has not been completed, the warranty shall begin from the factory ship date or the distributor sold date, whichever is available. The owner/user is responsible to provide valid proof of installation if the unit is installed more than 180 days from the current registration start date. Regardless of the actual installation date, the warranty start date shall not exceed twenty-four (24) months from the factory ship date.
The obligation of Hoshizaki and the rights and remedies of the owner/user under this warranty are exclusively limited to:
- Repair or replacement, including labor charges, of all parts or assemblies that in Hoshizaki's opinion are defective within three years after the original date of installation.
- Repair or replacement, excluding labor charges, of all parts or assemblies that in Hoshizaki's opinion are defective within the three year warranty period.
-
Repair or replacement, including labor charges, of a KM Series evaporator that in Hoshizaki’s opinion is defective within the five year warranty period.
- Repair or replacement, excluding labor charges, of a KM compressor or air cooled condenser that in the opinion of Hoshizaki within the five year warranty period
The labor warranty shall include standard straight time labor charges at the product location only and shall exclude charges for travel time, mileage or other premium charges. Any labor service required to fulfill the warranty obligation must be performed by a service company qualified and accepted by Hoshizaki and/or the local Hoshizaki distributor.
- External electrical power failure or miswiring to Product for any reason.
- External water supply failure or plumbing problems to the Product for any reason.
- External drain line malfunction.
- Adverse operating conditions as set forth in the owner/user manual for the Product.
- Failure to clean and/or maintain Product as set forth in the owner/user manual for the Product.
All claims for labor or parts must be made through the local Hoshizaki distributor. The defective part for which labor reimbursement is claimed, together with the service invoice, must be returned to the Hoshizaki distributor within fifteen days from the date of service to be eligible for labor and parts warranty coverage. All replacement parts must be approved Hoshizaki parts. Incidents of failure that do not require replacement of a part shall be explained in sufficient detail on the service invoice to identify the failure. All claims shall include the product model number, serial number, original date of installation, and customer identification.
Warranty does not cover standard wear parts which include door gaskets, incandescent bulbs, and fluorescent bulbs. Warranty also does not cover issues caused by improper installation or lack of basic preventative maintenance which includes, for Refrigerators and Freezers, regular cleaning of condenser coils.
The foregoing warranty shall not apply to (1) any part or assembly (a) that has been altered, modified, or changed, (b) that has been subjected to misuse, abuse, neglect or accidents, or (c) any Product on which the serial or model number has been removed or altered, or (2) any Product that has been installed and/or maintained inconsistent with Hoshizaki's technical publications, or (3) any Product that has been installed or is located outside the standard warranty coverage area. Warranty valid in United States, Canada, Puerto Rico, and U.S. territories. Contact factory for warranty in other countries. The five year compressor parts warranty shall not apply when the Product refrigeration system is modified with a condenser, heat reclaimed device, or parts and assemblies other than those manufactured by Hoshizaki unless Hoshizaki has accepted modifications for specific installations in writing.
What Our Experts Think
-
High-capacity air-cooled crescent cuber ice maker engineered for commercial reliability and performance.
-
Produces up to 1,588 lbs. of crescent-shaped ice per day, perfect for restaurants, hotels, and bars.
-
Durable stainless steel exterior ensures longevity and easy cleaning.
-
Energy-efficient 3-phase motor delivers consistent ice output while reducing operating costs.
-
Bin sold separately — compatible with multiple Hoshizaki storage bin options for flexible installation.
Q&A
-
Q: How much ice does it produce daily?
A: Up to 1,588 lbs. of crescent ice in 24 hours under standard conditions.
-
Q: What type of ice does it make?
A: Produces crescent-shaped cubes, ideal for drinks and beverage service.
-
Q: Does it include a storage bin?
A: No, the ice bin is sold separately for customizable setup.
-
Q: What cooling method does it use?
A: Air-cooled system for energy-efficient operation and easy maintenance.
Maintenance Tips
-
Clean and sanitize ice-making components regularly per Hoshizaki’s recommendations.
-
Keep air filters and condenser coils free of dust for maximum efficiency.
-
Inspect water lines and connections monthly to prevent blockages or leaks.
-
Use only approved cleaning agents to protect machine components.
-
Schedule professional maintenance twice per year to ensure consistent ice quality.
