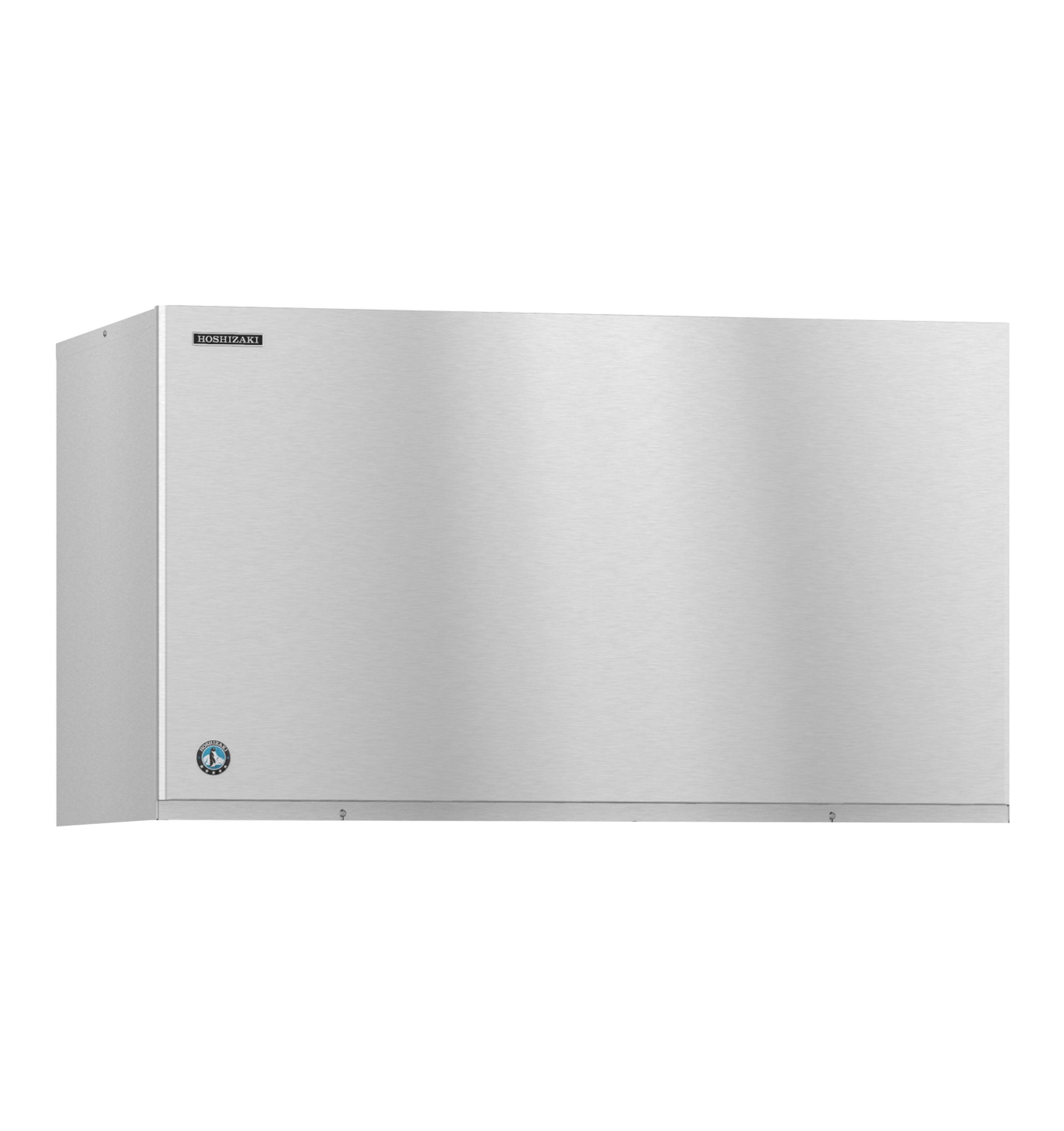

Hoshizaki 48" Wide 3 Phase Remote-Cooled Crescent Cuber Ice Maker (Bin & Condenser Sold Separately) - KM-1301SRJZ3

Hoshizaki 48" Wide 3 Phase Remote-Cooled Crescent Cuber Ice Maker (Bin & Condenser Sold Separately) - KM-1301SRJZ3

The KM-1301SRJZ3 is capable of producing approximately 1433 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-14FZ icemaker features a CycleSaver design and includes the EverCheck alert system making the unit energy efficient and simple to maintain. The KM-1301SRJZ3 requires a Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.

Features

• Dimensions: 48″ W x 27-3/8″ D x 27-3/8″ H
• Up to 1433 lbs of ice produced per 24 hours
• Stack 2 units for 2x the ice production
• Produces crescent shaped ice cubes
• Durable and tamper proof stainless steel exterior

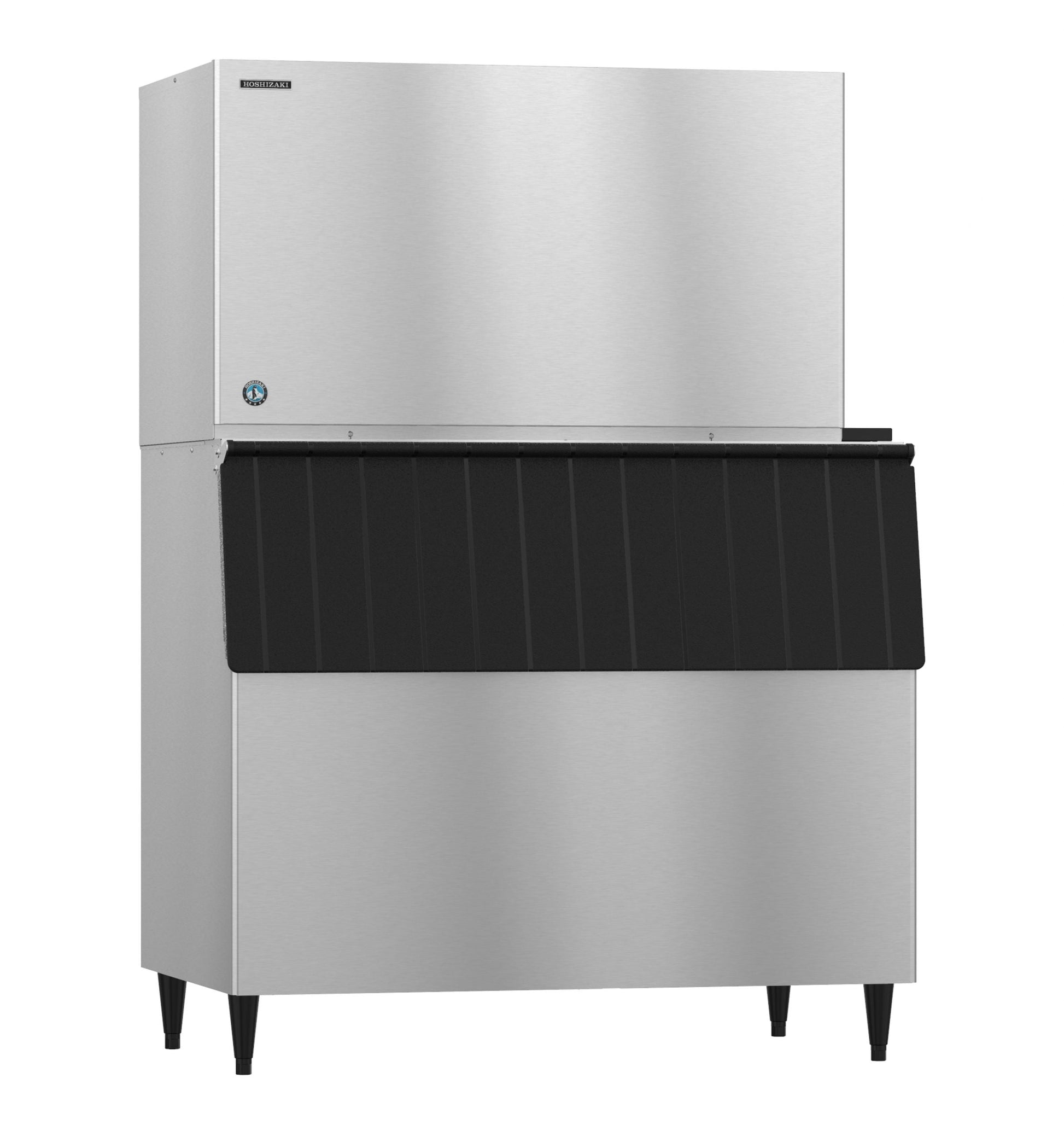

• Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
• EverCheck alert system
• CycleSaver design
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (5 lbs. 15.2 oz. / 2700 g)
• Heat Rejection:18800 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 12.8 amps (20 Amp Max fuse)
• 3.83 kwh/100 lbs. 90/70
• Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included
• ENERGY STAR qualified

Specifications

What Our Experts Think

The Hoshizaki KM-1301SRJZ3 48" Wide 3-Phase Remote-Cooled Crescent Cuber Ice Maker is a high-capacity, energy-efficient solution for demanding commercial environments. Here’s why it excels:

• High Ice Production: Generates up to 1,353 lbs. of crescent-shaped ice daily, perfect for large restaurants, hotels, and catering businesses.
• Remote-Cooled System: Moves heat and noise away from the workspace, improving efficiency and comfort.
• Three-Phase Power Efficiency: Designed for commercial electrical systems, ensuring consistent performance and reduced energy consumption.
• Space-Saving 48" Wide Modular Design: Pairs with compatible ice storage bins (sold separately) to accommodate various business needs.
• Durable Stainless Steel Construction: Built to withstand heavy use in busy food service environments.
• Energy & Water Efficiency: Features Hoshizaki’s advanced ice-making technology for optimized resource use and lower operating costs.

Q&A

Q: What is the Hoshizaki KM-1301SRJZ3 Ice Maker designed for?
A: The KM-1301SRJZ3 is a 48-inch-wide, 3-phase, remote-cooled commercial ice maker, ideal for high-volume businesses such as restaurants, hotels, and healthcare facilities that require consistent ice production with minimal heat and noise.

Q: How much ice does the KM-1301SRJZ3 produce?
A: It produces up to 1,353 lbs. of crescent-shaped ice per day, making it perfect for operations with high ice demands.

Q: What type of ice does this machine produce?
A: It produces crescent-shaped ice cubes, which are harder, slow-melting, and designed to optimize storage while reducing drink dilution.

Q: Does this ice maker include a storage bin?
A: No, the storage bin and remote condenser are sold separately, allowing businesses to select the appropriate setup based on their needs.

Q: What are the benefits of a remote-cooled system?
A: A remote-cooled system places the condenser away from the ice maker, reducing heat output and noise in the work area while improving energy efficiency in warm environments.

Q: Is the Hoshizaki KM-1301SRJZ3 new or refurbished?
A: The Hoshizaki KM-1301SRJZ3 is a brand-new commercial ice maker, designed for efficient, large-scale ice production.

Maintenance Tips

• Clean the Exterior: Wipe the stainless steel surface regularly with a damp cloth and mild detergent to maintain a polished appearance and prevent dirt buildup.
• Inspect & Clean Air Filters: Check and clean air filters monthly to ensure proper airflow and prevent overheating.
• Sanitize Ice-Making Components: Clean and sanitize the evaporator, water distribution system, and ice bin (sold separately) every 3-6 months using Hoshizaki-approved cleaning solutions.
• Check Water Supply & Filter: Regularly inspect water lines for leaks or blockages. Replace water filters as recommended to prevent mineral buildup and maintain ice quality.
• Monitor Ice Quality: If ice appears smaller or cloudy, check for scale buildup, water flow issues, or condenser inefficiencies. Descale as necessary.
• Maintain the Remote Condenser: Keep the remote condenser (sold separately) free of dirt and debris to optimize heat dissipation and cooling performance.
• Schedule Professional Maintenance: Arrange annual servicing with a qualified technician to inspect refrigerant levels, electrical connections, and overall system efficiency.
